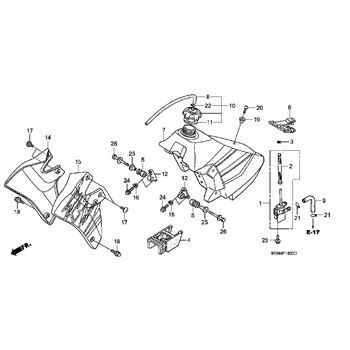

Fuel Tank replacement parts for 2000 Honda XR650R

OEM Parts Honda 2000 Honda XR650R Fuel Tank

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	PETCOCK ASSEMBLY Part #: 16950-MBN-671 Required per assembly: 1 $93.44 $77.89 - + Add to cart
002	SCREEN SET Part #: 16952-KCY-671 Required per assembly: 1 $34.18 $28.49 - + Add to cart
003	O-RING (11.8X3.55) Part #: 16997-467-000 Required per assembly: 1 $3.18 $2.96 - + Add to cart
004	RUBBER, TANK, SETTING Part #: 17506-MBN-670 Required per assembly: 1 Not Available
005	RUB, TANK, MOUNTING Part #: 17508-GBF-830 Required per assembly: 2 $6.86 $6.24 - + Add to cart
006	BAND, RR., TANK Part #: 17516-GBF-830 Required per assembly: 1 $34.18 $27.67 - + Add to cart
007	TANK, FUEL, (TYPE1) Part #: 17520-MBN-670ZA Required per assembly: 1 Not Available
008	TUBE Part #: 17521-429-000 Required per assembly: 1 $8.38 $7.29 - + Add to cart
009	TUBE, C, FUEL Part #: 17536-MBN-670 Required per assembly: 1 $3.98 $3.62 - + Add to cart
010	CAP, ASSEMBLY, FUEL, TANK Part #: 17620-KT1-780 Required per assembly: 1 $36.89 $30.75 - + Add to cart
011	GASKET, FUEL, CAP Part #: 17624-KT1-781 Required per assembly: 1 $5.78 $5.18 - + Add to cart
012	BRAKET, FR., FUEL, TANK Part #: 17634-KZ3-860 Required per assembly: 2 $16.67 $14.04 - + Add to cart
014	SHROUD SET (TYPE1) Part #: 19071-MBN-670ZA Required per assembly: 1 Not Available
015	SHROUD SET (TYPE1) Part #: 19072-MBN-670ZA Required per assembly: 1 Not Available
016	COLLAR Part #: 84706-415-000 Required per assembly: 4 $3.38 $3.07 - + Add to cart
017	SCREW, SPECIAL, (5MM) Part #: 90104-KZ3-B00 Required per assembly: 2 $5.28 $4.80 - + Add to cart
018	BOLT, FLANGE, (6MM) Part #: 90111-162-000 Required per assembly: 2 $3.91 $3.55 - + Add to cart
019	COLLAR Part #: 90522-KF0-000 Required per assembly: 1 $5.39 $4.85 - + Add to cart
020	SCREW, PAN, (6X20) Part #: 93500-06020-0A Required per assembly: 1 $2.06 $1.90 - + Add to cart
021	CLIP, TUBE, (B12) Part #: 95002-02120 Required per assembly: 2 $2.98 $2.77 - + Add to cart
022	CLIP, TUBE, (C9) Part #: 95002-50000 Required per assembly: 1 $2.32 $2.15 - + Add to cart
023	BOLT, FLANGE, (6X14) Part #: 96001-06014-00 Required per assembly: 6 $2.79 $2.60 - + Add to cart
024	BOLT, FLANGE, (6X18) Part #: 96001-06018-00 Required per assembly: 2 $2.79 $2.60 - + Add to cart
025	COLLAR, TANK, SETTING Part #: 17509-KS6-700 Required per assembly: 2 $10.57 $9.07 - + Add to cart
026	BOLT-WASHER (6X40) Part #: 93404-06040-00 Required per assembly: 2 $2.30 $2.13 - + Add to cart
