Engine Cover(S) replacement parts for 2000 Kawasaki KDX200 (KDX200-H6)

OEM Parts Kawasaki 2000 Kawasaki KDX200 (KDX200 H6) Engine Cover(S)

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

130	BOLT FLANGED Part #: 130CD0520 Required per assembly: 2 Not Available
132	BOLT-FLANGED-SMALL, 6X25 Part #: 132BD0625 Required per assembly: 8 $5.54 $4.31 - + Add to cart
132A	BOLT-FLANGED-SMALL, 6X30 Part #: 132BD0630 Required per assembly: 13 $3.78 $2.94 - + Add to cart
132B	BOLT-FLANGED-SMALL, 6X40 Part #: 132BD0640 Required per assembly: 2 $5.39 $4.20 - + Add to cart
132C	BOLT-FLANGED-SMALL, 6X80 Part #: 132BD0680 Required per assembly: 1 $6.41 $4.94 - + Add to cart
132D	BOLT-FLANGED-SMALL Part #: 132BD0810 Required per assembly: 1 $4.80 $3.77 - + Add to cart
220	SCREW-PAN-HEAD 3X6 Part #: 220AA0306 Required per assembly: 1 Note: Sold in multiples of 5 only $0.70 $0.63 - + Add to cart
600	BALL-STEEL, 5/16" Part #: 600A1000 Required per assembly: 4 Note: Sold in multiples of 10 only $0.79 $0.69 - + Add to cart
601	BEARING-BALL, #6201LUC3/2A Part #: 601B6201U Required per assembly: 1 $19.75 $16.47 - + Add to cart
610	ROLLER, 4X8 Part #: 610A0408 Required per assembly: 2 $4.43 $3.49 - + Add to cart
610A	ROLLER, 6X12 Part #: 610A0612 Required per assembly: 2 $4.82 $3.79 - + Add to cart
670	"O", RING, 6M/M Part #: 670B1506 Required per assembly: 1 Note: Sold in multiples of 10 only $1.34 $1.03 - + Add to cart
11009	GASKET, ELBOW Part #: 11009-1952 Required per assembly: 1 $5.68 $4.40 - + Add to cart

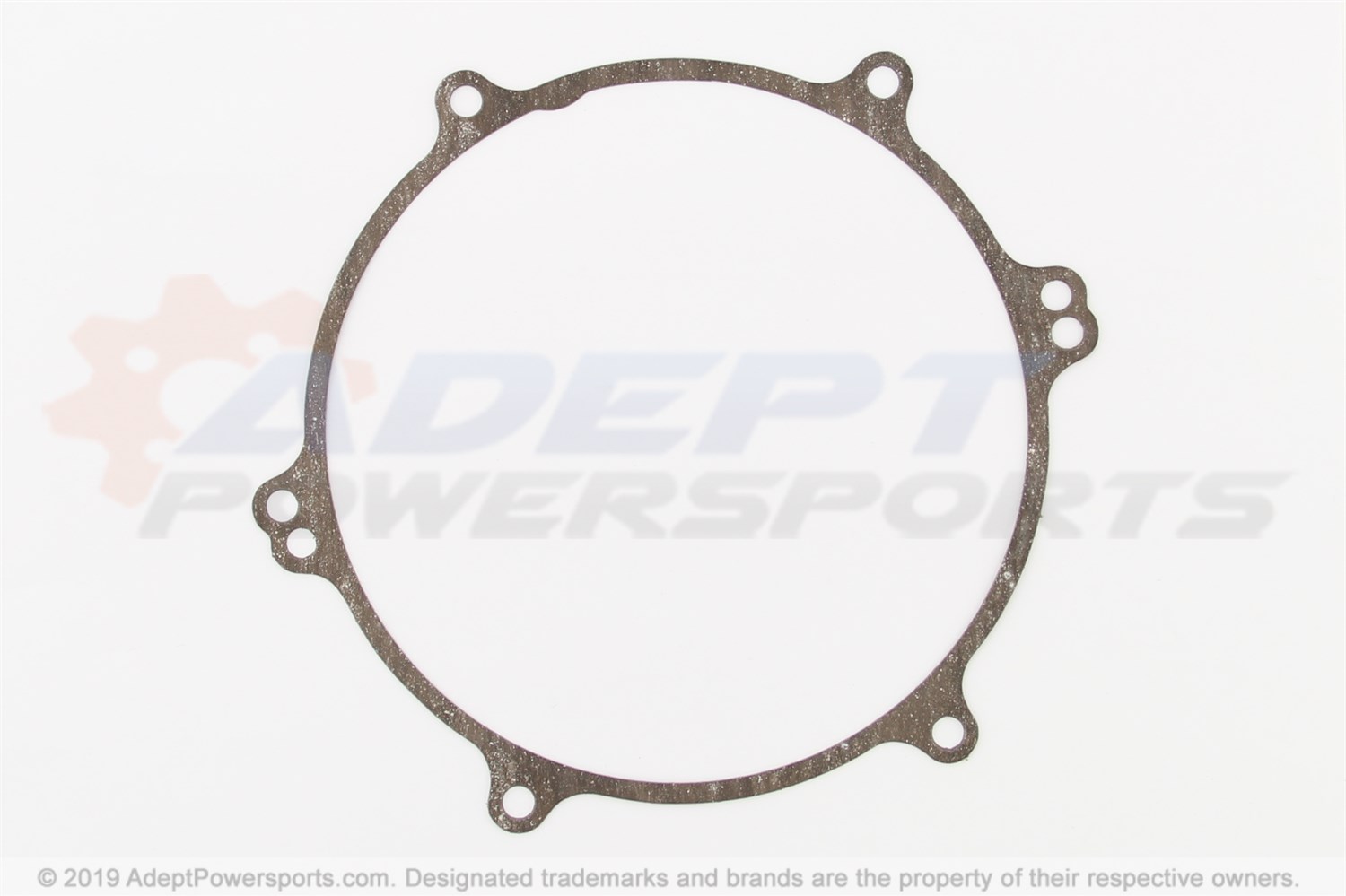

11009A	GASKET, CLUTCH, COVER Part #: 11009-1996 Required per assembly: 1 $21.16 $17.71 - + Add to cart
11009B	GASKET, GENERATOR, COVER Part #: 11009-1997 Required per assembly: 1 $15.62 $13.11 - + Add to cart
11009C	GASKET, WATER, PUMP, COVER Part #: 11061-0123 Required per assembly: 1 $9.15 $7.86 - + Add to cart
11060	GASKET, CLUTCH, COVER Part #: 11060-1630 Required per assembly: 1 $20.66 $17.31 - + Add to cart
12053	GUIDE-CHAIN Part #: 12053-1228 Required per assembly: 1 Not Available
13070	GUIDE Part #: 13070-1122 Required per assembly: 1 Not Available
13234	SHAFT-COMP, PUMP Part #: 13234-1091 Required per assembly: 1 Not Available
13234A	SHAFT-COMP, GOVERNOR Part #: 13234-1101 Required per assembly: 1 Not Available
13236	LEVER-COMP, GOVERNOR Part #: 13236-1260 Required per assembly: 1 $11.38 $9.68 - + Add to cart
14026	COVER-CHAIN Part #: 14026-1159 Required per assembly: 1 $26.04 $21.82 - + Add to cart
14031	COVER-GENERATOR Part #: 14031-1231 Required per assembly: 1 $70.06 $64.81 - + Add to cart
14032	COVER-CLUTCH, OUT Part #: 14032-1382 Required per assembly: 1 Not Available
14032A	COVER-CLUTCH Part #: 14032-1418 Required per assembly: 1 Not Available
16085	GEAR Part #: 16085-1273 Required per assembly: 1 Not Available
16115	FILLER, OIL Part #: 16115-018 Required per assembly: 1 $10.85 $9.25 - + Add to cart
16142	COVER-PUMP Part #: 16142-1090 Required per assembly: 1 Not Available
49006	BOOT, GOVERNOR, SHAFT Part #: 49006-1291 Required per assembly: 1 Not Available
49063	SEAL-MECHANICAL, WATER Part #: 49063-1055 Required per assembly: 1 $20.44 $17.19 - + Add to cart
49111	HOLDER-GOVERNOR WEIGHT Part #: 49111-1051 Required per assembly: 1 Not Available
49114	SHAFT-GOVERNOR Part #: 49114-1058 Required per assembly: 1 $33.01 $30.60 - + Add to cart
52005	GAUGE, OIL, LEVEL Part #: 52005-0019 Required per assembly: 1 $15.12 $12.71 - + Add to cart
52014	ELBOW Part #: 52014-1067 Required per assembly: 1 Not Available
56030	LABEL, CLUTCH, COVER, 0.70L Part #: 56030-1150 Required per assembly: 1 Not Available
59051	GEAR-SPUR, GOVERNOR, 18T Part #: 59051-1189 Required per assembly: 1 Not Available
59256	IMPELLER Part #: 59256-1063 Required per assembly: 1 $33.92 $31.41 - + Add to cart
92015	NUT, 6MM Part #: 92015-1365 Required per assembly: 1 $5.14 $4.02 - + Add to cart
92015A	NUT, 6MM Part #: 92015-1572 Required per assembly: 1 $4.23 $3.34 - + Add to cart
92022	WASHER, 8.2X14X1.0 Part #: 92022-1488 Required per assembly: 1 $5.05 $3.94 - + Add to cart
92022A	WASHER, 6.2X11X1 Part #: 92022-304 Required per assembly: 1 $3.75 $2.91 - + Add to cart
92026	SPACER, 15X28X1 Part #: 92026-1238 Required per assembly: 2 $8.72 $7.51 - + Add to cart
92027	COLLAR, 15.2X17X4 Part #: 92027-1839 Required per assembly: 1 $12.59 $10.65 - + Add to cart
92043	PIN, 3X12.8 Part #: 92043-1256 Required per assembly: 1 $4.63 $3.63 - + Add to cart
92043A	PIN, 2X9.8 Part #: 92043-1293 Required per assembly: 1 $6.68 $5.14 - + Add to cart
92043B	PIN, 3X19.8 Part #: 92043-1319 Required per assembly: 1 $4.23 $3.34 - + Add to cart
92045	BEARING-BALL, 608MC3 Part #: 92045-1305 Required per assembly: 1 Not Available
92046	BEARING-NEEDLE, AXK1102 Part #: 92046-1052 Required per assembly: 2 $14.83 $12.47 - + Add to cart
92046A	BEARING-NEEDLE Part #: 92046-0042 Required per assembly: 1 $15.63 $13.11 - + Add to cart
92049	OIL, SEAL, SB18307 Part #: 92049-013 Required per assembly: 1 $14.72 $12.39 - + Add to cart
92049A	SEAL-OIL, SDO8144 Part #: 92049-1207 Required per assembly: 1 $10.00 $8.56 - + Add to cart
92049B	SEAL-OIL, SC12, 28.555 Part #: 92049-1259 Required per assembly: 1 $9.24 $7.94 - + Add to cart
92049C	SEAL-OIL Part #: 92049-1262 Required per assembly: 1 $6.74 $5.19 - + Add to cart
92055	RING-O, 5.5X1.5 Part #: 92055-1343 Required per assembly: 1 Note: Sold in multiples of 5 only $0.70 $0.63 - + Add to cart
92081	SPRING, GOVERNOR Part #: 92081-1769 Required per assembly: 1 Not Available
92143	COLLAR Part #: 92143-1001 Required per assembly: 1 Not Available
92150	BOLT, SOCKET, 4X8 Part #: 92150-1888 Required per assembly: 2 $3.42 $2.42 - + Add to cart
