Piston And Crankshaft - A00ba38ca replacement parts for 2000 Polaris Scrambler 2X4 (A00BA38CA)

OEM Parts Polaris 2000 Polaris Scrambler 2X4 (A00BA38CA) Piston And Crankshaft - A00ba38ca

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RING, PISTON, (.25MM, O/S), , (0.25/.010MM, O/S) Part #: 3084738 Required per assembly: 2 Note: RING,PISTON,(.25MM O/S) (0.25"/.010mm O/S) Sold in multiples of 2 only Currently Not Available

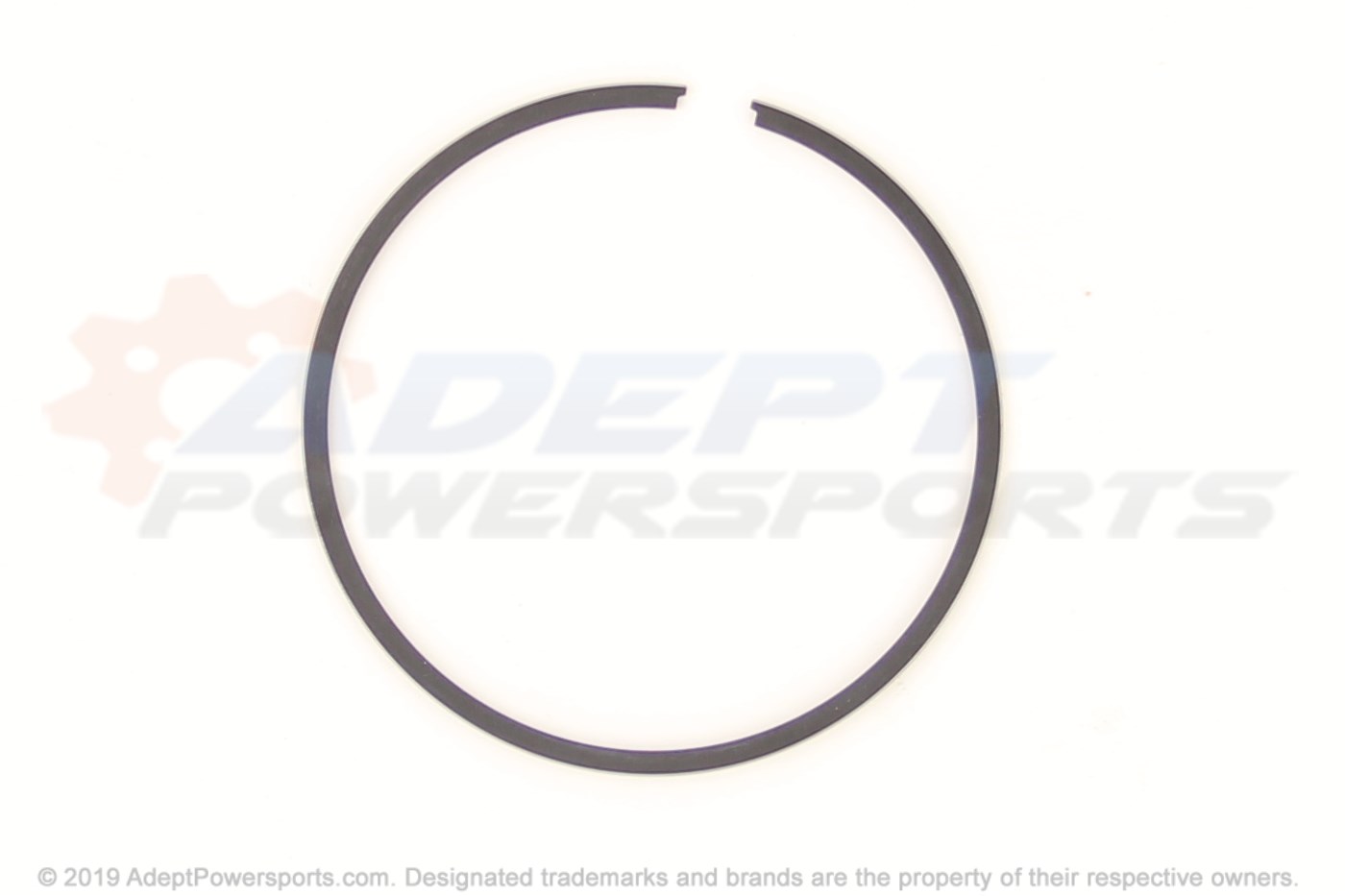

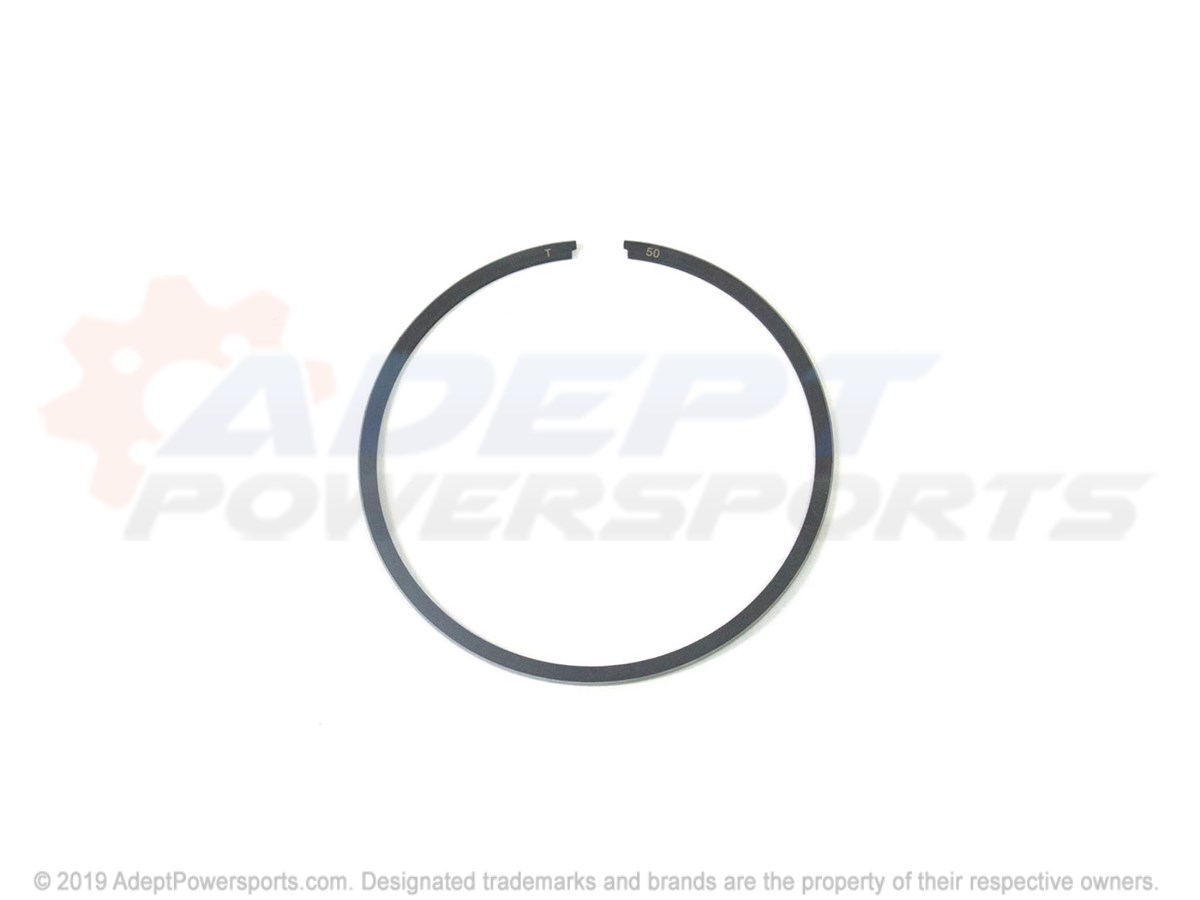

1	RING, PISTON, (.50MM, O/S), (0.50/.020MM, O/S) Part #: 3084739 Required per assembly: 2 Note: RING,PISTON,(.50MM O/S) (0.50"/.020mm O/S) Currently Not Available
1	RING, PISTON, STD., (STD) Part #: 3084737 Required per assembly: 2 Currently Not Available
2	CLIP, (PISTON, PIN) Part #: 3084167 Required per assembly: 2 Note: CLIP,(10) $7.99 $4.60 - + Add to cart
3	PIN, PISTON Part #: 3083838 Required per assembly: 1 Currently Not Available
4	PISTON SET (STD) (STD.) Part #: 3085886 Required per assembly: 1 Note: PISTON SET (STD) (Std) Currently Not Available

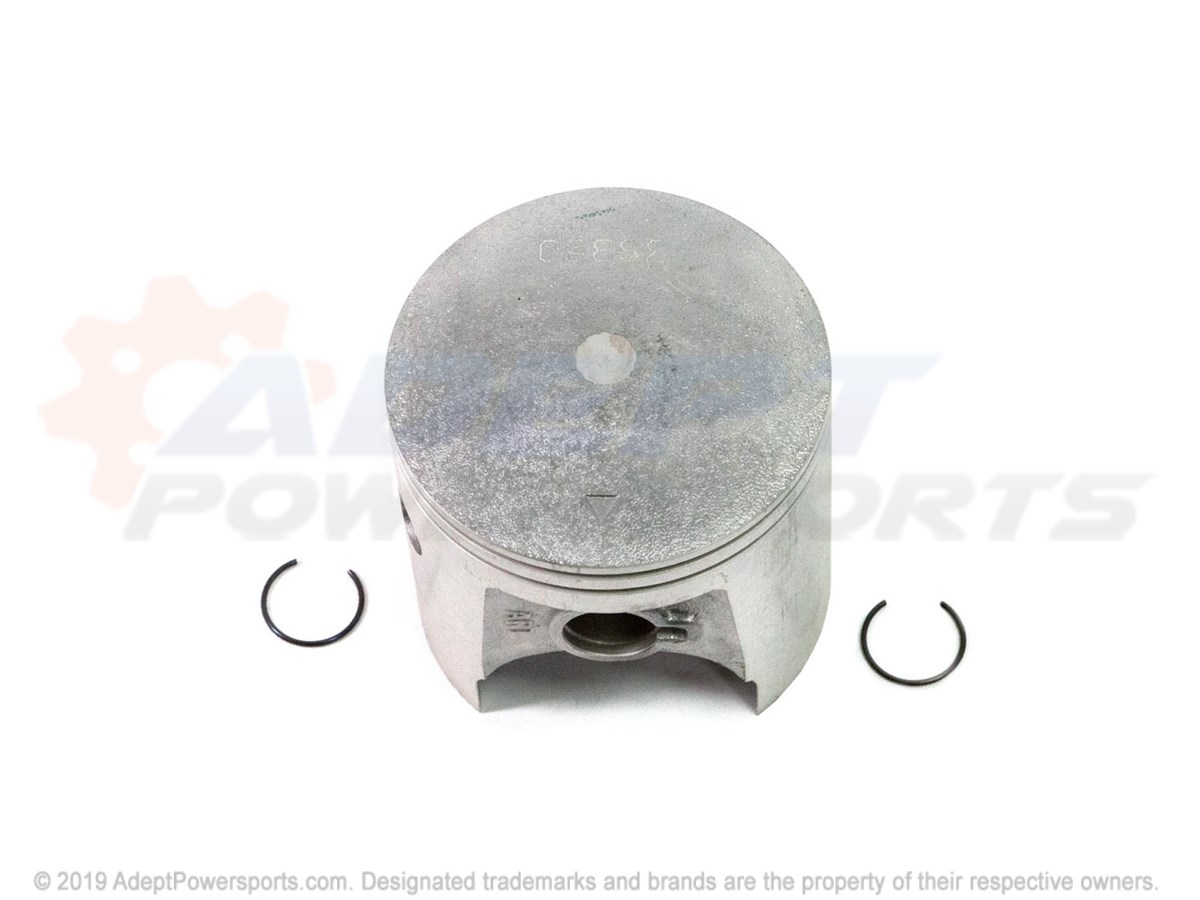

4	PISTON SET (0.50 O/S) (0.50MM/.020 O/S) Part #: 3085888 Required per assembly: 1 Note: PISTON SET (0.50 O/S) (0.50"/.020mm O/S) (See Footnote) Currently Not Available

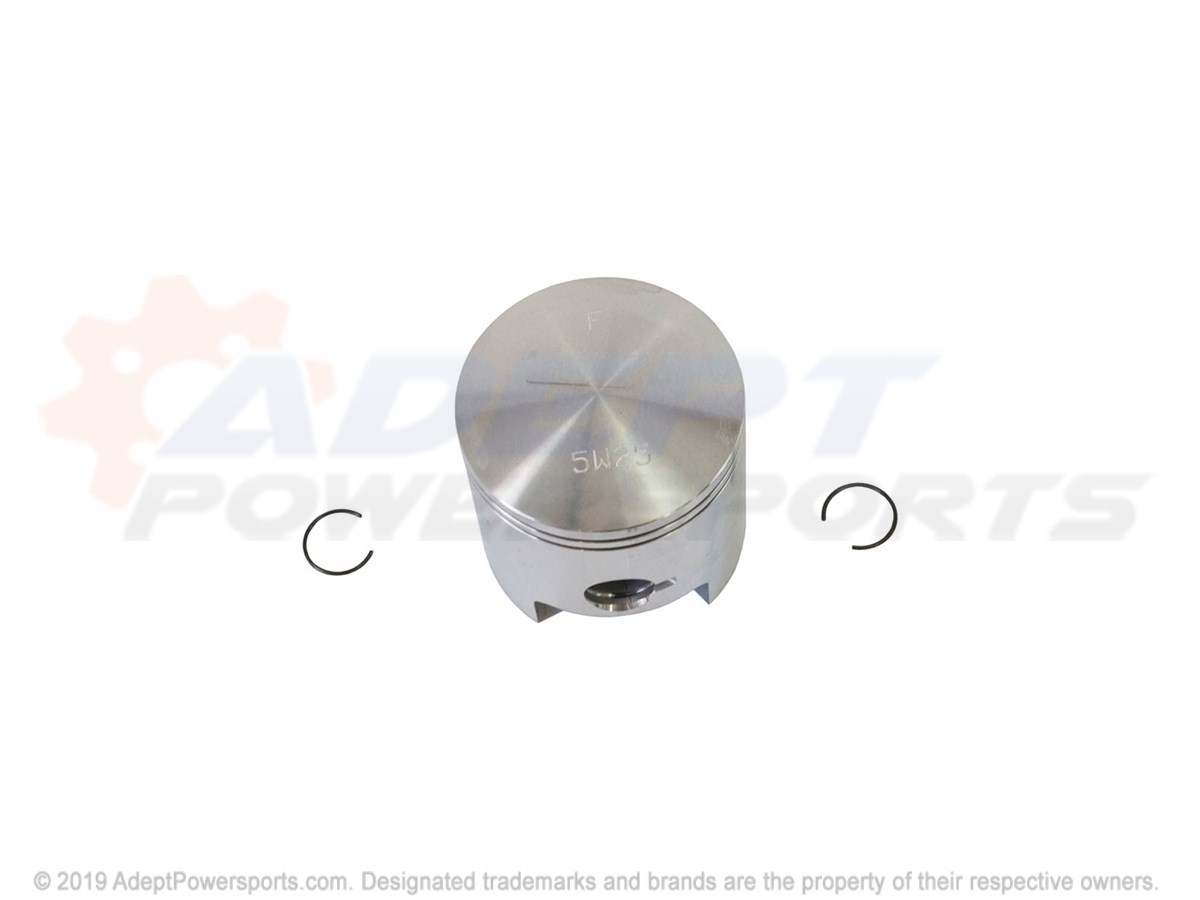

4	PISTON SET (0.25 O/S) (0.25MM/.010 O/S) Part #: 3085887 Required per assembly: 1 Note: PISTON SET (0.25 O/S) (0.25"/.010mm O/S) Currently Not Available
5	BALANCER Part #: 3087042 Required per assembly: 1 Note: BALANCER Substituted by 3087042 (Incl.6, 7) Currently Not Available
6	PLATE Part #: 3086768 Required per assembly: 1 Currently Not Available
7	BOLT, FLANGE Part #: 3086769 Required per assembly: 2 Currently Not Available
8	KEY WOODRUFF Part #: 3081543 Required per assembly: 2 Currently Not Available
9	GEAR, DRIVE, , (DRIVE) Part #: 3084156 Required per assembly: 1 Note: GEAR, DRIVE Currently Not Available
10	WASHER-GUIDE Part #: 3086764 Required per assembly: 1 Currently Not Available
11	O RING Part #: 3084160 Required per assembly: 2 Currently Not Available
12	COLLAR Part #: 3086763 Required per assembly: 2 Currently Not Available
13	NUT, SLIT Part #: 3086762 Required per assembly: 1 Note: NUT, SLIT Substituted by 3086762 Currently Not Available
14	WASHER Part #: 3083904 Required per assembly: 1 Currently Not Available
15	LOCKNUT Part #: 3083905 Required per assembly: 1 Currently Not Available
16	CRANKSHAFT ASM. * Part #: 3084776 Required per assembly: 1 Note: CRANKSHAFT ASM,(350L) Substituted by 3084776 (Incl. 17, 18, 20, 21, 23) Currently Not Available
16	CRANKSHAFT, #1, MAG, SIDE Part #: 3084149 Required per assembly: 1 Currently Not Available
17	SPACER, CRANK, PIN, (CRANK, PIN) Part #: 3084155 Required per assembly: 2 Note: SPACER, CRANK PIN Currently Not Available
18	BEARING, LARGE, END Part #: 3084154 Required per assembly: 1 Currently Not Available
19	BEARING, SMALL, END Part #: 3084168 Required per assembly: 1 Currently Not Available

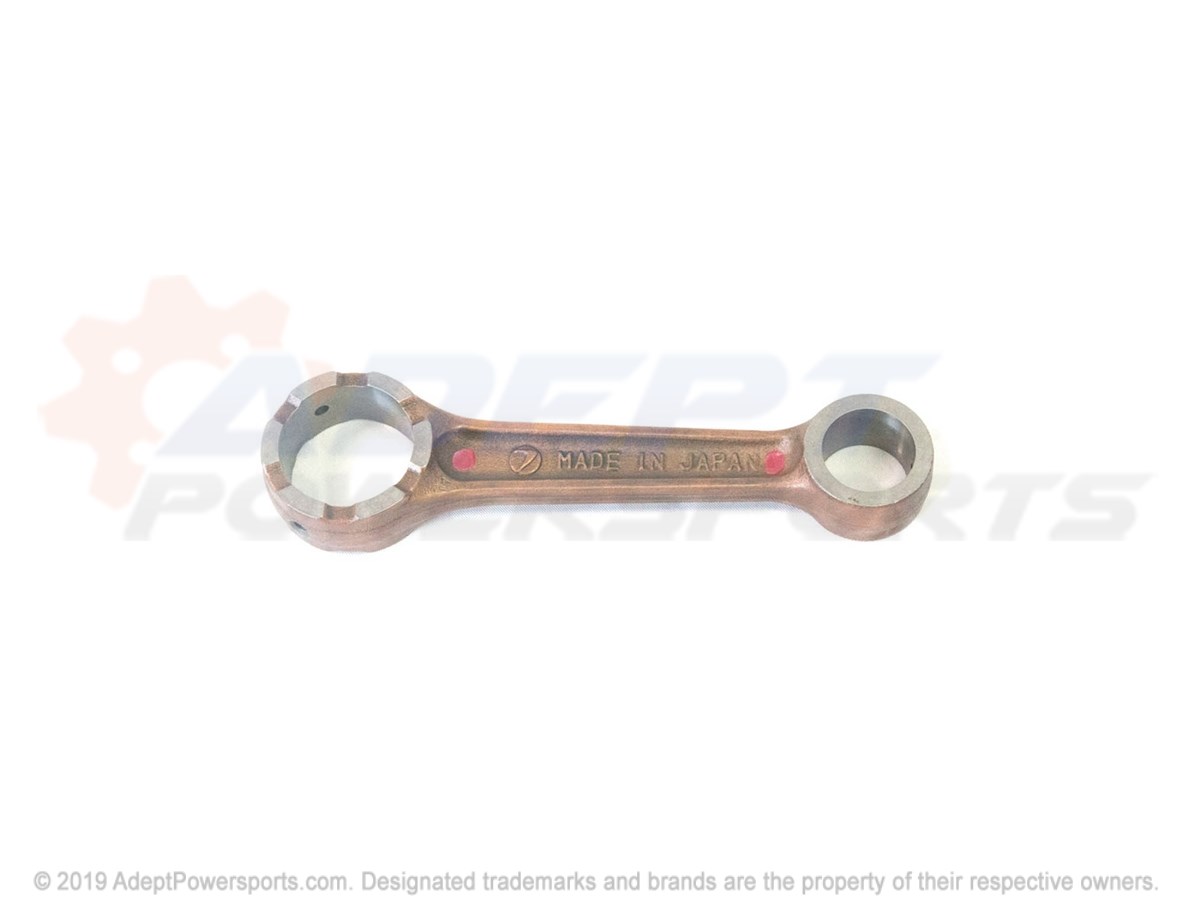

20	ROD, CONNECTING Part #: 3084153 Required per assembly: 1 Currently Not Available
21	CRANKSHAFT, #2, PTO, SIDE Part #: 3084777 Required per assembly: 1 Currently Not Available
22	SPACER-2 (0.3MM) Part #: 3086766 Note: SPACER #2 Substituted by 3086766 (0.3mm) Currently Not Available
22	SPACER-1 (0.2MM) Part #: 3086765 Note: SPACER #1 Substituted by 3086765 (0.2mm) Currently Not Available
23	PIN, CRANK, #1 Part #: 3084152 Required per assembly: 1 Currently Not Available
