OEM Parts Polaris 2000 Polaris SLH W004673D Fuel System - W004673d

2000 Polaris SLH - W004673D - Fuel System - W004673d

FUEL SYSTEM - W004673D Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

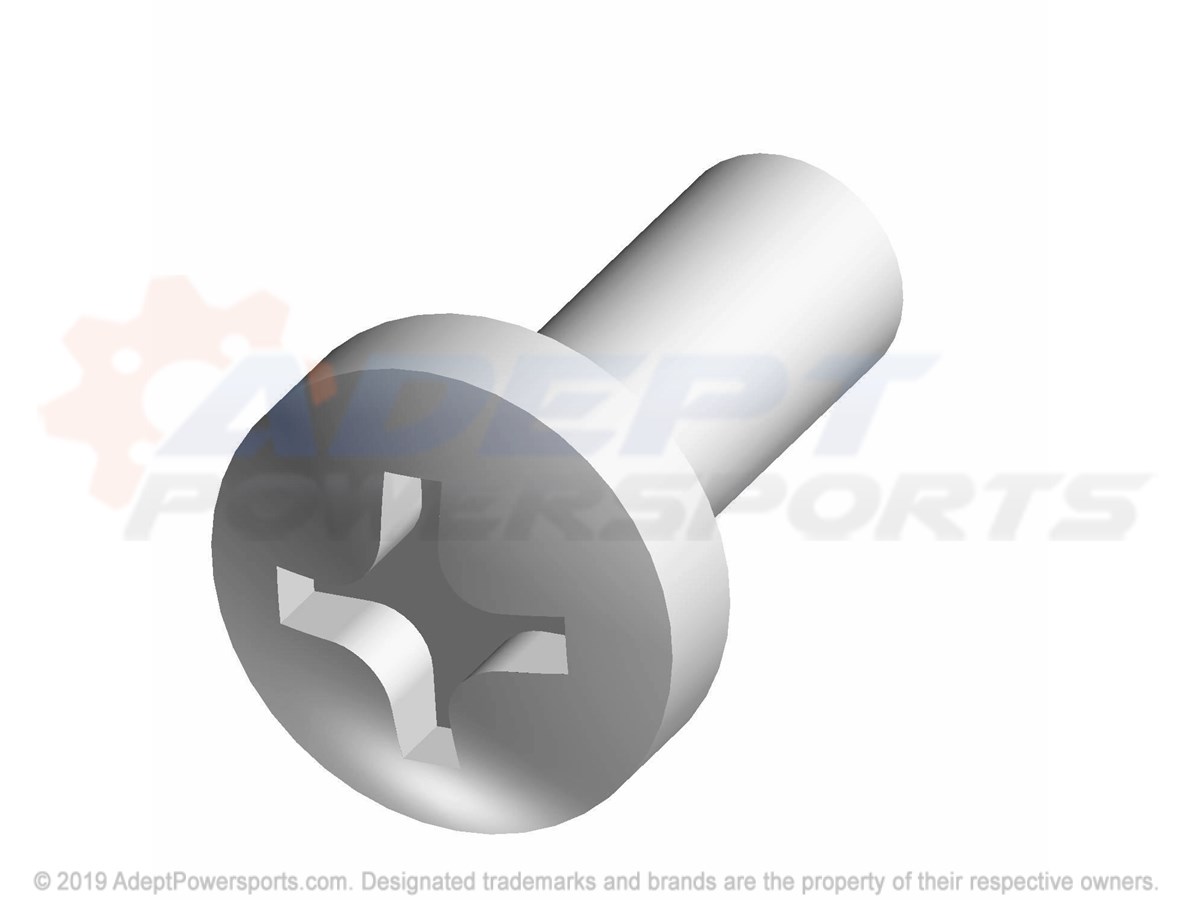

SCREW, S.S.

Part #: 7516302 Required per assembly: 1
$2.22
$1.60
-
+
Add to cart
2

WASHER, FLAT, S.S.

Part #: 7555840 Required per assembly: 1
$4.19
$2.42
-
+
Add to cart
3

KNOB, FUEL, VALVE, BLACK

Part #: 5432836-070 Required per assembly: 1
Currently Not Available
4

NUT, FUEL, VALVE

Part #: 5431451 Required per assembly: 1
Currently Not Available
5

VALVE, ON/OFF, (NO, RESERVE, SYSTEM)

Part #: 7052159 Required per assembly: 1 Note: VALVE,ON/OFF
Currently Not Available
6

CLAMP, HOSE, S.S.

Part #: 7080476 Required per assembly: 12
$6.99
$4.03
-
+
Add to cart
7

LINE, FUEL

Part #: 8450104-250
Currently Not Available
8

T-CLIP

Part #: 7080482 Required per assembly: 2
Currently Not Available
10

FITTING, TEE

Part #: 7052111 Required per assembly: 1
Currently Not Available
11

GROMMET, VENT

Part #: 5410682 Required per assembly: 1
Currently Not Available
12

STRAP, PANDUIT, 4, IN.

Part #: 7080483 Required per assembly: 1
Currently Not Available
13

VALVE, CHECK, RELIEF

Part #: 7051015 Required per assembly: 1
Currently Not Available
14

STRAP PANDUIT

Part #: 7080138 Required per assembly: 3
$1.99
$1.15
-
+
Add to cart
15

VALVE, VACUUM, CHECK

Part #: 7052118 Required per assembly: 1
Currently Not Available
