Exhaust System - W005197d replacement parts for 2000 Polaris VIRAGE

OEM Parts Polaris 2000 Polaris VIRAGE W005197D Exhaust System - W005197d

EXHAUST SYSTEM - W005197D Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FITTING, INLET, WATER Part #: 5020668 Required per assembly: 1 Currently Not Available
2	WASHER, FLAT Part #: 7555856 Required per assembly: 4 Currently Not Available
3	WASHER, LOCK Part #: 7552611 Required per assembly: 4 Currently Not Available
4	SCREW Part #: 7517268 Required per assembly: 2 Currently Not Available
5	BOLT Part #: 7517004 Required per assembly: 2 Currently Not Available
8	ASSEMBLY, EXHAUST, PIPE Part #: 1261023-093 Required per assembly: 1 Currently Not Available
9	CLAMP, HOSE Part #: 7080446 Required per assembly: 1 Currently Not Available
10	HOSE, PIPE/SILENCER Part #: 5411165 Required per assembly: 1 Currently Not Available

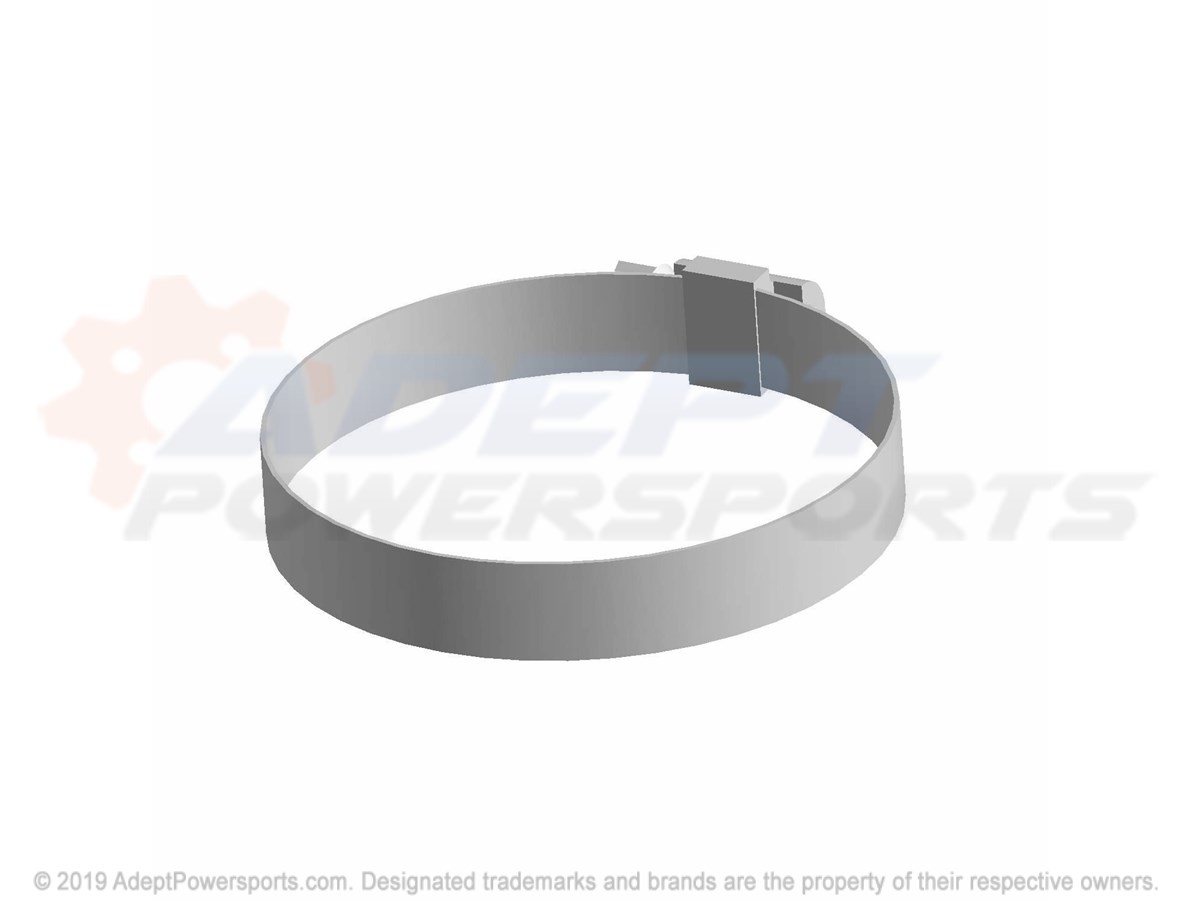

11	CLAMP, HOSE Part #: 7080451 Required per assembly: 1 $6.99 $4.03 - + Add to cart
12	STRAP, RUBBER Part #: 5430621 Required per assembly: 1 Currently Not Available
13	PAD, FOAM, LONG Part #: 5811342 Required per assembly: 1 Currently Not Available
14	HOOK, 'D', SST/SS, Part #: 5224472 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
15	BOLT Part #: 7515127 Required per assembly: 2 Currently Not Available
16	WASHER, LOCK Part #: 7555838 Required per assembly: 6 Currently Not Available
17	WASHER, FLAT Part #: 7555839 Required per assembly: 2 Currently Not Available
18	BUMPER, RUBBER Part #: 5410414 Required per assembly: 2 $2.99 $1.73 - + Add to cart
19	CRADLE, SILENCER Part #: 5222696 Required per assembly: 1 Currently Not Available
20	SILENCER, EXHAUST Part #: 1260581-093 Required per assembly: 1 Currently Not Available
21	PAD Part #: 5812094 Required per assembly: 3 Currently Not Available
22	CLAMP, HOSE Part #: 7080445 Required per assembly: 2 Currently Not Available
23	HOSE, EXHAUST Part #: 5411951 Required per assembly: 2 Currently Not Available
24	CLAMP, HOSE Part #: 7080907 Required per assembly: 6 Currently Not Available
25	RESONATOR, EXHAUST, 2CYL, #1 Part #: 5433810 Required per assembly: 1 Currently Not Available
26	PAD, RESONATOR, BRACKET Part #: 5830197 Required per assembly: 1 Currently Not Available
27	HOSE, CROSSOVER Part #: 5411863 Required per assembly: 1 Currently Not Available
28	WASHER, FLAT Part #: 7555836 Required per assembly: 4 Currently Not Available
29	SCREW Part #: 7515116 Required per assembly: 4 Currently Not Available
30	PLATE-EXHAUST SEAL Part #: 5245072 Required per assembly: 1 Currently Not Available
31	SEAL, EXHAUST, FITTING Part #: 5810529 Required per assembly: 1 Currently Not Available
32	FITTING, EXHAUST Part #: 5132446 Required per assembly: 1 Currently Not Available
33	RESONATOR 3 Part #: 5433632 Required per assembly: 1 Currently Not Available
34	RESONATOR, EXHAUST Part #: 5433811 Required per assembly: 1 Currently Not Available
35	HOSE, CROSSOVER Part #: 5411932 Required per assembly: 1 Currently Not Available
35	CONDUIT Part #: 5521561 Required per assembly: 1 Currently Not Available
36	WASHER, LOCK Part #: 7552613 Required per assembly: 4 Currently Not Available
37	SCREW Part #: 7517717 Required per assembly: 4 Note: Sold in multiples of 10 only Currently Not Available
38	WASHER, FLAT Part #: 7556094 Required per assembly: 10 $3.99 $2.30 - + Add to cart
39	NUT, CAGE, M6X1.0 Part #: 7547151 Required per assembly: 2 Currently Not Available
40	MOUNT-RUBBER, 25X30XM6, FF, SS Part #: 5411851 Required per assembly: 2 Currently Not Available
41	PROTECTOR, SEAT, LH, VIRAGE Part #: 5433787 Required per assembly: 1 Currently Not Available
41	PROTECTOR, SEAT, RH, VIRAGE Part #: 5433788 Required per assembly: 1 Currently Not Available
42	SCREW Part #: 7516809 Required per assembly: 2 Currently Not Available
43	BOLT Part #: 7516807 Required per assembly: 2 Currently Not Available
44	NUT, NYLOK, SS. Part #: 7546704 Required per assembly: 2 Currently Not Available
45	BRKT, RESONATOR, MS, LH Part #: 5244270 Required per assembly: 2 Currently Not Available
