Cam Shaft - Valve replacement parts for 2000 Suzuki GS500E

OEM Parts Suzuki 2000 Suzuki GS500E Cam Shaft - Valve

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1-1	CAM, SHAFT, SET, INTAKE Part #: 12710-01810 Required per assembly: 1 Note: ~E.NO.114496 Not Available
2-1	WASHER, 2ND, DRIVEN, (22X30X1) Part #: 09181-22167 Required per assembly: 1 Note: WASHER (22X30X1.0); $3.77 $3.39 - + Add to cart
2-2	WASHER (T:1.1) Part #: 09160-22074 Note: OPT Not Available
2-3	WASHER (T:1.2) Part #: 09160-22075 Note: OPT $7.51 $6.76 - + Add to cart
2-4	WASHER (T:1.3) Part #: 09160-22076 Note: OPT Not Available
3	SPROCKET, INTAKE, (NT:30) Part #: 12740-45042 Required per assembly: 1 Not Available
4	PIN Part #: 12748-44000 Required per assembly: 1 Not Available
5	BOLT Part #: 09111-06027 Required per assembly: 2 Note: BOLT (6X12.5); $1.81 $1.63 - + Add to cart
6	WASHER Part #: 12747-44001 Required per assembly: 1 $3.04 $2.74 - + Add to cart
7-1	CAM, SHAFT, SET, EXHAUST Part #: 12720-01810 Required per assembly: 1 Note: ~E.NO.114496 $361.77 $325.59 - + Add to cart
7-2	CAMSHAFT, SET, EXHAUST Part #: 12720-01820 Required per assembly: 1 Not Available
8-1	WASHER, 2ND, DRIVEN, (22X30X1) Part #: 09181-22167 Required per assembly: 1 Note: WASHER (22X30X1.0); $3.77 $3.39 - + Add to cart
8-2	WASHER (T:1.1) Part #: 09160-22074 Note: OPT Not Available
8-3	WASHER (T:1.2) Part #: 09160-22075 Note: OPT $7.51 $6.76 - + Add to cart
8-4	WASHER (T:1.3) Part #: 09160-22076 Note: OPT Not Available
9	SPROCKET, EXHAUST, (NT:30) Part #: 12750-45041 Required per assembly: 1 Not Available
10	PIN Part #: 12748-44000 Required per assembly: 1 Not Available
11	BOLT Part #: 09111-06027 Required per assembly: 2 Note: BOLT (6X12.5); $1.81 $1.63 - + Add to cart
12	WASHER Part #: 12747-44001 Required per assembly: 1 $3.04 $2.74 - + Add to cart
13	TAPPET, INTAKE Part #: 12891-15501 Required per assembly: 2 $60.54 $54.49 - + Add to cart
14	TAPPET, INTAKE Part #: 12891-15501 Required per assembly: 2 $60.54 $54.49 - + Add to cart
15	VALVE, INTAKE Part #: 12911-01D00 Required per assembly: 2 $68.14 $58.25 - + Add to cart
16	VALVE, EXHAUST Part #: 12912-01D00 Required per assembly: 2 $88.95 $76.05 - + Add to cart
17	SPRING, SET, VALVE Part #: 12920-44110 Required per assembly: 4 $18.22 $16.40 - + Add to cart
18	RETAINER, SPRING Part #: 12931-45001 Required per assembly: 4 $8.78 $7.90 - + Add to cart
19	COTTER, VALVE Part #: 12932-45010 Required per assembly: 8 $2.49 $2.24 - + Add to cart
20	SEAT, SPRING, EX Part #: 12933-45001 Required per assembly: 4 Note: SEAT, SPRING; $6.78 $6.10 - + Add to cart
21	OIL SEAL (7X14.4X9) Part #: 09289-07002 Required per assembly: 4 $10.16 $9.14 - + Add to cart
22-1	SHIM, TAPPET, (T:2.15) Part #: 12892-45000-215 Required per assembly: 4 $23.39 $21.05 - + Add to cart
22-10	SHIM, TAPPET, (T:2.60) Part #: 12892-45000-260 Required per assembly: 4 $23.13 $19.76 - + Add to cart
22-11	SHIM, TAPPET, (T:2.65) Part #: 12892-45000-265 Required per assembly: 4 $23.58 $20.15 - + Add to cart
22-12	SHIM, TAPPET, (T:2.70) Part #: 12892-45000-270 Required per assembly: 4 $23.58 $20.15 - + Add to cart
22-13	SHIM, TAPPET, (T:2.75) Part #: 12892-45000-275 Required per assembly: 4 $23.39 $21.05 - + Add to cart

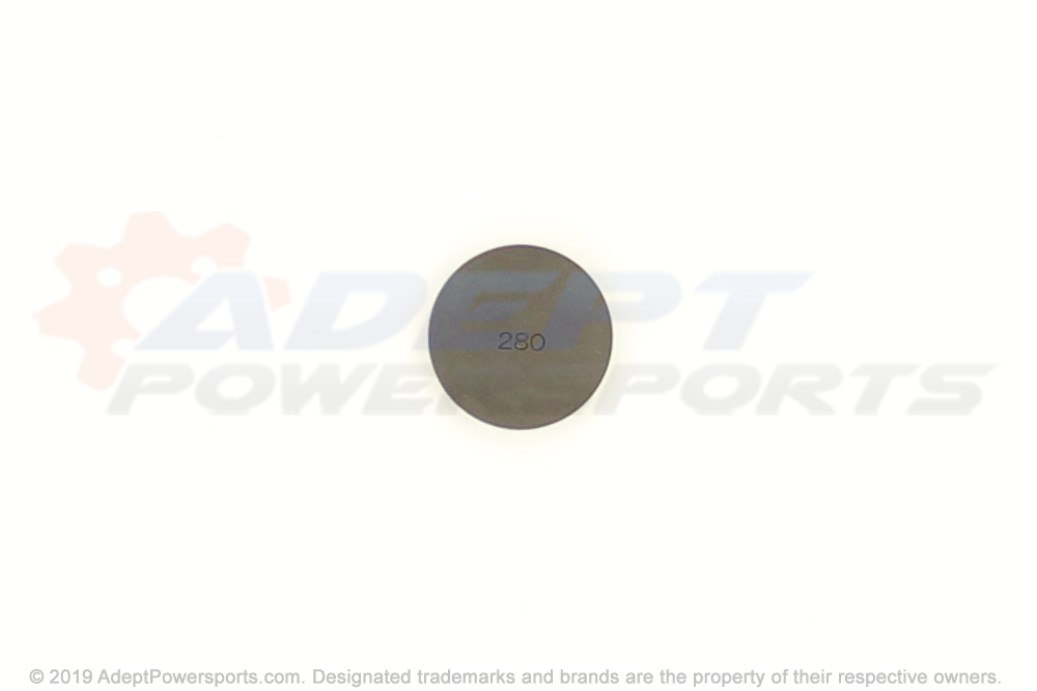

22-14	SHIM, TAPPET, (T:2.80) Part #: 12892-45000-280 Required per assembly: 4 $22.56 $20.30 - + Add to cart
22-15	SHIM, TAPPET, (T:2.85) Part #: 12892-45000-285 Required per assembly: 4 $23.39 $21.05 - + Add to cart
22-16	SHIM, TAPPET, (T:2.90) Part #: 12892-45000-290 Required per assembly: 4 $23.39 $21.05 - + Add to cart
22-17	SHIM, TAPPET, (T:2.95) Part #: 12892-45000-295 Required per assembly: 4 $24.44 $20.89 - + Add to cart
22-18	SHIM, TAPPET, (T:3.00) Part #: 12892-45000-300 Required per assembly: 4 Not Available
22-19	SHIM, TAPPET, (T:3.05) Part #: 12892-45000-305 Required per assembly: 4 $23.39 $21.05 - + Add to cart
22-2	SHIM, TAPPET, (T:2.20) Part #: 12892-45000-220 Required per assembly: 4 $23.39 $19.99 - + Add to cart
22-20	SHIM, TAPPET, (T:3.10) Part #: 12892-45000-310 Required per assembly: 4 $23.39 $21.05 - + Add to cart
22-3	SHIM, TAPPET, (T:2.25) Part #: 12892-45000-225 Required per assembly: 4 $23.39 $21.05 - + Add to cart
22-4	SHIM, TAPPET, (T:2.30) Part #: 12892-45000-230 Required per assembly: 4 $23.39 $21.05 - + Add to cart
22-5	SHIM, TAPPET, (T:2.35) Part #: 12892-45000-235 Required per assembly: 4 $23.39 $21.05 - + Add to cart
22-6	SHIM, TAPPET, (T:2.40) Part #: 12892-45000-240 Required per assembly: 4 $24.44 $20.89 - + Add to cart
22-7	SHIM, TAPPET, (T:2.45) Part #: 12892-45000-245 Required per assembly: 4 $22.56 $20.30 - + Add to cart
22-8	SHIM, TAPPET, (T:2.50) Part #: 12892-45000-250 Required per assembly: 4 $22.56 $20.30 - + Add to cart
22-9	SHIM, TAPPET, (T:2.55) Part #: 12892-45000-255 Required per assembly: 4 $22.56 $20.30 - + Add to cart
23	SHIM SET Part #: 12800-45811 Required per assembly: 1 Note: OPT (INC.NO.22-1~22-20(3PCS.EACH) ,NOT SHOWN) (INC.NO.22-1~22-20(3PCS.EACH) ,NOT SHOWN) & 24 Not Available
24	CASE, TAPPET, SHIM Part #: 99000-69521 Required per assembly: 1 Note: CASE; OPT (NOT SHOWN) Not Available
