Fuel System - V00cb15dcs replacement parts for 2000 Victory SPECIAL EDITION (V00CB15DCS)

OEM Parts Victory 2000 Victory SPECIAL EDITION (V00CB15DCS) Fuel System - V00cb15dcs

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	KIT-FUEL, TANK, REPLACE, ECOAT Part #: 2202064-329 Required per assembly: 1 Currently Not Available
2	SHIELD-HEAT, FUEL, TANK Part #: 5830147 Required per assembly: 1 Currently Not Available
3	CAP, FUEL Part #: 5132333 Required per assembly: 1 Currently Not Available
4	SCR-HXFLGHD, M6X25, 0600086 Part #: 7517751 Required per assembly: 5 Currently Not Available
5	WASHER, CUSHION Part #: 7556052 Required per assembly: 2 Currently Not Available
6	PAD-REAR, TANK, MOUNT Part #: 5411796 Required per assembly: 1 Currently Not Available
7	HOSE-VENT, FUEL, TANK Part #: 2520147 Required per assembly: 1 Currently Not Available
8	CLAMP Part #: 7080307 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
9	SCREW Part #: 7517688 Required per assembly: 5 Currently Not Available
10	O-RING-FUEL, SENDER, BOOTOM Part #: 5411748 Required per assembly: 5 Currently Not Available
11	BUSHING-TORQUE LIMITER Part #: 5433452 Required per assembly: 5 Currently Not Available
12	O-RING-FUEL, SENDER, TOP Part #: 5411749 Required per assembly: 5 Currently Not Available
13	SENDER, FUEL, LEVEL Part #: 4110231 Required per assembly: 1 Currently Not Available
14	GASKET-FUEL SENDER Part #: 5811851 Required per assembly: 1 Currently Not Available
15	SHIELD, HEAT, FUEL, TANK, LEFT Part #: 5830163 Required per assembly: 1 Currently Not Available
16	NUT Part #: 7547076 Required per assembly: 2 Currently Not Available
17	PAD, FUELTANK, FRAME, FRONT Part #: 5411317 Required per assembly: 1 Currently Not Available
18	SHIELD, HEAT, FUEL, TANK, RIGHT Part #: 5830164 Required per assembly: 1 Currently Not Available
19	CLAMP-HOSE, 9-14, MM, CLAMP, DIA Part #: 7081151 Required per assembly: 6 Currently Not Available
20	HOSE, FILTER/MANIFOLD Part #: 5411803 Required per assembly: 1 Currently Not Available
21	FILTER, FUEL Part #: 2530031 Required per assembly: 2 Currently Not Available
22	CLAMP-HOSE, BAND, 5/8"OD, UMP Part #: 7080795 Required per assembly: 2 Currently Not Available
24	CLAMP, HOSE, DBL.BAND Part #: 7080790 Required per assembly: 2 Currently Not Available
25	QUICKDISC, FUELFEED, MALE, TEE Part #: 2520131 Required per assembly: 1 Currently Not Available
25	O-RING Part #: 1500199 Required per assembly: 1 Currently Not Available
28	CLAMP, HOSE, 16-22MM, DIA, (10) Part #: 7080895 Required per assembly: 2 Currently Not Available
29	HOSE, QUICK-DISC/PUMP Part #: 5411801 Required per assembly: 1 Currently Not Available
30	NUT Part #: 7547041 Required per assembly: 2 Note: Rear Coil Currently Not Available
31	BRKT, FUELPUMP, TOP, BLK Part #: 5211889-067 Required per assembly: 1 Currently Not Available
32	NUT, HEXHD(10) Part #: 7547119 Required per assembly: 1 Currently Not Available
33	KIT-FUEL, PUMP, EXT, REPLACEMENT Part #: 2202476 Required per assembly: 1 Currently Not Available
34	HOSE, PUMP/FILTER Part #: 5411802 Required per assembly: 1 Currently Not Available
35	HOSE, RAIL/TANK, RETURN Part #: 5411804 Required per assembly: 1 Currently Not Available
36	FUELLINE, QUICK, DISC, MALE Part #: 5131507 Required per assembly: 1 Currently Not Available
36	O-RING Part #: 1500199 Required per assembly: 1 Currently Not Available
37	DISC-QUICK, FUELTANK, FEMALE Part #: 5131506 Required per assembly: 1 Currently Not Available
38	NUT (10) Part #: 7547118 Required per assembly: 1 Currently Not Available
39	FILTER, FUEL Part #: 2520223 Required per assembly: 1 Note: Filter Currently Not Available
40	REGULATOR, FUEL, PRESS. Part #: 2520130 Required per assembly: 1 Currently Not Available
41	INJECTOR, FUEL Part #: 1253174 Required per assembly: 2 Currently Not Available

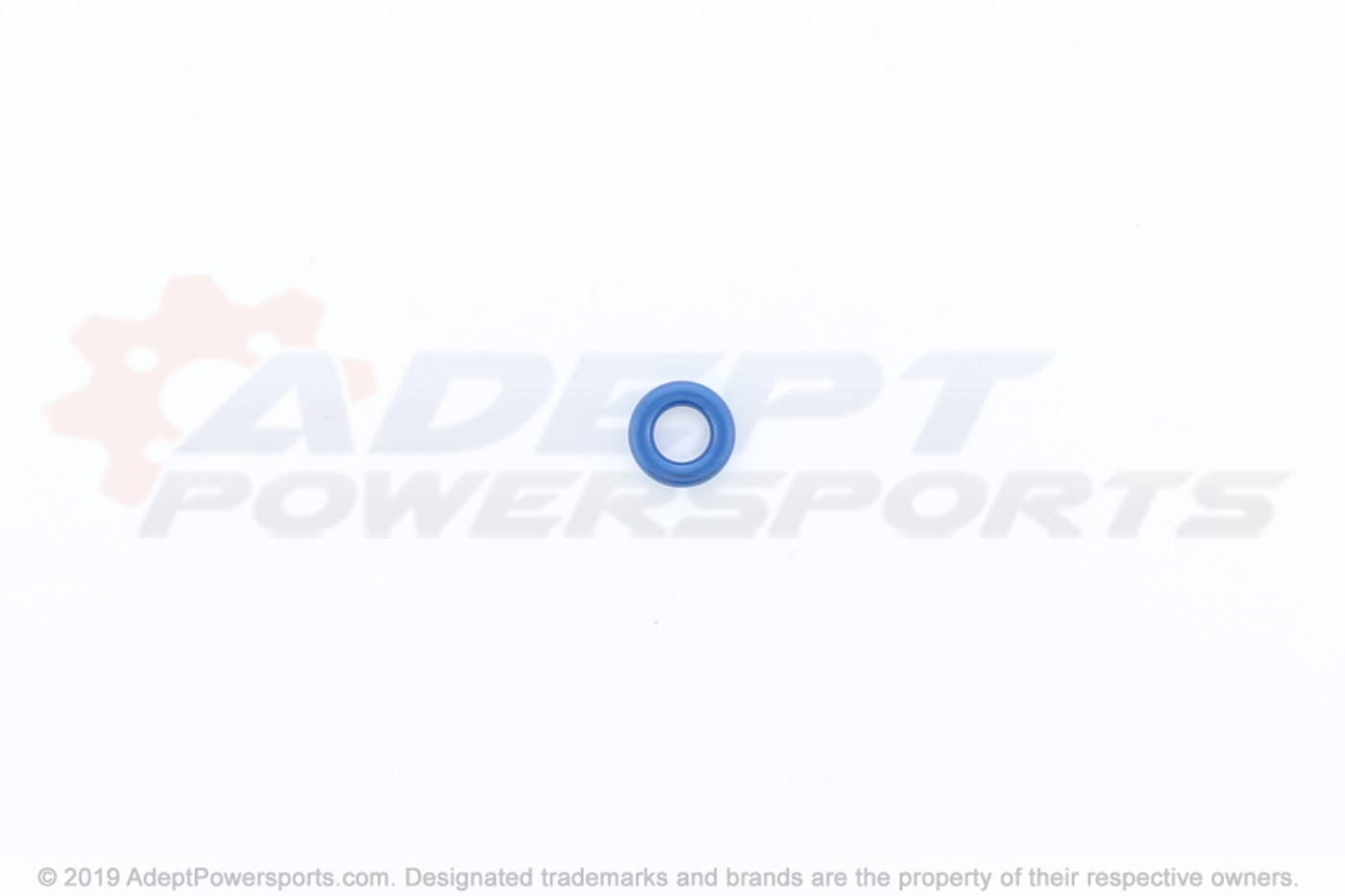

41	O-RING Part #: 1500198 Required per assembly: 4 Currently Not Available
