Crankcase replacement parts for 2000 Yamaha RIVA 125 (XC125M)

OEM Parts Yamaha 2000 Yamaha RIVA 125 (XC125M) Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CRANKCASE ASSEMBLY Part #: 50M-15100-01-00 Required per assembly: 1 Not Available
002	BUSH, RR, SHOCK, ABSABSORBER Part #: 164-22216-00-00 Required per assembly: 1 $14.49 $11.96 - + Add to cart
003	DAMPER, ENGINE, MOUNT, 1 Part #: 50M-15316-00-00 Required per assembly: 1 Not Available
004	PIPE, BREATHER, 2 Part #: 371-11167-01-00 Required per assembly: 1 $14.49 $10.18 - + Add to cart
005	BREATHER Part #: 583-15371-00-00 Required per assembly: 1 $7.49 $5.26 - + Add to cart
006	DAMPER, ENGINE, MOUNT, 1 Part #: 50M-15316-00-00 Required per assembly: 1 Not Available
007	PIN, DOWEL Part #: 99530-12016-00 Required per assembly: 2 $4.88 $4.05 - + Add to cart
008	PIPE, BREATHER, 1 Part #: 50M-11166-00-00 Required per assembly: 1 Not Available
009	CLIP, SCISSOR Part #: 90467-14015-00 Required per assembly: 1 $9.49 $7.79 - + Add to cart
010	HOSE (3AK) Part #: 90446-07241-00 Required per assembly: 1 $11.49 $7.29 - + Add to cart
011	BOLT, SOCKET Part #: 91317-06060-00 Required per assembly: 4 $4.04 $3.21 - + Add to cart
012	SPACER, ENGINE, MOUNT Part #: 50M-15317-01-00 Required per assembly: 1 Not Available
013	WASHER, PLATE Part #: 90201-173U5-00 Required per assembly: 2 $10.49 $7.41 - + Add to cart
014	O-RING Part #: 93210-15639-00 Required per assembly: 2 $7.49 $4.89 - + Add to cart
015	CIRCLIP Part #: 99009-17400-00 Required per assembly: 1 $5.49 $3.84 - + Add to cart
016	GASKET, CRANKCASE, COVER, 3 Part #: 50M-15462-10-00 Required per assembly: 1 Not Available
017	COVER, CHAIN, CASE Part #: 50M-15418-00-00 Required per assembly: 1 $23.98 $19.32 - + Add to cart
018	OIL, SEAL, SD-TYPE Part #: 93102-22294-00 Required per assembly: 1 $16.48 $11.58 - + Add to cart
019	PIN, DOWEL Part #: 93605-18078-00 Required per assembly: 1 $3.45 $2.84 - + Add to cart
020	O-RING (5G2) Part #: 93210-71462-00 Required per assembly: 1 $18.48 $14.70 - + Add to cart
021	SCREW, FLAT, HEAD Part #: 98704-06016-00 Required per assembly: 2 Not Available
022	O-RING Part #: 93210-07540-00 Required per assembly: 1 $7.49 $5.67 - + Add to cart
023	BOLT, FLANGE, (JN5) Part #: 95817-08016-00 Required per assembly: 2 $5.49 $4.05 - + Add to cart
024	WASHER, PLATE Part #: 90201-08087-00 Required per assembly: 1 Note: Sold in multiples of 5 only $3.95 $3.34 - + Add to cart
025	PLUG, OIL Part #: 4J2-15363-10-00 Required per assembly: 1 $5.49 $3.70 - + Add to cart
026	O-RING Part #: 93210-14579-00 Required per assembly: 2 $7.99 $5.59 - + Add to cart
027	COVER, CRANKCASE, 2 Part #: 50W-15421-00-00 Required per assembly: 1 Not Available
028	GASKET, CRANKCASE, COVER, 2 Part #: 50M-15461-10-00 Required per assembly: 1 Not Available
029	PIN, DOWEL, (3VD) Part #: 99530-10114-00 Required per assembly: 1 $2.64 $2.24 - + Add to cart
030	BOLT, HEX.SOCKET, HEAD Part #: 91317-06035-00 Required per assembly: 5 $3.89 $3.70 - + Add to cart
031	BOLT, HEXAGON, SOCKET, HEAD Part #: 91317-06020-00 Required per assembly: 2 $2.75 $2.07 - + Add to cart
032	COVER, CRANKCASE, 3 Part #: 50M-15431-00-00 Required per assembly: 1 Not Available
033	PIN, DOWEL, (3VD) Part #: 99530-10114-00 Required per assembly: 1 $2.64 $2.24 - + Add to cart
034	BOLT, HEXAGON, SOCKET, HEAD Part #: 91317-06020-00 Required per assembly: 2 $2.75 $2.07 - + Add to cart
035	BOLT, HEX.SOCKET, HEAD Part #: 91317-06035-00 Required per assembly: 5 $3.89 $3.70 - + Add to cart
036	PLUG Part #: 50M-13455-00-00 Required per assembly: 1 Not Available
037	GASKET Part #: 812-11198-00-00 Required per assembly: 1 $7.49 $6.35 - + Add to cart
038	O-RING Part #: 93210-10673-00 Required per assembly: 1 $4.29 $3.26 - + Add to cart
039	PIPE, OIL Part #: 50M-15112-00-00 Required per assembly: 1 Not Available
040	O-RING Part #: 93210-16314-00 Required per assembly: 1 $4.65 $3.84 - + Add to cart
041	COVER, CRANKCASE, 1 Part #: 50M-15411-01-00 Required per assembly: 1 Not Available
042	COVER, CAP Part #: 50M-15417-00-00 Required per assembly: 1 Not Available
043	RING, RUBBER Part #: 50M-15449-00-00 Required per assembly: 1 Not Available
044	GROMMET Part #: 90480-12237-00 Required per assembly: 1 $3.10 $1.92 - + Add to cart
045	SCREW, PAN, HEAD Part #: 98580-06020-00 Required per assembly: 4 $8.49 $5.15 - + Add to cart
046	WASHER, PLATE Part #: 92990-06600-00 Required per assembly: 2 Note: Sold in multiples of 5 only $2.95 - + Add to cart
047	COLLAR (50M) Part #: 90387-087L0-00 Required per assembly: 2 $9.49 $6.06 - + Add to cart

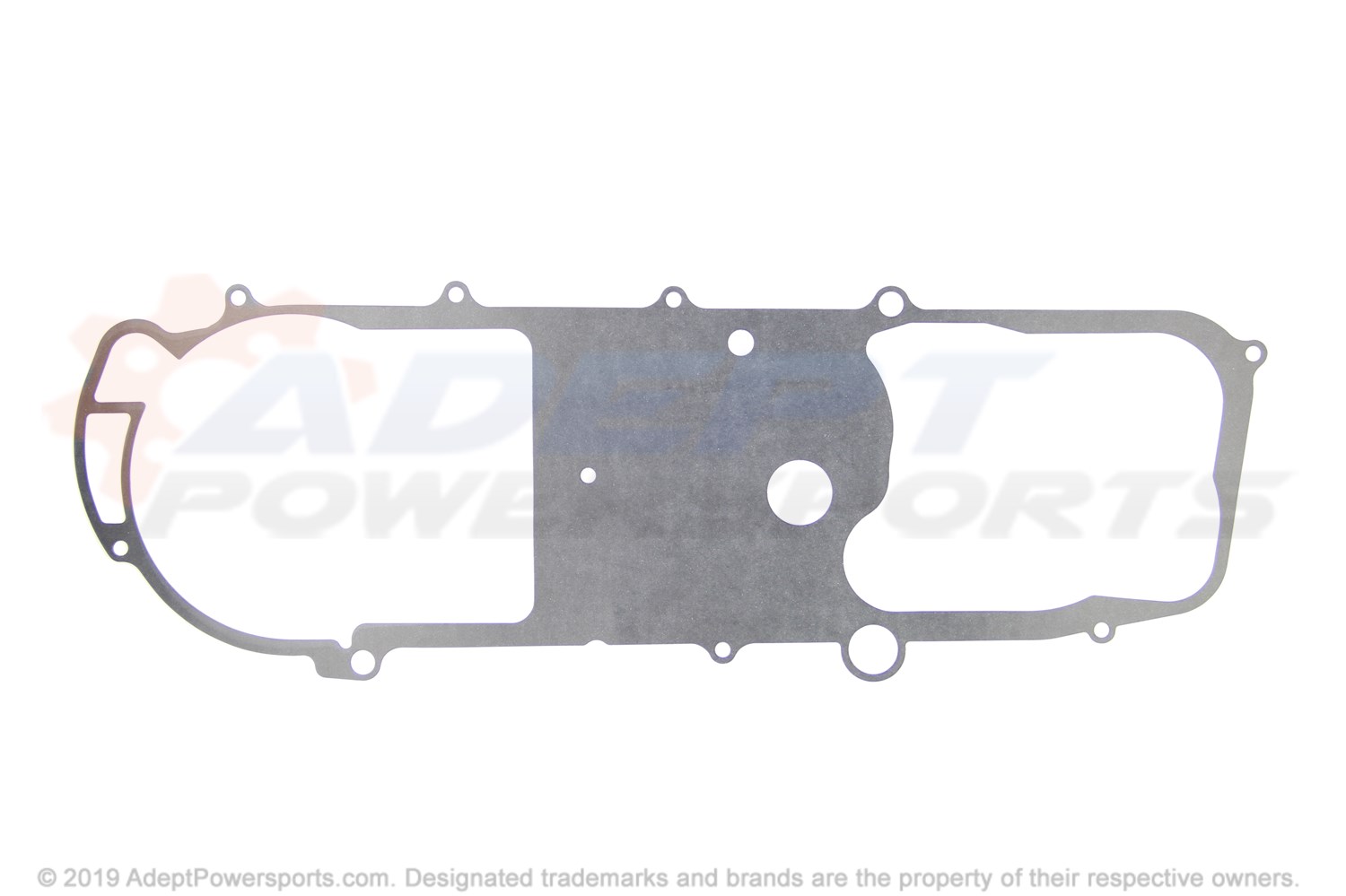

048	GASKET, CRANKCASE, COVER, 1 Part #: 50M-15451-10-00 Required per assembly: 1 $73.98 $61.99 - + Add to cart
049	PIN, DOWEL, (3VD) Part #: 99530-10114-00 Required per assembly: 1 $2.64 $2.24 - + Add to cart
050	BOLT, SOCKET Part #: 91317-06025-00 Required per assembly: 2 $2.64 $2.01 - + Add to cart
051	BOLT, HEX.SOCKET, HEAD Part #: 91317-06035-00 Required per assembly: 5 $3.89 $3.70 - + Add to cart
052	BOLT, SOCKET Part #: 91317-06060-00 Required per assembly: 4 $4.04 $3.21 - + Add to cart
053	GAUGE, LEVEL Part #: 2H7-15361-00-00 Required per assembly: 1 $105.98 $86.73 - + Add to cart
054	PLUG, OIL Part #: 3Y1-15363-10-00 Required per assembly: 1 $19.98 $16.78 - + Add to cart
055	O-RING (646) Part #: 93210-19123-00 Required per assembly: 1 Note: Sold in multiples of 5 only $8.99 $6.79 - + Add to cart
056	PLUG, STRAIGHT, SCREW Part #: 90340-36098-00 Required per assembly: 1 Not Available
057	O-RING Part #: 93210-35804-00 Required per assembly: 1 $0.60 $0.48 - + Add to cart
058	SHAFT 1 Part #: 50M-15471-00-00 Required per assembly: 1 Not Available
059	SEAL Part #: 1VJ-14462-00-00 Required per assembly: 1 $19.98 $15.79 - + Add to cart
060	ELEMENT, AIR, CLEANER, 2 Part #: 50M-14461-00-00 Required per assembly: 1 $14.49 $11.40 - + Add to cart
061	GASKET 1 Part #: 50M-15455-00-00 Required per assembly: 1 Not Available
062	SCREW, PAN, HEAD Part #: 98580-06020-00 Required per assembly: 4 $8.49 $5.15 - + Add to cart
