Track Suspension 1 replacement parts for 2000 Yamaha VX700D

OEM Parts Yamaha 2000 Yamaha VX700D Track Suspension 1

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	TRACK ASSEMBLY Part #: 8EA-47110-10-00 Required per assembly: 1 Not Available
2	PLATE, REINFORCEME Part #: 8EA-47113-00-00 Required per assembly: 48 $4.29 $3.58 - + Add to cart
3	METAL, SLIDE Part #: 8EA-47115-00-00 Required per assembly: 48 $6.49 $4.78 - + Add to cart
4	BRACKET 7 Part #: 8DF-47419-00-00 Required per assembly: 2 $32.99 $25.43 - + Add to cart
5	BRACKET 7 Part #: 8DF-47419-10-00 Required per assembly: 2 Not Available
6	BOLT, FLANGE Part #: 90105-10392-00 Required per assembly: 2 $12.49 $8.24 - + Add to cart
7	BOLT, FLANGE Part #: 95817-10085-00 Required per assembly: 2 Not Available
8	WASHER, PLATE Part #: 90201-100S0-00 Required per assembly: 8 $6.49 $4.91 - + Add to cart
9	NUT, SELF-LOCKING, (JN5) Part #: 95607-10200-00 Required per assembly: 4 $4.15 $3.27 - + Add to cart
10	COLLAR Part #: 90387-10079-00 Required per assembly: 4 Not Available

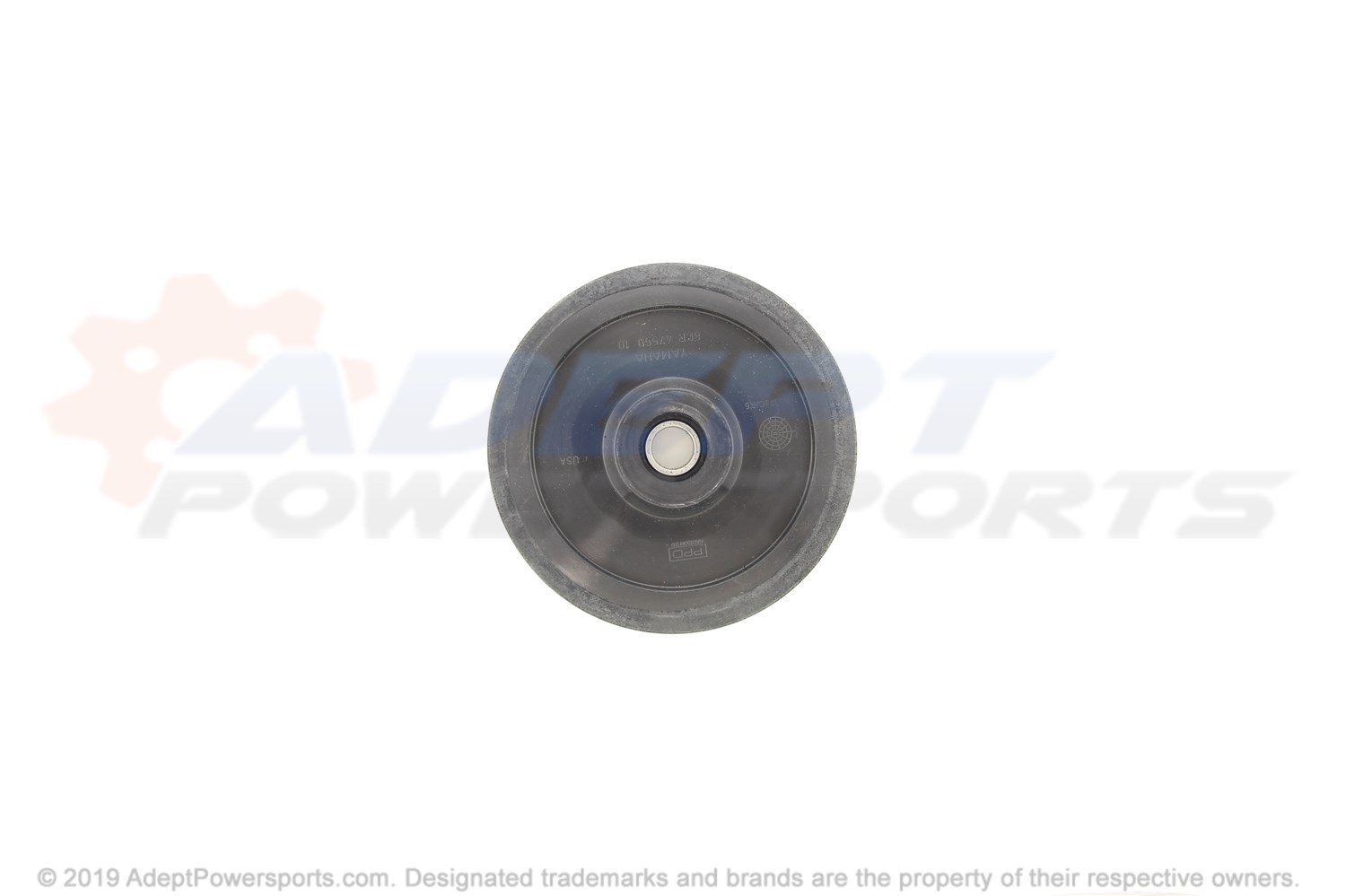

11	BOGEY WHEEL W SPACER Part #: 8CR-47310-10-00 Required per assembly: 4 $20.32 $17.78 - + Add to cart
12	SPACER Part #: 8CR-47341-01-00 Required per assembly: 4 Not Available
13	SPACER Part #: 8CR-47341-11-00 Required per assembly: 4 $11.49 $10.51 - + Add to cart
14	NUT, SELF-LOCKING Part #: 90185-08169-00 Required per assembly: 4 $9.49 $6.97 - + Add to cart
15	BOLT Part #: 90101-08774-00 Required per assembly: 4 $8.49 $4.54 - + Add to cart
16	BOGEY WHEEL W SPACER Part #: 8CR-47310-10-00 Required per assembly: 2 $20.32 $17.78 - + Add to cart
17	CIRCLIP (JF7) Part #: 99009-25400-00 Required per assembly: 2 $9.49 $6.55 - + Add to cart
18	COLLAR Part #: 90387-2004V-00 Required per assembly: 2 $11.49 $9.00 - + Add to cart
19	CIRCLIP Part #: 99009-20400-00 Required per assembly: 2 $9.49 $6.05 - + Add to cart
20	SUSPENSION WHEEL COMP. Part #: 8H8-47320-00-00 Required per assembly: 2 $70.98 $54.37 - + Add to cart
21	BEARING (8AB) Part #: 93306-00444-00 Required per assembly: 2 $45.99 $36.06 - + Add to cart
22	CIRCLIP Part #: 99009-42500-00 Required per assembly: 2 $9.49 $6.65 - + Add to cart
23	GUIDE WHEEL ASSEMBLY Part #: 8CR-47550-00-00 Required per assembly: 2 Not Available
24	REAR AXLE Part #: 8L8-47520-02-00 Required per assembly: 1 $97.98 $95.13 - + Add to cart
25	COLLAR Part #: 90387-2012E-00 Required per assembly: 1 $10.49 $7.94 - + Add to cart
26	COLLAR Part #: 90387-2012C-00 Required per assembly: 1 $26.98 $21.20 - + Add to cart
27	COLLAR Part #: 90387-2012D-00 Required per assembly: 2 $17.48 $11.82 - + Add to cart
28	WASHER, PLATE Part #: 90201-205R6-00 Required per assembly: 4 $13.49 $10.83 - + Add to cart
29	GUIDE WHEEL ASSEMBLY Part #: 8CR-47550-10-00 Required per assembly: 1 Not Available
30	WHEEL RED PLASTIC ASSY Part #: 8CR-47550-21-RD Required per assembly: 2 Note: (USA) Not Available
31	NUT, SELF-LOCKING, (8BF) Part #: 95607-14200-00 Required per assembly: 1 $13.49 $9.99 - + Add to cart
32	PIN, COTTER Part #: 91490-30030-00 Required per assembly: 1 Note: Sold in multiples of 5 only $8.49 $7.24 - + Add to cart
33	COLLAR 3 Part #: 8K2-47479-01-00 Required per assembly: 2 $33.99 $25.24 - + Add to cart
34	NUT, NYLON Part #: 95707-10300-00 Required per assembly: 2 Note: (95702-10300-00) $9.49 $6.55 - + Add to cart
