2001 Honda CBR929RE (CBR900RE) - Handlebar - Top Bridge

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
001

SEAL

Part #: 30433-MBW-602 Required per assembly: 1
$3.86
$3.51
002

LOCK SET

Part #: 35010-MCJ-671 Required per assembly: 1
Not Available
003

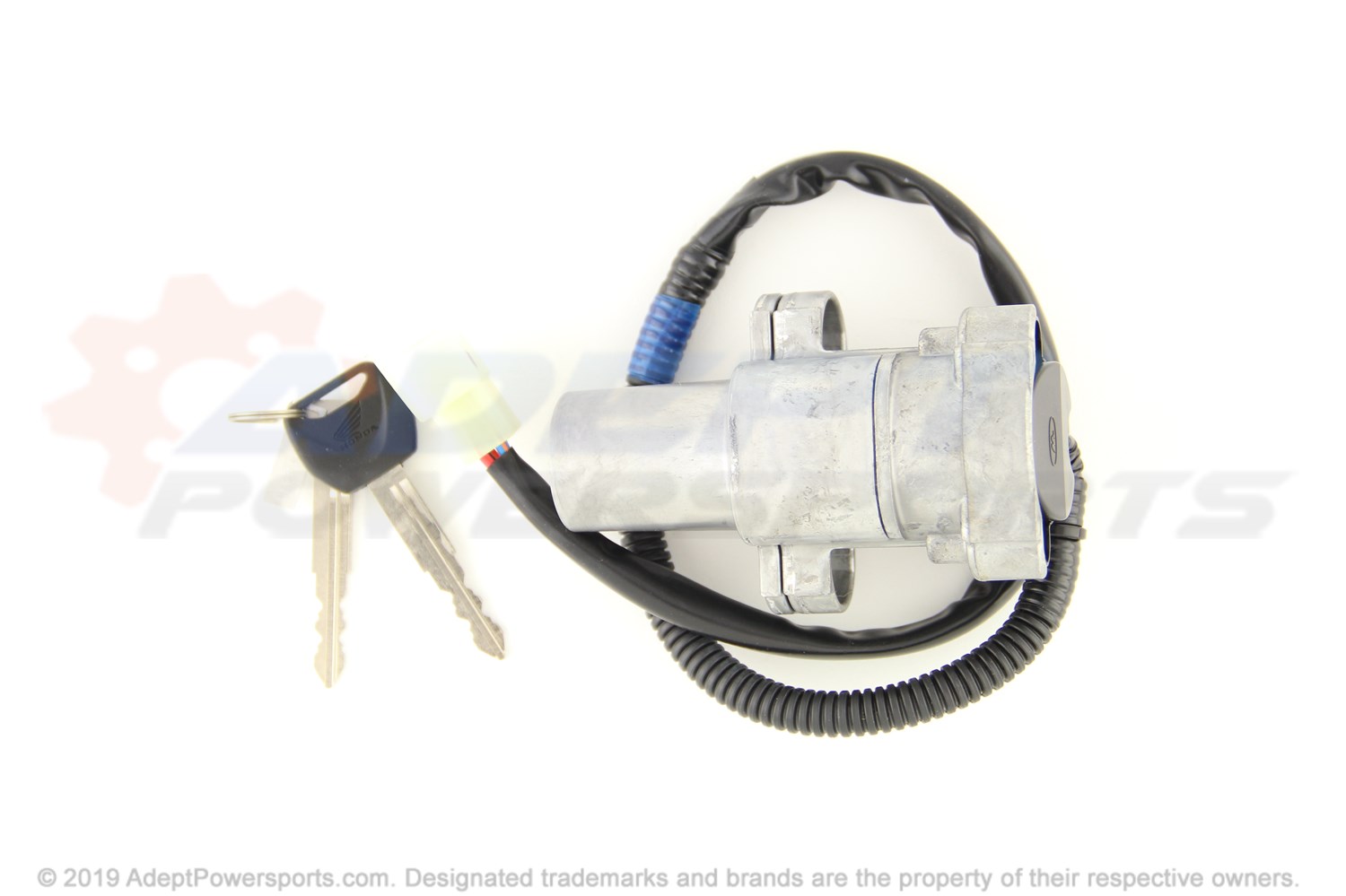

Honda 35100-MCJ-671 Switch Assembly

SWITCH ASSEMBLY

Part #: 35100-MCJ-671 Required per assembly: 1
Not Available
004

BASE, CONTACT

Part #: 35101-MCJ-671 Required per assembly: 1
Not Available
005
Honda 35106-MAT-A00 Cover

COVER

Part #: 35106-MAT-A00 Required per assembly: 1
$12.20
$10.16
006

KEY, BLANK, (TYPE1)

Part #: 35121-MAS-G01
$15.83
007

HANDLEBAR, R.

Part #: 53100-MCJ-000 Required per assembly: 1
Not Available
008
Honda 53104-MV4-000 Weight, B, Handlebar

WEIGHT, B, HANDLEBAR

Part #: 53104-MV4-000 Required per assembly: 2
$29.95
$25.44
009
Honda 53105-MN4-010 Weight, Handlebar

WEIGHT, HANDLEBAR

Part #: 53105-MN4-010 Required per assembly: 2
$25.19
$23.15
010

RUBBER A

Part #: 53106-MJ0-000 Required per assembly: 2
$5.75
011

RUBBER A

Part #: 53106-MV9-000 Required per assembly: 2
$4.96
012

RING

Part #: 53108-MJ0-000 Required per assembly: 2
$7.39
013

HANDLEBAR, L.

Part #: 53150-MCJ-000 Required per assembly: 1
Not Available
014

BRIDGE, FORK, TOP

Part #: 53300-MCJ-000 Required per assembly: 1
Not Available
015

EMBLEM, WING, MARK

Part #: 86150-MCF-300 Required per assembly: 1
Not Available
016

SCREW-WASHER (5X22)

Part #: 90020-MBW-610 Required per assembly: 2
$3.59
$3.49
017

BOLT, ONE-WAY, (8MM)

Part #: 90107-MBG-000 Required per assembly: 2
$4.32
018
Honda 90191-KBG-000 Screw, Oval, (6X65)

SCREW, OVAL, (6X65)

Part #: 90191-KBG-000 Required per assembly: 2
$7.12
019

NUT, STEERING, STEM

Part #: 90304-MJ4-670 Required per assembly: 1
$18.33
020

SCREW, TAP, (3X16)

Part #: 91059-KY2-711 Required per assembly: 3
$4.41
021

BOLT, FLANGE, (8X40)

Part #: 96300-08040-07 Required per assembly: 2
$2.99
$2.77
