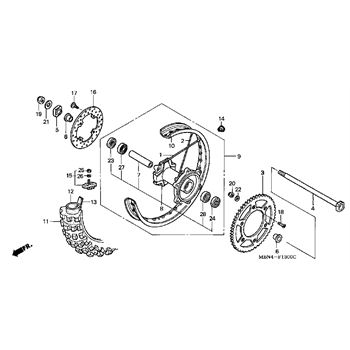

Rear Wheel replacement parts for 2001 Honda XR650R

OEM Parts Honda 2001 Honda XR650R Rear Wheel

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	SPOKE, SET, B, RR. Part #: 06421-MBN-670 Required per assembly: 16 $7.78 - + Add to cart
002	SPOKE, SET, A, RR. Part #: 06420-MBN-670 Required per assembly: 16 $7.99 - + Add to cart
003	SPROCKET (48T) Part #: 41202-KZ3-J40 Required per assembly: 1 ~~$134.20~~ $111.84 - + Add to cart
004	AXLE, RR., WHEEL Part #: 42301-KZ3-B00 Required per assembly: 1 Not Available
005	COLLAR, RR., AXLE Part #: 42306-KZ3-B00 Required per assembly: 1 ~~$25.50~~ $22.92 - + Add to cart
006	COLR, RR., WHEEL, SIDE Part #: 42313-MBN-670 Required per assembly: 2 ~~$27.26~~ $23.83 - + Add to cart
007	COLLAR, RR. Part #: 42620-MBN-670 Required per assembly: 1 ~~$26.35~~ $23.16 - + Add to cart
008	HUB, SUB-ASSEMBLY, RR. Part #: 42635-MBN-671 Required per assembly: 1 Not Available
009	WHEEL, SUB-ASSEMBLY, RR. Part #: 42650-MBN-672 Required per assembly: 1 Not Available
010	RIM, RR., WHEEL Part #: 42701-MN1-682 Required per assembly: 1 Not Available
011	TIRE (110/100-18) Part #: 42711-MEY-004 Required per assembly: 1 Not Available
012	TUBE, TIRE, (120/80-18), (IRC) Part #: 42712-KT1-673 Required per assembly: 1 ~~$44.24~~ $35.26 - + Add to cart
013	FLAP (1.85/2.15-18) Part #: 42713-300-004 Required per assembly: 1 $8.70 - + Add to cart
014	CAP, VALVE Part #: 42714-KA3-710 Required per assembly: 1 $13.46 - + Add to cart
015	STOPPER, BEAD, (2.15) Part #: 42715-MA0-770 Required per assembly: 1 ~~$43.90~~ $36.59 - + Add to cart
016	DISK, RR., BRAKE Part #: 43351-MBN-671 Required per assembly: 1 ~~$243.27~~ $196.83 - + Add to cart
017	BOLT, DISK, (6X17) Part #: 90105-KAE-870 Required per assembly: 4 $4.32 - + Add to cart
018	SCREW, FLAT, (8X31) Part #: 90125-KA4-000 Required per assembly: 4 Note: Sold in multiples of 5 only $4.45 - + Add to cart
019	NUT, U, (18MM) Part #: 90305-KZ4-891 Required per assembly: 1 $18.70 - + Add to cart
020	NUT, U, (8MM) Part #: 90309-ML3-791 Required per assembly: 6 $6.34 - + Add to cart
021	WASHER (18X32X2) Part #: 90401-KZ4-890 Required per assembly: 1 $6.50 - + Add to cart
022	WASHER (8MM) Part #: 90465-MC4-000 Required per assembly: 4 ~~$3.54~~ $3.43 - + Add to cart
023	OIL SEAL (28X42X7) Part #: 91257-230-003 Required per assembly: 1 $14.02 - + Add to cart
024	OIL SEAL (28X47.2X7) Part #: 91252-MC4-013 Required per assembly: 1 $9.77 - + Add to cart
025	NUT, HEX., (8MM) Part #: 94001-08000-0S Required per assembly: 2 ~~$2.33~~ $1.96 - + Add to cart
026	WASHER, SPRING, (8MM) Part #: 94111-08000 Required per assembly: 1 ~~$2.02~~ $1.37 - + Add to cart
027	BEARING (6004U) Part #: 96140-60040-10 Required per assembly: 1 ~~$23.38~~ $21.69 - + Add to cart
028	BEARING (6204U) Part #: 96140-62040-10 Required per assembly: 1 ~~$25.30~~ $23.22 - + Add to cart
