Fuel System - V01cs15dc replacement parts for 2001 Victory SPORTCRUISER (V01CS15DA)

OEM Parts Victory 2001 Victory SPORTCRUISER (V01CS15DA) Fuel System - V01cs15dc

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

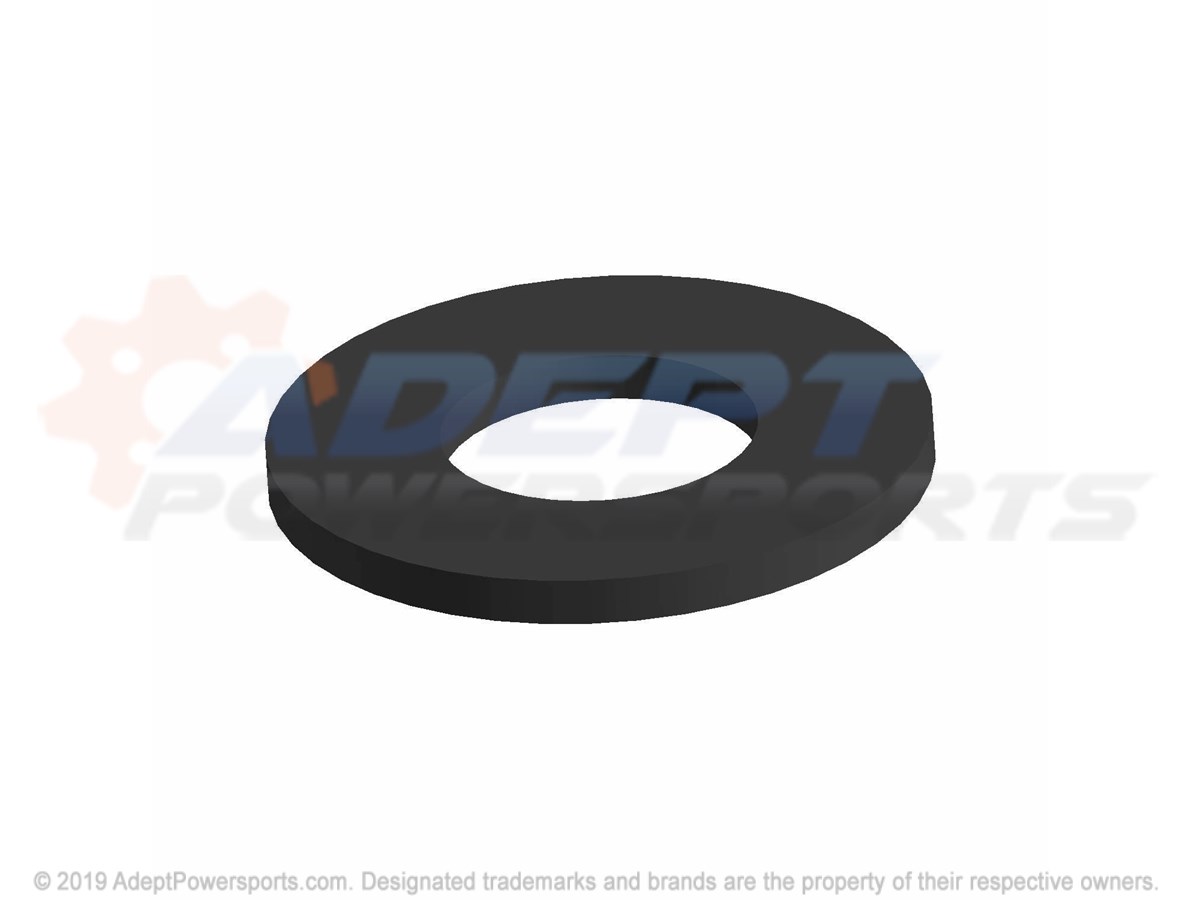

1	WSHR, FL, 10X2 Part #: 7556155 Required per assembly: 4 Currently Not Available
2	SCREW Part #: 7517723 Required per assembly: 4 Currently Not Available
3	CAP, FUEL Part #: 5132333 Required per assembly: 1 Currently Not Available
4	WELD-TANK, FUEL, BLK, W/SLV, PIN Part #: 1013342A1 Required per assembly: 1 Currently Not Available
4	WELD-TANK, FUEL, STL, GREY Part #: 1013342A5 Required per assembly: 1 Currently Not Available
4	WELD-TANK, FUEL, SPEED, YELLOW Part #: 1013342A11 Required per assembly: 1 Currently Not Available
5	PAD-REAR, TANK, MOUNT Part #: 5411796 Required per assembly: 2 Currently Not Available
6	GASKET-FUEL SENDER Part #: 5830193 Required per assembly: 1 Currently Not Available
7	SENDER-FUEL, LEVEL, SMALL, FLOAT Part #: 4010277 Required per assembly: 1 Currently Not Available
8	SCREW, SOCHD, M5X10, ZPB Part #: 7517725 Required per assembly: 5 Note: (Int'l) Currently Not Available
9	VENT-LINE, FUEL Part #: 5433958 Required per assembly: 1 Currently Not Available
10	ELBOW-VENT LINE Part #: 5411984 Required per assembly: 1 Currently Not Available
11	ELBOW-VENT LINE Part #: 5411972 Required per assembly: 1 Currently Not Available
12	VENT LINE-FUEL Part #: 5433950 Required per assembly: 1 Currently Not Available
13	GROMMET-RUBBER, FUEL, TANK, FRONT Part #: 5811878 Required per assembly: 2 Currently Not Available
14	ASM-BODY, THROTTLE(CALIFORNIA, MO Part #: 1253328 Required per assembly: 1 Currently Not Available
15	CLAMP-HOSE, 9-14, MM, CLAMP, DIA Part #: 7081151 Required per assembly: 6 Currently Not Available
16	HOSE, FILTER/MANIFOLD Part #: 5411803 Required per assembly: 1 Currently Not Available
17	FILTER, FUEL Part #: 2530031 Required per assembly: 2 Currently Not Available
18	CLAMP, HOSE, DBL.BAND Part #: 7080790 Required per assembly: 4 Currently Not Available
20	QUICKDISC, FUELFEED, MALE, TEE Part #: 2520131 Required per assembly: 1 Currently Not Available
20	O-RING Part #: 1500199 Required per assembly: 1 Currently Not Available
23	CLAMP, HOSE, 16-22MM, DIA, (10) Part #: 7080895 Required per assembly: 2 Currently Not Available
24	HOSE, QUICK-DISC/PUMP Part #: 5411801 Required per assembly: 1 Currently Not Available
25	NUT Part #: 7547120 Required per assembly: 2 Currently Not Available
26	BRKT, FUELPUMP, TOP, BLK Part #: 5211889-067 Required per assembly: 1 Currently Not Available
27	KIT-FUEL, PUMP, EXT, REPLACEMENT Part #: 2202476 Required per assembly: 1 Currently Not Available
28	HOSE, PUMP/FILTER Part #: 5411802 Required per assembly: 1 Currently Not Available
29	HOSE, RAIL/TANK, RETURN Part #: 5411804 Required per assembly: 1 Currently Not Available
30	FUELLINE, QUICK, DISC, MALE Part #: 5131507 Required per assembly: 1 Currently Not Available
30	O-RING Part #: 1500199 Required per assembly: 1 Currently Not Available
31	DISC-QUICK, FUELTANK, FEMALE Part #: 5131506 Required per assembly: 1 Currently Not Available
32	SCREW Part #: 7517405 Required per assembly: 3 Currently Not Available
33	FILTER, FUEL Part #: 2520223 Required per assembly: 1 Note: Filter Currently Not Available
34	REGULATOR, FUEL, PRESS. Part #: 2520130 Required per assembly: 1 Currently Not Available
35	CLIP, INJECTOR, CLOCKING Part #: 7670103 Required per assembly: 2 Currently Not Available
36	INJECTOR, FUEL Part #: 1253174 Required per assembly: 2 Currently Not Available
36	O-RING Part #: 1500198 Required per assembly: 4 Currently Not Available
