Electrical 1 replacement parts for 2001 Yamaha YZFR1 (YZFR1SN)

OEM Parts Yamaha 2001 Yamaha YZFR1 (YZFR1SN) Electrical 1

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	IGNITOR UNIT ASSEMBLY Part #: 5JJ-82305-30-00 Required per assembly: 1 Note: () Not Available
002	SCREW, TRUSS, HEAD, TAPPING Part #: 97707-50016-00 Required per assembly: 4 $1.85 $1.41 - + Add to cart
003	IGNITION COIL ASSEMBLY Part #: 4KM-82310-02-00 Required per assembly: 1 $132.99 $114.79 - + Add to cart
004	IGNITION COIL ASSEMBLY Part #: 4KM-82320-02-00 Required per assembly: 1 $131.99 $112.04 - + Add to cart
005	WIRE, SUB, LEAD Part #: 4XV-82309-00-00 Required per assembly: 1 Not Available
006	PLUG CAP ASSEMBLY Part #: 4XV-82370-01-00 Required per assembly: 4 $171.99 $149.69 - + Add to cart
007	SCREW, TAPPING Part #: 97707-60025-00 Required per assembly: 2 Note: (USA) $1.85 $1.22 - + Add to cart
008	NEUTRAL SWITCH ASSEMBLY Part #: 3GB-82540-01-00 Required per assembly: 1 $63.99 $52.60 - + Add to cart
009	GASKET Part #: 90430-10148-00 Required per assembly: 1 $5.99 $4.81 - + Add to cart
010	WIRE, LEAD Part #: 5JJ-82541-00-00 Required per assembly: 1 Not Available
011	OIL LEVEL GAUGE ASSEMBLY Part #: 4XV-85720-01-00 Required per assembly: 1 Not Available
012	CLAMP 1 Part #: 5Y9-12491-00-00 Required per assembly: 1 $7.49 $6.27 - + Add to cart
013	BOLT, SOCKET Part #: 91317-06014-00 Required per assembly: 1 $10.49 $6.92 - + Add to cart
014	CLAMP Part #: 90465-08013-00 Required per assembly: 1 Not Available
015	THERMO UNIT Part #: 5JJ-83591-00-00 Required per assembly: 1 $133.99 $116.48 - + Add to cart
016	ROTOR Part #: 4XV-81673-00-00 Required per assembly: 1 Not Available
017	PIN, DOWEL Part #: 93604-29151-00 Required per assembly: 1 $8.49 $5.67 - + Add to cart
018	BOLT, FLANGE Part #: 90105-10290-00 Required per assembly: 1 $15.49 $9.53 - + Add to cart
019	WASHER, PLATE(1WG) Part #: 90201-107K6-00 Required per assembly: 1 $13.49 $8.66 - + Add to cart
020	SENSOR, SPEED Part #: 4XV-83755-04-00 Required per assembly: 1 $156.99 $135.79 - + Add to cart
021	BOLT, SOCKET Part #: 91317-06014-00 Required per assembly: 1 $10.49 $6.92 - + Add to cart
022	CLAMP Part #: 90465-08028-00 Required per assembly: 1 $7.49 $4.54 - + Add to cart
023	PICK-UP ASSEMBLY Part #: 4XV-81670-11-00 Required per assembly: 1 Not Available
024	BOLT, HEXAGON, SOCKET, HEAD Part #: 91317-06012-00 Required per assembly: 1 $9.49 $6.05 - + Add to cart
025	CLAMP Part #: 90465-08054-00 Required per assembly: 1 $6.49 $5.10 - + Add to cart
026	SERVO MOTOR ASSEMBLY Part #: 4FM-85820-01-00 Required per assembly: 1 Not Available
027	CLAMP(4AJ) Part #: 90462-08225-00 Required per assembly: 2 $9.49 $7.32 - + Add to cart

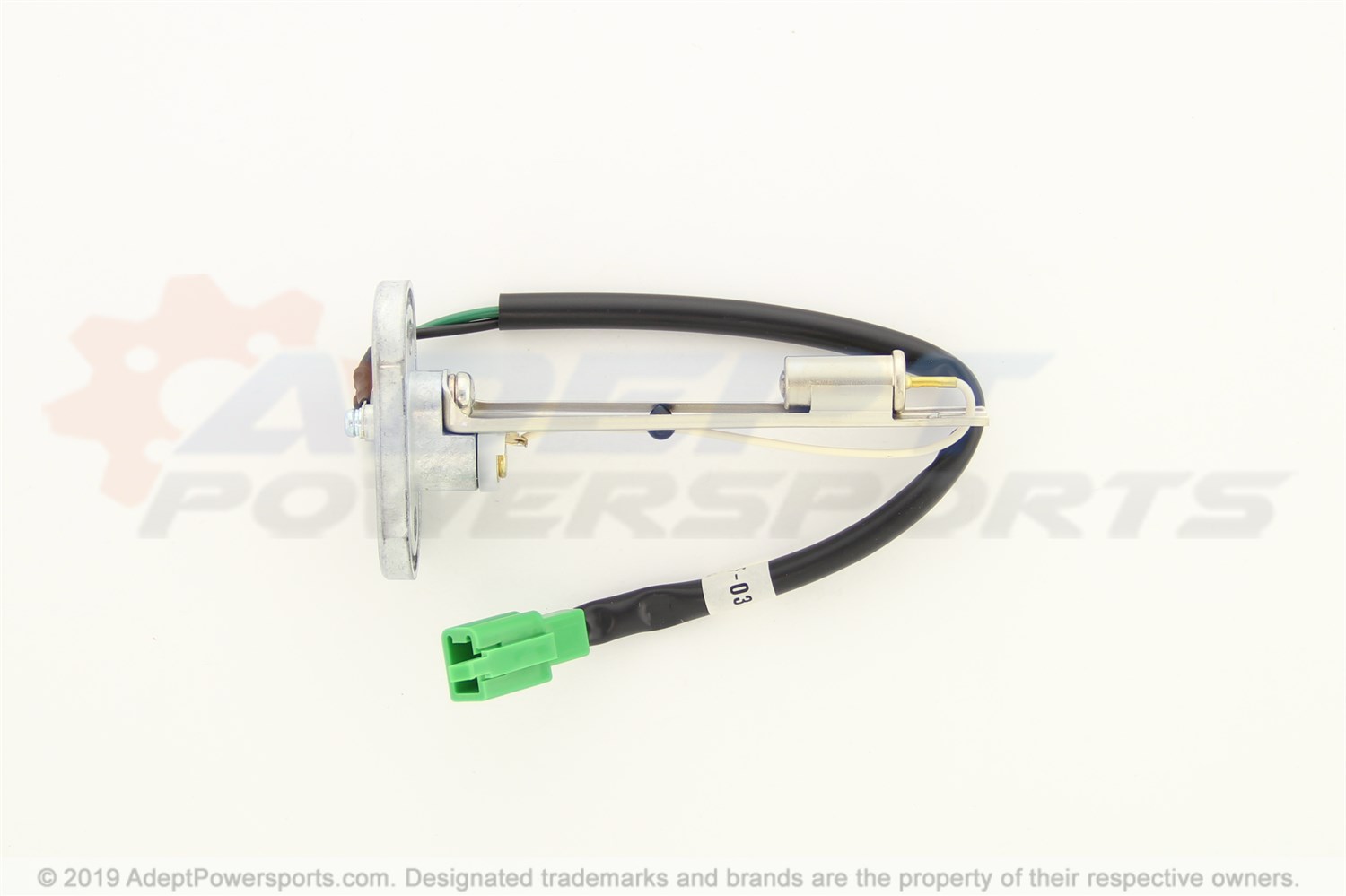

028	SENDER, UNIT, ASSEMBLY, FUEL, METER Part #: 1UF-85752-03-00 Required per assembly: 1 Not Available
029	GASKET, SENDER, UNIT Part #: 42X-85753-00-00 Required per assembly: 1 $8.49 $7.23 - + Add to cart
030	SCREW, SPEC'L, SHAPE Part #: 90149-06011-00 Required per assembly: 2 $2.04 $1.56 - + Add to cart
031	WASHER, PLATE(3MB) Part #: 90202-05187-00 Required per assembly: 2 $1.70 $1.30 - + Add to cart
032	RELAY ASSEMBLY (G8HN-1C4T-DJ-Y51) Part #: 5JJ-81950-11-00 Required per assembly: 1 $31.98 $24.30 - + Add to cart
033	FRONT REFLECTOR ASSEMBLY Part #: 23V-85110-00-00 Required per assembly: 2 $30.98 $21.15 - + Add to cart
034	NUT, FLANGE, 3GM, (BLACK) Part #: 95707-05500-00 Required per assembly: 2 $9.49 $6.06 - + Add to cart
035	BRACKET, REFLECTOR, 1 Part #: 4XV-85112-00-00 Required per assembly: 2 $41.99 $36.77 - + Add to cart
036	WASHER, PLATE Part #: 90201-08759-00 Required per assembly: 2 $3.50 $2.46 - + Add to cart
