Crankcases Ii replacement parts for 2002 Aprilia RSV 1000

OEM Parts Aprilia 2002 Aprilia RSV 1000 Crankcases Ii

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	STUD BOLT M10X171 Part #: AP0241580 Currently Not Available
2	HEX SOCKET SCREW M6X20 Part #: AP0241932 Currently Not Available
3	O-RING 59,52X2,62 Part #: AP0650500 Currently Not Available
4	OIL FILTER COVER Part #: AP0210415 Currently Not Available

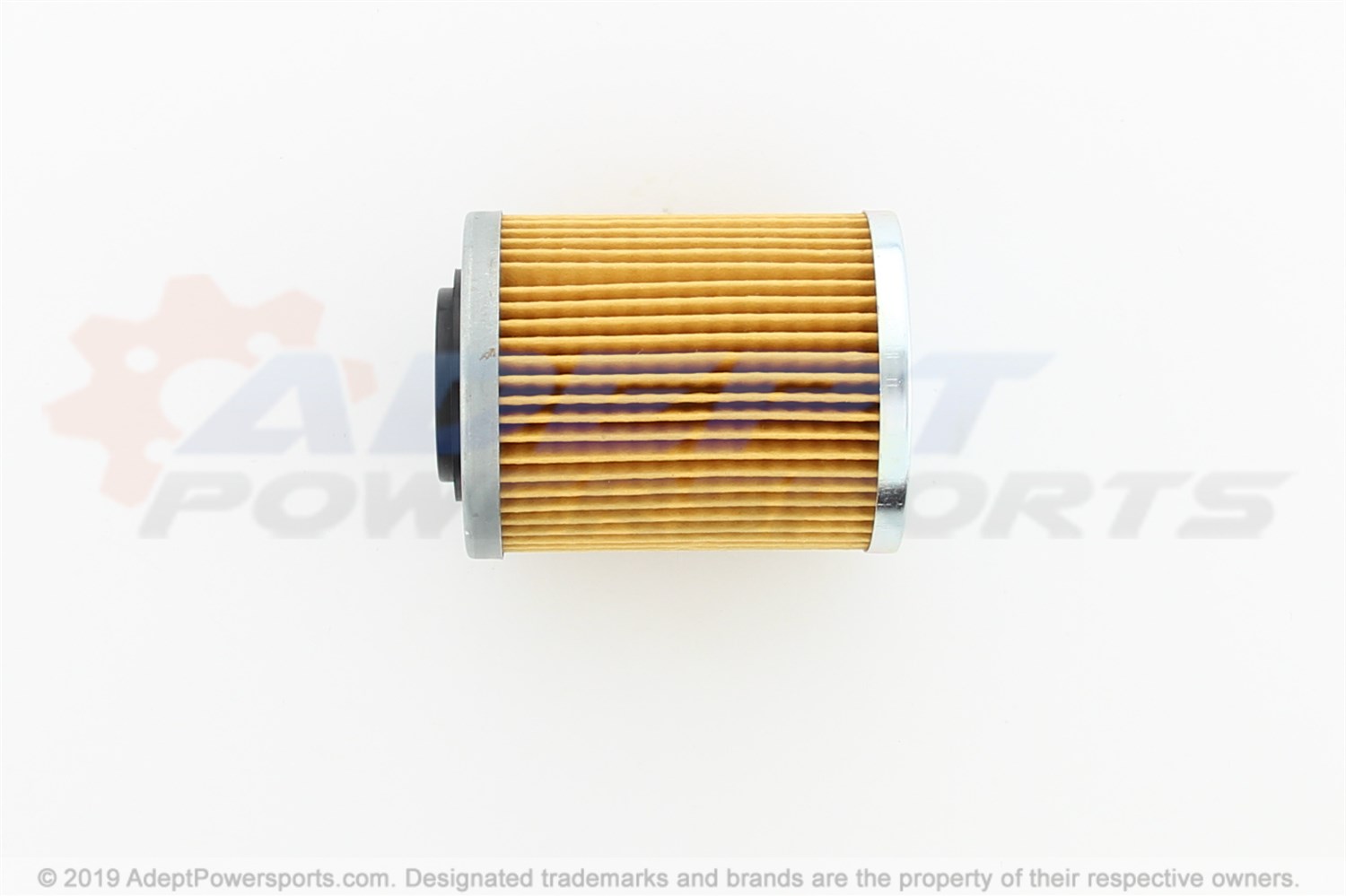

5	OIL FILTER Part #: AP0256187 Aftermarket alternatives available Currently Not Available
6	NEUTRAL INDICATOR SWITCH M10 Part #: AP0241854 Currently Not Available
7	MAGNETIC DRAIN PLUG M12X1,5 Part #: AP0241782 Currently Not Available
8	GASKET RING 6X10 Part #: AP0230415 Currently Not Available
9	HEX SOCKET SCREW M6X10 Part #: AP0241081 Currently Not Available
10	JET 40 (5 PACK) Part #: AP0268751 Note: 6-7-8 Currently Not Available
11	BALL BEARING 6206 Part #: AP0932585 Currently Not Available
12	SHORT HEAD SCREW M6X13 Part #: AP0241531 Currently Not Available
13	BALL BEARING 6304 Part #: AP0832144 Currently Not Available
14	BEARING 6003 Part #: AP0232625 Currently Not Available
15	HEX SOCKET SCREW M6X80 Part #: AP0241501 Currently Not Available
16	HEX SOCKET SCREW M6X25 Part #: AP0840861 Currently Not Available
17	ANGULAR BEARING 3206 Part #: AP0632124 Currently Not Available
18	BALL BEARING 6205 Part #: AP0932428 Currently Not Available
19	BALL BEARING 16101 Part #: AP0932335 Currently Not Available
20	OIL STRAINER Part #: AP0256497 Currently Not Available
21	OIL SPRAYER PIPE Part #: AP0256526 Currently Not Available
22	GASKET Part #: AP0650337 Currently Not Available
23	OIL SEAL 40X47X7,5 Part #: AP0850050 Currently Not Available
24	OIL SEAL 12X28X7 Part #: AP0250450 Currently Not Available
25	OIL SEAL 11X22X7 Part #: AP0650320 Currently Not Available
26	CHAIN GUIDE Part #: AP0236370 Currently Not Available
27	CLUTCH DISENGAGEMENT FLANGE Part #: AP0259500 Currently Not Available
28	HEX SOCKET SCREW M6X45 Part #: AP0241821 Currently Not Available
29	HEX SOCKET SCREW M6X65 Part #: AP0241261 Currently Not Available
