Left Crankcase Cover replacement parts for 2002 Honda CRF450R

OEM Parts Honda 2002 Honda CRF450R Left Crankcase Cover

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	COVER, OIL, FILTER Part #: 11333-MEB-670 Required per assembly: 1 $52.41 $43.70 - + Add to cart
002	COVER, L., CRANKCASE Part #: 11340-MEB-670 Required per assembly: 1 Not Available

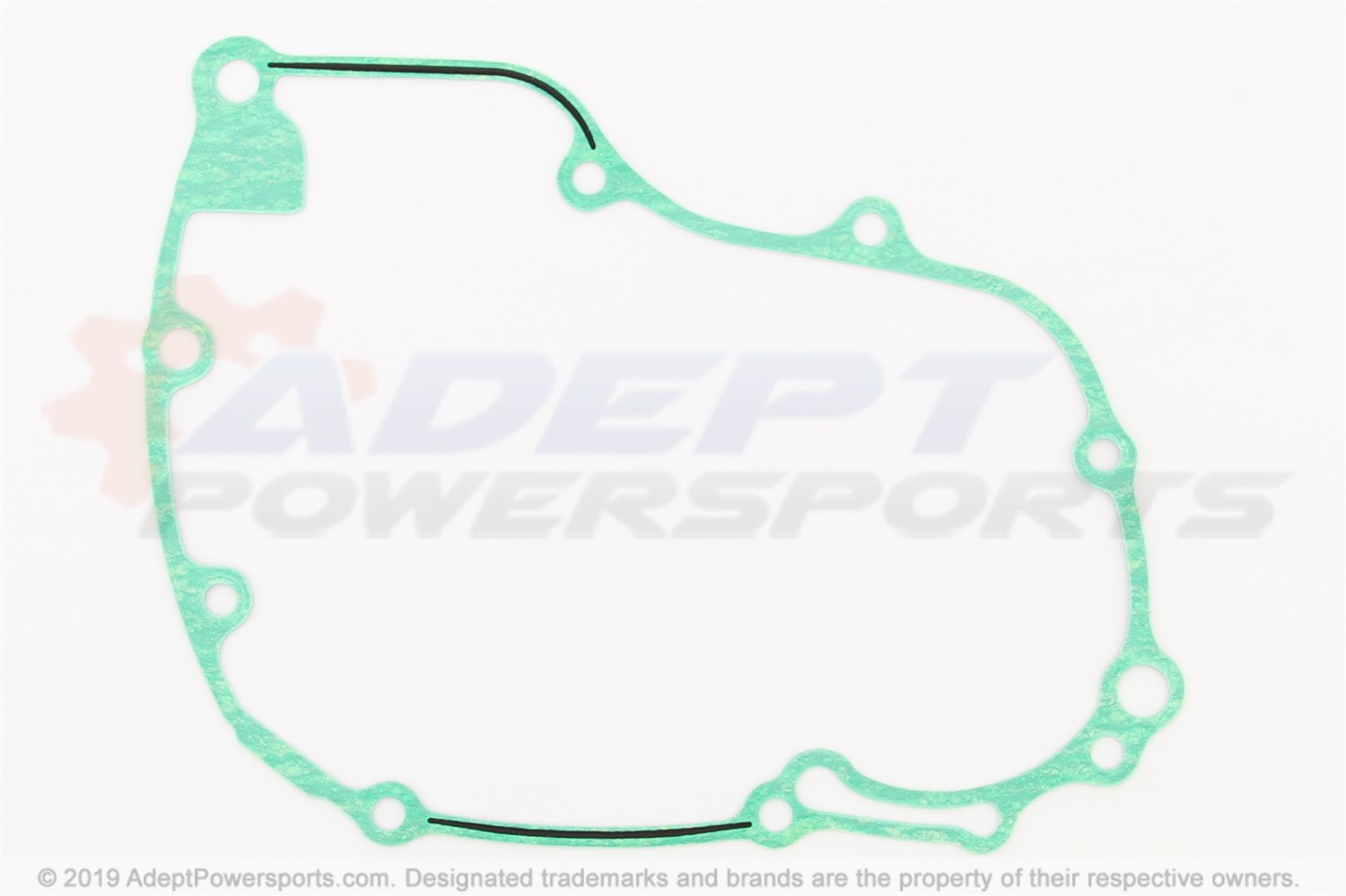

003	GASKET, L., COVER Part #: 11395-MEB-670 Required per assembly: 1 $14.39 $12.01 - + Add to cart
004	VALVE, ASSEMBLY, RELIEF Part #: 15220-MEB-670 Required per assembly: 1 $27.55 $22.30 - + Add to cart
005	FILTER, ENGINE, OIL Part #: 15412-MEN-671 Required per assembly: 1 $9.44 $8.03 - + Add to cart
006	SPRING, OIL, FILTER Part #: 15414-MEB-670 Required per assembly: 1 $3.65 $3.32 - + Add to cart
007	CAP, OIL, FILLER Part #: 15611-KA4-710 Required per assembly: 1 $16.68 $13.92 - + Add to cart
008	RECEIVER Part #: 22838-MEB-670 Required per assembly: 1 Not Available
009	COVER, DRIVE, SPROCKET Part #: 23810-MEB-670 Required per assembly: 1 Not Available
010	GUIDE, DRIVE, CHAIN Part #: 23812-MEB-670 Required per assembly: 1 Not Available
011	CAP (14MM) Part #: 90084-MN8-010 Required per assembly: 1 $14.86 $12.38 - + Add to cart
012	WASHER (8MM) Part #: 90474-333-000 Required per assembly: 1 $4.96 $4.74 - + Add to cart
013	CIRCLIP (24MM) Part #: 90602-MEB-670 Required per assembly: 1 $4.39 $3.99 - + Add to cart
014	O-RING (8.5X1.7) Part #: 90751-GK1-003 Required per assembly: 1 $3.73 $3.39 - + Add to cart
015	OIL SEAL (10X21X5) Part #: 91204-KRN-671 Required per assembly: 1 $5.36 $4.87 - + Add to cart
016	O-RING (39.8X2.2) Part #: 91302-PA9-003 Required per assembly: 2 $5.06 $4.97 - + Add to cart
017	O-RING (13.8X2.5) Part #: 91303-377-000 Required per assembly: 1 $4.75 $4.32 - + Add to cart
018	O-RING (18X3) Part #: 91307-035-000 Required per assembly: 1 $4.00 $3.64 - + Add to cart
019	PIN, DOWEL, (8X14) Part #: 94301-08140 Required per assembly: 2 $3.21 $2.99 - + Add to cart
020	PIN, DOWEL, (10X16) Part #: 94301-10160 Required per assembly: 4 $3.50 $3.18 - + Add to cart
021	CIRCLIP (14MM) Part #: 94520-14000 Required per assembly: 1 $1.96 $1.81 - + Add to cart
022	CLIP (4X50) Part #: 90601-KJ9-000 Required per assembly: 1 $4.40 $4.00 - + Add to cart
023	BOLT, FLANGE, (6X16) Part #: 96001-06016-00 Required per assembly: 4 $2.09 $1.93 - + Add to cart
024	BOLT, FLANGE, (6X30) Part #: 96001-06030-07 Required per assembly: 3 $2.79 $2.60 - + Add to cart
025	BOLT, FLANGE, (6X32) Part #: 96001-06032-00 Required per assembly: 1 $2.41 $2.23 - + Add to cart
026	BOLT, FLANGE, (6X40) Part #: 96001-06040-00 Required per assembly: 2 $3.14 $2.91 - + Add to cart
027	BOLT, FLANGE, (6X75) Part #: 96001-06075-00 Required per assembly: 1 $3.19 $2.97 - + Add to cart
028	BOLT, FLANGE, (8X35) Part #: 96300-08035-00 Required per assembly: 4 $2.94 $2.73 - + Add to cart
029	WASHER (13MM) Part #: 90451-459-770 Required per assembly: 1 $3.51 $3.19 - + Add to cart
030	BOLT, FLANGE, (6X32) Part #: 96001-06032-00 Required per assembly: 1 $2.41 $2.23 - + Add to cart
