Cylinder Head Cover replacement parts for 2002 Honda TRX90

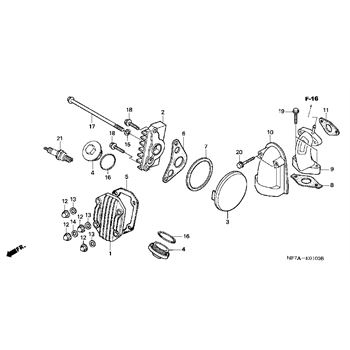

OEM Parts Honda 2002 Honda TRX90 Cylinder Head Cover

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	COVER, CYLINDER, HEAD Part #: 12301-GB6-911 Required per assembly: 1 $27.13 $21.95 - + Add to cart
002	COVER, R., CYL, HD, SIDE Part #: 12331-GB0-910 Required per assembly: 1 $32.09 $25.97 - + Add to cart
003	COVER, L., CYL, HD, SIDE Part #: 12341-GB6-910 Required per assembly: 1 $26.04 $21.07 - + Add to cart
004	CAP, VALVE, ADJ. Part #: 12361-300-000 Required per assembly: 1 Not Available
005	GASKET, CYLINDER, HEAD, COVER Part #: 12391-KVM-C20 Required per assembly: 1 $5.53 $5.03 - + Add to cart
006	GASKET, R., CYLINDER, HEAD, SIDE, COVER Part #: 12394-GW8-682 Required per assembly: 1 $5.57 $5.06 - + Add to cart
007	GASKET, L., CYLINDER, HEAD, SIDE, COVER Part #: 12395-GW8-682 Required per assembly: 1 $5.94 $5.31 - + Add to cart
008	GASKET, INSULATOR Part #: 16201-HF7-000 Required per assembly: 1 $5.10 - + Add to cart
009	PIPE, INLET Part #: 17110-HF7-A10 Required per assembly: 1 Not Available
010	COVER, IN., PIPE Part #: 17115-HF7-000 Required per assembly: 1 Not Available
011	GASKET, IN., PIPE Part #: 17119-HF7-000 Required per assembly: 1 $10.54 $9.04 - + Add to cart
012	NUT, CAP, (7MM) Part #: 90201-GF6-010 Required per assembly: 4 $5.64 $5.13 - + Add to cart
013	WASHER (7MM) Part #: 90442-GF6-010 Required per assembly: 3 $2.33 $2.16 - + Add to cart
014	WASHER A (7MM) Part #: 90443-GF6-010 Required per assembly: 1 $2.33 $2.16 - + Add to cart
016	O-RING (30.8MM) Part #: 91302-001-020 Required per assembly: 1 $4.74 $4.31 - + Add to cart
017	BOLT, FLANGE, (6X110) Part #: 95701-06110-00 Required per assembly: 1 $4.71 $4.28 - + Add to cart
018	BOLT, FLANGE, (6X20) Part #: 96001-06020-00 Required per assembly: 2 $2.27 $2.10 - + Add to cart
020	BOLT, FLANGE, (6X50) Part #: 96001-06050-00 Required per assembly: 2 $3.14 $2.91 - + Add to cart
021	SPARK PLUG (CR8HSA) Part #: 98056-58718 $3.32 - + Add to cart
021	SPARK PLUG (CR7HSA) Part #: 98056-57718 Required per assembly: 1 $3.32 - + Add to cart
021	SPARK PLUG (CR6HSA) Part #: 98056-56718 $3.32 - + Add to cart
021	S/PLG (U24FSR-U) Part #: 98056-58726 $3.25 - + Add to cart
021	S/PLG (U20FSR-U) Part #: 98056-56726 $3.25 - + Add to cart
021	S/PLG (U22FSR-U) Part #: 98056-57726 Required per assembly: 1 $3.25 - + Add to cart
