Carburetor replacement parts for 2002 Kawasaki Eliminator 125 (BN125-A5)

OEM Parts Kawasaki 2002 Kawasaki Eliminator 125 (BN125 A5) Carburetor

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

220	SCREW-PAN-CROS, 4X6 Part #: 220AA0406 Required per assembly: 1 Note: Sold in multiples of 5 only $1.74 $1.32 - + Add to cart
220A	SCREW-PAN-CROS, 4X10 Part #: 220AA0410 Required per assembly: 3 Note: Sold in multiples of 5 only $2.54 $1.85 - + Add to cart
223	SCREW-PAN-WS-CROS, 3X7 Part #: 223AA0307 Required per assembly: 2 Not Available
223A	SCREW-PAN-WS-CROS, 4X14 Part #: 223AA0414 Required per assembly: 4 Note: Sold in multiples of 5 only $1.59 $1.22 - + Add to cart
11060	GASKET, FLOAT, CHAMBER Part #: 11060-1849 Required per assembly: 1 $9.09 $7.82 - + Add to cart
13168	LEVER, STARTER Part #: 13168-1642 Required per assembly: 1 Not Available
13169	PLATE, FLOAT, VALVE Part #: 13169-1482 Required per assembly: 1 Not Available
13270	PLATE, VACUUM, VALVE Part #: 13270-1981 Required per assembly: 1 Not Available
13270A	PLATE, LH Part #: 13270-1982 Required per assembly: 1 Not Available
13270B	PLATE, RH Part #: 13270-1983 Required per assembly: 1 Not Available
13270C	PLATE, THROTTLE, STOP, SCREW Part #: 13270-1984 Required per assembly: 1 Not Available
14090	COVER, AIR, CUT, VALVE Part #: 14090-1931 Required per assembly: 1 Not Available
15003	CARBURETOR ASSEMBLY Part #: 15003-1627 Required per assembly: 1 Not Available
16005	TOP-CHAMBER Part #: 16005-1087 Required per assembly: 1 Not Available
16014	SCREW-PILOT AIR Part #: 16014-1117 Required per assembly: 1 $27.06 $22.65 - + Add to cart
16016	PLUNGER Part #: 16016-1106 Required per assembly: 1 $47.13 $43.14 - + Add to cart
16017	JET-NEEDLE, O-8M Part #: 16017-1432 Required per assembly: 1 Not Available
16021	SCREW-THROTTLE STOP Part #: 16021-1217 Required per assembly: 1 Not Available
16030	VALVE-FLOAT Part #: 16030-1086 Required per assembly: 1 $59.26 $53.90 - + Add to cart
16031	FLOAT Part #: 16031-1094 Required per assembly: 1 Not Available
16033	SCREW, 5X8 Part #: 16033-024 Required per assembly: 1 Not Available
16034	WASHER, MAIN, JET Part #: 16034-001 Required per assembly: 1 $4.63 $3.63 - + Add to cart
16126	VALVE, VACUUM Part #: 16126-1352 Required per assembly: 1 $146.09 $144.16 - + Add to cart
16187	NEEDLE-JET, 4C17 Part #: 16187-1188 Required per assembly: 1 Not Available

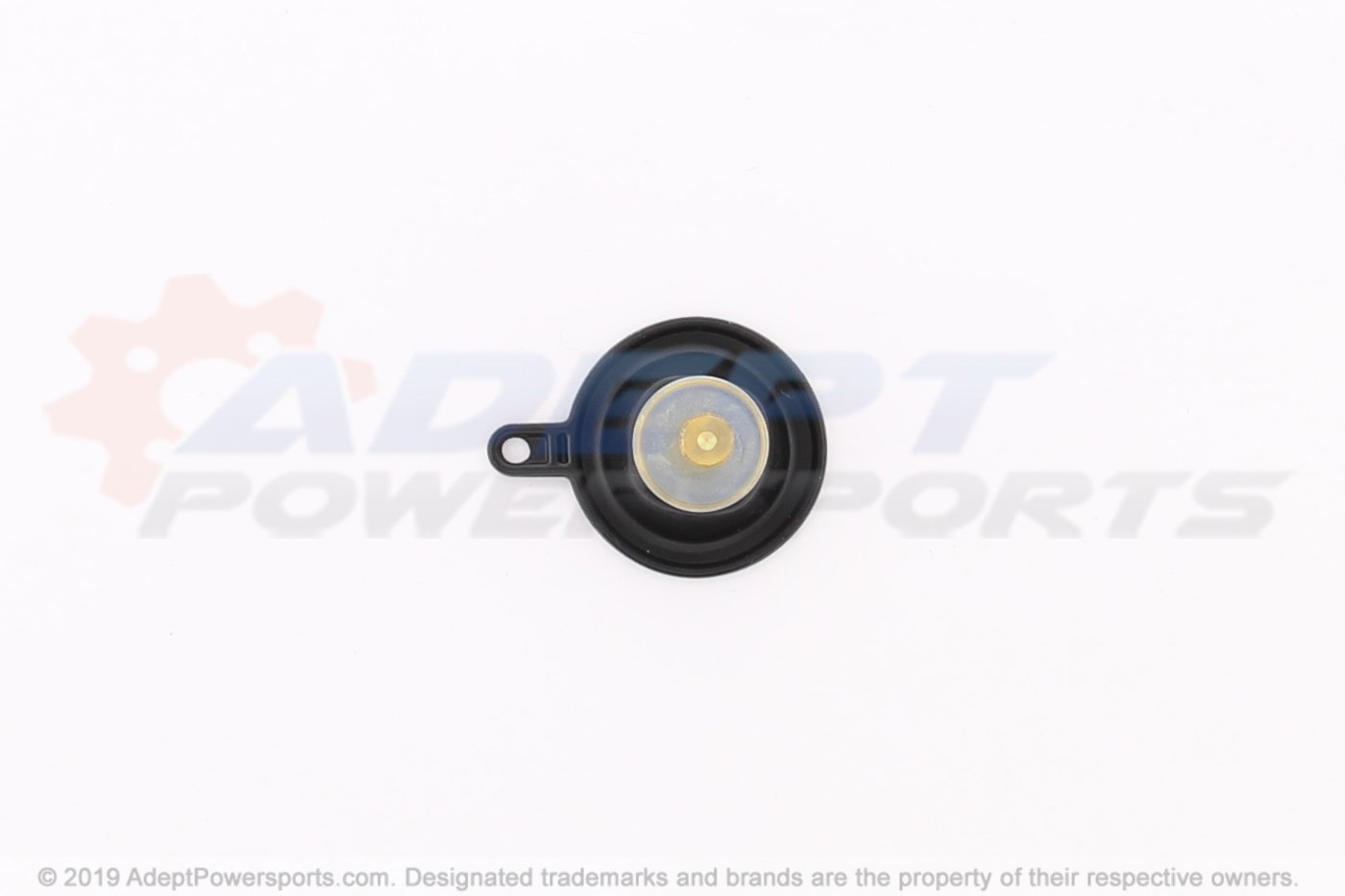

43028	DIAPHRAGM, COASTING, RICHER Part #: 43028-1026 Required per assembly: 1 $147.92 $145.74 - + Add to cart
92009	SCREW-PAN-CROSS, 5X10 Part #: 220AA0510 Required per assembly: 4 Note: Sold in multiples of 10 only $0.76 $0.68 - + Add to cart
92009A	SCREW, STARTER, LEVER Part #: 92009-1823 Required per assembly: 1 Not Available
92009B	SCREW, STARTER Part #: 92009-1824 Required per assembly: 1 Not Available
92009C	SCREW, DRAIN Part #: 92009-1826 Required per assembly: 1 $8.51 $7.33 - + Add to cart
92022	WASHER, JET, NEEDLE Part #: 92022-1123 Required per assembly: 1 Not Available
92022A	WASHER, PLAIN, DURACON Part #: 92022-1147 Required per assembly: 1 Not Available
92022B	WASHER, ADJUST, SCREW Part #: 92022-1187 Required per assembly: 1 $6.38 $4.92 - + Add to cart
92027	COLLAR, THROTTLE, VALVE Part #: 92027-1103 Required per assembly: 1 Not Available
92033	RING-SNAP Part #: 92033-1290 Required per assembly: 1 $4.91 $3.85 - + Add to cart
92037	CLAMP Part #: 92037-1610 Required per assembly: 2 Note: (CA ONLY) Sold in multiples of 5 only $2.06 $1.49 - + Add to cart
92055	RING-O Part #: 92055-1105 Required per assembly: 1 $5.37 $4.17 - + Add to cart
92059	TUBE, 3X5X220, OVERFLOW Part #: 92059-1243 Required per assembly: 1 $10.28 $8.79 - + Add to cart
92063	JET-MAIN, #A127.5 Part #: 92063-1100 Required per assembly: 1 Note: (OPTION) $14.85 $12.47 - + Add to cart
92063A	JET-MAIN, #A122.5 Part #: 92063-1101 Required per assembly: 1 Note: (OPTION) $14.85 $12.47 - + Add to cart
92063B	JET-MAIN, #A125 Part #: 92063-1102 Required per assembly: 1 $14.85 $12.47 - + Add to cart
92063C	JET-MAIN, #A130 Part #: 92063-1103 Required per assembly: 1 Note: (OPTION) $14.85 $12.47 - + Add to cart
92063D	JET-MAIN, #A120 Part #: 92063-1106 Required per assembly: 1 Note: (OPTION) $18.83 $15.71 - + Add to cart
92063E	JET, #70 Part #: 92063-2059 Required per assembly: 1 Not Available
92064	JET-PILOT, #32.5 Part #: 92064-1230 Required per assembly: 1 $19.96 $16.64 - + Add to cart
92066	PLUG, PILOT, AIR, SCREW Part #: 92066-1501 Required per assembly: 1 Not Available
92081	SPRING, JET, NEEDLE Part #: 92081-1126 Required per assembly: 1 Not Available
92145	SPRING, VACUUM, VALVE Part #: 92145-1124 Required per assembly: 1 $9.48 $8.13 - + Add to cart
92145A	SPRING, STARTER, LEVER Part #: 92145-1125 Required per assembly: 1 Not Available
92145B	SPRING, AIR, CUT, VALVE Part #: 92145-1127 Required per assembly: 1 $12.17 $10.31 - + Add to cart
92170	CLAMP Part #: 92170-1818 Required per assembly: 1 Not Available
92170A	CLAMP Part #: 92170-1936 Required per assembly: 1 Not Available
92170B	CLAMP Part #: 92170-2043 Required per assembly: 1 $1.25 $0.98 - + Add to cart
92191	TUBE, L=115 Part #: 92191-1210 Required per assembly: 1 Note: (US ONLY) Not Available
92191A	TUBE Part #: 92191-1244 Required per assembly: 1 Not Available
92191B	TUBE, 5X8X300 Part #: 92191-1245 Required per assembly: 1 $19.76 $16.47 - + Add to cart
92200	WASHER, STARTER, LEVER Part #: 92200-1397 Required per assembly: 1 Not Available
92200A	WASHER, STARTER, LEVER Part #: 92200-1398 Required per assembly: 1 Not Available
