Front Bevel Gear replacement parts for 2002 Kawasaki Vulcan 1500 Classic (VN1500-E5)

OEM Parts Kawasaki 2002 Kawasaki Vulcan 1500 Classic (VN1500 E5) Front Bevel Gear

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

120	BOLT-SOCKET, 8X30 Part #: 120CB0830 Required per assembly: 4 $4.82 $3.79 - + Add to cart
130	BOLT-FLANGED Part #: 130S0630 Required per assembly: 2 Not Available
130A	BOLT-FLANGED, 6X40, BLACK Part #: 130CB0640 Required per assembly: 4 $5.78 $4.48 - + Add to cart
132	BOLT-FLANGED-SMALL, 6X16 Part #: 132BA0616 Required per assembly: 2 $1.22 - + Add to cart
671	O, RING, 65MM Part #: 671B2565 Required per assembly: 1 $9.10 $7.83 - + Add to cart
11009	GASKET, OIL, PIPE, 8.2X14X1.0 Part #: 11009-1344 Required per assembly: 3 Note: Sold in multiples of 5 only $3.24 $2.22 - + Add to cart
11012	CAP Part #: 11012-1071 Required per assembly: 1 $35.51 $32.77 - + Add to cart

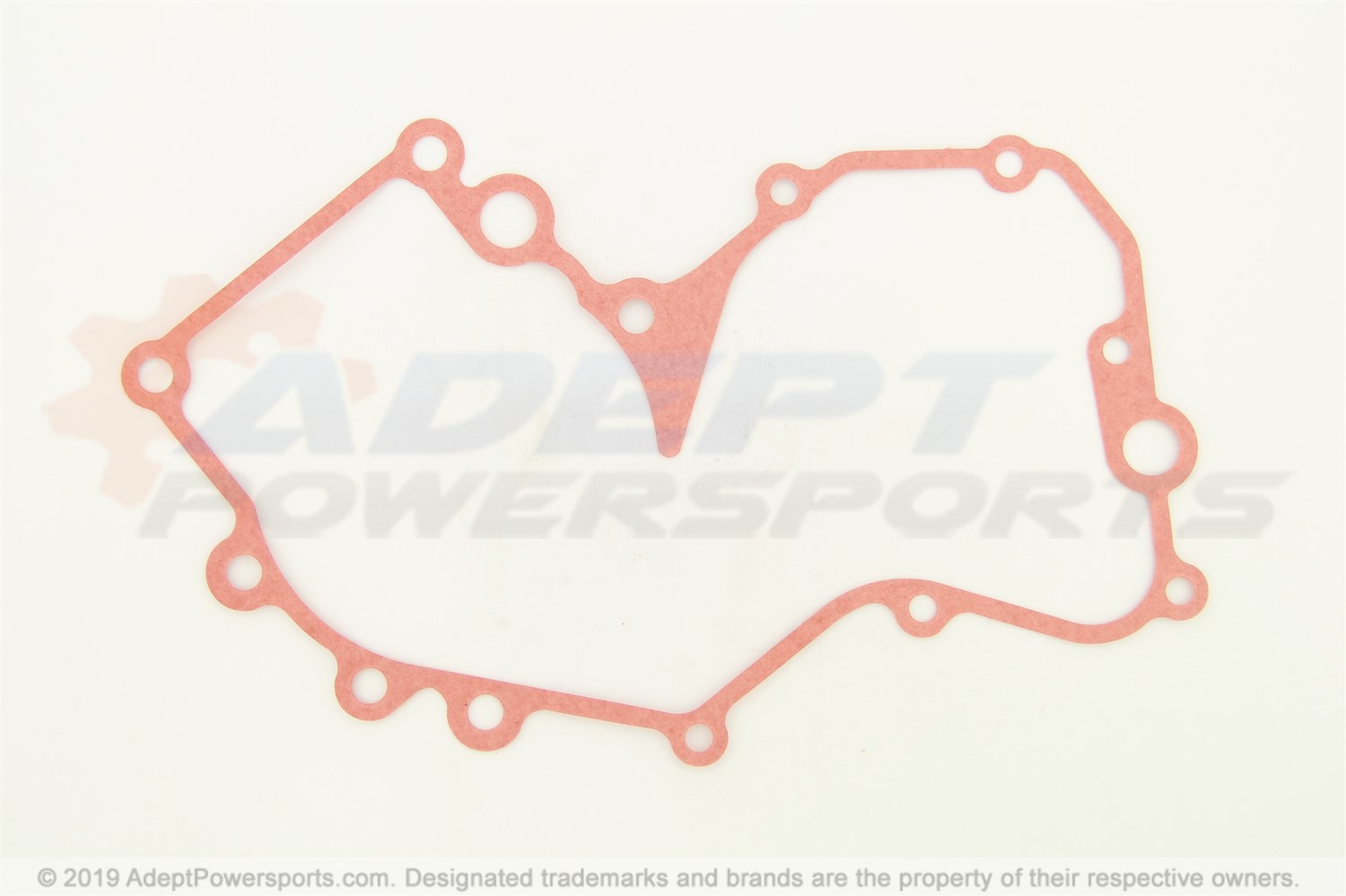

11060	GASKET, BEVEL, GEAR, CASE Part #: 11060-1829 Required per assembly: 1 $30.06 $27.47 - + Add to cart
11060A	GASKET, OIL, PIPE, 8.2X25X1.0 Part #: 11060-1872 Required per assembly: 1 Not Available
13048	CAM-DAMPER Part #: 13048-1085 Required per assembly: 1 Not Available
13101	GEAR ASSEMBLY Part #: 13101-0021 Required per assembly: 1 Not Available
13101A	GEAR, ASSEMBLY, BEVEL, FR Part #: 13101-5088 Required per assembly: 1 $1,191.79 - + Add to cart
13107	SHAFT, BEVEL, FR Part #: 13107-1525 Required per assembly: 1 Not Available
13151	SWITCH-COMP Part #: 13151-1010 Required per assembly: 1 $28.84 $26.10 - + Add to cart
14014	PLATE-POSITION Part #: 14014-1136 Required per assembly: 1 $8.15 $7.05 - + Add to cart
14055	CASE-GEAR, FRONT, BEVEL Part #: 14055-1143 Required per assembly: 1 Not Available
39193	PIPE-OIL Part #: 39193-1026 Required per assembly: 1 Not Available
41046	HOUSING-BEARING Part #: 41046-1099 Required per assembly: 1 Not Available
42034	COUPLING, FR, DRIVEN Part #: 42034-1091 Required per assembly: 1 $135.99 $134.19 - + Add to cart
43064	GROMMET, HOSE, CLAMP Part #: 43064-006 Required per assembly: 1 $4.43 $3.49 - + Add to cart
49006	BOOT, DUST Part #: 49006-1041 Required per assembly: 1 $11.79 $10.00 - + Add to cart
51036	CUP Part #: 51036-1002 Required per assembly: 1 $6.67 $5.12 - + Add to cart
92001	BOLT, 12X42 Part #: 92001-1169 Required per assembly: 1 $23.73 $19.76 - + Add to cart
92002	BOLT, BANJO, 8X20 Part #: 92002-1429 Required per assembly: 2 Not Available
92015	NUT, 24MM Part #: 92015-1554 Required per assembly: 1 $25.97 $21.72 - + Add to cart
92022	WASHER, 8.5X13X1 Part #: 92022-1028 Required per assembly: 4 $4.04 $3.20 - + Add to cart
92022A	WASHER Part #: 92022-1211 Required per assembly: 1 $4.22 $3.32 - + Add to cart
92025	SHIM, 25.2X29.8X1.70 Part #: 92025-1072 $9.55 $8.19 - + Add to cart
92025A	SHIM, 25.2X29.8X1.72 Part #: 92025-1073 $9.55 $8.19 - + Add to cart
92025B	SHIM, 25.2X29.8X1.74 Part #: 92025-1074 $9.55 $8.19 - + Add to cart
92025C	SHIM, 25.2X29.8X1.76 Part #: 92025-1075 $9.55 $8.19 - + Add to cart
92025D	SHIM, 25.2X29.8X1.78 Part #: 92025-1076 $9.55 $8.19 - + Add to cart
92025E	SHIM, 25.2X29.8X1.80 Part #: 92025-1077 $9.55 $8.19 - + Add to cart
92025F	SHIM, 25.3X36X0.15 Part #: 92025-1688 Note: Sold in multiples of 2 only $8.83 $7.60 - + Add to cart
92025G	SHIM, 25.3X36X0.50 Part #: 92025-1689 $8.83 $7.60 - + Add to cart
92025H	SHIM, 25.3X36X0.60 Part #: 92025-1690 Note: Sold in multiples of 2 only $8.83 $7.60 - + Add to cart
92025I	SHIM, 25.3X36X0.70 Part #: 92025-1691 $8.83 $7.60 - + Add to cart
92025J	SHIM, 25.3X36X0.80 Part #: 92025-1692 Note: Sold in multiples of 2 only $8.83 $7.60 - + Add to cart
92025K	SHIM, 25.3X36X0.90 Part #: 92025-1693 $8.83 $7.60 - + Add to cart
92025L	SHIM, 25.3X36X1.00 Part #: 92025-1694 $8.83 $7.60 - + Add to cart
92025M	SHIM, 25.3X36X1.10 Part #: 92025-1695 $8.83 $7.60 - + Add to cart
92025N	SHIM, 25.3X36X1.20 Part #: 92025-1696 $8.83 $7.60 - + Add to cart
92025O	SHIM, T=0.15 Part #: 92025-1818 Not Available
92025P	SHIM, T=0.50 Part #: 92025-1819 Not Available
92025Q	SHIM, T=0.60 Part #: 92025-1820 Not Available
92025R	SHIM, T=0.70 Part #: 92025-1821 Not Available
92025S	SHIM, T=0.80 Part #: 92025-1822 Not Available
92025T	SHIM, T=0.90 Part #: 92025-1823 $11.16 $9.48 - + Add to cart
92025U	SHIM, T=1.00 Part #: 92025-1824 Not Available
92025V	SHIM, T=1.20 Part #: 92025-1825 Not Available
92025W	SHIM, T=0.10 Part #: 92025-1826 Not Available
92027	COLLAR, 25.2X29.8X22.8 Part #: 92027-1152 Not Available
92027A	COLLAR, 25.2X29.8X22.9 Part #: 92027-1153 Not Available
92027B	COLLAR, 25.2X29.8X23 Part #: 92027-1154 Not Available
92027C	COLLAR, 25.2X29.8X23.1 Part #: 92027-1155 Not Available
92027D	COLLAR, 25.2X29.8X23.2 Part #: 92027-1156 Not Available
92027E	COLLAR, 25.2X29.8X23.3 Part #: 92027-1157 Not Available
92027F	COLLAR, 25.2X29.8X23.4 Part #: 92027-1158 Not Available
92027G	COLLAR, 25.2X29.8X23.5 Part #: 92027-1159 Not Available
92027H	COLLAR, 25.2X29.8X23.6 Part #: 92027-1160 Not Available
92027I	COLLAR, 25.2X29.8X23.7 Part #: 92027-1161 Not Available
92027J	COLLAR, 25.2X29.8X23.8 Part #: 92027-1162 Not Available
92027K	COLLAR, 25.2X29.8X23.9 Part #: 92027-1163 Not Available
92027L	COLLAR, 25.2X29.8X24 Part #: 92027-1164 Not Available
92027M	COLLAR, 25.2X29.8X24.1 Part #: 92027-1165 Not Available
92037	CLAMP Part #: 92171-0652 Required per assembly: 1 Note: Sold in multiples of 5 only $2.70 $1.95 - + Add to cart
92043	PIN, 11.5X14X14 Part #: 92043-1279 Required per assembly: 2 $5.14 $4.02 - + Add to cart
92045	BEARING-BALL, 6305C2 Part #: 92045-1165 Required per assembly: 1 $45.84 $41.94 - + Add to cart
92049	SEAL-OIL, SD-8187 Part #: 92049-1017 Required per assembly: 1 $10.62 $9.03 - + Add to cart
92049A	OIL, SEAL, TC35527 Part #: 92049-1038 Required per assembly: 1 $19.11 $15.91 - + Add to cart
92049B	SEAL-OIL, TC13225.5 Part #: 92049-1519 Required per assembly: 1 $13.89 $11.71 - + Add to cart
92055	"O", RING, I.D=18.64MM Part #: 92055-1044 Required per assembly: 1 $5.14 $4.00 - + Add to cart
92062	NOZZLE, 6X8, GREEN Part #: 92062-1078 Required per assembly: 1 $4.82 $3.79 - + Add to cart
92062A	NOZZLE, 10X10, SILVER Part #: 92062-1083 Required per assembly: 1 Not Available
92116	BEARING-ROLLER, HI-CAP30205 Part #: 92116-1062 Required per assembly: 1 $38.00 $35.00 - + Add to cart
92145	SPRING, CAM, DAMPER Part #: 92145-1102 Required per assembly: 1 Not Available
92151	BOLT, 8X95 Part #: 92151-1444 Required per assembly: 2 Not Available
92151A	BOLT, 8X80 Part #: 92151-1445 Required per assembly: 3 Not Available
92170	CLAMP Part #: 92170-1732 Required per assembly: 1 Not Available
