Engine Mounting - A02cd50aa/Ab/Fb replacement parts for 2002 Polaris Magnum 500 (A02CD50AA)

OEM Parts Polaris 2002 Polaris Magnum 500 (A02CD50AA) Engine Mounting - A02cd50aa/Ab/Fb

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

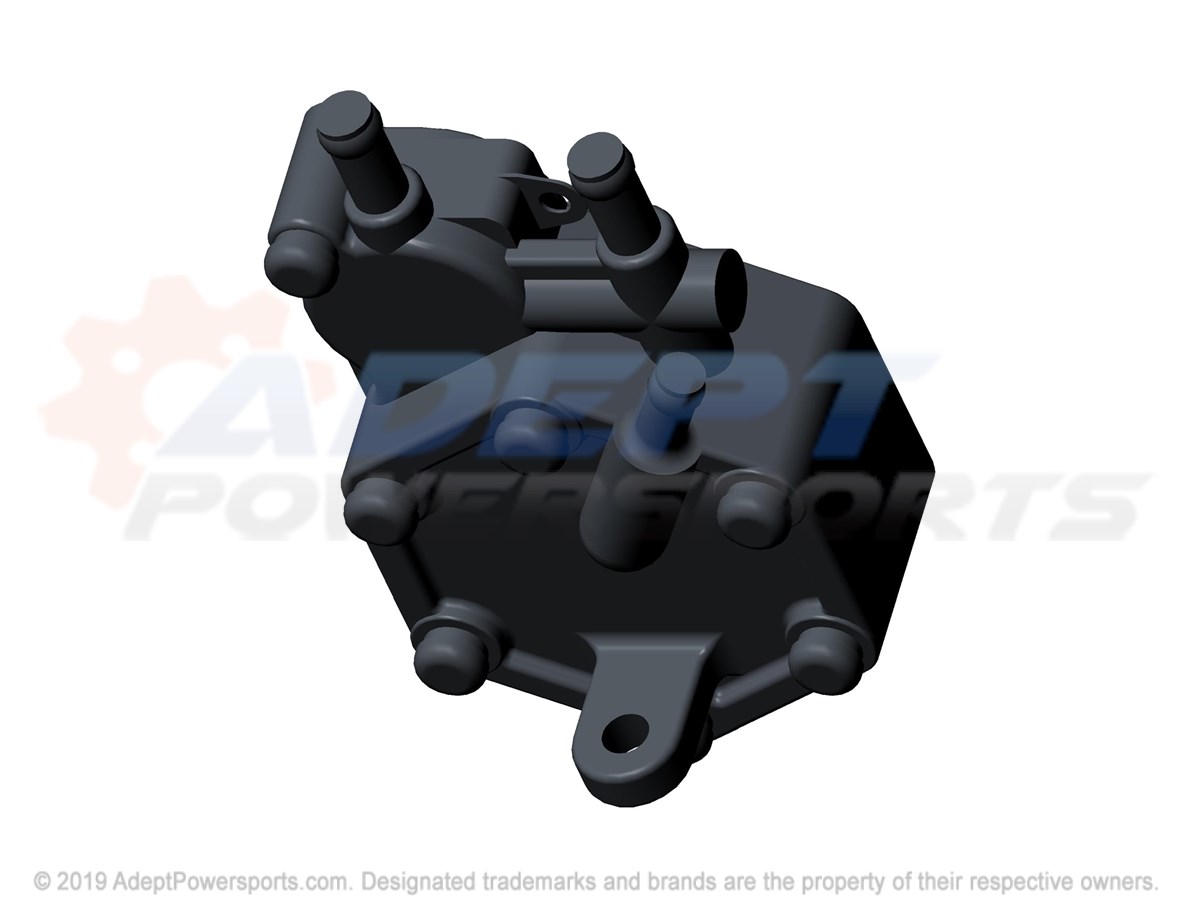

1	ASSEMBLY, FUEL, PUMP Part #: 2520227 Required per assembly: 1 Note: Asm., Fuel Pump [Incl. All] Currently Not Available
2	NUT, NYLOK Part #: 7546601 Required per assembly: 2 Note: Nut, Nylok Sold in multiples of 10 only Currently Not Available
3	CLAMP, HOSE Part #: 7080003 Required per assembly: 8 Note: Clamp, Hose, Red Currently Not Available
4	FUEL, LINE, 1/4, ID(600, CM.) Part #: 8450040-600 Required per assembly: 1 Currently Not Available
5	SCREW Part #: 3130535 Required per assembly: 4 Currently Not Available
6	COVER Part #: 3130511 Required per assembly: 1 Currently Not Available
7	O-RING Part #: 3130512 Required per assembly: 1 Currently Not Available
8	FUEL, LINE, 1/4, ID(1525, CM.) Part #: 8450003-1525 Currently Not Available
9	FITTING, TEE Part #: 7052075 Required per assembly: 1 Currently Not Available
10	FUEL, LINE, 1/8, ID, 600, CM. Part #: 8360009-600 Required per assembly: 1 Currently Not Available
11	FILTER, SMALL, IN-LINE Part #: 2530009 Required per assembly: 1 $4.99 $2.88 - + Add to cart
12	N/A, USE, COMPONENTS Part #: 9990000 Required per assembly: 1 Currently Not Available
13	GUIDE, CABLE Part #: 3130543 Required per assembly: 1 Note: Guide, Cable Currently Not Available
14	CABLE-THROTTLE, 1/4, TURN, 4, STK Part #: 7080967 Required per assembly: 1 Currently Not Available
15	O RING Part #: 5410193 Required per assembly: 1 Note: O-Ring Currently Not Available
16	MOUNT, ENGINE, TOP, BLACK Part #: 5242936-067 Required per assembly: 1 Currently Not Available
17	CABLE, GND-ENGINE Part #: 4010132 Required per assembly: 1 Currently Not Available
18	LOCK WASHER Part #: 7552901 Required per assembly: 2 $1.99 $1.15 - + Add to cart
19	BOLT Part #: 7512315 Required per assembly: 2 Note: Bolt Currently Not Available
20	WASHER Part #: 7555823 Required per assembly: 1 Note: Washer, Flat Currently Not Available
21	SPACER-MOTOR MNT TOP Part #: 5132007 Required per assembly: 1 Currently Not Available
22	ISOLATOR-3/8-24M/M, 60DURO Part #: 3022075 Required per assembly: 1 Currently Not Available
23	NUT Part #: 7547108 Required per assembly: 4 Currently Not Available
24	NUT, FLANGE Part #: 3083649 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
25	CABLE, BATT/ENG., BLACK. Part #: 4010095 Required per assembly: 1 Currently Not Available
26	CABLE, SOL/STARTER Part #: 4010093 Required per assembly: 1 Currently Not Available
27	BOOT, CLUTCH, INTAKE Part #: 5410421 Required per assembly: 1 Currently Not Available
28	CLAMP, NARROW, BAND Part #: 7080511 Required per assembly: 1 Currently Not Available
29	WASHER, FLAT Part #: 7555815 Required per assembly: 2 Currently Not Available
30	ISOLATOR Part #: 3022076 Required per assembly: 2 Currently Not Available
31	COIL, ASM, IGNITION Part #: 3084690 Required per assembly: 1 Note: WIRE ON COIL MEASURES 14.2 INCHES LONG Currently Not Available
34	SCREW & WASHER Part #: 3084205 Required per assembly: 3 $2.99 $1.73 - + Add to cart
35	BOLT & WASHER ASM. Part #: 3082038 Required per assembly: 1 Currently Not Available
36	CABLE-CHOKE, FRICTION, 40" Part #: 7081008 Required per assembly: 1 Currently Not Available
37	BOLT Part #: 7515417 Required per assembly: 2 Note: Screw Currently Not Available
38	ISOLATOR-3/8-24M/M, 60DURO Part #: 3024012 Required per assembly: 1 Currently Not Available
39	MOUNT, LOW.FR.ENGINE, BLACK. Part #: 5242818-067 Required per assembly: 1 Currently Not Available
40	WASHER LOCK Part #: 3080530 Required per assembly: 2 $2.89 $1.73 - + Add to cart
41	NUT Part #: 3087199 Required per assembly: 2 Currently Not Available
42	WELD, MANIFOLD, BLACK Part #: 1260978-489 Required per assembly: 1 Currently Not Available
43	GASKET, EXH. Part #: 3085075 Required per assembly: 1 Note: Gasket, Exhaust Currently Not Available
44	SHEATH-FOIL, LAMINATED, 5/8X18CM, SUBSTITUTED, BY, 8450080-65 Part #: 8450080-18 Required per assembly: 1 Currently Not Available
