Rear Brake - A02ea05ca replacement parts for 2002 Polaris Scrambler 50 (A02EA05CA)

OEM Parts Polaris 2002 Polaris Scrambler 50 (A02EA05CA) Rear Brake - A02ea05ca

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CABLE, REAR, BRAKE Part #: 0450731 Required per assembly: 1 Currently Not Available
2	NUT, FLANGE, HEX Part #: 0450268 Required per assembly: 2 Note: Nut $1.99 $1.15 - + Add to cart
3	SPRING, CABLE, REAR, BRAKE Part #: 0450435 Required per assembly: 1 Note: Spring, Cable, Rear $4.99 $2.88 - + Add to cart
4	SHAFT, THRU, REAR Part #: 0453094 Required per assembly: 1 Note: Spacer, Brake Cable, Rear Currently Not Available
5	NUT, ADJUST, BRAKE Part #: 0451079 Required per assembly: 1 Currently Not Available
6	SEAL, OIL Part #: 0450430 Required per assembly: 2 Currently Not Available
7	BEARING Part #: 0450429 Required per assembly: 2 Currently Not Available
8	TUBE, SPACER Part #: 0450428 Required per assembly: 1 Currently Not Available
9	ARM, REAR, BRAKE Part #: 0450687 Required per assembly: 1 Currently Not Available
10	BOLT, HEX Part #: 0450433 Required per assembly: 1 Note: Bolt Sold in multiples of 10 only Currently Not Available
11	SPRING, ARM, REAR, BRAKE Part #: 0450453 Required per assembly: 1 Note: Spring Currently Not Available
12	BOLT Part #: 0453707 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
13	NUT, LOCK Part #: 0450881 Required per assembly: 1 Note: Nut Sold in multiples of 10 only Currently Not Available
14	NUT, FLANGE Part #: 0450529 Required per assembly: 2 $3.99 $2.30 - + Add to cart
15	BOLT, HEX Part #: 0450452 Required per assembly: 2 Note: Bolt Currently Not Available
16	SHAFT, FIXED, REAR, BRAKE Part #: 0450854 Required per assembly: 1 Note: Shaft, Fixed, Brake, Rear Currently Not Available

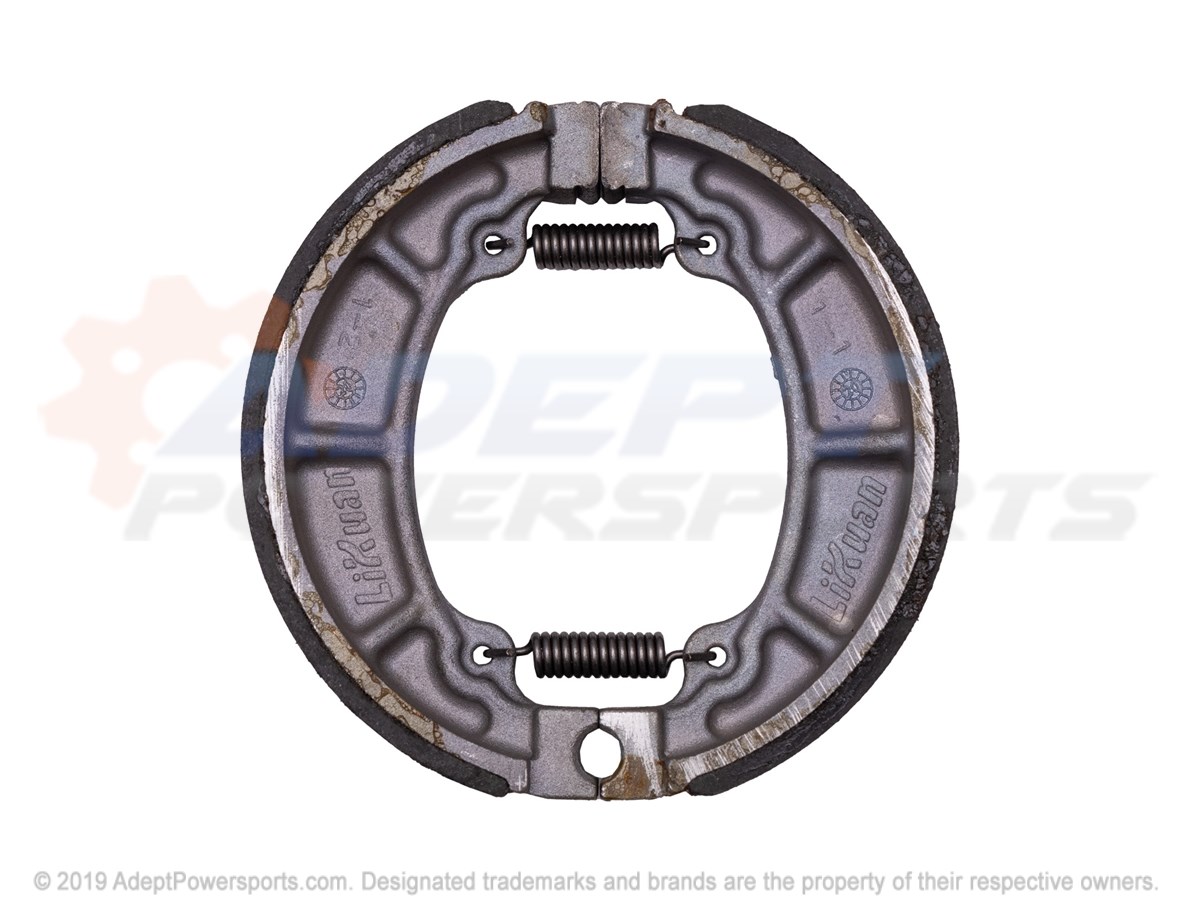

17	PAD-BRAKE RR 43120119-00B Part #: 0455441 Required per assembly: 1 Currently Not Available
18	RUBBER, PROTECTIVE Part #: 0450442 Required per assembly: 1 Currently Not Available
19	DRUM-REAR BRK 43520131-001 Part #: 0455442 Required per assembly: 1 Currently Not Available
20	SHAFT, CAM, REAR, BRAKE Part #: 0450431 Required per assembly: 1 Note: Shaft, Cam, Rear Currently Not Available
21	PLATE, REAR, BRAKE Part #: 0450440 Required per assembly: 1 Note: Plate, Brake, Rear Currently Not Available
22	SEAT, FIX, REAR, AXLE Part #: 0450427 Required per assembly: 1 Currently Not Available
23	BOLT Part #: 0453669 Required per assembly: 1 Note: Bolt Currently Not Available
24	BOLT, HEX, WASHER, FACE Part #: 0450298 Required per assembly: 1 Note: Bolt $3.99 $2.30 - + Add to cart
25	PLATE, FIXED, REAR, COVER, RH Part #: 0450812 Required per assembly: 1 Currently Not Available
26	COVER, REAR Part #: 0450751 Required per assembly: 1 Currently Not Available
27	BOLT Part #: 0452215 Required per assembly: 2 Note: Bolt Currently Not Available
28	REFLECTOR, REAR Part #: 0450446 Required per assembly: 1 Currently Not Available
29	PLATE, FIXED, REAR, COVER, LH Part #: 0450813 Required per assembly: 1 Currently Not Available
30	WASHER, BLACK Part #: 0451822 Required per assembly: 1 Currently Not Available
31	NUT, FLANGE Part #: 0450447 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
32	COVER, PROTECTIVE Part #: 0450833 Required per assembly: 1 Currently Not Available
