Recoil Starter - A02ba25ca/Cb/Cd replacement parts for 2002 Polaris Trail Blazer (A02BA25CA/CD)

OEM Parts Polaris 2002 Polaris Trail Blazer (A02BA25CA/CD) Recoil Starter - A02ba25ca/Cb/Cd

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

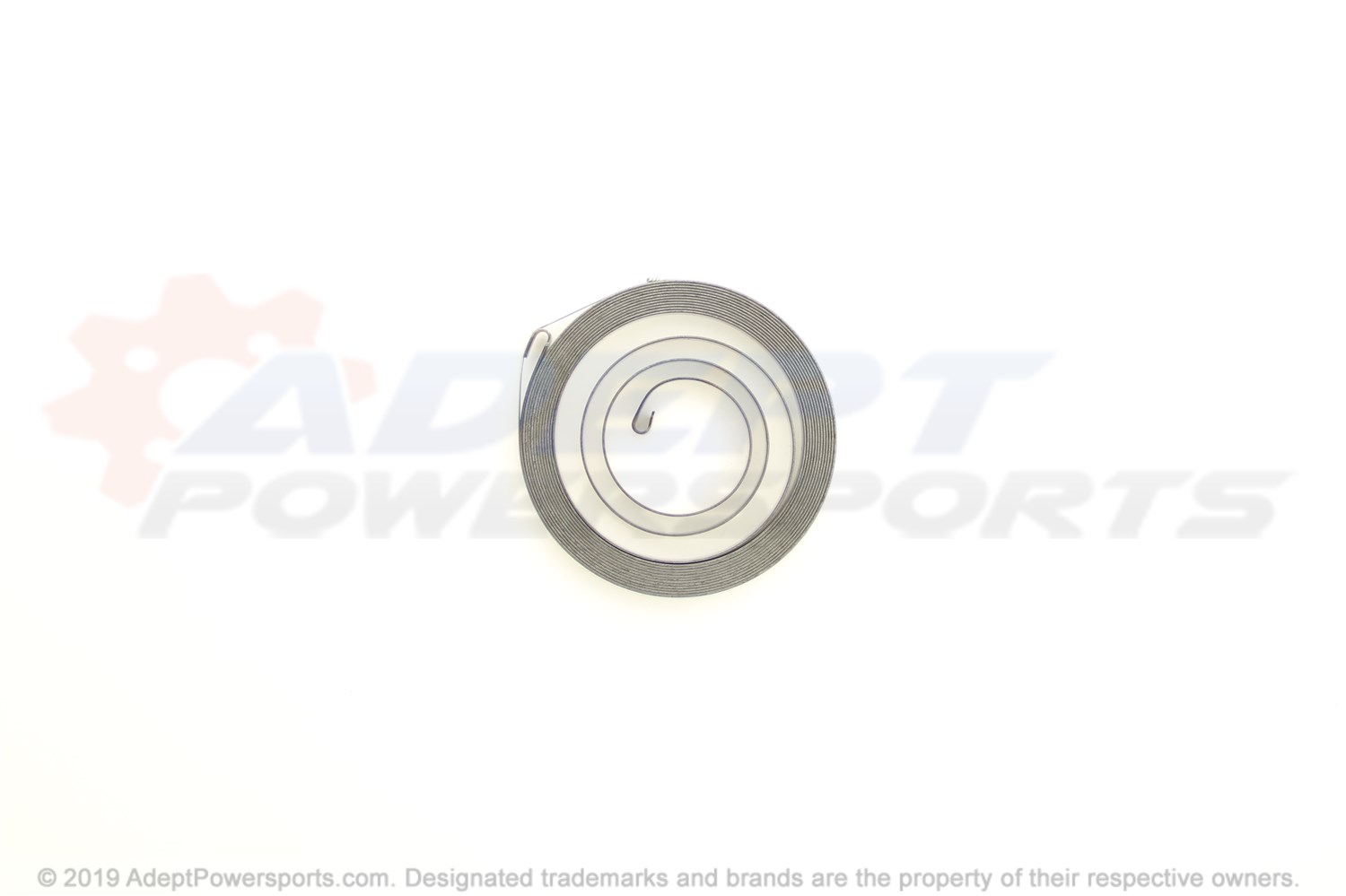

1	SPRING, SPIRAL Part #: 3083815 Required per assembly: 1 Currently Not Available
2	STARTER, RECOIL, COMPL. Part #: 3083924 Required per assembly: 1 Note: STARTER,RECOIL,COMPL. (Incl. 1, 5-11, 13, 18-26) Currently Not Available
2	CASE, STARTER, B, UNIT Part #: 3083911 Required per assembly: 1 Currently Not Available
3	BOLT Part #: 3082030 Required per assembly: 1 Note: Bolt and Washer Sold in multiples of 10 only Currently Not Available
4	BOLT & WASHER ASM. Part #: 3082228 Required per assembly: 4 Currently Not Available
5	GROMMET Part #: 3083817 Required per assembly: 1 Currently Not Available
6	REEL, COMPL. Part #: 3083814 Required per assembly: 1 Currently Not Available
7	BOLT, FLANGE Part #: 3083826 Required per assembly: 4 Currently Not Available
8	CASE, STARTER, COMPL. Part #: 3083914 Required per assembly: 1 Currently Not Available
9	ROPE, 100, FT, NYL.STARTER Part #: 2870621 Required per assembly: 1 Note: ROPE,100 FT,NYL.STARTER (Bulk - Cut to Fit) Currently Not Available
9	ROPE, 100, FT, NYL.STARTER Part #: 2870621 Note: ROPE,100 FT,NYL.STARTER (Bulk - Cut to Fit) Currently Not Available
10	CAP, KNOB Part #: 3083660 Required per assembly: 1 Currently Not Available
11	KNOB, STARTER Part #: 3083659 Required per assembly: 1 Currently Not Available
12	BOLT & WASHER Part #: 3083729 Required per assembly: 1 Currently Not Available
13	BUSHING, STARTER Part #: 3083669 Required per assembly: 1 Currently Not Available
14	PLUG Part #: 3083453 Required per assembly: 1 Currently Not Available
15	GASKET Part #: 3082956 Required per assembly: 1 $4.95 $2.92 - + Add to cart
16	PULLEY, STARTING Part #: 3083915 Required per assembly: 1 Currently Not Available
17	BOLT, Part #: 3081665 Required per assembly: 3 $2.99 $1.73 - + Add to cart

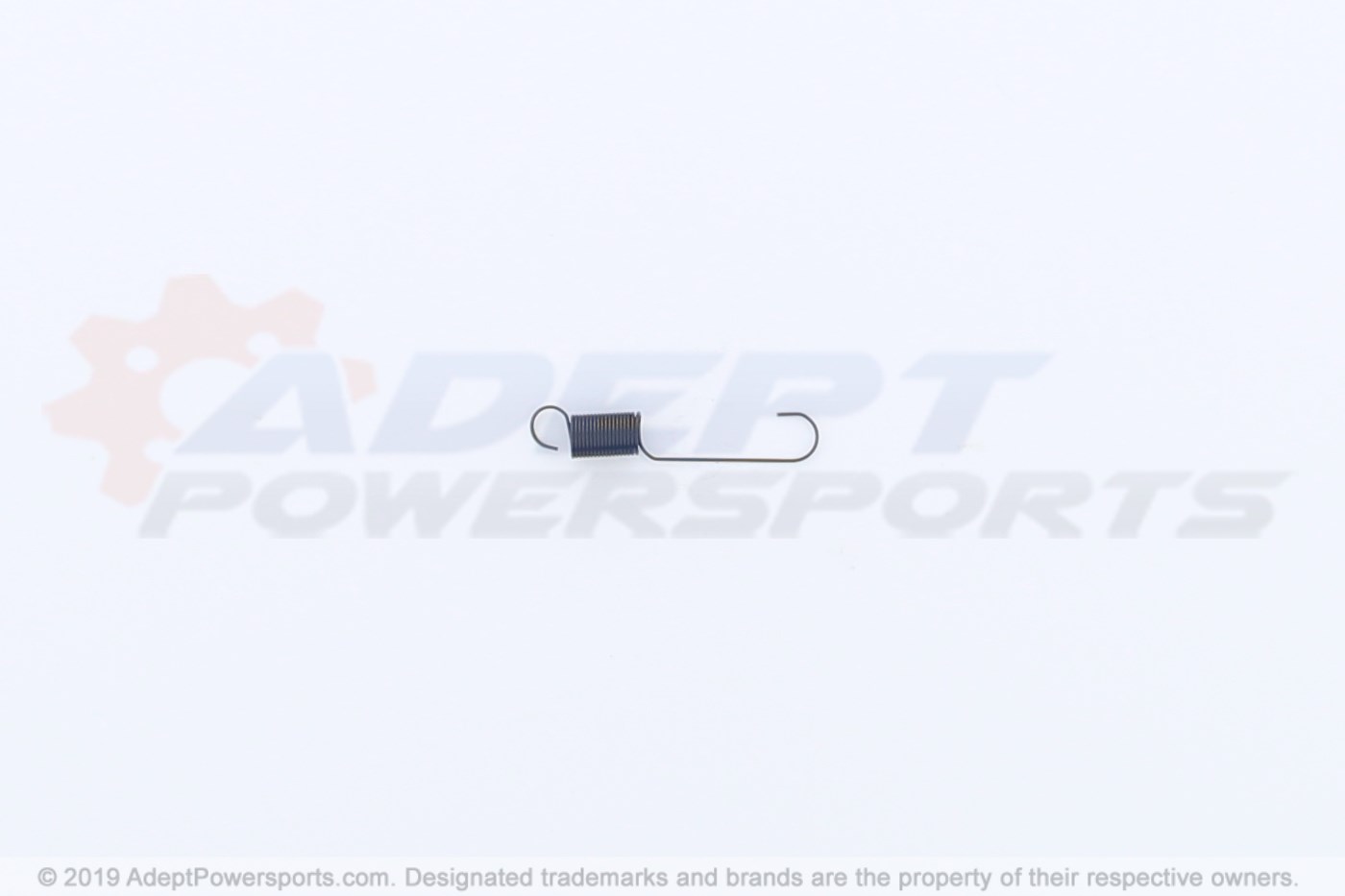

18	SPRING, RETURN Part #: 3083827 Required per assembly: 1 Currently Not Available

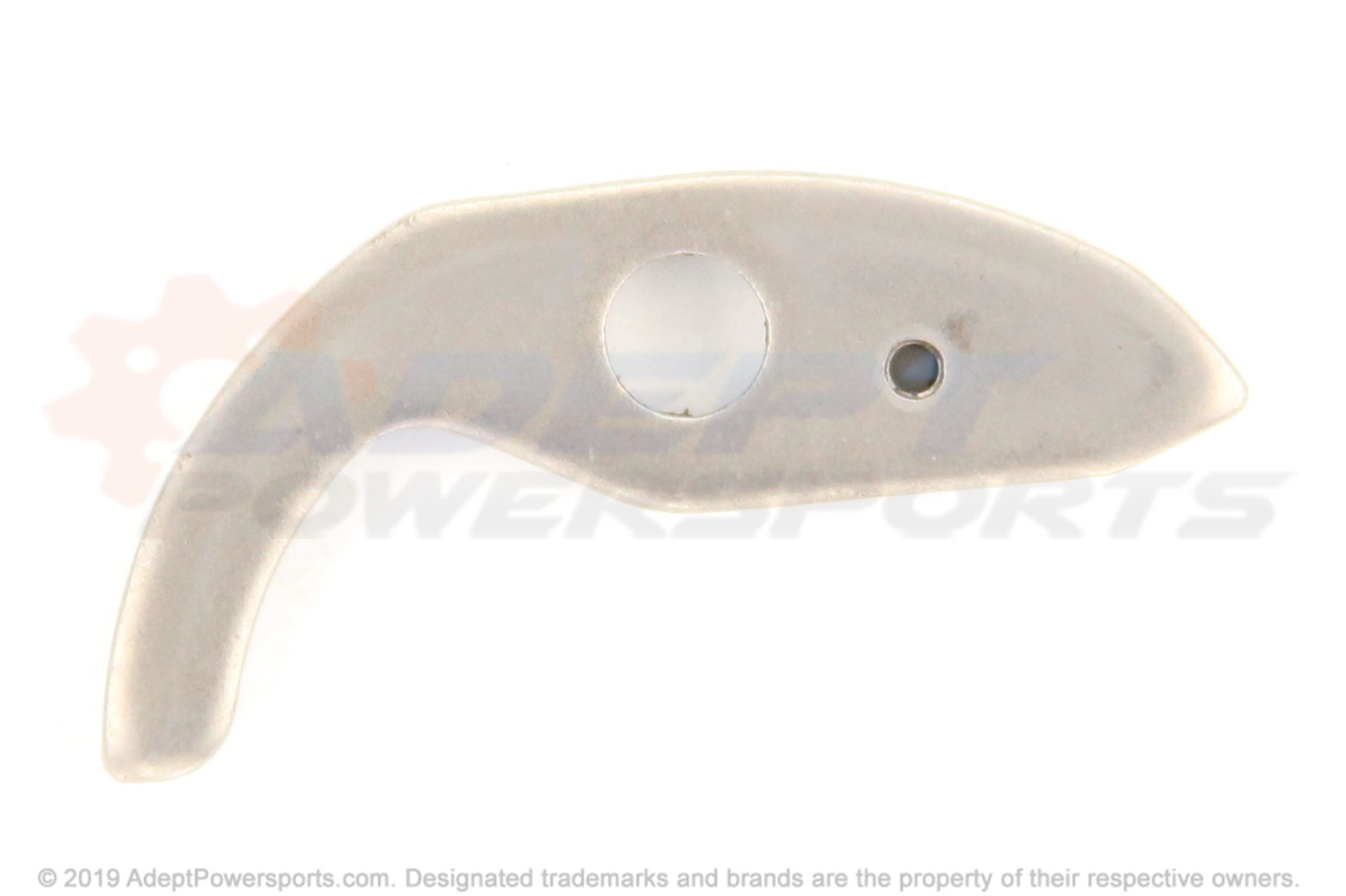

19	RATCHET Part #: 3083819 Required per assembly: 1 Currently Not Available

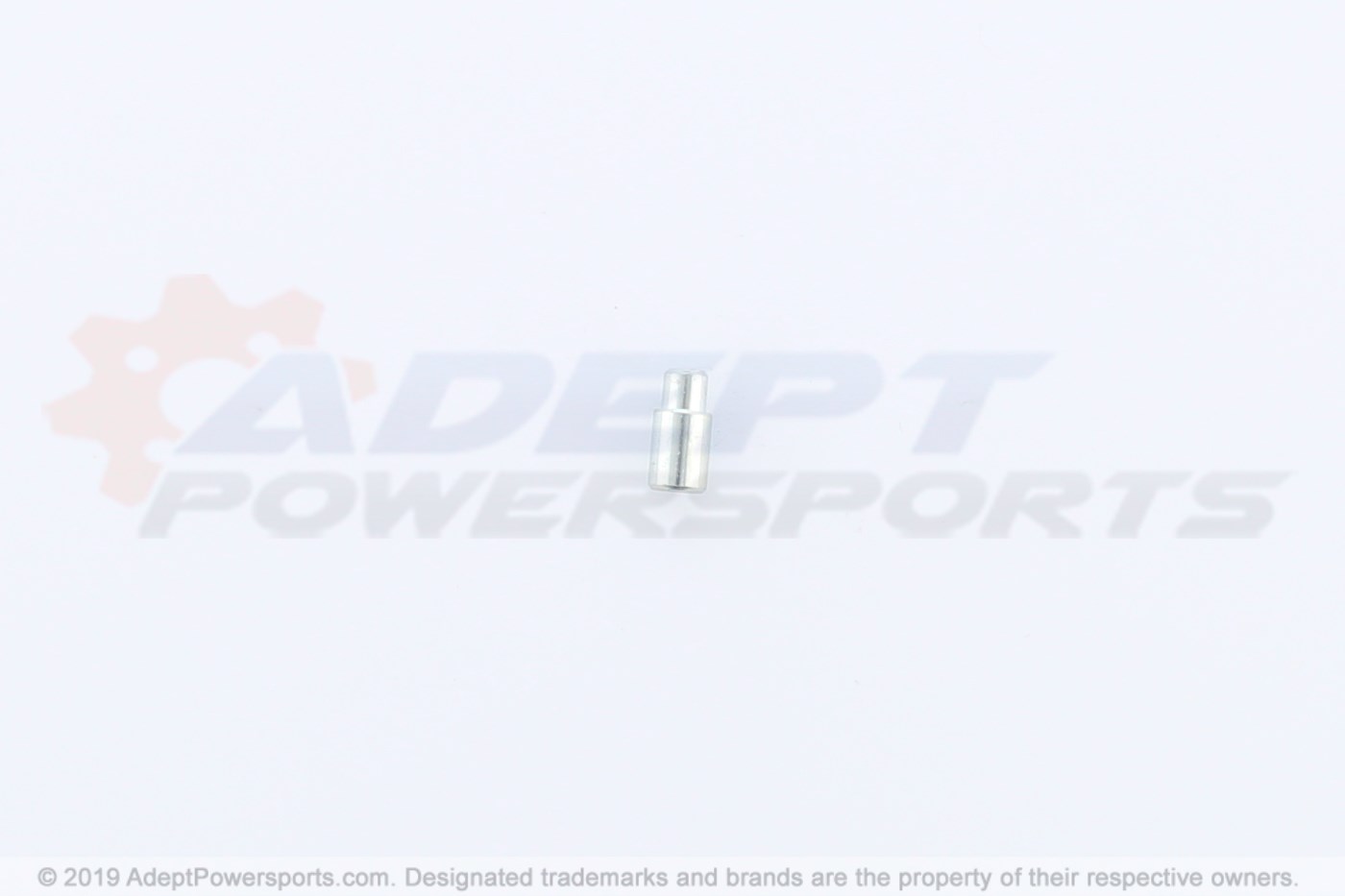

20	PIN, RATCHET Part #: 3083820 Required per assembly: 1 Currently Not Available
21	HOOK, SPRING Part #: 3083818 Required per assembly: 1 Currently Not Available

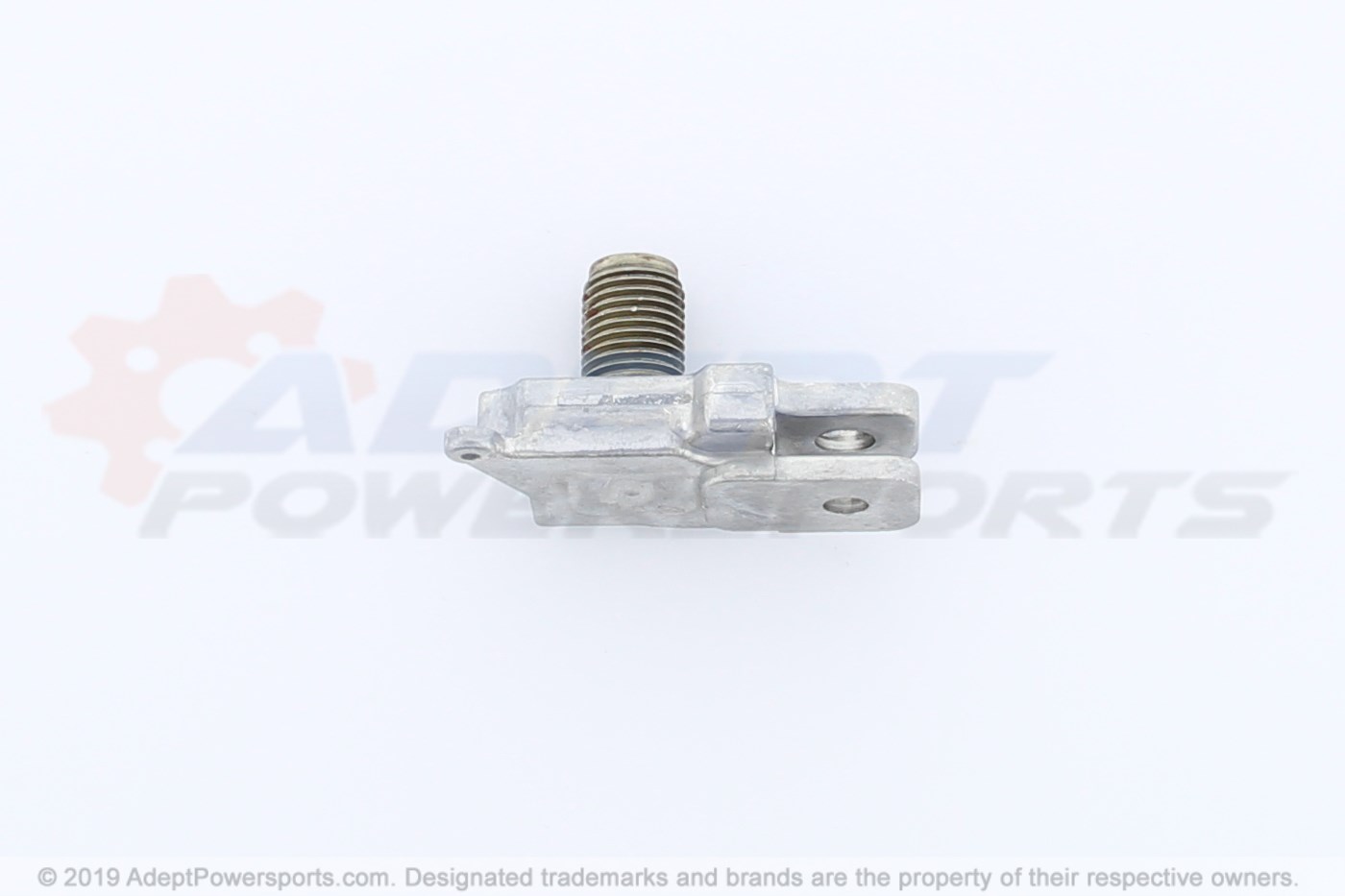

22	GUIDE, RATCHET Part #: 3083821 Required per assembly: 1 Currently Not Available
23	SPRING, FRICTION Part #: 3083912 Required per assembly: 1 Currently Not Available
24	CASE, SPRING Part #: 3083925 Required per assembly: 1 Currently Not Available

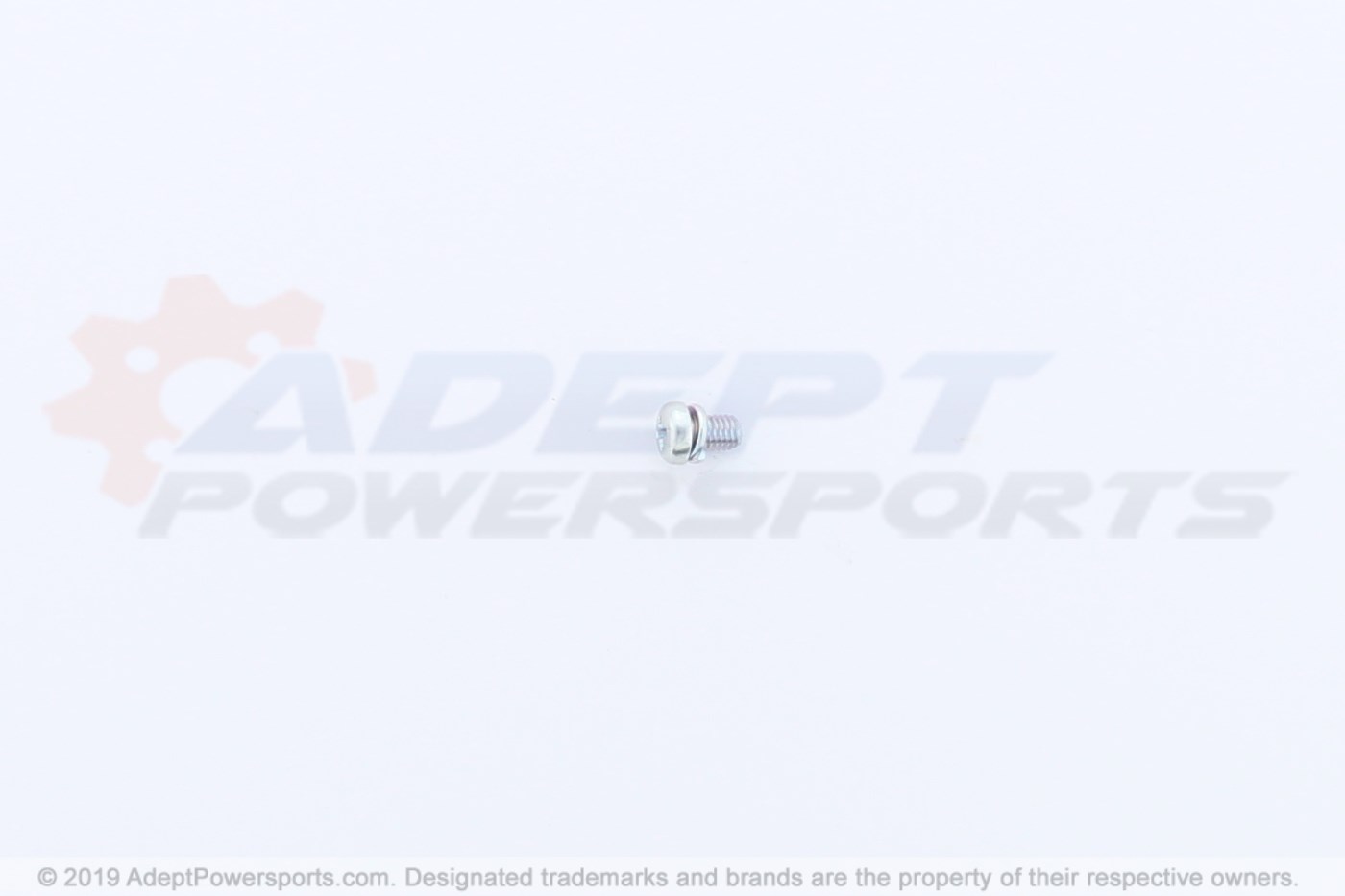

25	SCREW & WASHER Part #: 3084176 Required per assembly: 4 Currently Not Available
26	GUIDE, COMPLETE Part #: 3083913 Required per assembly: 1 Note: Does not include "Spring", "Ratchet", or "Pin" Currently Not Available
