Electrical - V02cb16/All Options replacement parts for 2002 Victory STANDARD CRUISER ALL OPTIONS (V02CB16)

OEM Parts Victory 2002 Victory STANDARD CRUISER ALL OPTIONS (V02CB16) Electrical - V02cb16/All Options

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RELAY-280, MICRO, SPST-NO, 20A Part #: 2410314 Required per assembly: 3 Currently Not Available
2	FUSE, MINI, BLADE, 15, AMP. Part #: 4010859 Required per assembly: 2 Currently Not Available
2	FUSE, 10AMP Part #: 2434016 Required per assembly: 1 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
3	DIODE, STARTER, CIRCUIT Part #: 2434019 Required per assembly: 2 Currently Not Available

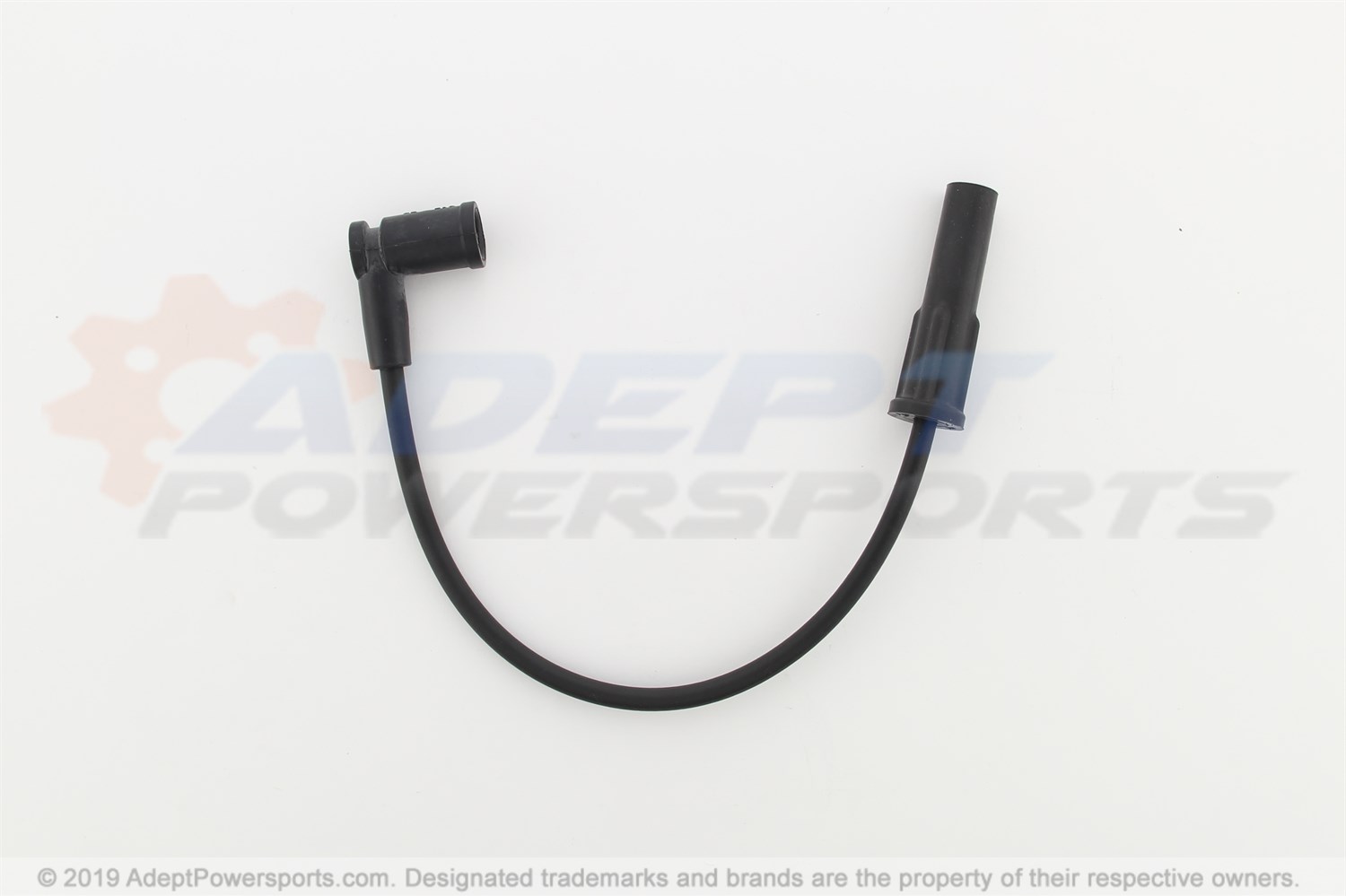

4	LEAD-SPARK PLUG WIRE Part #: 4010531 Required per assembly: 2 Currently Not Available
5	WELD-BRKT, VOTAGE, REG, BLK Part #: 1013510 Required per assembly: 1 Note: (Black) Currently Not Available
6	SCREW Part #: 7517739 Required per assembly: 2 Currently Not Available
7	ASM-REGULATOR, VOLTAGE Part #: 2410230 Required per assembly: 1 Currently Not Available
8	SCREW SOCHD M6X15 Part #: 7517272 Required per assembly: 2 Currently Not Available
9	SPACER-COIL, MNT, FLANGED Part #: 5134581 Required per assembly: 1 Currently Not Available
10	ASM-IGNITION COIL Part #: 2410266 Required per assembly: 1 Note: (Incl. Coil and Spark Plug Wires) Currently Not Available
11	SCR-HEXHD, M6X45, 0600088 Part #: 7517973 Required per assembly: 1 Currently Not Available
	HARNESS, RH, R.TURNSIGNAL Part #: 2460692 Required per assembly: 1 Currently Not Available
	HARNESS, LH, R.TURNSIGNAL Part #: 2460695 Required per assembly: 1 Currently Not Available
	HARNESS-WIRE, 2002 Part #: 2460923 Required per assembly: 1 Currently Not Available
	HARNESS-JUMPER, FUEL, INJECTOR Part #: 2461135 Required per assembly: 1 Currently Not Available
	DECAL-FUSE BOX Part #: 7079820 Required per assembly: 1 Currently Not Available
	CONNECTOR, 8, PIN, R.FENDER Part #: 4010153 Required per assembly: 1 Currently Not Available
	LOCK, CONN, 8, PIN, R.FENDER Part #: 4010154 Required per assembly: 1 Currently Not Available
	CLIP-WIRING HARNESS Part #: 7080930 Required per assembly: 1 Currently Not Available
