Track Drive 2 replacement parts for 2002 Yamaha Vmax 600 ER

OEM Parts Yamaha 2002 Yamaha Vmax 600 ER Track Drive 2

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HOUSING, CHAIN Part #: 8CR-47541-01-00 Required per assembly: 1 $430.99 $428.15 - + Add to cart
2	NUT, SPECIAL, SHAPE Part #: 90179-10679-00 Required per assembly: 2 $8.49 $6.59 - + Add to cart
3	BEARING Part #: 93306-20592-00 Required per assembly: 2 $64.98 $50.76 - + Add to cart
4	OIL SEAL Part #: 93102-35473-00 Required per assembly: 1 $36.99 $28.29 - + Add to cart
5	OIL, SEAL, SD-TYPE Part #: 93102-35318-00 Required per assembly: 1 $28.98 $20.74 - + Add to cart
6	CIRCLIP Part #: 99009-52500-00 Required per assembly: 2 $13.49 $10.55 - + Add to cart
7	RING, HOUSING/GASKET Part #: 8CR-47558-02-00 Required per assembly: 1 $17.98 $13.14 - + Add to cart
8	CAP, HOUSING Part #: 8CW-47543-02-00 Required per assembly: 1 Not Available
9	PIN, DOWEL Part #: 93606-20044-00 Required per assembly: 2 $3.54 $2.21 - + Add to cart
10	BEARING Part #: 93306-20458-00 Required per assembly: 1 $47.99 $36.56 - + Add to cart
11	BOLT, FLANGE, (6TA) Part #: 95817-08030-00 Required per assembly: 4 $9.49 $6.05 - + Add to cart
12	BOLT, FLANGE Part #: 95817-10060-00 Required per assembly: 3 $8.49 $5.10 - + Add to cart
13	BOLT Part #: 90101-10357-00 Required per assembly: 1 $8.49 $6.41 - + Add to cart
14	NUT (6TD) Part #: 95337-10600-00 Required per assembly: 1 $10.49 $6.86 - + Add to cart
15	HOLDER Part #: 8CR-47613-00-00 Required per assembly: 1 $46.99 $41.11 - + Add to cart
16	WHEEL Part #: 8CR-47612-00-00 Required per assembly: 1 Not Available
17	BEARING, CYL.#15 Part #: 93315-21227-00 Required per assembly: 1 $49.99 $38.69 - + Add to cart
18	WASHER, PLATE Part #: 90201-127E1-00 Required per assembly: 2 $4.65 $3.70 - + Add to cart
19	PIN, SPECIAL, SHAPE Part #: 90249-12227-00 Required per assembly: 1 $13.99 $11.42 - + Add to cart
20	CIRCLIP Part #: 99009-12400-00 Required per assembly: 2 $3.58 $3.02 - + Add to cart
21	LEVEL, OIL Part #: 8CR-47546-00-00 Required per assembly: 1 Not Available
22	COLLAR, SPROCKET Part #: 90387-2508D-00 Required per assembly: 1 Not Available
23	PLUG, OIL Part #: 82M-17699-00-00 Required per assembly: 1 $15.49 $11.08 - + Add to cart
24	SPRKT, CHAIN, DR, 21T Part #: 89J-17682-10-00 Required per assembly: 1 Note: UR Not Available
24	SPROCKET, 22T Part #: 89J-17682-20-00 Required per assembly: 1 Note: UR $69.98 $57.46 - + Add to cart
25	WASHER, CONICAL, SPR Part #: 90208-22001-00 Required per assembly: 1 Note: 1TRACK DIRIVE 2 $9.49 $7.23 - + Add to cart
26	NUT, HEXAGON Part #: 90170-22094-00 Required per assembly: 1 $6.49 $5.25 - + Add to cart
27	68L, CHAIN, REXNORD Part #: 94860-02068-00 Required per assembly: 1 Note: UR Not Available
27	70L, CHAIN, REXNORD Part #: 94860-02070-00 Required per assembly: 1 Note: UR Not Available
29	BEARING, CYLINDRICAL Part #: 93317-33179-00 Required per assembly: 1 $52.99 $42.34 - + Add to cart
30	COLLAR Part #: 90387-2008G-00 Required per assembly: 1 $32.99 $23.30 - + Add to cart
31	WASHER, PLATE Part #: 90201-320S3-00 Required per assembly: 1 $9.49 $7.20 - + Add to cart
32	BOLT, FLANGE, (7LU) Part #: 95817-10070-00 Required per assembly: 1 Note: UR XVZ13ATH $6.49 $5.00 - + Add to cart
33	WASHER, SPRING Part #: 92907-10100-00 Required per assembly: 1 $9.49 $6.06 - + Add to cart
34	O-RING Part #: 93210-25071-00 Required per assembly: 2 $9.49 $7.62 - + Add to cart
35	COLLAR Part #: 90387-2508C-00 Required per assembly: 1 $50.99 $39.39 - + Add to cart
36	COLLAR Part #: 90387-2511J-00 Required per assembly: 1 Not Available
37	BOLT (8BC) Part #: 97007-08014-00 Required per assembly: 1 $9.49 $6.55 - + Add to cart
38	WASHER, SEAL Part #: 90210-08017-00 Required per assembly: 1 $9.49 $6.79 - + Add to cart
39	SHAFT, 1 Part #: 8CW-1761A-00-00 Required per assembly: 1 $68.98 $57.02 - + Add to cart
40	SPROCKET, DRIVE Part #: 8DM-17692-00-00 Required per assembly: 1 Not Available
41	SPRING COMPRESSION278185450000 Part #: 90501-06022-00 Required per assembly: 1 Note: (USA) $9.49 $6.05 - + Add to cart
42	REVERSE GEAR SUB-ASSEMBLY 1 (RGEAR Part #: 8CW-W1714-00-00 Required per assembly: 1 Note: (18T) $273.99 $247.03 - + Add to cart
43	BEARING, CYLINDRICAL Part #: 93317-21578-00 Required per assembly: 2 $49.99 $38.19 - + Add to cart
44	WASHER, PLATE Part #: 90201-16245-00 Required per assembly: 2 $11.49 $8.36 - + Add to cart
45	BOLT, FLANGE Part #: 95817-06016-00 Required per assembly: 1 $1.95 $1.47 - + Add to cart
46	WASHER, SEAL Part #: 90210-06006-00 Required per assembly: 1 Note: AP $9.49 $5.78 - + Add to cart
47	JOURNAL 1 Part #: 8CW-47571-00-00 Required per assembly: 1 $164.99 $148.07 - + Add to cart
48	GEAR, REVERSE, WHEEL, 1, (50T) Part #: 8CW-17243-00-00 Required per assembly: 1 Note: (50T) $330.99 $299.16 - + Add to cart
49	DOG, TRANSMISSION, SHIFT Part #: 8CW-17492-00-00 Required per assembly: 1 $220.99 $190.16 - + Add to cart
50	SPRING, COMPRESSION Part #: 90501-066J5-00 Required per assembly: 5 $2.60 $1.71 - + Add to cart
51	CIRCLIP, OUTER Part #: 93440-39175-00 Required per assembly: 1 $22.98 $18.67 - + Add to cart
52	SPRING, COMPRESSION Part #: 90501-326J6-00 Required per assembly: 1 Not Available
53	COLLAR Part #: 8CW-47564-01-00 Required per assembly: 1 $36.99 $32.34 - + Add to cart
54	FORK, SHIFT, 1 Part #: 8ER-18511-00-00 Required per assembly: 2 $83.98 $75.43 - + Add to cart
55	SHAFT Part #: 8CW-18197-00-00 Required per assembly: 1 Not Available
56	PIN, SPRING Part #: 91609-50022-00 Required per assembly: 2 $9.49 $6.67 - + Add to cart
57	O-RING Part #: 93210-12131-00 Required per assembly: 1 $9.49 $6.67 - + Add to cart
58	PLATE Part #: 8CW-47591-00-00 Required per assembly: 1 $13.49 $11.64 - + Add to cart
59	BOLT, FLANGE Part #: 95817-06016-00 Required per assembly: 2 $1.95 $1.47 - + Add to cart
60	ARM, SHIFT Part #: 8CW-18112-01-00 Required per assembly: 1 Not Available
61	GUIDE, PLATE, STPPR Part #: 8CW-18161-01-00 Required per assembly: 1 $93.98 $84.57 - + Add to cart
62	CIRCLIP Part #: 99009-12400-00 Required per assembly: 1 $3.58 $3.02 - + Add to cart
63	NUT, U, FLANGE Part #: 95604-06200-00 Required per assembly: 1 $2.95 $2.31 - + Add to cart
64	BOLT, FLANGE Part #: 95817-06035-00 Required per assembly: 1 $8.49 $5.28 - + Add to cart
65	COLLAR Part #: 90387-06605-00 Required per assembly: 1 $5.49 $4.11 - + Add to cart
66	LEVER, SHIFT, 4 Part #: 8CW-18152-10-00 Required per assembly: 1 $59.99 $52.19 - + Add to cart
67	PIN, CLEVIS Part #: 91701-06035-00 Required per assembly: 1 $8.49 $5.62 - + Add to cart
68	CLIP Part #: 90468-10050-00 Required per assembly: 1 Note: Sold in multiples of 5 only $3.04 $2.27 - + Add to cart
69	WASHER (6TA) Part #: 92907-06200-00 Required per assembly: 2 $9.49 $6.06 - + Add to cart
70	PLATE, SHIFT, ARM Part #: 8CW-1811A-00-00 Required per assembly: 1 $9.49 $7.67 - + Add to cart
71	GDE, SHIFT, RTRN, SPR Part #: 8CW-18153-00-00 Required per assembly: 1 Not Available
72	SPRING, TENSION Part #: 90506-14343-00 Required per assembly: 1 $4.45 $3.14 - + Add to cart
73	KNOB, SHIFT, LEVER Part #: 8CL-18174-00-00 Required per assembly: 1 $38.99 $33.40 - + Add to cart
74	PIN, SPRING Part #: 91690-40022-00 Required per assembly: 1 $8.49 $5.59 - + Add to cart
75	SWITCH, NEUTRAL Part #: J51-82817-00-00 Required per assembly: 1 $137.99 $119.16 - + Add to cart
76	BOLT, SOCKET Part #: 98907-04016-00 Required per assembly: 1 Not Available
77	NUT, U, (7LY) Part #: 95617-04100-00 Required per assembly: 1 $10.49 $6.80 - + Add to cart
78	BOLT, FLANGE Part #: 95817-06025-00 Required per assembly: 2 $1.75 $1.44 - + Add to cart
79	BOLT, FLANGE Part #: 95817-06040-00 Required per assembly: 1 $6.49 $4.46 - + Add to cart
80	LEVER Part #: 8CW-18198-00-00 Required per assembly: 1 $25.98 $21.00 - + Add to cart
81	COLLAR Part #: 90387-06197-00 Required per assembly: 1 $9.49 $6.05 - + Add to cart
82	WASHER, PLATE, (36Y) Part #: 90201-063J2-00 Required per assembly: 2 $6.49 $4.37 - + Add to cart
83	BOLT, FLANGE Part #: 95817-06025-00 Required per assembly: 1 $1.75 $1.44 - + Add to cart
84	JOINT, UNIVERSAL, 2 Part #: J45-23845-00-00 Required per assembly: 1 $50.99 $41.84 - + Add to cart
85	BALL LL - JOINT 2 Part #: 88T-18157-00-00 Required per assembly: 2 $45.99 $36.47 - + Add to cart
86	WASHER, PLATE Part #: 90201-06778-00 Required per assembly: 1 $4.79 $3.61 - + Add to cart
87	NUT, U, FLANGE Part #: 95604-06200-00 Required per assembly: 3 $2.95 $2.31 - + Add to cart
88	JOINT 1 Part #: 8CW-18156-00-00 Required per assembly: 1 $46.99 $41.04 - + Add to cart
89	PIN, CLEVIS Part #: 91701-06022-00 Required per assembly: 1 $2.70 $1.78 - + Add to cart
90	CLIP Part #: 90468-10050-00 Required per assembly: 1 Note: Sold in multiples of 5 only $3.04 $2.27 - + Add to cart
91	JOINT, ROD, 1 Part #: 88T-18116-01-00 Required per assembly: 1 $2.75 $2.12 - + Add to cart

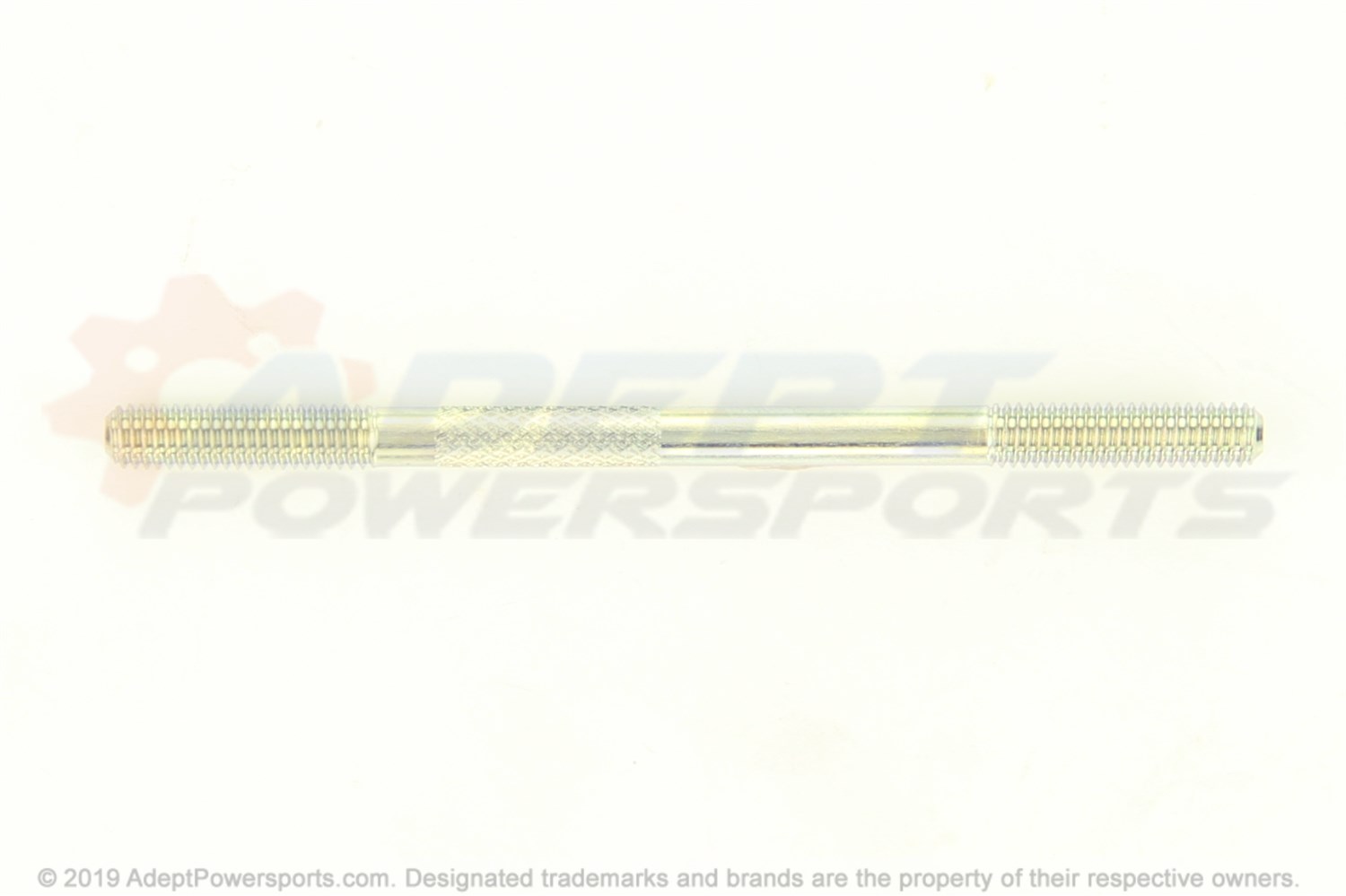

92	ROD, SHIFT Part #: 26H-18115-00-00 Required per assembly: 1 $16.48 $12.97 - + Add to cart
93	NUT, HEXAGON Part #: 95314-06600-00 Required per assembly: 2 $2.50 $1.30 - + Add to cart
94	NUT (COUNTER CLOCKWISE) Part #: 90170-06228-00 Required per assembly: 2 $10.49 $6.44 - + Add to cart
