05 - Drive System, Rear replacement parts for 2003 Can Am Rally

OEM Parts Can Am 2003 Can Am Rally 05 - Drive System, Rear

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	REAR AXLE Part #: 705500220 Required per assembly: 1 Currently Not Available
2	CHAIN TIGHTENER Part #: 705500277 Required per assembly: 1 Currently Not Available
3	BALL BEARING Part #: 705500275 Required per assembly: 2 Currently Not Available
4	WELDED HUB Part #: 705500217 Required per assembly: 1 Currently Not Available
5	SPROCKET 35TH Part #: A41201179000 Required per assembly: 1 Currently Not Available
6	HEX. FLANGED SCREW M8 X 25, SCOTCH GRIP Part #: 207582586 Required per assembly: 4 Currently Not Available
7	HEX. ELASTIC FLANGED NUT M8 Part #: 233281416 Required per assembly: 4 $1.23 $1.00 - + Add to cart
8	OIL SEAL Part #: 293250222 Required per assembly: 2 Currently Not Available
9	SPACER Part #: 705500291 Required per assembly: 1 Currently Not Available
10	RETAINER RING Part #: 705500292 Required per assembly: 1 Currently Not Available
11	LOCKING NUT Part #: 705500293 Required per assembly: 2 Currently Not Available
12	WHEEL HUB ASSEMBLY Part #: A42035179000 Required per assembly: 2 Currently Not Available
13	WEARING RING Part #: A52109179000 Required per assembly: 2 Currently Not Available
14	REAR TIRE Part #: 705500294 Required per assembly: 2 Currently Not Available
15	RIM-REAR Part #: A42801179000 Required per assembly: 2 Currently Not Available
16	RIM VALVE WITH CAP. PACKAGE-XRSDPS WHITE Part #: 705400193 Required per assembly: 2 Currently Not Available
17	STEEL WHEEL NUT Part #: 250100042 Required per assembly: 8 Note: Sold in multiples of 4 only Currently Not Available
18	WASHER Part #: 250200019 Required per assembly: 2 $2.18 $1.76 - + Add to cart
19	ELASTIC STOP NUT M18 Part #: 232591414 Required per assembly: 2 Note: Sold in multiples of 5 only Currently Not Available
20	COTTER PIN Part #: 250400036 Required per assembly: 2 $1.72 $1.40 - + Add to cart
21	CHAIN Part #: 705500274 Required per assembly: 1 Currently Not Available

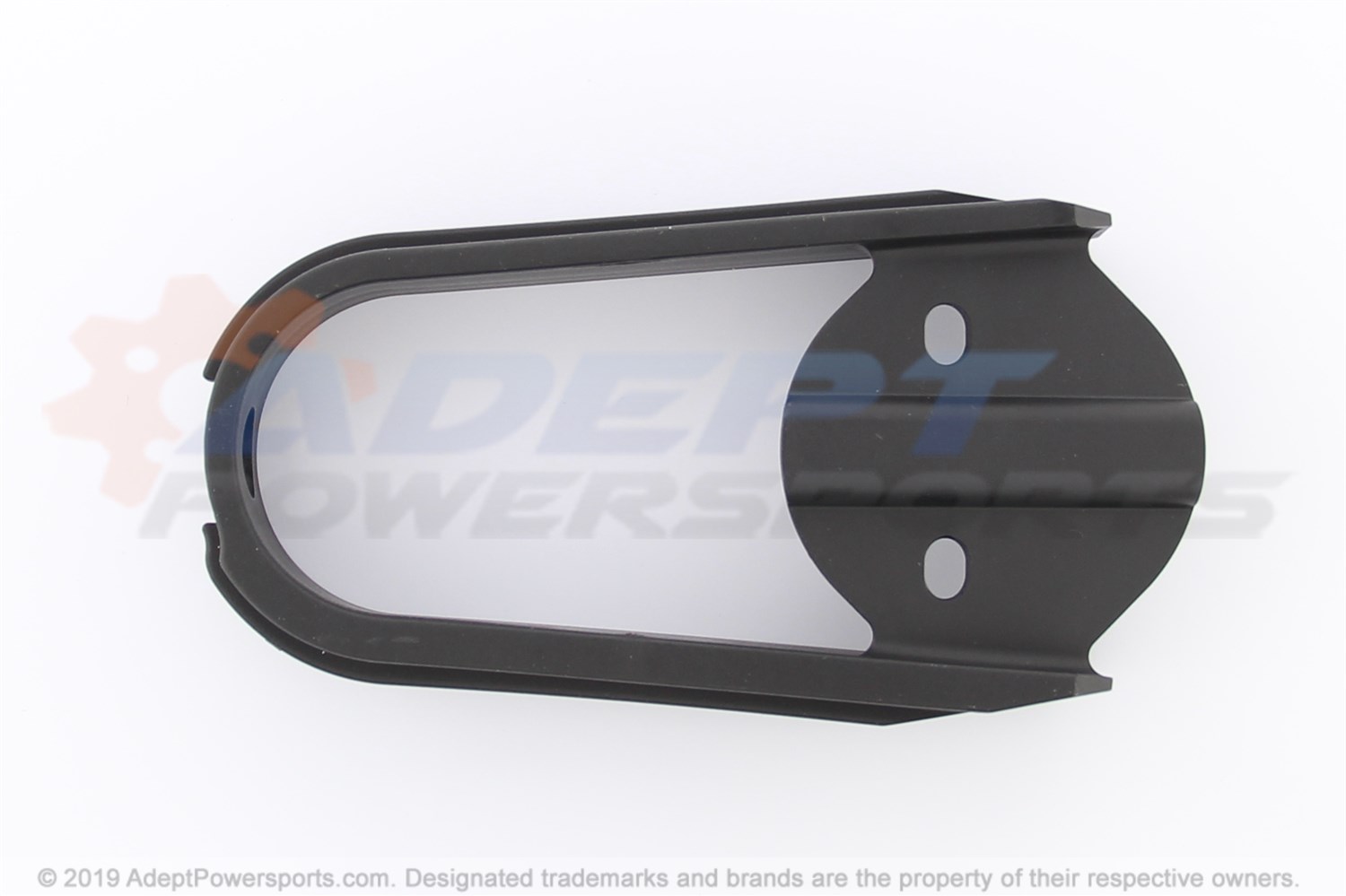

22	SHOE SLIDER Part #: A40533179000 Required per assembly: 1 Currently Not Available
23	POP RIVET 3/16" Part #: 390406500 Required per assembly: 2 $0.75 $0.61 - + Add to cart
24	O-RING Part #: 293300082 Required per assembly: 2 Currently Not Available
25	O-RING Part #: 293300089 Required per assembly: 2 Note: Sold in multiples of 2 only Currently Not Available
26	GREASE Part #: 293550062 Required per assembly: 1 Currently Not Available
27	HEX. FLANGED SCREW M10 X 60 Part #: 207609044 Required per assembly: 2 Currently Not Available
28	ELASTIC FLANGED STOP NUT M10 Part #: 233201414 Required per assembly: 2 $1.25 $1.02 - + Add to cart
29	CHAIN ROLLER Part #: A40537179000 Required per assembly: 1 Currently Not Available
30	HEX. FLANGED SCREW M8 X 60. MODEL-XT Part #: 207686044 Required per assembly: 1 $2.50 $2.03 - + Add to cart
31	HEX. FLANGED ELASTIC NUT M8. MODEL-XT Part #: 233281414 Required per assembly: 1 Currently Not Available
32	SPACER Part #: 705500398 Required per assembly: 2 Currently Not Available
33	BALL BEARING Part #: 293350039 Required per assembly: 2 Currently Not Available
34	CHAIN GUIDE Part #: A40516179000 Required per assembly: 1 Currently Not Available
35	SPACER Part #: 705500426 Required per assembly: 2 Currently Not Available
36	SPACER Part #: A40539179000 Required per assembly: 1 Currently Not Available
