06 - Hydraulic Brake replacement parts for 2003 Can Am Traxter STD & XT

OEM Parts Can Am 2003 Can Am Traxter STD & XT 06 - Hydraulic Brake

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	R.H. CALIPER ASSEMBLY Part #: 705600118 Required per assembly: 1 Note: Includes 1 - 9. Currently Not Available
2	BRAKE PAD KIT Part #: 705600004 Required per assembly: 1 Currently Not Available
3	PISTON SET Part #: 705600078 Required per assembly: 1 Currently Not Available
4	SPRING Part #: 705600079 Required per assembly: 1 Currently Not Available
5	BLEEDING SCREW Part #: 705600080 Required per assembly: 1 Currently Not Available
6	PIN-SET Part #: 705600081 Required per assembly: 1 Currently Not Available
7	BOOT Part #: 705600082 Required per assembly: 1 Currently Not Available
8	BOOT-COMP. Part #: 705600083 Required per assembly: 1 Currently Not Available
10	LH CALIPER ASSEMBLY Part #: 705600119 Required per assembly: 1 Note: Includes 10 - 18. Currently Not Available
11	BRAKE PAD KIT Part #: 705600014 Required per assembly: 1 $41.99 $30.73 - + Add to cart
12	PISTON SET Part #: 705600078 Required per assembly: 1 Currently Not Available
13	SPRING Part #: 705600079 Required per assembly: 1 Currently Not Available
14	BLEEDING SCREW Part #: 705600080 Required per assembly: 1 Currently Not Available
15	PIN-SET Part #: 705600081 Required per assembly: 1 Currently Not Available
16	BOOT Part #: 705600082 Required per assembly: 1 Currently Not Available
17	BOOT-COMP. Part #: 705600083 Required per assembly: 1 Currently Not Available
19	MASTER CYLINDER ASSEMBLY Part #: 705600120 Required per assembly: 1 Note: Includes 19 - 27. Currently Not Available
20	ARM LEVER Part #: 705600164 Required per assembly: 1 Currently Not Available
21	PISTON KIT Part #: 705600152 Required per assembly: 1 Currently Not Available
22	BOOT KIT Part #: 705600084 Required per assembly: 1 Currently Not Available
23	BOLT KIT Part #: 705600085 Required per assembly: 1 Currently Not Available
24	SWITCH KIT Part #: 705600148 Required per assembly: 1 Currently Not Available
25	BRACKET KIT Part #: 705600087 Required per assembly: 1 Currently Not Available
26	CIRCLIP Part #: 705600088 Required per assembly: 1 Currently Not Available
27	BOOT Part #: 705600089 Required per assembly: 1 Currently Not Available
28	BRAKE HANDLE HOSE Part #: 705600165 Required per assembly: 1 Currently Not Available
29	VERTICAL TUBE Part #: 705600036 Required per assembly: 1 Currently Not Available
30	FLEXIBLE HOSE R.H Part #: 705600174 Required per assembly: 1 Currently Not Available
31	HORIZONTAL TUBE Part #: 705600038 Required per assembly: 1 Currently Not Available
32	FLEXIBLE HOSE L.H Part #: 705600175 Required per assembly: 1 Currently Not Available
33	HOSE RETAINER 13 MM. EXCEPT PACKAGE STD Part #: 705600232 Required per assembly: 3 Currently Not Available
34	HEX. FLANGED SCREW M6 X 16. (RS) Part #: 210261650 Required per assembly: 4 Currently Not Available
35	RIGID TUBE Part #: 705600176 Required per assembly: 2 Currently Not Available
36	BRAKE LINE Part #: 705601394 Required per assembly: 2 Currently Not Available
37	BOLT-BANJO Part #: 705600609 Required per assembly: 4 Currently Not Available
38	WASHER Part #: 414920600 Required per assembly: 10 $2.55 $1.49 - + Add to cart
39	HEX. FLANGED SCREW M10 X 20 (SCOTCH GRIP) Part #: 250000057 Required per assembly: 4 Note: Sold in multiples of 2 only Currently Not Available
40	BRAKE LINE Part #: 705601392 Required per assembly: 1 Currently Not Available
41	HEX. FLANGED SCREW M8 X 16, SCOTCH GRIP Part #: 207581646 Required per assembly: 2 $1.72 $1.40 - + Add to cart
42	MASTER CYLINDER Part #: 705600154 Required per assembly: 1 Note: Includes 42 - 48. Currently Not Available
43	PISTON SET Part #: 705600063 Required per assembly: 1 Currently Not Available
44	PUSHER BRACKET Part #: 705600064 Required per assembly: 1 Currently Not Available
45	CIRCLIP Part #: 705600068 Required per assembly: 1 Currently Not Available
46	BOOT Part #: 705600090 Required per assembly: 1 Currently Not Available
47	OIL TANK Part #: 705600182 Required per assembly: 1 Currently Not Available
48	OIL HOUSING HOSE Part #: 705600169 Required per assembly: 1 Currently Not Available
50	HEXAGONAL ELASTIC NUT M3 Part #: 232531423 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
51	BRAKE FLUID, SRF (DOT 4) Part #: 293600063 Required per assembly: 1 Currently Not Available
52	PIN Part #: 219702305 Required per assembly: 1 Currently Not Available
53	YOKE Part #: 705600100 Required per assembly: 1 Currently Not Available
54	HEX. NUT M8. PACKAGE STD - DPS Part #: 232081414 Required per assembly: 1 $0.87 $0.74 - + Add to cart
55	SYNTHETIC GREASE, 400 G Part #: 293550010 Required per assembly: 1 Currently Not Available
56	BRAKE SWITCH Part #: 710001345 Required per assembly: 1 Currently Not Available
57	BANJO BOLT Part #: 705600092 Required per assembly: 1 Currently Not Available
58	LOCTITE 56765, PIPE SEALANT, 250 ML Part #: 293800013 Required per assembly: 1 Currently Not Available
59	R.H. REAR CALIPER Part #: 705600122 Required per assembly: 1 Note: Includes 59 - 67. Currently Not Available
60	BRAKE PAD KIT Part #: 705600150 Required per assembly: 1 Currently Not Available
61	PISTON SET Part #: 705600078 Required per assembly: 1 Currently Not Available
62	SPRING Part #: 705600079 Required per assembly: 1 Currently Not Available
63	BLEEDING SCREW Part #: 705600080 Required per assembly: 1 Currently Not Available
64	PIN-SET Part #: 705600081 Required per assembly: 1 Currently Not Available
65	BOOT Part #: 705600082 Required per assembly: 1 Currently Not Available
66	BOOT-COMP. Part #: 705600083 Required per assembly: 1 Currently Not Available
68	HEX SCREW M10 X 14 (SCOTCH GRIP) Part #: 250000163 Required per assembly: 2 Currently Not Available
69	BRAKE HANDLE Part #: 705600011 Required per assembly: 1 Note: Includes 69 - 72. Currently Not Available
70	CLAMP KIT Part #: 705600184 Required per assembly: 1 Currently Not Available
71	LEVER Part #: 705600186 Required per assembly: 1 Currently Not Available
72	PIVOT KIT Part #: 705600187 Required per assembly: 1 Currently Not Available
73	MACHINED SCREW Part #: 250000030 Required per assembly: 1 Currently Not Available
74	LOCK LEVER Part #: 705600387 Required per assembly: 1 Currently Not Available
75	ALLEN SCREW M5 X 16 Part #: 205351646 Required per assembly: 2 Currently Not Available
76	REAR BRAKE CABLE. 7415/7416. 7417/7418. Part #: 705600099 Required per assembly: 1 Currently Not Available
77	SPRING Part #: 705600144 Required per assembly: 1 Currently Not Available
78	FLAT WASHER Part #: 705600145 Required per assembly: 1 $4.99 $4.04 - + Add to cart

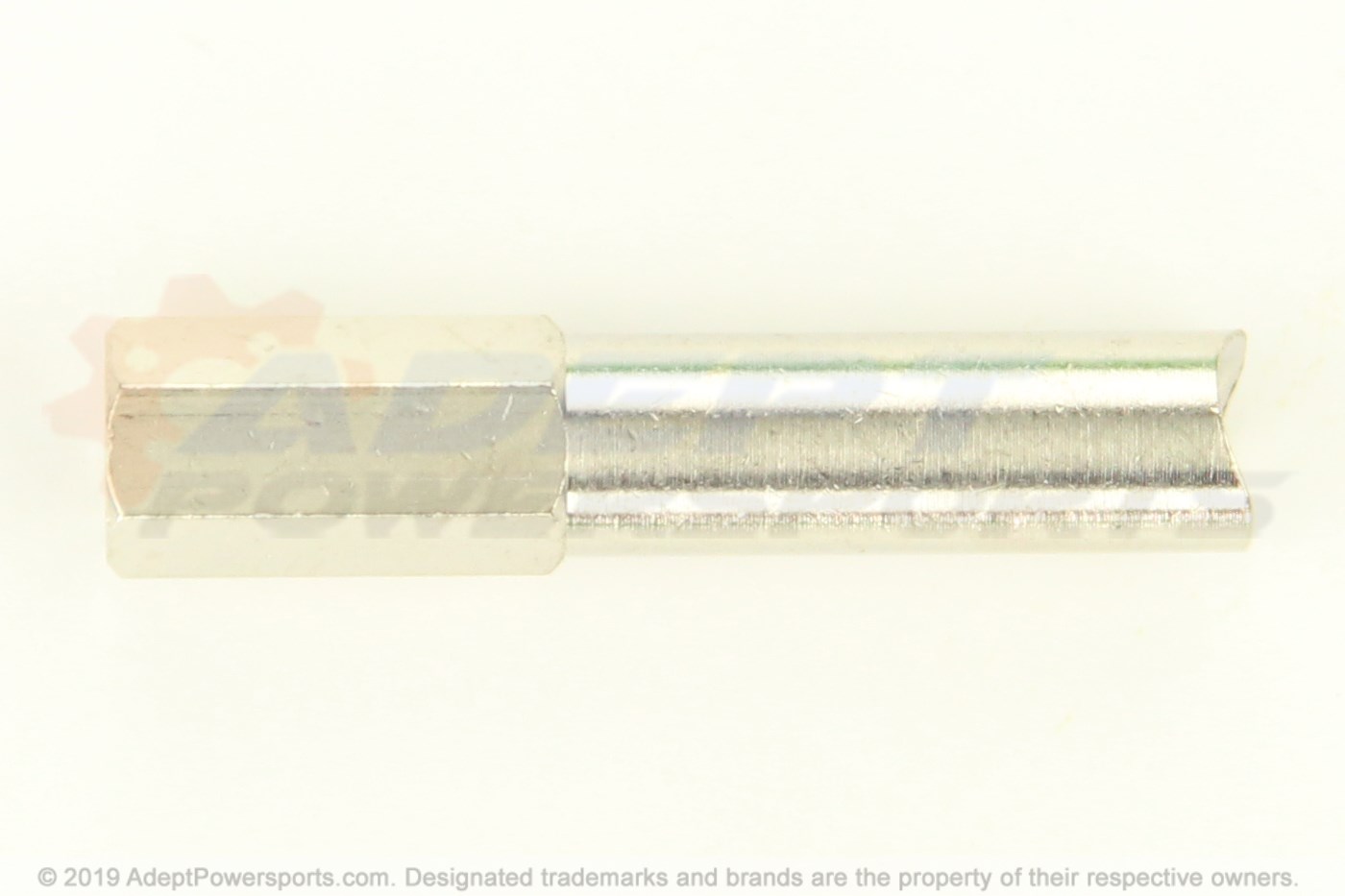

79	PIN CYLINDER Part #: 705600146 Required per assembly: 1 $11.99 $9.71 - + Add to cart
80	NUT Part #: 705600147 Required per assembly: 1 $9.99 $8.09 - + Add to cart
81	HEX. SCREW M10 X 25 Part #: 207102544 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
82	HEX. NUT M10 Part #: 232006414 Required per assembly: 2 Currently Not Available
83	BRAKE PEDAL (BLACK) Part #: 705600125 Required per assembly: 1 Currently Not Available
84	BRAKE PEDAL SPRING. 7415/7416. 7417/7418. Part #: 705600107 Required per assembly: 1 Currently Not Available
85	WASHER Part #: 503107800 Required per assembly: 1 Currently Not Available
86	CIRCLIP Part #: 293370012 Required per assembly: 1 Note: Sold in multiples of 25 only Currently Not Available
87	O-RING Part #: 293300053 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
88	TIE RAP 180 MM Part #: 414115200 Required per assembly: 1 $0.60 $0.53 - + Add to cart
89	TIE-RAP 350 MM Part #: 293750008 Required per assembly: 1 $0.86 $0.69 - + Add to cart
90	SPRING Part #: 705600225 Required per assembly: 1 Currently Not Available
91	SLOTTED HEAD SCREW M3 X 22 Part #: 208032291 Required per assembly: 1 Currently Not Available
