Intercooler replacement parts for 2003 Honda AquaTrax R-12X (ARX1200T2)

OEM Parts Honda 2003 Honda AquaTrax R 12X (ARX1200T2) Intercooler

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	BOX, SUB-AIR Part #: 16570-HW1-681 Required per assembly: 1 Not Available
02	BOX, SUB-AIR Part #: 16571-HW1-671 Required per assembly: 1 Not Available
03	BOLT, FLANGE, (5X18) Part #: 16572-HW1-670 Required per assembly: 8 $1.91 $1.77 - + Add to cart
04	BOLT, FLANGE, (5X12) Part #: 16573-HW1-670 Required per assembly: 6 $2.26 $2.09 - + Add to cart
05	GASKET, SUB-AIR, BOX Part #: 16574-HW1-670 Required per assembly: 2 $7.62 $6.66 - + Add to cart
06	COVER, SUB-AIR, BOX Part #: 16580-HW1-681 Required per assembly: 1 $71.98 $67.77 - + Add to cart
07	GASKET Part #: 16582-HW1-670 Required per assembly: 1 $14.03 $11.69 - + Add to cart
08	PLATE, SOLENOID Part #: 16583-HW3-670 Required per assembly: 1 Not Available
09	JOINT, SOLENOID, TUBE Part #: 16586-HW3-670 Required per assembly: 1 Not Available
10	CLAMP, SOLENOID, TUBE Part #: 16641-HW1-670 Required per assembly: 1 $5.23 $5.05 - + Add to cart
11	FUNNEL, AIR Part #: 17225-HW1-680 Required per assembly: 2 $16.87 $13.19 - + Add to cart
12	HOSE, C, AIR Part #: 17294-HW1-670 Required per assembly: 1 Not Available
13	COLR, MOUNTING, (8MM) Part #: 17310-HW3-671 Required per assembly: 1 $6.16 $5.49 - + Add to cart
14	RUBBER Part #: 19051-KA3-830 Required per assembly: 2 $4.64 $4.22 - + Add to cart

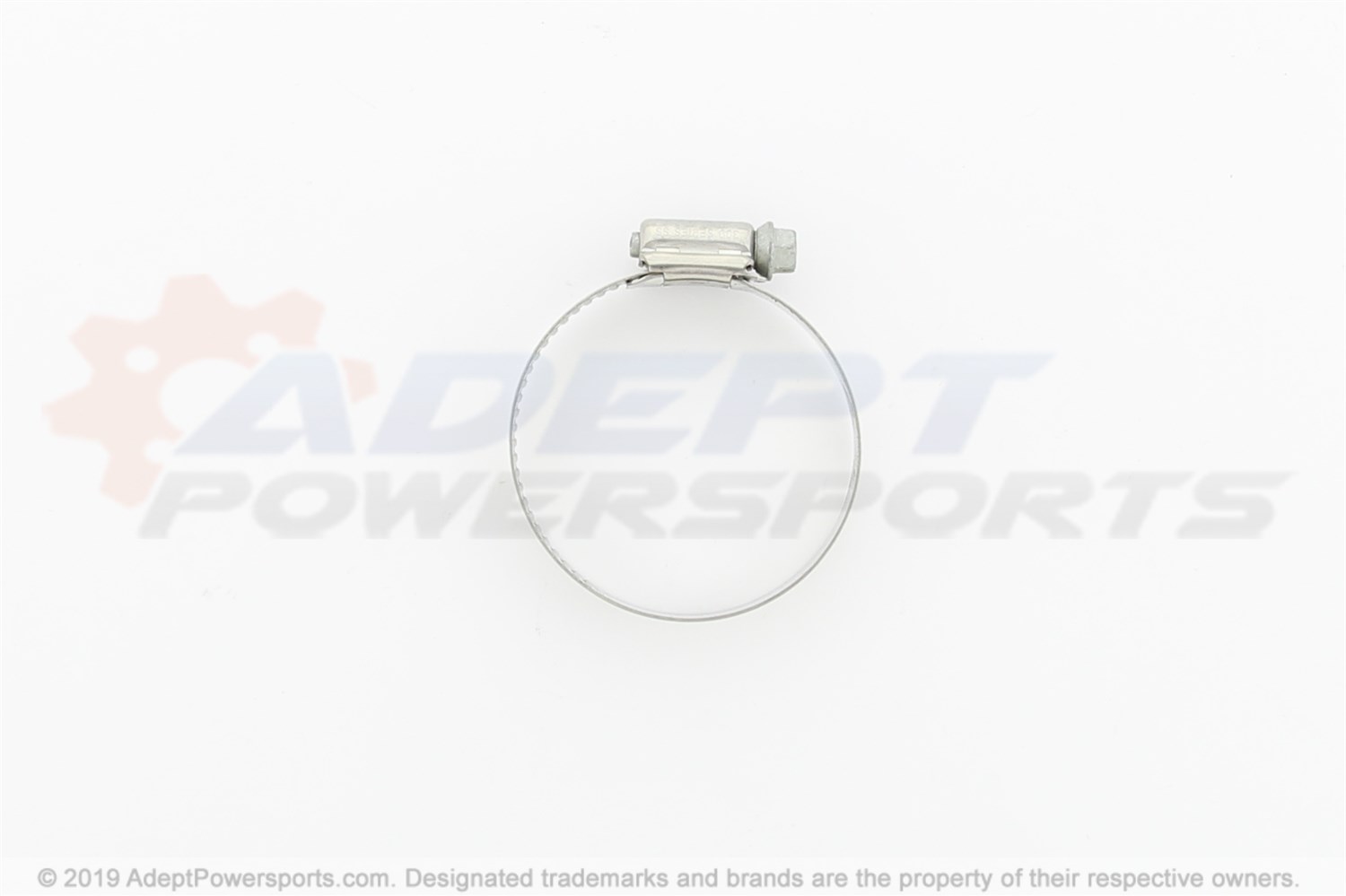

15	CLAMP (33-57MM) Part #: 19082-HW1-670 Required per assembly: 2 $3.11 $2.90 - + Add to cart
16	INTERCOOLER COMP Part #: 19700-HW1-673 Required per assembly: 1 Not Available
17	STAY, B, INTERCOOLER Part #: 19780-HW1-670 Required per assembly: 1 Not Available
18	STAY, A, INTERCOOLER Part #: 19785-HW3-670 Required per assembly: 1 $31.42 $27.33 - + Add to cart
19	RUB, MOUNT, B, (8MM) Part #: 19788-HW3-670 Required per assembly: 1 $14.98 $12.53 - + Add to cart
20	VALVE (P2) Part #: 36162-HW1-671 Required per assembly: 1 $159.19 $132.72 - + Add to cart
21	SENSOR, MAP Part #: 37830-HW1-671 Required per assembly: 1 $233.21 $194.43 - + Add to cart
22	SENSOR, AIR, TEMP Part #: 37880-PDA-E01 Required per assembly: 1 $87.07 $79.20 - + Add to cart
23	CLAMP, TUBE, (D7.3) Part #: 90682-HW1-671 Required per assembly: 2 $2.44 $2.26 - + Add to cart
24	O-RING Part #: 91303-P0A-A02 Required per assembly: 1 $4.65 - + Add to cart
25	BOLT, FLANGE, (5X10) Part #: 90003-HW3-670 Required per assembly: 1 $2.22 $2.06 - + Add to cart
26	PIN, DOWEL, (8X10) Part #: 94301-08100 Required per assembly: 2 $3.21 $2.99 - + Add to cart
27	BULK HOSE (3.5X3000) Part #: 95001-35003-60M Required per assembly: 1 $28.64 $26.04 - + Add to cart
28	BULK HOSE (3.5X3000) Part #: 95001-35003-60M Required per assembly: 1 $28.64 $26.04 - + Add to cart
29	BULK HOSE (7.5X8000) Part #: 95001-75008-60M Required per assembly: 1 $120.33 $106.26 - + Add to cart
30	CLIP, TUBE, (B8) Part #: 95002-02089 Required per assembly: 2 $2.07 $1.91 - + Add to cart
31	CLIP, TUBE, (B12) Part #: 95002-02129 Required per assembly: 2 $2.42 $2.25 - + Add to cart
33	BOLT, FLANGE, (6X25) Part #: 95701-06025-02 Required per assembly: 8 $2.45 $2.28 - + Add to cart
34	BOLT, FLANGE, (8X20) Part #: 95701-08020-02 Required per assembly: 2 Not Available
35	BOLT, FLANGE, (8X25) Part #: 95701-08025-02 Required per assembly: 1 $3.25 $3.02 - + Add to cart
36	BOLT, FLANGE, (8X40) Part #: 95701-08040-02 Required per assembly: 2 $2.45 $2.28 - + Add to cart
37	BOLT, FLANGE, (6X12) Part #: 96001-06012-02 Required per assembly: 2 $2.27 $2.10 - + Add to cart
