Front Brake Panel replacement parts for 2003 Honda FOURTRAX FOREMAN RUBICON (TRX500FA)

OEM Parts Honda 2003 Honda FOURTRAX FOREMAN RUBICON (TRX500FA) Front Brake Panel

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

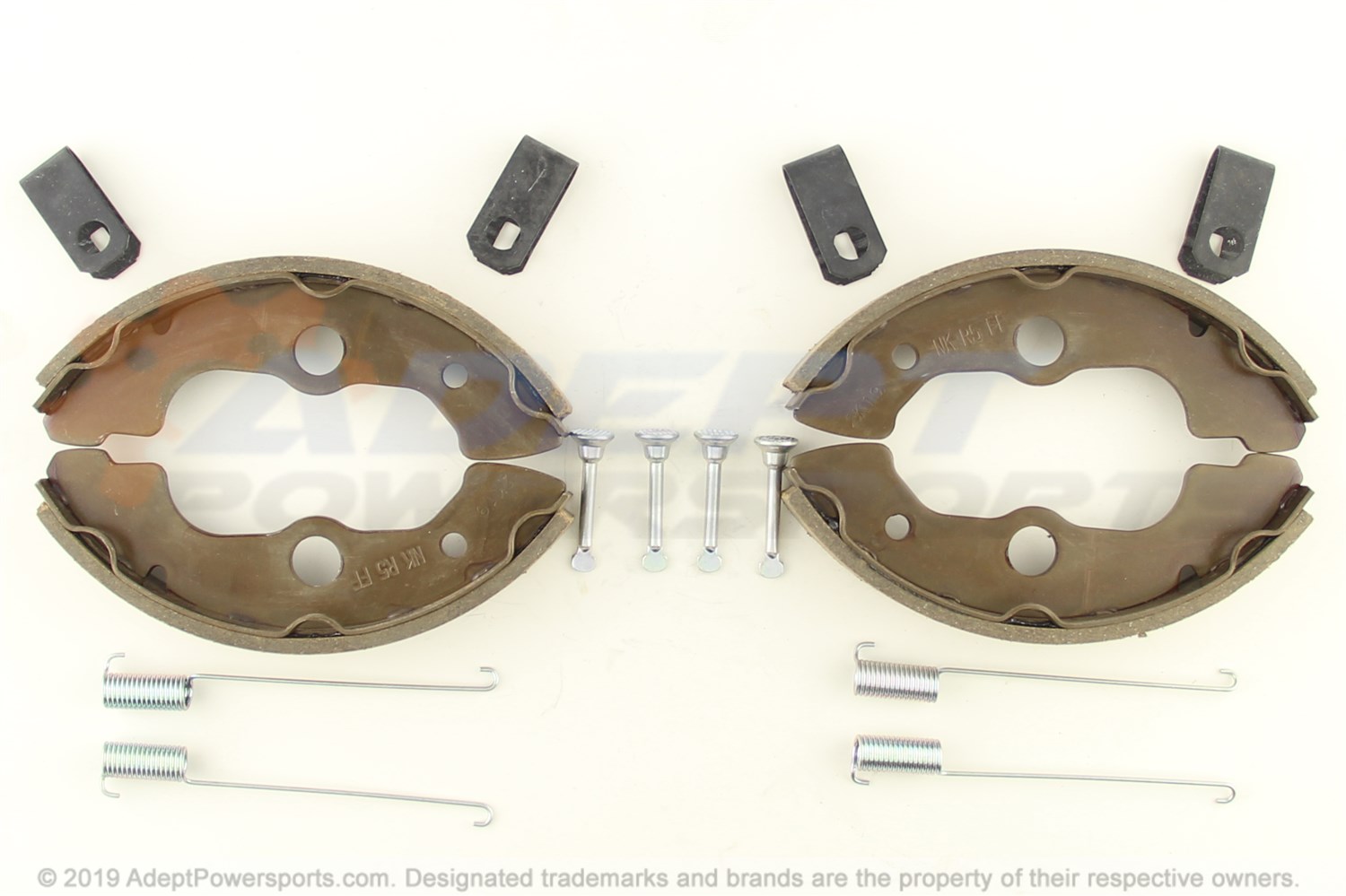

001	SHOE, SET, BRAKE Part #: 06450-HN5-671 Required per assembly: 2 $59.60 $57.58 - + Add to cart
002	JOINT, TUBE Part #: 38581-679-003 Required per assembly: 1 $20.45 $18.59 - + Add to cart
003	COVER, DUST Part #: 43315-SN4-003 Required per assembly: 4 $6.38 $6.14 - + Add to cart
004	CUP, PISTON Part #: 43322-663-003P Required per assembly: 4 $7.66 $7.27 - + Add to cart
005	SCREW, BLEEDER Part #: 43352-HC5-971 Required per assembly: 1 $5.61 $5.10 - + Add to cart
006	CAP, BLEEDER Part #: 43353-461-771 Required per assembly: 1 $6.07 $5.42 - + Add to cart
007	PLATE, R., BACK Part #: 45110-HN5-671 Required per assembly: 1 $174.38 $143.70 - + Add to cart
008	PLATE, L., BACK Part #: 45120-HN5-671 Required per assembly: 1 $147.70 $143.70 - + Add to cart
009	TUBE, FR. Part #: 45136-HN2-000 Required per assembly: 2 $4.83 - + Add to cart
010	SPRING, BRAKE Part #: 45171-HN5-671 Required per assembly: 4 $4.55 - + Add to cart
011	SPRING, SHOE, CLAMP Part #: 45172-S04-003 Required per assembly: 4 $2.79 $2.60 - + Add to cart
012	PIN, TENSION Part #: 45175-HC4-006 Required per assembly: 4 $5.00 $3.91 - + Add to cart
013	CAP, PIN Part #: 45176-HM5-A81 Required per assembly: 4 $8.49 $7.71 - + Add to cart
014	SEAL, PIN Part #: 45177-HA7-651 Required per assembly: 4 $8.27 $7.20 - + Add to cart
015	PIPE, FR. Part #: 45181-HC5-006 Required per assembly: 2 $22.92 $19.13 - + Add to cart
016	CYLINDER, R., FR. Part #: 45310-HN2-006 Required per assembly: 1 $54.67 $43.60 - + Add to cart
017	PISTON Part #: 45314-HN0-A01 Required per assembly: 4 $10.13 $8.58 - + Add to cart
018	NUT, R., ADJUSTER Part #: 45316-VM0-003 Required per assembly: 2 $10.63 $8.32 - + Add to cart
019	SCREW, R., ADJUSTING Part #: 45317-634-013 Required per assembly: 2 $6.94 $5.43 - + Add to cart
020	LOCK, SPRING Part #: 45318-HA7-671 Required per assembly: 4 $7.05 $6.21 - + Add to cart
021	SCREW-WASHER (4X6) Part #: 45319-634-003 Required per assembly: 2 $3.51 $3.19 - + Add to cart
022	CYLINDER, L., FR. Part #: 45330-HN2-006 Required per assembly: 1 $54.67 $43.60 - + Add to cart
023	NUT, L., ADJUSTER Part #: 45336-VM0-003 Required per assembly: 2 $10.63 $9.11 - + Add to cart
024	SCREW, L., ADJUSTING Part #: 45337-634-013 Required per assembly: 2 $6.94 $6.13 - + Add to cart
025	CYLINDER, B, R., FR. Part #: 45350-HN5-N01 Required per assembly: 1 $41.25 $32.90 - + Add to cart
026	CYLINDER, B, L., FR. Part #: 45370-HN5-N01 Required per assembly: 1 $41.25 $32.90 - + Add to cart
027	BOLT, FLANGE, (8X20) Part #: 90115-HA7-651 Required per assembly: 8 $5.56 $5.05 - + Add to cart
028	O-RING (64.6X1.7) Part #: 91357-HM7-003 Required per assembly: 2 $6.27 $5.58 - + Add to cart
029	BOLT-WASHER (6X12) Part #: 93402-06012-08 Required per assembly: 8 $2.63 $2.44 - + Add to cart
030	NUT, HEX., (8MM) Part #: 94001-08000-0S Required per assembly: 4 $2.33 $2.16 - + Add to cart
031	WASHER, SPRING, (8MM) Part #: 94111-08800 Required per assembly: 4 $2.02 $1.87 - + Add to cart
032	CLIP, TUBE, (C6.5) Part #: 95002-35000 Required per assembly: 1 $1.80 $1.67 - + Add to cart
033	BULK HOSE (3.5X1000) Part #: 95005-35001-30M Required per assembly: 1 $12.69 $11.54 - + Add to cart
