Front Brake Master Cylinder replacement parts for 2003 Honda FOURTRAX RINCON (TRX650FA)

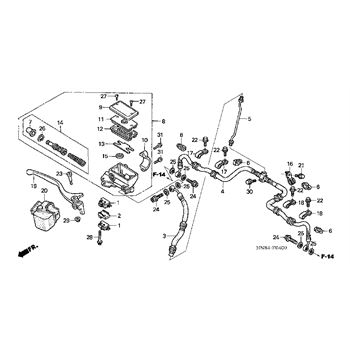

OEM Parts Honda 2003 Honda FOURTRAX RINCON (TRX650FA) Front Brake Master Cylinder

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	SWITCH, ASSEMBLY, FR., STOP, (COO) Part #: 35340-HR0-305 Required per assembly: 1 $21.85 $16.83 - + Add to cart
002	SPACER, FR. Part #: 35343-HN2-740 Required per assembly: 1 $4.25 - + Add to cart
003	HOSE, A, FR., BRAKE Part #: 45126-HN8-003 Required per assembly: 1 $17.53 $14.66 - + Add to cart
004	HOSE, B, FR., BRAKE Part #: 45127-HN8-A41 Required per assembly: 1 $46.01 - + Add to cart
005	PIPE, FR., BRAKE Part #: 45128-HN8-000 Required per assembly: 1 $4.80 - + Add to cart
006	CLIP, BRAKE, HOSE Part #: 45401-HM5-850 Required per assembly: 4 $2.92 $2.71 - + Add to cart
007	BOOT Part #: 45504-410-003 Required per assembly: 1 $14.10 $11.76 - + Add to cart
008	M/CYL, SUB-ASSEMBLY, FR. Part #: 45510-HN8-006 Required per assembly: 1 $88.47 $83.30 - + Add to cart
009	CAP, MASTER, CYLINDER Part #: 45513-MB4-673 Required per assembly: 1 $52.32 $43.63 - + Add to cart
010	HOLDER Part #: 45517-MA5-671 Required per assembly: 1 $33.96 $28.32 - + Add to cart
011	PLATE, DIAPHRAGM Part #: 45518-MB4-671 Required per assembly: 1 $14.06 $11.72 - + Add to cart
012	DIAPHRAGM Part #: 45520-MA5-672 Required per assembly: 1 $21.02 $17.52 - + Add to cart
013	FLOAT, FR. Part #: 45523-HC5-971 Required per assembly: 1 $7.84 $6.84 - + Add to cart
014	MASTER CYLINDER SET Part #: 45530-HN8-006 Required per assembly: 1 $15.78 $13.34 - + Add to cart
015	SEPARATOR Part #: 46666-961-013 Required per assembly: 1 $10.06 $7.85 - + Add to cart
016	CLAMP, A, FR. Part #: 51207-HN8-000 Required per assembly: 1 $2.83 $2.62 - + Add to cart
017	CLAMP, C, R., FR. Part #: 51208-HN8-000 Required per assembly: 2 Not Available
018	CLAMP, C, L., FR. Part #: 51209-HN8-000 Required per assembly: 2 $47.58 $41.40 - + Add to cart
019	LEVER, R., HANDLE Part #: 53175-HN8-006 Required per assembly: 1 $30.09 $27.35 - + Add to cart
020	COVER, R., HANDLE Part #: 53176-HN8-000 Required per assembly: 1 $8.67 $7.42 - + Add to cart
021	BOLT, FLANGE, (6X10) Part #: 90107-HC5-000 Required per assembly: 1 $3.29 $3.06 - + Add to cart
022	BOLT, FLANGE, (6X14) Part #: 90112-GW3-000 Required per assembly: 1 $2.94 $2.73 - + Add to cart
023	BOLT Part #: 90114-MA5-671 Required per assembly: 1 $10.93 $9.35 - + Add to cart
024	BOLT, OIL, (10X22) Part #: 90145-MS9-612 Required per assembly: 2 $8.20 $7.84 - + Add to cart
025	WASHER, OIL, BOLT Part #: 90545-300-000 Required per assembly: 4 $4.80 $4.09 - + Add to cart
026	CIRCLIP Part #: 90651-MA5-671 Required per assembly: 1 $3.19 $2.51 - + Add to cart
027	SCREW, FLAT, (4X12) Part #: 93600-04012-0G Required per assembly: 2 $1.87 $1.70 - + Add to cart
029	NUT, FLANGE, (6MM) Part #: 94050-06000 Required per assembly: 2 $1.73 $1.59 - + Add to cart
030	BOLT, FLANGE, (6X25) Part #: 95701-06025-07 Required per assembly: 1 $2.79 $2.60 - + Add to cart
031	BOLT, FLANGE, (6X22) Part #: 96001-06022-07 Required per assembly: 2 $2.84 $2.64 - + Add to cart
