Cylinder Head (Rr.) replacement parts for 2003 Honda INTERCEPTOR ABS (VFR800A)

OEM Parts Honda 2003 Honda INTERCEPTOR ABS (VFR800A) Cylinder Head (Rr.)

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CYLINDER, HEAD, RR. Part #: 12020-MCW-000 Required per assembly: 1 $1,348.86 $1,091.85 - + Add to cart
002	GUIDE, A, VALVE, (OS) Part #: 12204-MCW-305 Required per assembly: 4 $18.36 $14.86 - + Add to cart
003	GUIDE, B, VALVE, (OS) Part #: 12205-MCW-305 Required per assembly: 4 $19.69 $15.94 - + Add to cart
004	COLLAR (25MM) Part #: 12217-MBG-000 Required per assembly: 2 $10.13 $8.69 - + Add to cart
005	BOLT, ORIFICE Part #: 12217-MCE-000 Required per assembly: 2 $3.90 - + Add to cart
006	GASKET, RR., CYL, HD Part #: 12252-MCW-003 Required per assembly: 1 Not Available
007	GASKET, C, HEAD, COVER Part #: 12396-MBG-000 Required per assembly: 1 $5.92 $5.30 - + Add to cart
008	INSULATOR Part #: 16211-MCW-D00 Required per assembly: 2 $18.88 $15.28 - + Add to cart
009	BAND, INSULATOR Part #: 16217-MCW-000 Required per assembly: 2 $5.26 $4.78 - + Add to cart
010	BAND, B, INSULATOR Part #: 16218-MCW-000 Required per assembly: 2 $4.64 $4.22 - + Add to cart
011	NUT, SQUARE, (5MM) Part #: 16222-MV4-300 Required per assembly: 1 $3.11 $2.90 - + Add to cart

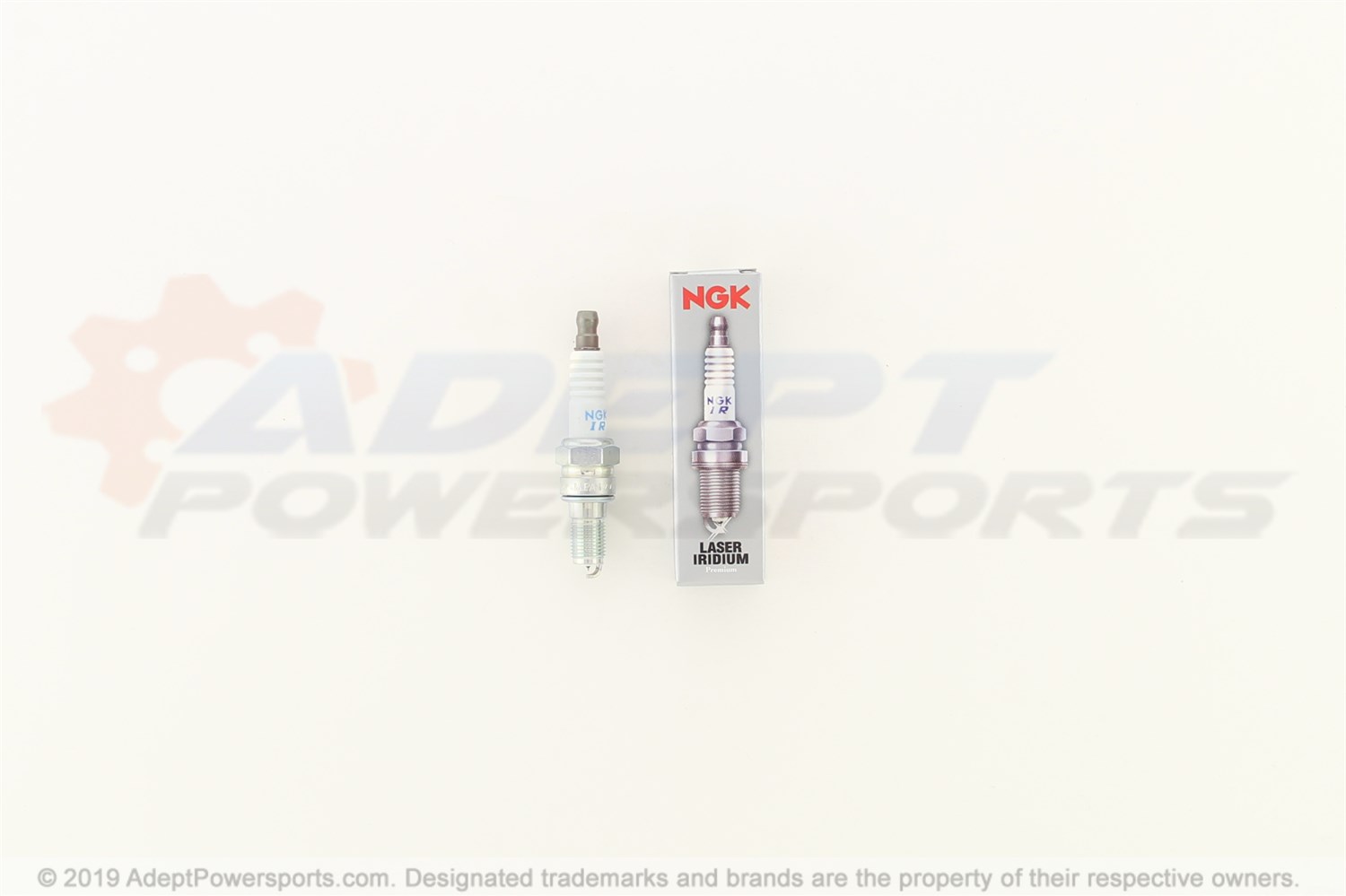

012	SPARK PLUG (VNH27Z) Part #: 31922-MCW-004 Required per assembly: 2 $38.35 $30.58 - + Add to cart
012	SPARK PLUG (VNH24Z) Part #: 31921-MCW-004 $30.58 - + Add to cart
012	S/PLG (IMR9B-9H) Part #: 31912-MCW-003 Required per assembly: 2 $20.86 $16.63 - + Add to cart
012	S/PLG (IMR8B-9H) Part #: 31911-MCW-003 $16.63 - + Add to cart
013	PULSER, ASSEMBLY, CAM Part #: 36140-MBG-003 Required per assembly: 1 $198.02 $160.28 - + Add to cart
014	BOLT, FLANGE, (6X45) Part #: 90002-MCW-000 Required per assembly: 8 $2.78 $2.58 - + Add to cart
015	BOLT (5X32) Part #: 90005-MM4-000 Required per assembly: 2 $2.10 $1.94 - + Add to cart
016	BOLT, FLANGE, (6X75) Part #: 90006-GHB-780 Required per assembly: 1 $3.01 $2.80 - + Add to cart
017	BOLT-WASHER (9X100) Part #: 90007-MCW-000 Required per assembly: 6 $4.93 - + Add to cart
018	BOLT, FLANGE, (6X37) Part #: 90016-KT7-000 Required per assembly: 4 $4.18 $3.80 - + Add to cart
019	BOLT (5X28) Part #: 90023-MM5-000 Required per assembly: 1 $4.16 $3.78 - + Add to cart
020	BOLT, STUD, (6X22) Part #: 90035-MW4-000 Required per assembly: 4 $4.36 $3.96 - + Add to cart
021	WASHER (6.5MM) Part #: 90463-ML7-000 Required per assembly: 1 $4.10 $3.73 - + Add to cart
022	O-RING (24.5X1.9) Part #: 91307-PY4-003 Required per assembly: 2 $4.10 $3.73 - + Add to cart
023	O-RING (16X2.1) Part #: 91309-PX4-003 Required per assembly: 1 $4.10 - + Add to cart
024	O-RING (9.8X1.9) Part #: 91317-P4V-004 Required per assembly: 3 $4.04 $3.67 - + Add to cart
025	PIN, DOWEL, (8X14) Part #: 94301-08140 Required per assembly: 2 $3.21 $2.99 - + Add to cart
026	PIN, DOWEL, (10X16) Part #: 94301-10160 Required per assembly: 4 $3.50 $3.18 - + Add to cart
027	PIN, DOWEL, (12X20) Part #: 94301-12200 Required per assembly: 1 $3.50 $3.18 - + Add to cart
028	BOLT, FLANGE, (6X18) Part #: 95701-06018-07 Required per assembly: 1 $2.63 $2.44 - + Add to cart
