Right Front Brake Caliper replacement parts for 2003 Honda VTX1800S

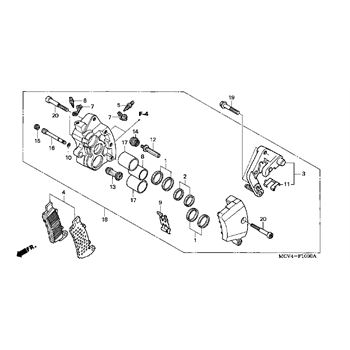

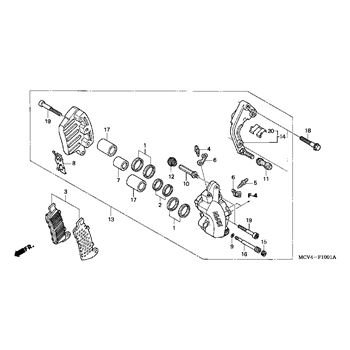

OEM Parts Honda 2003 Honda VTX1800S Right Front Brake Caliper

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	SEAL, SET, PISTON Part #: 06431-MA3-405 Required per assembly: 2 $8.81 $7.62 - + Add to cart
002	SEAL, SET, PISTON Part #: 06451-MZ2-405 Required per assembly: 1 $14.54 $12.12 - + Add to cart
003	BRACKET SUB-ASSEMBLY Part #: 06453-MBG-405 Required per assembly: 1 $155.25 $130.75 - + Add to cart
004	PAD, SET, FR. Part #: 06455-MBT-612 Required per assembly: 1 $49.68 $46.82 - + Add to cart
005	SCREW, BLEEDER Part #: 43352-HC5-971 Required per assembly: 1 $5.61 $5.10 - + Add to cart
006	SCREW, BLEEDER Part #: 43352-568-003 Required per assembly: 1 $9.56 $8.94 - + Add to cart
007	CAP, BLEEDER Part #: 43353-461-771 Required per assembly: 1 $6.07 $5.42 - + Add to cart
008	PISTON A (22X27) Part #: 45107-MAJ-G41 Required per assembly: 1 $42.81 $34.66 - + Add to cart
009	SPRING, PAD Part #: 45108-MZ2-016 Required per assembly: 1 $9.91 $8.52 - + Add to cart
010	RING, STOPPER Part #: 45111-MAJ-G41 Required per assembly: 1 $5.17 $4.70 - + Add to cart
011	RETAINER, BRACKET Part #: 45112-MZ2-006 Required per assembly: 1 $10.26 $8.79 - + Add to cart
012	BOLT, A, PIN Part #: 45131-ML7-921 Required per assembly: 1 $17.88 $14.92 - + Add to cart
013	BOOT, PIN, BUSH Part #: 45132-166-016 Required per assembly: 1 $6.57 $5.81 - + Add to cart
014	BOOT B Part #: 45133-MA3-006 Required per assembly: 1 $6.57 $5.81 - + Add to cart
015	PLUG, PIN Part #: 45203-MCC-006 Required per assembly: 1 $3.91 $3.55 - + Add to cart
016	PIN, HANGER Part #: 45215-MAJ-G41 Required per assembly: 1 $7.75 $6.76 - + Add to cart
017	PISTON B (27X35) Part #: 45218-MAJ-G41 Required per assembly: 2 $42.81 $35.70 - + Add to cart
018	CALIPER SUB-ASSEMBLY Part #: 45250-MCV-006 Required per assembly: 1 $317.82 $281.31 - + Add to cart
019	BOLT (8X32) Part #: 90101-MZ8-000 Required per assembly: 2 $8.10 $7.07 - + Add to cart
020	BOLT, TORX, (8X45) Part #: 90102-MCV-006 Required per assembly: 3 $3.74 - + Add to cart
