OEM Parts Polaris 2003 Polaris Predator (A03GJ50AA/AB) Chain Cover - A03gj50aa/Ab

2003 Polaris Predator (A03GJ50AA/AB) - Chain Cover - A03gj50aa/Ab

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

SPROCKET, 14T

Part #: 3088132 Required per assembly: 1
Currently Not Available
2

PLATE, FIXING

Part #: 3088133 Required per assembly: 1
Currently Not Available
3

BOLT, FLANGE

Part #: 3088135 Required per assembly: 2
Currently Not Available
4

PLATE, DRIVE, CHAIN

Part #: 3088131 Required per assembly: 1
Currently Not Available
5

ASSEMBLY, COVER, DRIVE, CHAIN

Part #: 3088130 Required per assembly: 1
Currently Not Available
5

COVER, SPROCKET, RED, (AB)

Part #: 3088221 Required per assembly: 1
Currently Not Available
6
Polaris 3084874 Bolt, Flange

BOLT, FLANGE

Part #: 3084874 Required per assembly: 3
Currently Not Available
7

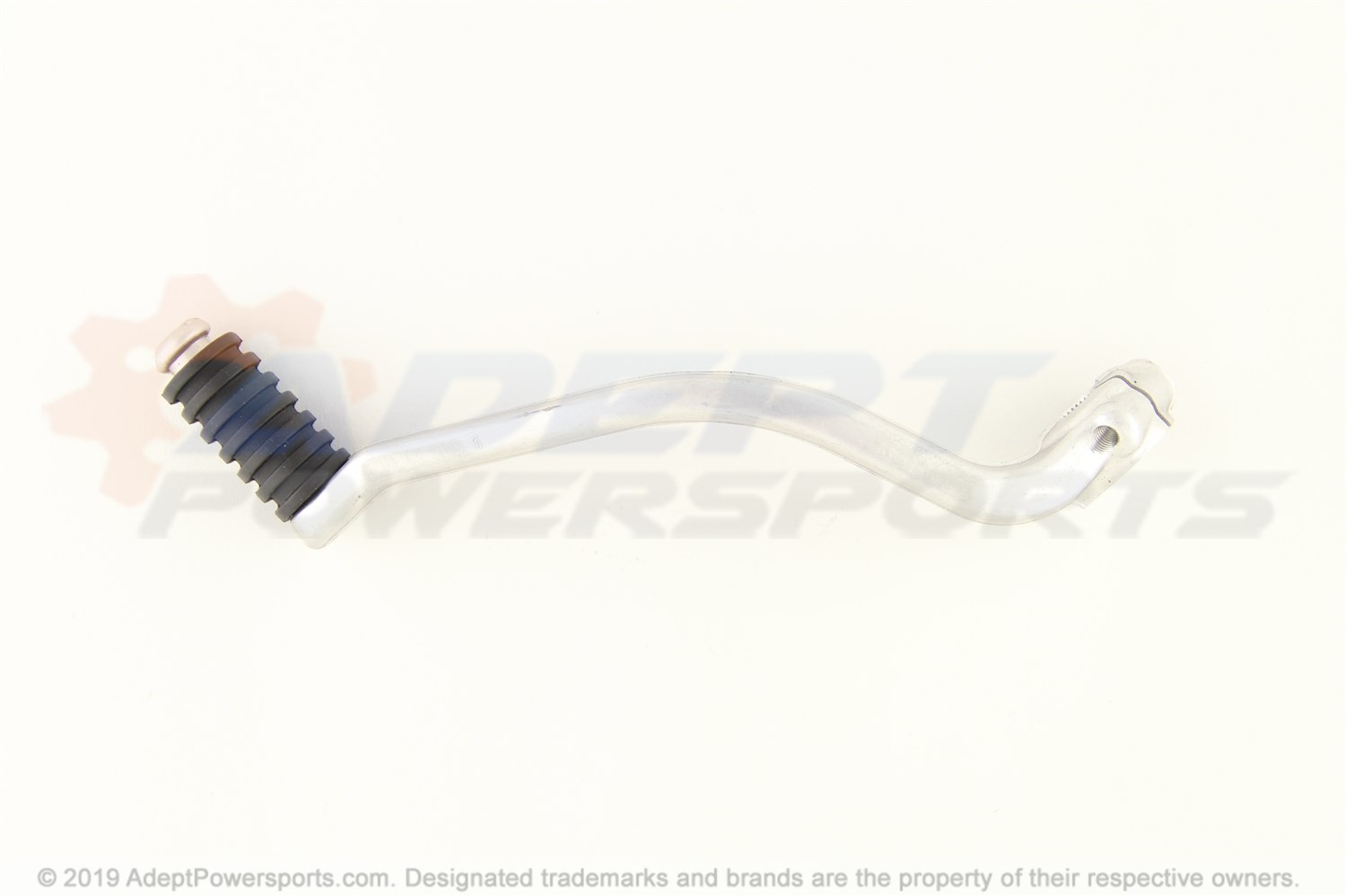

Polaris 3088134 Pedal, Shift

PEDAL, SHIFT

Part #: 3088134 Required per assembly: 1 Note: Asm., Pedal, Shift
Currently Not Available
