Carburetor - A03ea09ca replacement parts for 2003 Polaris Scrambler 90 (A03EA09CA)

OEM Parts Polaris 2003 Polaris Scrambler 90 (A03EA09CA) Carburetor - A03ea09ca

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	NUT, CABLE, ADJUST Part #: 0450120 Required per assembly: 1 Currently Not Available
2	GASKET-16101-117-000 Part #: 0455385 Required per assembly: 1 Currently Not Available
3	PLUG Part #: 0451014 Required per assembly: 1 Note: Plug, Oil $1.99 $1.18 - + Add to cart
4	TUBE, CARBURETOR Part #: 0451013 Required per assembly: 1 Note: Tube $2.99 $1.73 - + Add to cart
5	SCREW, SET, AIR, ADJUST Part #: 0450103 Required per assembly: 1 Currently Not Available
6	SCREW, SET, THROTTLE Part #: 0450114 Required per assembly: 1 Currently Not Available
7	JET, PILOT Part #: 0451024 Required per assembly: 1 Currently Not Available
8	NOZZLE, NEEDLE Part #: 0450093 Required per assembly: 1 Currently Not Available
9	NOZZLE, MAIN Part #: 0450097 Required per assembly: 1 Currently Not Available
10	FLOAT Part #: 0450976 Required per assembly: 1 Currently Not Available
11	PIN, FLOAT Part #: 0450118 Required per assembly: 1 Currently Not Available
12	CABLE, CHOKE Part #: 0451032 Required per assembly: 1 Currently Not Available
13	BOLT, PAN, PHILLIPS Part #: 0450086 Required per assembly: 6 Currently Not Available
14	TUBE, OVERFLOW Part #: 0450099 Required per assembly: 1 Currently Not Available
15	PLUG, DRAIN Part #: 0450105 Required per assembly: 1 Currently Not Available
16	BOLT, PAN, PHILLIPS Part #: 0450108 Required per assembly: 1 Currently Not Available
17	VALVE, SET, NEEDLE Part #: 0451669 Required per assembly: 1 Currently Not Available
18	SEAL, FLOAT, CHAMBER Part #: 0450095 Required per assembly: 1 Currently Not Available
19	ASSEMBLY, CARBURETOR Part #: 0451668 Required per assembly: 1 Note: Asm., Carburetor [Incl. All Less 12] Currently Not Available
20	NOZZLE, CHOKE Part #: 0450923 Required per assembly: 1 Currently Not Available
21	VALVE, CHOKE Part #: 0451026 Required per assembly: 1 Currently Not Available
22	SPRING, CHOKE, RETURN Part #: 0451029 Required per assembly: 1 Currently Not Available

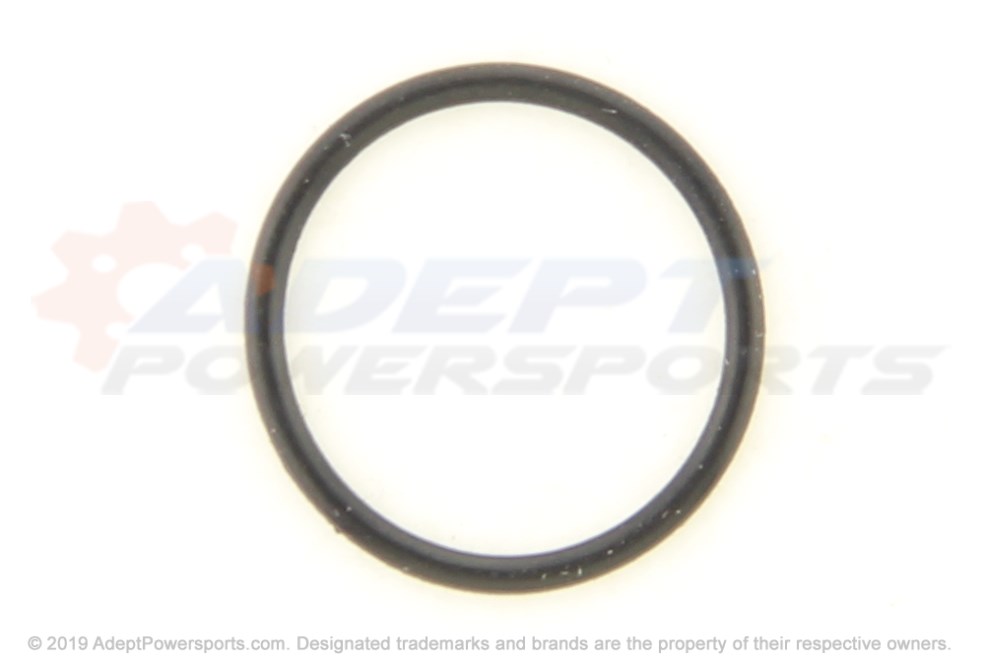

23	O-RING Part #: 0451028 Required per assembly: 1 $7.99 $4.68 - + Add to cart
24	BASE, MANUAL, CHOKE Part #: 0451027 Required per assembly: 1 Currently Not Available
25	SCREW, PAN, W/WASHER Part #: 0451025 Required per assembly: 2 Note: Bolt, Pan, Phillips Currently Not Available
26	SUPPORT, CABLE Part #: 0451031 Required per assembly: 1 Currently Not Available
27	COVER, CABLE, SUPPORT Part #: 0451030 Required per assembly: 1 Currently Not Available
28	VALVE, THROTTLE Part #: 0450089 Required per assembly: 1 Currently Not Available
29	NEEDLE SET Part #: 0450090 Required per assembly: 1 Currently Not Available
30	SPRING, THROTTLE, STOP Part #: 0450084 Required per assembly: 1 Currently Not Available
31	SCREW, PAN, W/WASHER Part #: 0451025 Required per assembly: 2 Note: Bolt, Pan, Phillips Currently Not Available
