Electrical 1 replacement parts for 2003 Yamaha WR250F (WR250FR)

OEM Parts Yamaha 2003 Yamaha WR250F (WR250FR) Electrical 1

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CDI UNIT ASSEMBLY Part #: 5UM-85540-00-00 Required per assembly: 1 Not Available
002	BAND Part #: 5TJ-85546-00-00 Required per assembly: 1 $16.60 - + Add to cart
003	IGNITION COIL ASSEMBLY Part #: 5UL-82310-10-00 Required per assembly: 1 ~~$185.99~~ $158.56 - + Add to cart
004	NEUTRAL SWITCH ASSEMBLY Part #: 5TJ-82540-03-00 Required per assembly: 1 ~~$80.98~~ $70.73 - + Add to cart
005	O-RING Part #: 93210-21001-00 Required per assembly: 1 $6.55 - + Add to cart
006	SCREW, BIND Part #: 98907-05016-00 Required per assembly: 2 ~~$9.49~~ $8.33 - + Add to cart
007	CLAMP Part #: 90464-13077-00 Required per assembly: 1 ~~$9.49~~ $8.93 - + Add to cart
008	CLAMP (MF1) Part #: 90464-15152-00 Required per assembly: 1 ~~$6.49~~ $6.01 - + Add to cart
009	CLAMP (4FM) Part #: 90464-15195-00 Required per assembly: 4 ~~$4.41~~ $3.90 - + Add to cart
010	CLAMP (4FM) Part #: 90464-15195-00 Required per assembly: 4 ~~$4.41~~ $3.90 - + Add to cart
011	BAND Part #: 1UA-82591-00-00 Required per assembly: 1 $5.71 - + Add to cart
012	CLAMP 1 Part #: 5Y9-12491-00-00 Required per assembly: 1 $8.59 - + Add to cart
013	CLAMP Part #: 90464-25267-00 Required per assembly: 2 ~~$7.49~~ $4.68 - + Add to cart
014	WIRE HARNESS ASSEMBLY Part #: 5TJ-82590-10-00 Required per assembly: 1 Not Available
015	DIODE ASSEMBLY Part #: 5TJ-81980-00-00 Required per assembly: 1 ~~$28.98~~ $24.05 - + Add to cart
016	DIODE ASSEMBLY Part #: 4WA-81980-00-00 Required per assembly: 1 ~~$32.99~~ $26.19 - + Add to cart

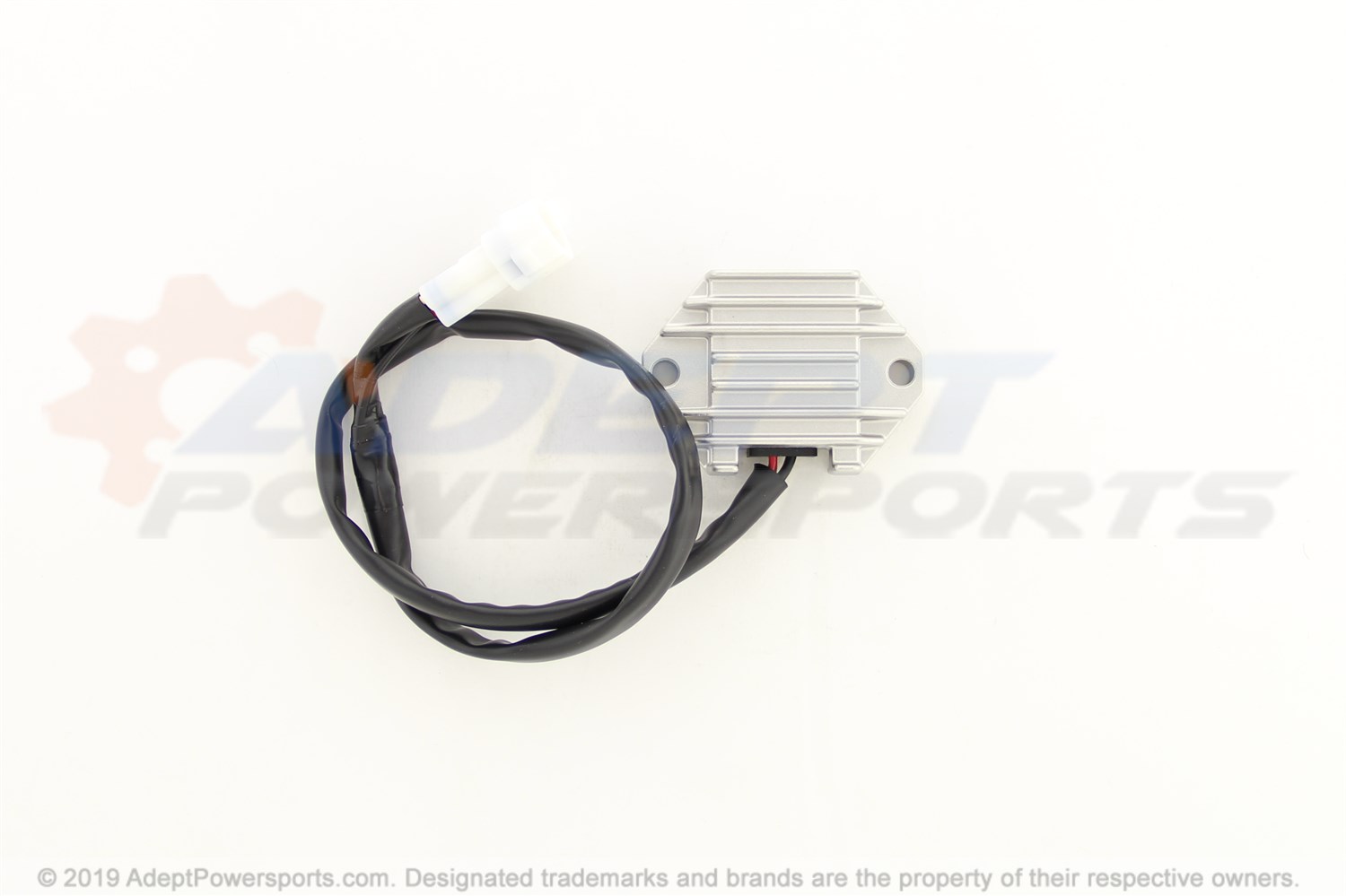

017	RECTIFIER & REGULATOR ASSEMBLY Part #: 5TJ-81960-02-00 Required per assembly: 1 ~~$236.99~~ $205.50 - + Add to cart
018	BOLT, FLANGE(6U1) Part #: 95027-06020-00 Required per assembly: 2 $1.44 - + Add to cart
019	BRACKET, REGULATOR Part #: 5TJ-2128A-01-00 Required per assembly: 1 Not Available
020	BOLT, FLANGE Part #: 95027-06010-00 Required per assembly: 2 ~~$3.54~~ $3.50 - + Add to cart
021	CLAMP Part #: 90464-29223-00 Required per assembly: 1 Note: (5PH1) $5.30 - + Add to cart
022	YTX5LBS YUASA BATTERY - SA Part #: YTX-5LBS0-00-00 Required per assembly: 1 $87.92 - + Add to cart
023	BAND, BATTERY Part #: 8CY-82131-00-00 Required per assembly: 1 ~~$14.49~~ $13.11 - + Add to cart
024	WIRE, PLUS, LEAD Part #: 5TJ-82115-00-00 Required per assembly: 1 $18.18 - + Add to cart
025	WIRE, MINUS, LEAD Part #: 5UM-82116-00-00 Required per assembly: 1 Not Available
026	STARTER RELAY ASSEMBLY Part #: 5TJ-81940-12-00 Required per assembly: 1 ~~$109.98~~ $92.43 - + Add to cart
027	FUSE (10A-BL) Part #: 42X-82151-00-00 Required per assembly: 2 ~~$4.32~~ $2.18 - + Add to cart
028	COVER, LEAD, WIRE Part #: 5SL-82119-10-00 Required per assembly: 1 $5.63 - + Add to cart
029	BOLT, FLANGE Part #: 95027-06008-00 Required per assembly: 2 ~~$7.99~~ $7.61 - + Add to cart
030	HOLDER, RELAY Part #: 5TJ-81952-00-00 Required per assembly: 1 Not Available
031	RELAY ASSEMBLY (8DM-00) Part #: 8DM-81950-00-00 Required per assembly: 1 ~~$47.99~~ $37.09 - + Add to cart
032	MAIN SWITCH ASSEMBLY Part #: 5TJ-82510-00-00 Required per assembly: 1 Not Available
033	STAY, MAIN, SWITCH Part #: 5TJ-82514-00-00 Required per assembly: 1 Not Available
034	TIE-WRAP Part #: 90464-76001-00 Required per assembly: 2 $9.07 - + Add to cart
