Starter replacement parts for 2003 Yamaha WR450F (WR450FR)

OEM Parts Yamaha 2003 Yamaha WR450F (WR450FR) Starter

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	KICK SHAFT ASSEMBLY Part #: 5TA-15601-10-00 Required per assembly: 1 ~~$489.99~~ $423.79 - + Add to cart
002	WASHER, PLATE, (T=05) Part #: 90201-20685-00 Required per assembly: 1 ~~$8.49~~ $7.73 - + Add to cart
003	CIRCLIP, S-TYPE Part #: 93410-20038-00 Required per assembly: 3 ~~$4.04~~ $3.69 - + Add to cart
004	WHEEL, RATCHET Part #: 4GY-15671-00-00 Required per assembly: 1 Note: (5PH1) ~~$97.98~~ $82.74 - + Add to cart
005	SPRING, COMPRESSION Part #: 90501-16016-00 Required per assembly: 1 Note: (5MW1) ~~$6.49~~ $6.33 - + Add to cart
006	WASHER, PLATE Part #: 90201-167P7-00 Required per assembly: 1 $10.69 - + Add to cart
007	CIRCLIP, S-TYPE Part #: 99009-16400-00 Required per assembly: 1 $7.30 - + Add to cart
008	GUIDE, SPRING Part #: 5NL-15664-00-00 Required per assembly: 1 Note: (5PH1) $14.81 - + Add to cart
009	SPRING, TORSION Part #: 90508-30743-00 Required per assembly: 1 ~~$20.98~~ $19.56 - + Add to cart
010	WASHER, PLATE Part #: 90201-162H4-00 Required per assembly: 1 ~~$10.49~~ $10.45 - + Add to cart
011	STOPPER Part #: 5SG-15668-00-00 Required per assembly: 1 ~~$93.98~~ $81.25 - + Add to cart
012	WASHER, LOCK Part #: 214-15686-00-00 Required per assembly: 1 $8.59 - + Add to cart
013	BOLT, HEXAGON Part #: 97017-06016-00 Required per assembly: 2 ~~$9.49~~ $8.33 - + Add to cart
014	OIL, SEAL, SD-TYPE Part #: 93102-18278-00 Required per assembly: 1 ~~$13.49~~ $13.31 - + Add to cart
015	GEAR, KICK, IDLE Part #: 5TA-15651-00-00 Required per assembly: 1 ~~$138.99~~ $120.01 - + Add to cart
016	WASHER, PLATE, (T=1.0) Part #: 90201-20276-00 Required per assembly: 2 ~~$9.49~~ $8.80 - + Add to cart
017	CIRCLIP Part #: 99009-20400-00 Required per assembly: 1 ~~$9.49~~ $8.31 - + Add to cart

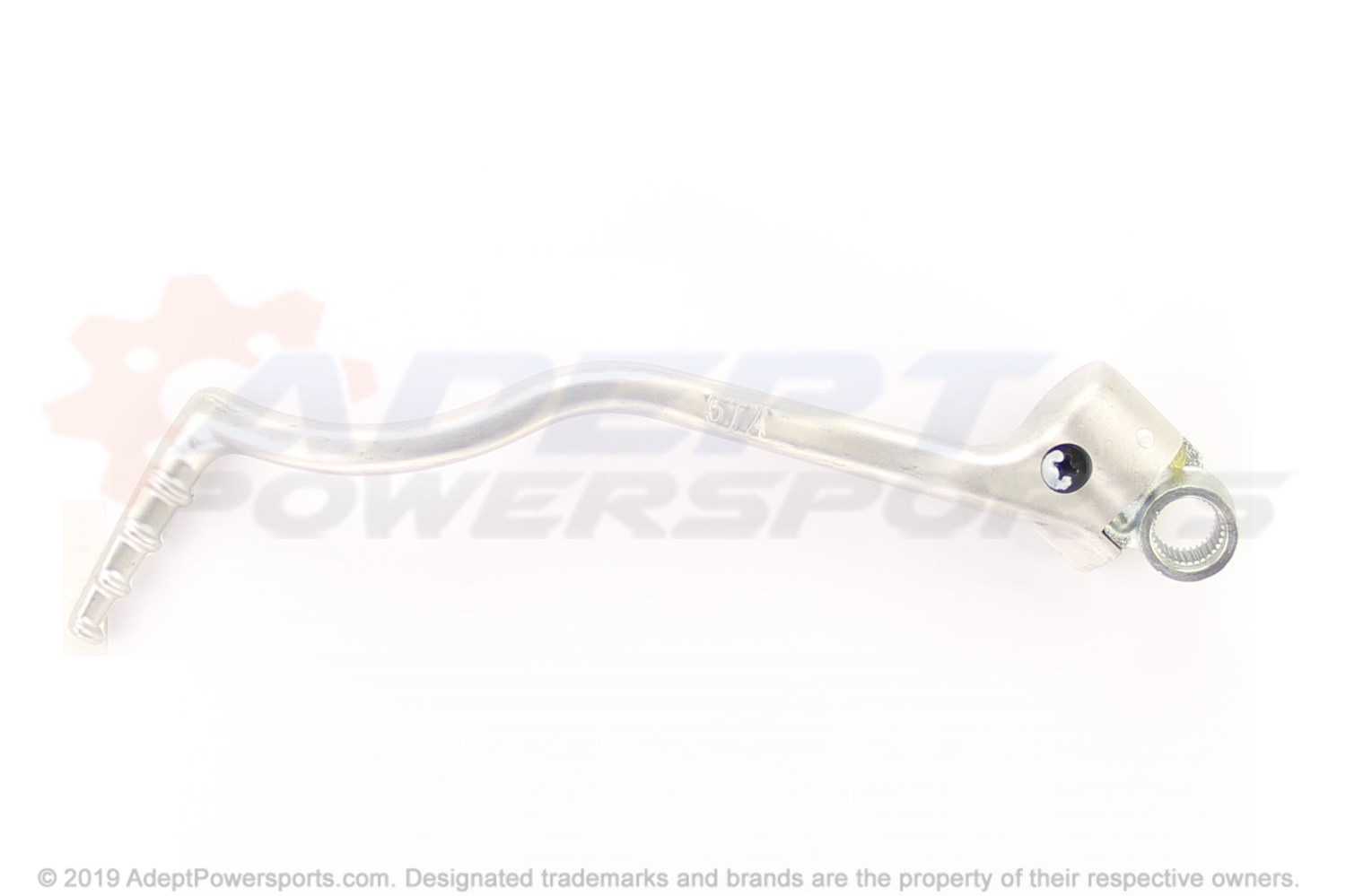

018	KICK CRANK ASSEMBLY Part #: 5TA-15620-01-00 Required per assembly: 1 ~~$264.99~~ $238.47 - + Add to cart
019	BOSS, KICK, CRANK Part #: 5TA-15621-01-00 Required per assembly: 1 Not Available
020	SPRING, COMPRESSION Part #: 90501-147A5-00 Required per assembly: 1 ~~$9.49~~ $8.31 - + Add to cart
021	BALL (12R) Part #: 93507-32031-00 Required per assembly: 1 Note: Sold in multiples of 5 only ~~$5.49~~ $5.43 - + Add to cart
022	SCREW, COUNTERSUNK Part #: 90152-06010-00 Required per assembly: 1 ~~$10.49~~ $8.59 - + Add to cart
023	O-RING Part #: 93210-17570-00 Required per assembly: 1 ~~$8.49~~ $7.94 - + Add to cart
024	BOLT Part #: 90109-085E2-00 Required per assembly: 2 Note: Sold in multiples of 5 only ~~$8.49~~ $8.10 - + Add to cart
025	WASHER, PLATE Part #: 90201-08326-00 Required per assembly: 2 ~~$9.49~~ $8.31 - + Add to cart
