OEM Parts Aprilia 2004 Aprilia RSV 1000 Taillight

2004 Aprilia RSV 1000 - Taillight

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

REAR RH TURN INDICATOR

Part #: AP8127284 Note: 4
Currently Not Available
1

TURN INDICATOR

Part #: AP8127683 Note: 5-6-7-8
Currently Not Available
2

REAR LH TURN INDICATOR

Part #: AP8127285 Note: 4
Currently Not Available
2

TURN INDICATOR

Part #: AP8127684 Note: 5-6-7-8
Currently Not Available
3

TAILLIGHT

Part #: AP8127153 Note: 4
Currently Not Available
3

TAILLIGHT

Part #: AP8127682 Note: 5
Currently Not Available
4

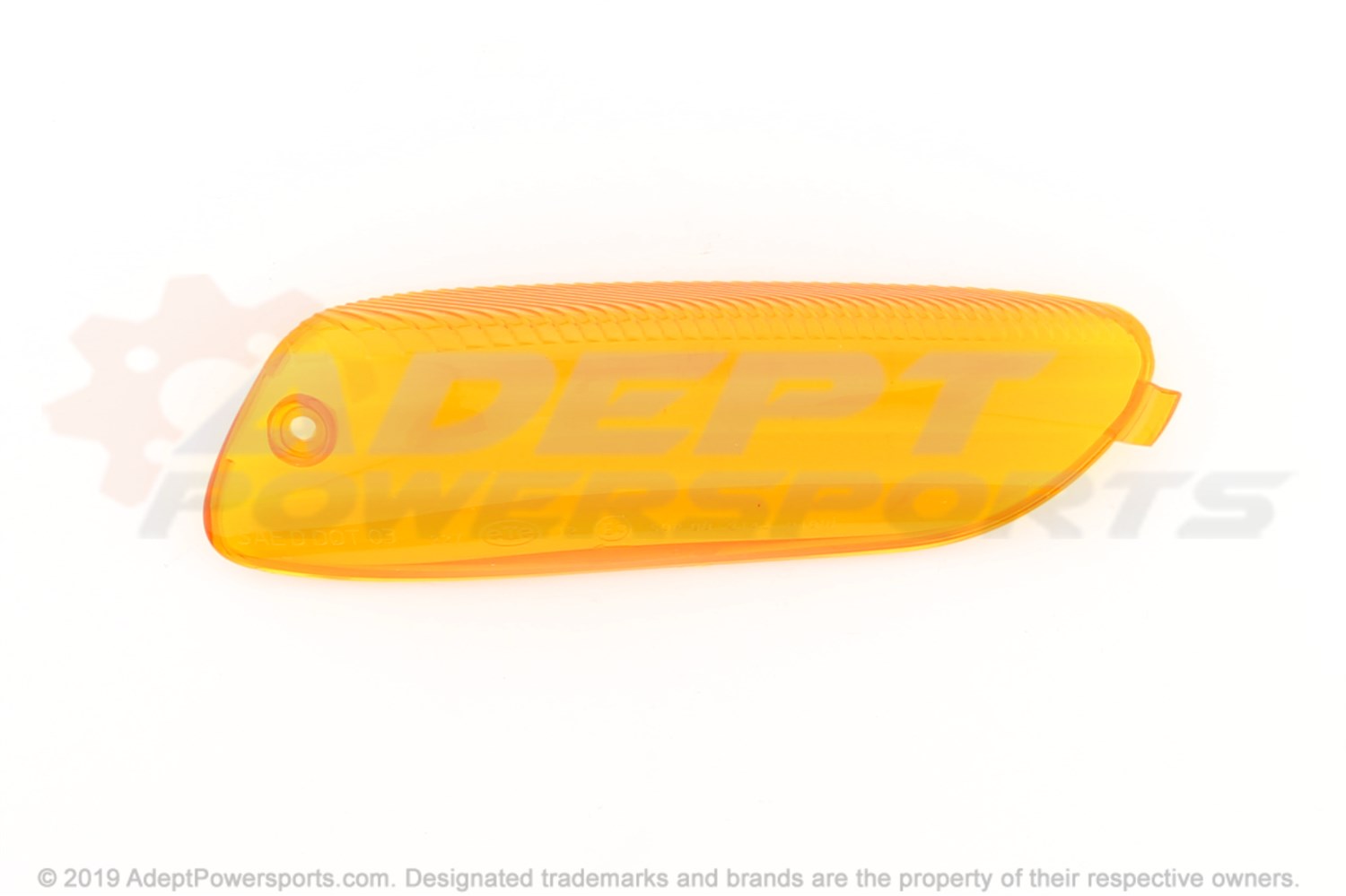

RH ORANGE LENS

Part #: AP8127597
Currently Not Available
4

TRANSPARENT LENS F.LH-R.RH

Part #: AP8127701
Currently Not Available
5

LH ORANGE LENS

Part #: AP8127598
Currently Not Available
5

TRANSPARENT LENS F.RH-R.LH

Part #: AP8127702
Currently Not Available
6

PLATE LIGHT WIRING

Part #: AP8127599
Currently Not Available
7

RUBBER W/ INSERT *

Part #: AP8120531
Currently Not Available
8

SCREW W/ FLANGE M5X16*

Part #: AP8152298
Currently Not Available
9

SCREW W/ FLANGE M5X12*

Part #: AP8152302
Currently Not Available
10

HEX SOCKET SCREW M4X16

Part #: AP8150493
Currently Not Available
11

WASHER

Part #: AP8144565
Currently Not Available
12

CLIP M4

Part #: AP8102381
Currently Not Available
