01 - Crankshaft And Cylinder replacement parts for 2004 Can Am Quest MAX

OEM Parts Can Am 2004 Can Am Quest MAX 01 - Crankshaft And Cylinder

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	GASKET Part #: 420630080 Required per assembly: 1 Currently Not Available
2	CYLINDRE ASSEMBLY Part #: 420923947 Required per assembly: 1 Note: Includes Items 2 to 3 Currently Not Available
3	DRIVE PIN 5 X 10 Part #: 420929650 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
4	PISTON ASSEMBLY. STARTING FROM ENGINE M6059519, TRAXTER 650 CVT Part #: 420890082 Required per assembly: 1 Note: Includes Items 4 to 5 Currently Not Available
4	PISTON (OVERSIZE) ASSEMBLY Part #: 420890083 Required per assembly: 1 Currently Not Available

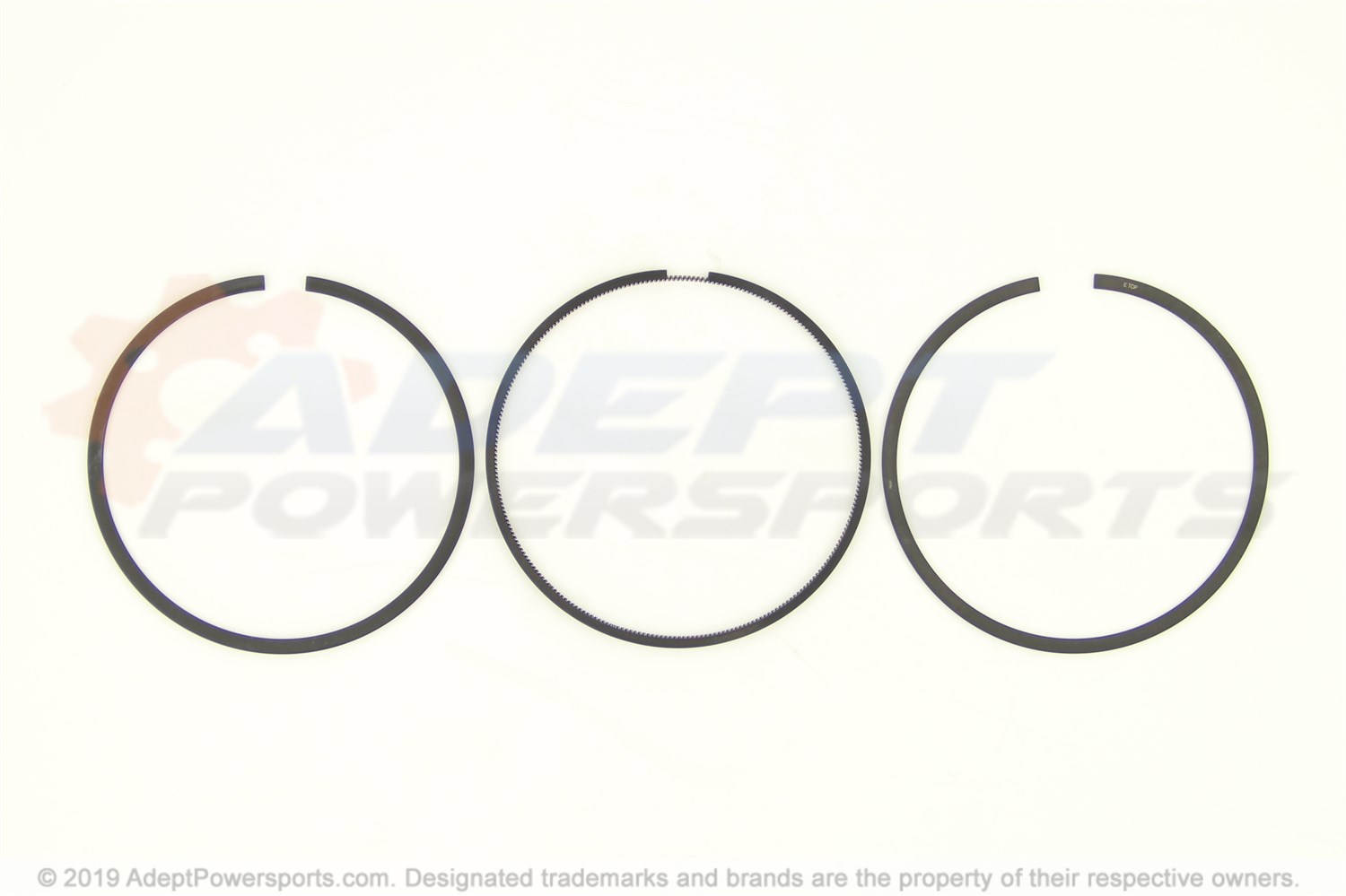

5	PISTON RING SET (OVERSIZE) Part #: 420890381 Required per assembly: 1 Note: 420891128 Currently Not Available
5	PISTON RING SET. Part #: 420890380 Required per assembly: 1 Currently Not Available
6	PISTON PIN Part #: 420216250 Required per assembly: 1 Currently Not Available
7	CIRCLIP Part #: 420845580 Required per assembly: 2 $2.14 $1.74 - + Add to cart
8	CHAIN TENSIONER HOUSING Part #: 420236510 Required per assembly: 1 Currently Not Available
9	O-RING Part #: 420430373 Required per assembly: 2 Note: Sold in multiples of 5 only Currently Not Available
10	FLANGED TORX SCREW M6 X 25 Part #: 420440234 Required per assembly: 4 Currently Not Available
11	CHAIN TENSIONER PLUNGER Part #: 420236521 Required per assembly: 1 Currently Not Available
12	SPRING Part #: 420238120 Required per assembly: 1 Currently Not Available
13	PLUG SCREW Part #: 420641150 Required per assembly: 1 Currently Not Available
14	O-RING Part #: 420250890 Required per assembly: 1 Currently Not Available
15	SET-GASKET ENGINE Part #: 420684122 Required per assembly: 1 Currently Not Available
16	LOCTITE 243, 10 ML Part #: 293800060 Required per assembly: 1 Currently Not Available
17	SEMI SYNTHETIC OIL FOR ALL 4-TEC ENGINES (1 QUART) Part #: 293600121 Required per assembly: 1 Currently Not Available
19	CRANKSHAFT ASSEMBLY Part #: 420296644 Required per assembly: 1 Currently Not Available
20	CONNECTING ROD Part #: 420917525 Required per assembly: 1 Note: Includes Items 20 to 21 Currently Not Available
21	CONNECTING ROD SCREW Part #: 420640991 Required per assembly: 2 Currently Not Available
22	HALF-BEARING Part #: 420933523 Required per assembly: 2 Currently Not Available
23	WOODRUFF KEY 4 X 5 Part #: 420246570 Required per assembly: 1 $2.77 $2.24 - + Add to cart
24	SHIM Part #: 420627363 Required per assembly: 1 Currently Not Available
25	SHIM Part #: 420627502 Required per assembly: 1 Currently Not Available
26	BALANCING SHAFT Part #: 420220785 Required per assembly: 1 Currently Not Available
27	PLUG Part #: 420660300 Required per assembly: 1 Currently Not Available
