Clutch Cover replacement parts for 2004 Honda 599 (CB600F)

OEM Parts Honda 2004 Honda 599 (CB600F) Clutch Cover

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	COVER, PULSER Part #: 11311-MBZ-D00 Required per assembly: 1 Not Available
002	COVER, CLUTCH Part #: 11330-MBZ-D00 Required per assembly: 1 $311.53 $252.17 - + Add to cart
003	CAP (45MM) Part #: 11332-MBZ-D00 Required per assembly: 1 $22.13 $18.44 - + Add to cart
004	GASKET, PULSER, COVER Part #: 11391-MV9-670 Required per assembly: 1 $15.80 $13.17 - + Add to cart
005	GASKET, CLUTCH, COVER Part #: 11393-MV9-670 Required per assembly: 1 $26.26 $21.90 - + Add to cart

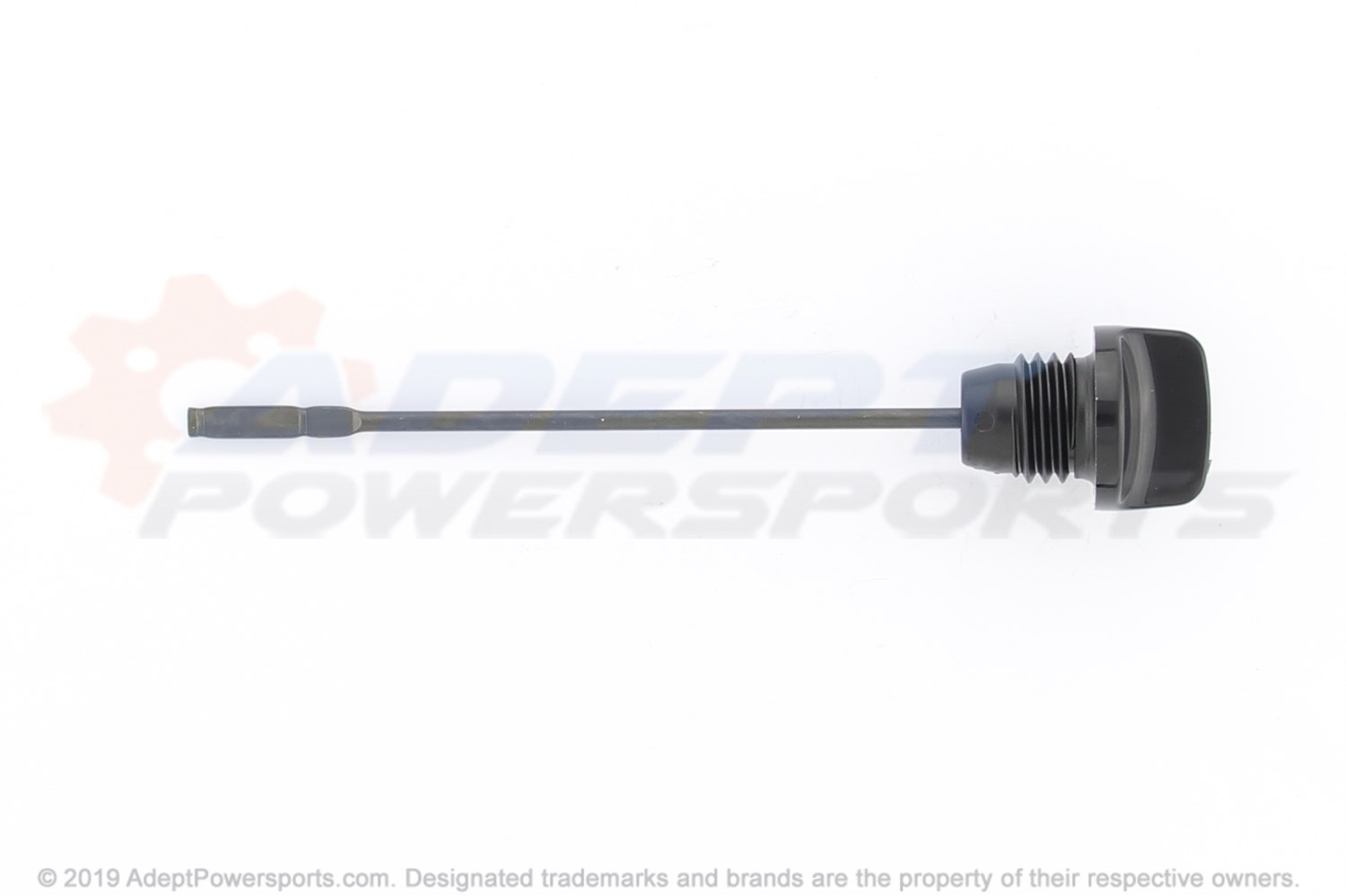

006	DIPSTICK, OIL Part #: 15650-MBZ-610 Required per assembly: 1 $10.27 $9.43 - + Add to cart
007	LEVER, CLUTCH Part #: 22810-MBZ-610 Required per assembly: 1 Not Available
008	SPRING, CLUTCH, LEVER Part #: 22815-MBZ-D00 Required per assembly: 1 Not Available
009	RECEIVER Part #: 22821-MBZ-610 Required per assembly: 1 Not Available
010	ROTOR, PULSE Part #: 30291-MV9-671 Required per assembly: 1 Not Available
011	GENERATOR, PULSE Part #: 30300-MBZ-611 Required per assembly: 1 Not Available
012	BOLT, FLANGE, (6X28) Part #: 90006-GHB-680 Required per assembly: 12 $3.01 $2.80 - + Add to cart
013	BOLT (10X25) Part #: 90013-430-000 Required per assembly: 1 $7.77 $6.78 - + Add to cart
014	WASHER (10.5X27) Part #: 90405-MCA-780 Required per assembly: 1 $4.68 - + Add to cart
015	WASHER Part #: 90525-MBZ-610 Required per assembly: 1 $3.12 - + Add to cart
016	BAND, WIRE, (95MM) Part #: 90650-KV6-003 Required per assembly: 1 $4.43 $4.03 - + Add to cart
017	OIL SEAL (12X18X5) Part #: 91204-KK0-003 Required per assembly: 1 $6.07 $5.42 - + Add to cart
018	O-RING (48.1X3.6) Part #: 91301-ML7-003 Required per assembly: 1 $5.29 $4.81 - + Add to cart
019	O-RING (18X3) Part #: 91302-KE8-003 Required per assembly: 1 $3.64 $3.31 - + Add to cart
020	PIN, DOWEL, (8X14) Part #: 94301-08140 Required per assembly: 2 $3.21 $2.99 - + Add to cart
021	BOLT, FLANGE, (6X14) Part #: 95701-06014-00 Required per assembly: 1 $2.04 $1.88 - + Add to cart
