Rear Shock Absorber replacement parts for 2004 Honda CRF250R

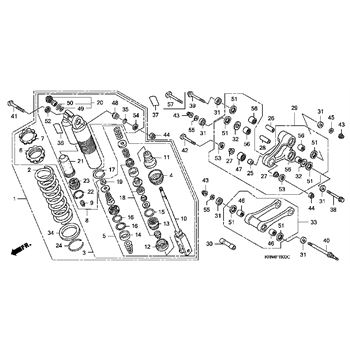

OEM Parts Honda 2004 Honda CRF250R Rear Shock Absorber

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CUSHION, ASSEMBLY, RR. Part #: 52400-KRN-671 Required per assembly: 1 Not Available
002	SPRING (5.3KGF/MM) Part #: 52402-MEB-751 ~~$190.71~~ $154.29 - + Add to cart
002	SPRING (5.5KGF/MM) Part #: 52401-MEB-751 Required per assembly: 1 Not Available
002	SPRING, RR. Part #: 52403-MEB-751 ~~$193.84~~ $154.51 - + Add to cart
002	SPRING, RR. Part #: 52401-KZ3-J51 ~~$182.48~~ $147.64 - + Add to cart
003	DAMPER, RR. Part #: 52410-KRN-671 Required per assembly: 1 ~~$744.25~~ $635.17 - + Add to cart
004	STOPPER, SPRING, SEAT Part #: 52419-KZ3-J21 Required per assembly: 1 ~~$24.54~~ $22.79 - + Add to cart
005	ROD, PISTON Part #: 52421-KRN-671 Required per assembly: 1 ~~$360.07~~ $287.02 - + Add to cart
006	ADJUSTER, SPRING Part #: 52422-KZ3-J31 Required per assembly: 1 ~~$37.48~~ $31.23 - + Add to cart
007	NUT, ADJUSTER Part #: 52423-KZ3-J21 Required per assembly: 1 $17.41 - + Add to cart
008	CASE, DAMPER Part #: 52425-KRN-671 Required per assembly: 1 Not Available
009	CAP, AIR, VALVE Part #: 52425-381-771 Required per assembly: 1 $7.28 - + Add to cart
010	ROD Part #: 52426-MEN-003 Required per assembly: 1 Not Available
011	RUBBER, STOPPER Part #: 52427-MEB-751 Required per assembly: 1 ~~$19.05~~ $18.61 - + Add to cart
012	PLATE, END Part #: 52428-KZ3-J31 Required per assembly: 1 Not Available
013	CASE, ROD, GUIDE Part #: 52429-KZ3-J41 Required per assembly: 1 ~~$21.81~~ $21.13 - + Add to cart
014	RING, PISTON Part #: 52431-KZ3-J31 Required per assembly: 1 $17.82 - + Add to cart
015	O-RING (3.5X43.7) Part #: 52434-KZ3-J21 Required per assembly: 1 $5.00 - + Add to cart
016	O-RING (42.5X2.0) Part #: 52434-KZ3-J31 Required per assembly: 2 $5.08 - + Add to cart
017	RING, STOPPER Part #: 52435-KZ3-J21 Required per assembly: 1 ~~$3.41~~ $3.24 - + Add to cart
018	OIL SEAL SET Part #: 52436-MEN-671 Required per assembly: 1 ~~$26.69~~ $23.55 - + Add to cart
019	NUT, HEX., (12MM) Part #: 52438-KA4-741 Required per assembly: 1 $4.28 - + Add to cart
020	ADJUSTER Part #: 52440-MEN-671 Required per assembly: 1 ~~$149.06~~ $124.22 - + Add to cart
021	BLADDER Part #: 52451-KZ3-891 Required per assembly: 1 ~~$20.26~~ $19.67 - + Add to cart
022	RING, STOPPER Part #: 52452-KS7-831 Required per assembly: 1 $3.93 - + Add to cart
023	CAP, CHAMBER Part #: 52453-KS7-831 Required per assembly: 1 Not Available
024	RING, STOPPER Part #: 52455-KZ3-J21 Required per assembly: 1 $7.59 - + Add to cart
025	COLLAR, D, CUSHION Part #: 52463-KZ4-B00 Required per assembly: 1 $4.84 - + Add to cart
026	COLLAR C Part #: 52463-KZ4-J40 Required per assembly: 1 $8.14 - + Add to cart
027	COLLAR D Part #: 52464-KZ4-B00 Required per assembly: 2 $5.63 - + Add to cart
028	COLLAR, B, CUSHION Part #: 52464-KZ4-J20 Required per assembly: 1 $9.75 - + Add to cart
029	ARM SUB-ASSEMBLY Part #: 52465-KSK-000 Required per assembly: 1 Not Available
030	COLLAR, A, CONN, ROD Part #: 52473-KZ4-J20 Required per assembly: 1 $17.77 - + Add to cart
031	COLLAR, LINK, SIDE Part #: 52475-KZ4-J20 Required per assembly: 6 $9.53 - + Add to cart
032	WASHER, THRUST Part #: 52476-KZ4-J20 Required per assembly: 2 $7.45 - + Add to cart
033	ROD SUB-ASSEMBLY Part #: 52479-KSK-000 Required per assembly: 1 Not Available
034	SEAT, SPRING Part #: 52486-KZ3-J21 Required per assembly: 1 ~~$31.30~~ $26.09 - + Add to cart
035	RING, STOPPER Part #: 52487-KA4-831 Required per assembly: 2 $5.75 - + Add to cart
036	LABEL, RR. Part #: 87516-KZ1-600 Required per assembly: 1 $8.68 - + Add to cart
038	BOLT, LINK, (12X96) Part #: 90130-KZ4-J20 Required per assembly: 1 $12.64 - + Add to cart
039	BOLT, LINK, (12X81.5) Part #: 90130-KZ4-J40 Required per assembly: 1 $11.33 - + Add to cart
040	BOLT, LINK, (12X120) Part #: 90131-KZ4-J40 Required per assembly: 1 Not Available
041	BOLT (UPPER) (10X53) Part #: 90152-MEB-750 Required per assembly: 1 $4.20 - + Add to cart
042	BOLT (10X43.5) Part #: 90153-KZ4-710 Required per assembly: 1 ~~$10.87~~ $8.50 - + Add to cart
043	NUT, U, (12MM) Part #: 90306-GAB-711 Required per assembly: 3 $11.97 - + Add to cart
044	NUT, U, (10MM) Part #: 90306-KZ4-711 Required per assembly: 2 $5.50 - + Add to cart
045	WASHER, PLAIN, (12MM) Part #: 90501-KZ4-J40 Required per assembly: 1 ~~$3.19~~ $3.05 - + Add to cart
046	BEARING (20X26X14) Part #: 91053-KZ4-J21 Required per assembly: 2 $12.34 - + Add to cart
047	BEARING (19X26X15) Part #: 91074-KZ4-B01 Required per assembly: 1 ~~$25.14~~ $23.12 - + Add to cart
048	BEARING Part #: 91074-MAC-741 Required per assembly: 1 ~~$40.60~~ $33.83 - + Add to cart
049	O-RING (21.5X1.5) Part #: 91256-KZ3-731 Required per assembly: 1 $3.74 - + Add to cart
050	O-RING (26.2X1.9) Part #: 91257-KZ3-891 Required per assembly: 1 $4.55 - + Add to cart
051	DUST SEAL (25X32X4) Part #: 91262-KZ3-731 Required per assembly: 6 $10.42 - + Add to cart
052	DUST, SEAL, RR. Part #: 91351-KZ3-731 Required per assembly: 1 $7.05 - + Add to cart
053	DUST SEAL (17X26X3) Part #: 91351-KZ4-B01 Required per assembly: 2 $6.08 - + Add to cart
054	DUST SEAL (16X26X3) Part #: 91351-MAC-671 Required per assembly: 1 ~~$6.94~~ $5.43 - + Add to cart
055	WASHER, PLAIN, (12MM) Part #: 90501-KZ4-J40 Required per assembly: 1 ~~$3.19~~ $3.05 - + Add to cart
056	BEARING (20X26X14) Part #: 91053-KZ4-J21 Required per assembly: 2 $12.34 - + Add to cart
