Right Crankcase Cover ('04,'05) replacement parts for 2004 Honda TRX450R

OEM Parts Honda 2004 Honda TRX450R Right Crankcase Cover ('04,'05)

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	COLLAR (18MM) Part #: 11102-MEB-670 Required per assembly: 1 $4.58 $4.16 - + Add to cart

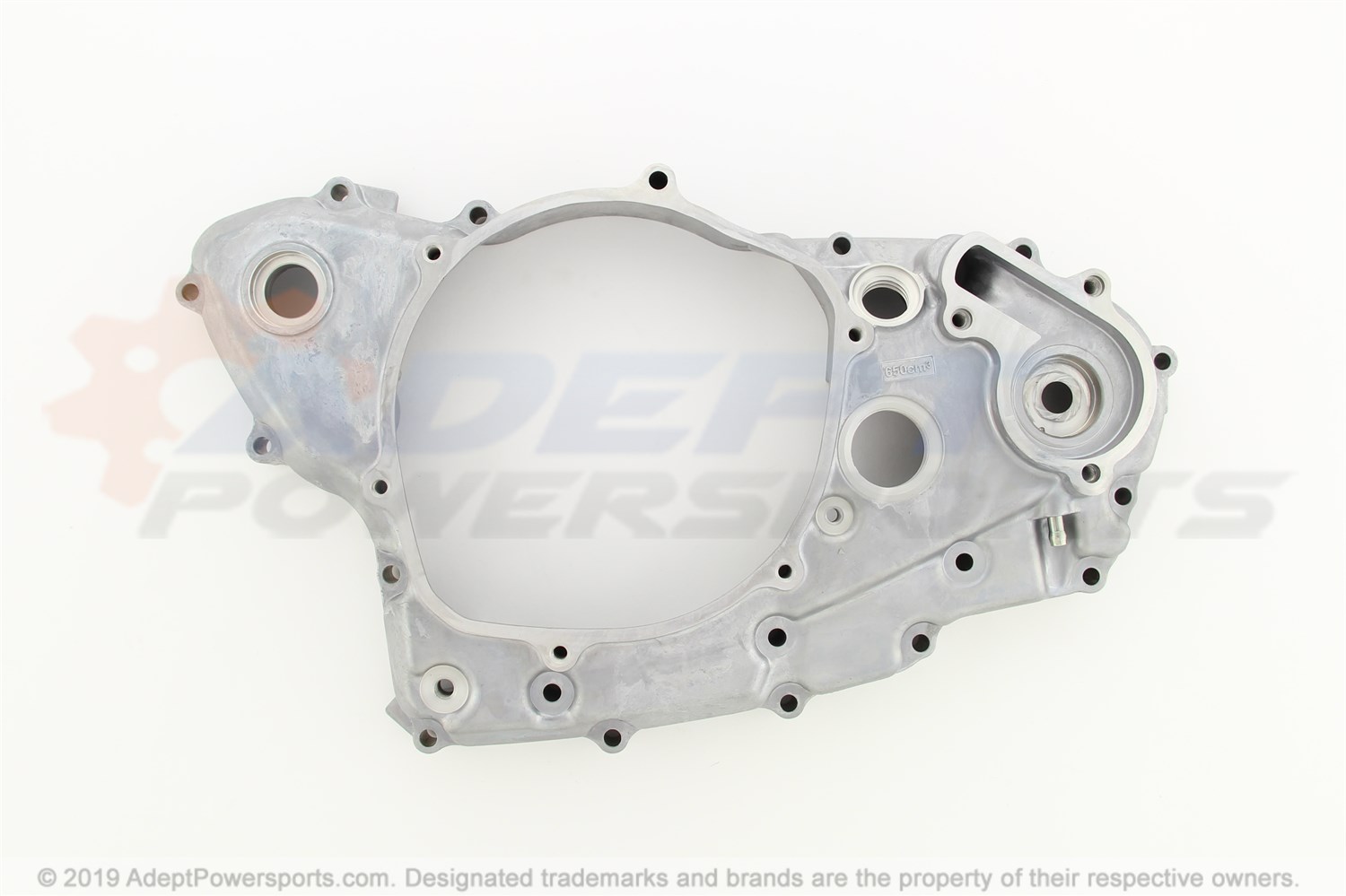

002	COVER, R., CRANKCASE Part #: 11330-HP1-670 Required per assembly: 1 $255.95 $213.18 - + Add to cart
003	COVER, CLUTCH Part #: 11351-HP1-670 Required per assembly: 1 $97.61 $79.01 - + Add to cart
004	O-RING, CLUTCH, COVER Part #: 11352-HP1-670 Required per assembly: 1 $7.46 $6.53 - + Add to cart
005	GASKET, R., COVER Part #: 11394-HP1-670 Required per assembly: 1 $31.56 $26.32 - + Add to cart
006	CAP, OIL, FILLER Part #: 15611-KA4-710 Required per assembly: 1 $16.68 $13.92 - + Add to cart
007	HOSE, DRAIN Part #: 19507-HP1-670 Required per assembly: 1 $20.00 $16.68 - + Add to cart
008	BOLT, FLANGE, (6X28) Part #: 90004-GHB-680 Required per assembly: 3 $4.99 $4.54 - + Add to cart
009	BOLT, FLANGE, (6X35) Part #: 90004-GHB-700 Required per assembly: 11 $5.46 $4.96 - + Add to cart
010	BOLT, FLANGE, (6X45) Part #: 90004-GHB-720 Required per assembly: 2 $5.61 $5.10 - + Add to cart
011	BOLT, FLANGE, (6X75) Part #: 90004-GHB-780 Required per assembly: 1 $4.43 $4.03 - + Add to cart
012	CAP (30MM) Part #: 90087-HB5-000 Required per assembly: 1 $19.34 $16.12 - + Add to cart
013	WASHER (6.5MM) Part #: 90463-ML7-000 Required per assembly: 1 $4.10 $3.73 - + Add to cart
014	WASHER (8MM) Part #: 90474-333-000 Required per assembly: 1 $4.96 $4.74 - + Add to cart
015	CLIP (4X50) Part #: 90601-KJ9-000 Required per assembly: 1 $4.40 $4.00 - + Add to cart
016	GUIDE, WATER, HOSE Part #: 90610-HP1-670 Required per assembly: 1 Not Available
017	OIL SEAL (20X28X5) Part #: 91204-KF0-003 Required per assembly: 1 $7.86 $6.85 - + Add to cart
018	O-RING (17.8X2.4) Part #: 91256-383-721 Required per assembly: 1 $3.26 $3.03 - + Add to cart
019	O-RING (27X2) Part #: 91305-KF0-003 Required per assembly: 1 $4.08 $3.71 - + Add to cart
020	O-RING (18X3) Part #: 91307-035-000 Required per assembly: 1 $4.00 $3.64 - + Add to cart
021	BOLT (6X10) Part #: 92301-06010-0A Required per assembly: 2 $1.84 $1.70 - + Add to cart
022	PIN, DOWEL, (8X14) Part #: 94301-08140 Required per assembly: 2 $3.21 $2.99 - + Add to cart
023	BOLT, FLANGE, (8X20) Part #: 95701-08020-08 Required per assembly: 1 $2.63 $2.44 - + Add to cart
