Gearcase - A04jd32aa replacement parts for 2004 Polaris ATP 330 4X4 (A04JD32AA)

OEM Parts Polaris 2004 Polaris ATP 330 4X4 (A04JD32AA) Gearcase - A04jd32aa

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	NUT, FLEXLOC Part #: 3233961 Required per assembly: 1 Currently Not Available
2	BELLCRANK Part #: 3233906 Required per assembly: 1 Currently Not Available
3	SCREW Part #: 3233826 Required per assembly: 8 $10.99 $6.33 - + Add to cart
4	COVER Part #: 3233827 Required per assembly: 1 Currently Not Available
5	PAWL, DETENT Part #: 3233829 Required per assembly: 1 Currently Not Available
6	O-RING Part #: 3233869 Required per assembly: 1 Currently Not Available
7	SHAFT, SHIFT Part #: 3233831 Required per assembly: 1 Currently Not Available
8	GEAR, 31T Part #: 3233832 Required per assembly: 1 Currently Not Available

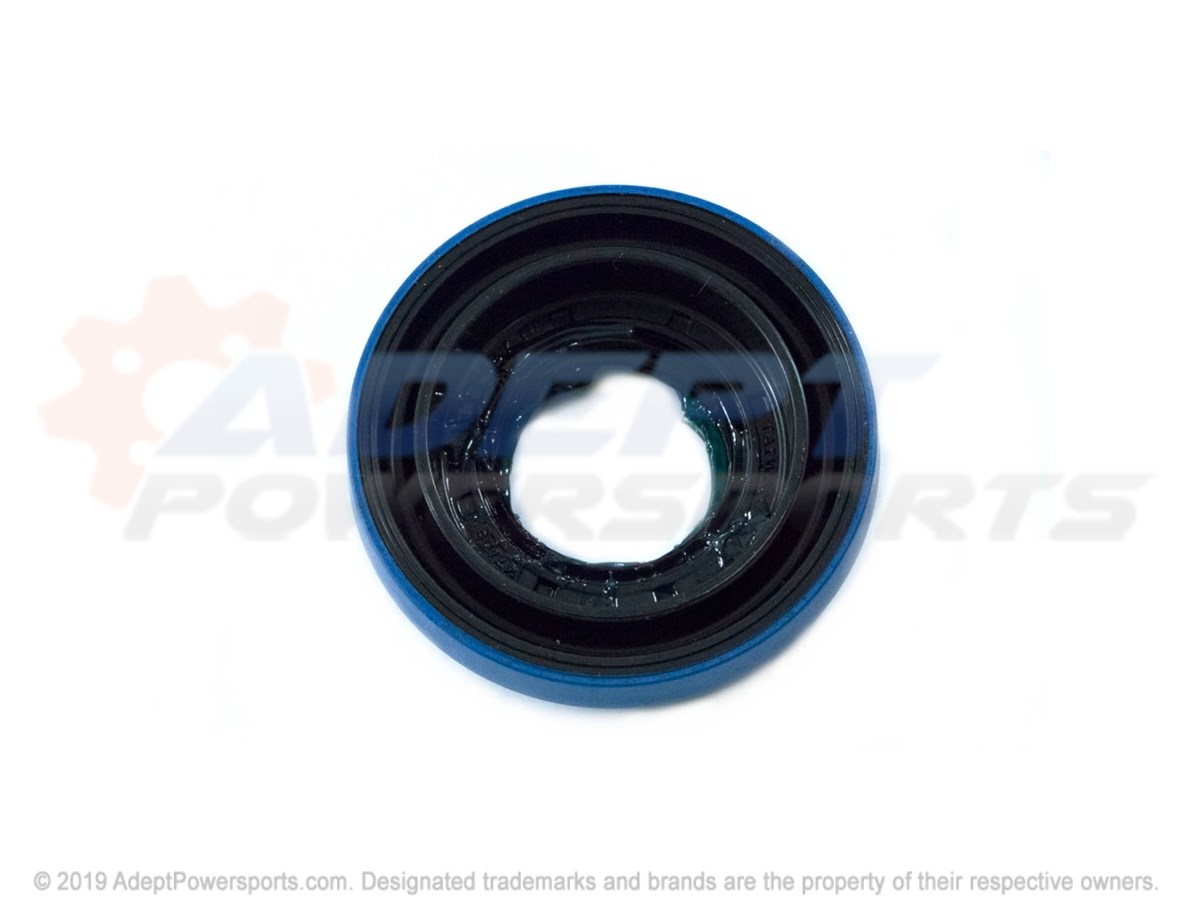

9	SEAL Part #: 3233788 Required per assembly: 2 Currently Not Available
10	WASHER Part #: 3233324 Required per assembly: 1 $8.92 $6.43 - + Add to cart
11	PLUG, OIL, FILL Part #: 3233711 Required per assembly: 1 Note: Plug Currently Not Available
12	GEARCASE, MAIN Part #: 3233867 Required per assembly: 1 Currently Not Available
13	TUBE, VENT Part #: 3233524 Required per assembly: 1 Note: Tube, Vent Currently Not Available
14	DRUM, SHIFT Part #: 3233910 Required per assembly: 1 Currently Not Available
15	BEARING Part #: 3233018 Required per assembly: 4 Currently Not Available
16	CHAIN, SILENT, 34P Part #: 3233036 Required per assembly: 1 Currently Not Available
17	SHAFT, INPUT Part #: 3234028 Required per assembly: 1 Currently Not Available
18	BEARING Part #: 3233019 Required per assembly: 4 Currently Not Available
19	PIPE, KNOCK Part #: 3233529 Required per assembly: 4 Note: Pipe, Knock Sold in multiples of 5 only Currently Not Available
20	COVER, LH Part #: 3233865 Required per assembly: 1 Note: Cover, Main, LH Currently Not Available
21	SCREW Part #: 3234114 Required per assembly: 17 Currently Not Available
22	SEAL Part #: 3233874 Required per assembly: 1 Note: Seal, Dual Lip Currently Not Available
24	FORK, SHIFT, W/PIN Part #: 3234141 Required per assembly: 2 Note: Subasm., Shift Fork w/Pin [Incl. 28] Currently Not Available
25	RAIL, SHIFT, SHAFT Part #: 3233860 Required per assembly: 1 Currently Not Available
26	PLATE, PARK Part #: 3233915 Required per assembly: 1 Currently Not Available
28	SPRING, WAVE Part #: 3234144 Required per assembly: 2 Currently Not Available
29	ENGAGEMENT DOG Part #: 3233875 Required per assembly: 3 Currently Not Available
30	RING, RETAINING Part #: 3233850 Required per assembly: 2 Currently Not Available
31	WASHER Part #: 3233851 Required per assembly: 2 Currently Not Available
32	GEAR, 33T Part #: 3234027 Required per assembly: 1 Currently Not Available
33	BEARING, NDL, SPLIT, CAGE Part #: 3233718 Required per assembly: 3 Note: Bearing, Needle Currently Not Available
34	SHAFT, REVERSE Part #: 3233853 Required per assembly: 1 Currently Not Available
35	SPROCKET, 24T Part #: 3233854 Required per assembly: 1 Currently Not Available
36	WASHER Part #: 3233855 Required per assembly: 1 Currently Not Available
37	GEAR, 30T Part #: 3233856 Required per assembly: 1 Note: Gear, 30T [Built 4/14/08 and Before] Currently Not Available
38	GEAR, 34T, [FB] Part #: 3233971 Required per assembly: 1 Note: Gear, 34T Currently Not Available
39	GEAR-HELICAL, 50T, (FA) Part #: 3233764 Required per assembly: 1 Note: Gear, 50T (FB) (FB) Currently Not Available
40	SCREW Part #: 3233608 Required per assembly: 4 Note: Screw (Qty. 8 for FB) (Qty. 8 for FB) Currently Not Available
41	COVER, BEARING Part #: 3233609 Required per assembly: 1 Note: Cover, Bearing Currently Not Available
42	RING, SNAP Part #: 3233106 Required per assembly: 1 Currently Not Available
43	SPACER Part #: 3233357 Required per assembly: 1 Currently Not Available
44	BEARING, BALL Part #: 3233607 Required per assembly: 1 Note: Bearing, Ball Currently Not Available
45	SUBASM., GROUND, SPIRAL, BEVEL Part #: 3234912 Required per assembly: 1 Note: Subasm., Ground Spiral Bevel [Incl. 54] Currently Not Available
46	PLUG, DRAIN Part #: 3233777 Required per assembly: 1 Currently Not Available
47	PLUG, WASHER Part #: 3233254 Required per assembly: 1 Note: Washer Currently Not Available
48	COVER, OUTPUT, (AA)(CA)(FB) Part #: 3233781 Required per assembly: 1 Note: Cover, Output Currently Not Available
49	SHIM .450 X .265 Part #: 3233583 Required per assembly: 1 Note: Shim $30.79 $22.99 - + Add to cart
50	THRUST BUTTON Part #: 3233582 Required per assembly: 1 Note: Button, Thrust Currently Not Available
51	SHIM Part #: 3233611 Required per assembly: 1 $30.79 $22.99 - + Add to cart
52	SHAFT, REAR, OUTPUT Part #: 3233622 Required per assembly: 1 Note: Shaft, Rear Output Currently Not Available
53	SUBASM., GROUND, SPIRAL, BEVEL Part #: 3234912 Required per assembly: 1 Note: Subasm., Ground Spiral Bevel [Incl. 54] Currently Not Available
54	WASHER, THRUST Part #: 3233619 Required per assembly: 1 Note: Washer, Thrust Currently Not Available
55	SPROCKET, 22T/18T Part #: 3233873 Required per assembly: 1 Note: SPROCKET, 22T/18T (FB) Currently Not Available
56	CHAIN, SILENT Part #: 3233784 Required per assembly: 1 Note: Chain (FB) (FB) Currently Not Available
57	SHAFT, FRONT, OUTPUT Part #: 3233625 Required per assembly: 1 Note: Shaft, Output Currently Not Available
58	ASSEMBLY, GEARCASE Part #: 1341445 Required per assembly: 1 Currently Not Available
59	SPROCKET, 22T Part #: 3233844 Required per assembly: 1 Currently Not Available
60	BUSHING, GARLOCK Part #: 3233552 Required per assembly: 1 Note: Bushing Currently Not Available
61	CLAMP, TIE Part #: 3234013 Required per assembly: 1 Currently Not Available
62	LOCKOUT, PARK Part #: 3233917 Required per assembly: 1 Currently Not Available
63	O-RING Part #: 3233548 Required per assembly: 1 Currently Not Available
64	GEAR, 16T Part #: 3233839 Required per assembly: 1 Currently Not Available
65	DISC, LOCKOUT Part #: 3233838 Required per assembly: 1 Currently Not Available
66	STAR, DETENT Part #: 3234082 Required per assembly: 1 $43.11 $28.97 - + Add to cart
67	O-RING Part #: 3233076 Required per assembly: 1 Currently Not Available
68	SPRING, COMPRESSION Part #: 3233830 Required per assembly: 1 Currently Not Available
69	SWITCH Part #: 3236115 Required per assembly: 1 Currently Not Available
70	RING, RETAINING Part #: 3233834 Required per assembly: 1 Currently Not Available
