Swing Arm/Rear/Gearcase Mounting - A04cd32aa/Ab/Ac/Fb replacement parts for 2004 Polaris Magnum 330 4X4 (A04CD32AA)

OEM Parts Polaris 2004 Polaris Magnum 330 4X4 (A04CD32AA) Swing Arm/Rear/Gearcase Mounting - A04cd32aa/Ab/Ac/Fb

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

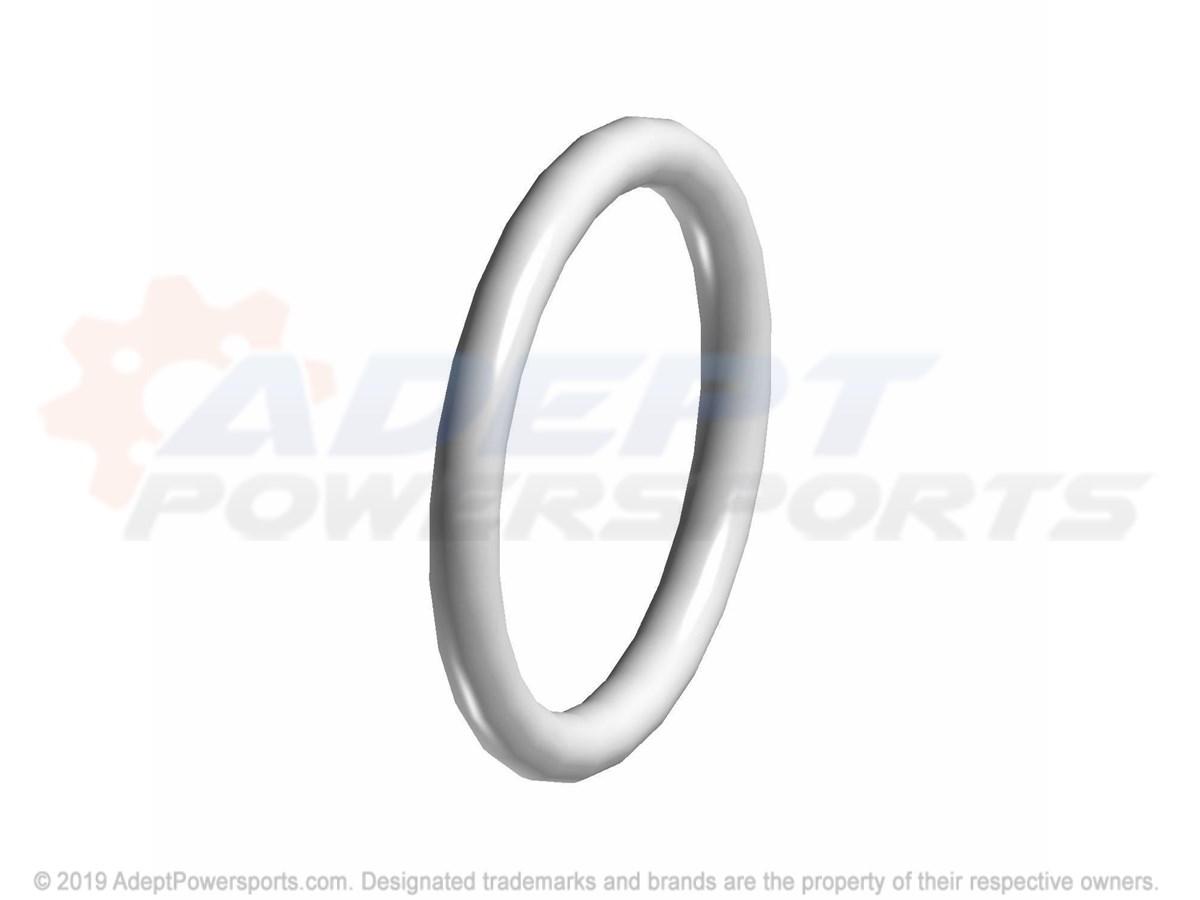

1	O-RING-0.739X0.879X0.070 Part #: 5412022 Required per assembly: 1 Currently Not Available
2	HUB, WHEEL Part #: 5133360 Required per assembly: 1 Note: Hub, Wheel Currently Not Available
3	STUD Part #: 7515513 Required per assembly: 4 ~~$2.99~~ $2.23 - + Add to cart
4	DISC-BRAKE, REAR, 8.125X.188 Part #: 5244882 Required per assembly: 1 Currently Not Available
5	WASHER Part #: 7552603 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
5	BOLT Part #: 7515481 Required per assembly: 2 Currently Not Available
6	BOLT Part #: 7517604 Required per assembly: 3 Currently Not Available
7	WASHER Part #: 7555721 Required per assembly: 3 ~~$2.99~~ $1.73 - + Add to cart
8	NUT-1/2-20, NYLOK, Y Part #: 7547065 Required per assembly: 3 Currently Not Available

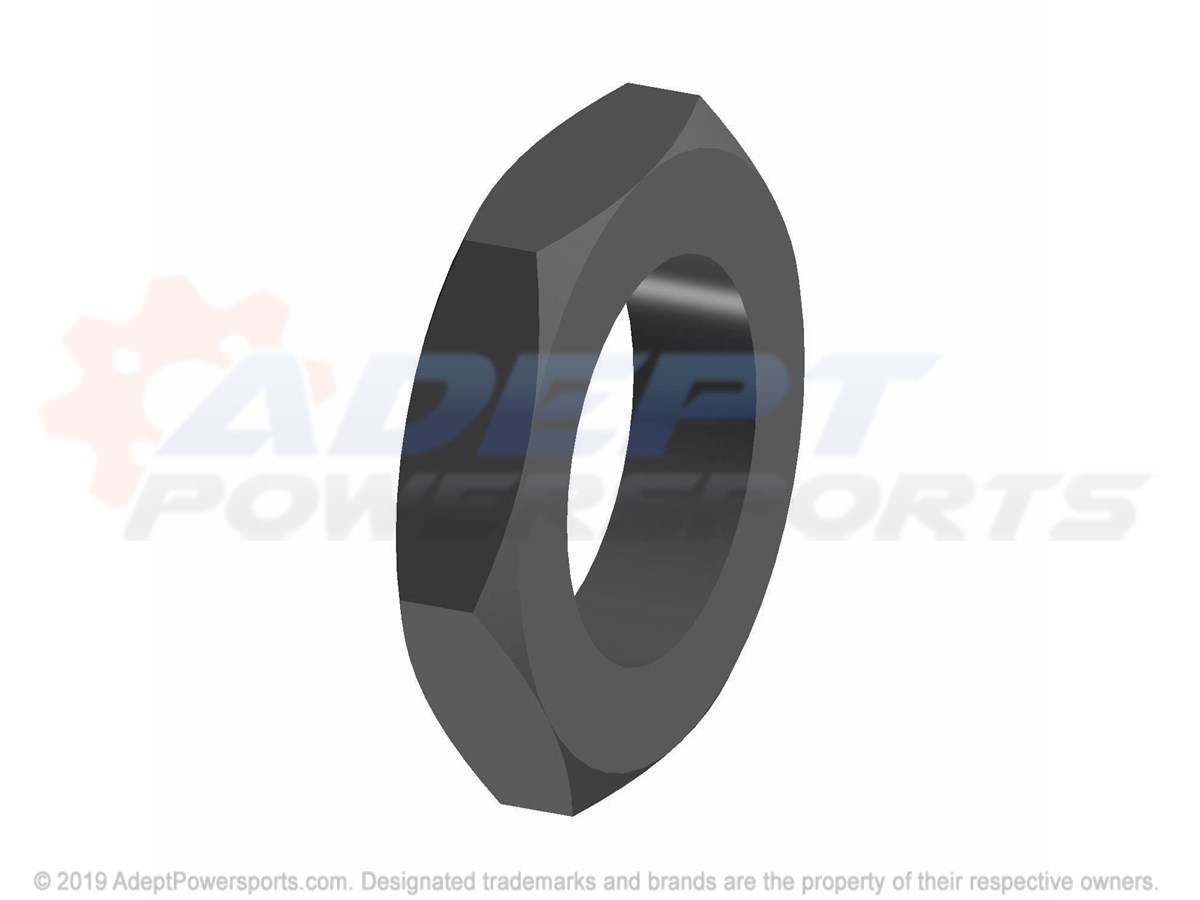

9	NUT, JAM Part #: 5133387 Required per assembly: 1 Currently Not Available

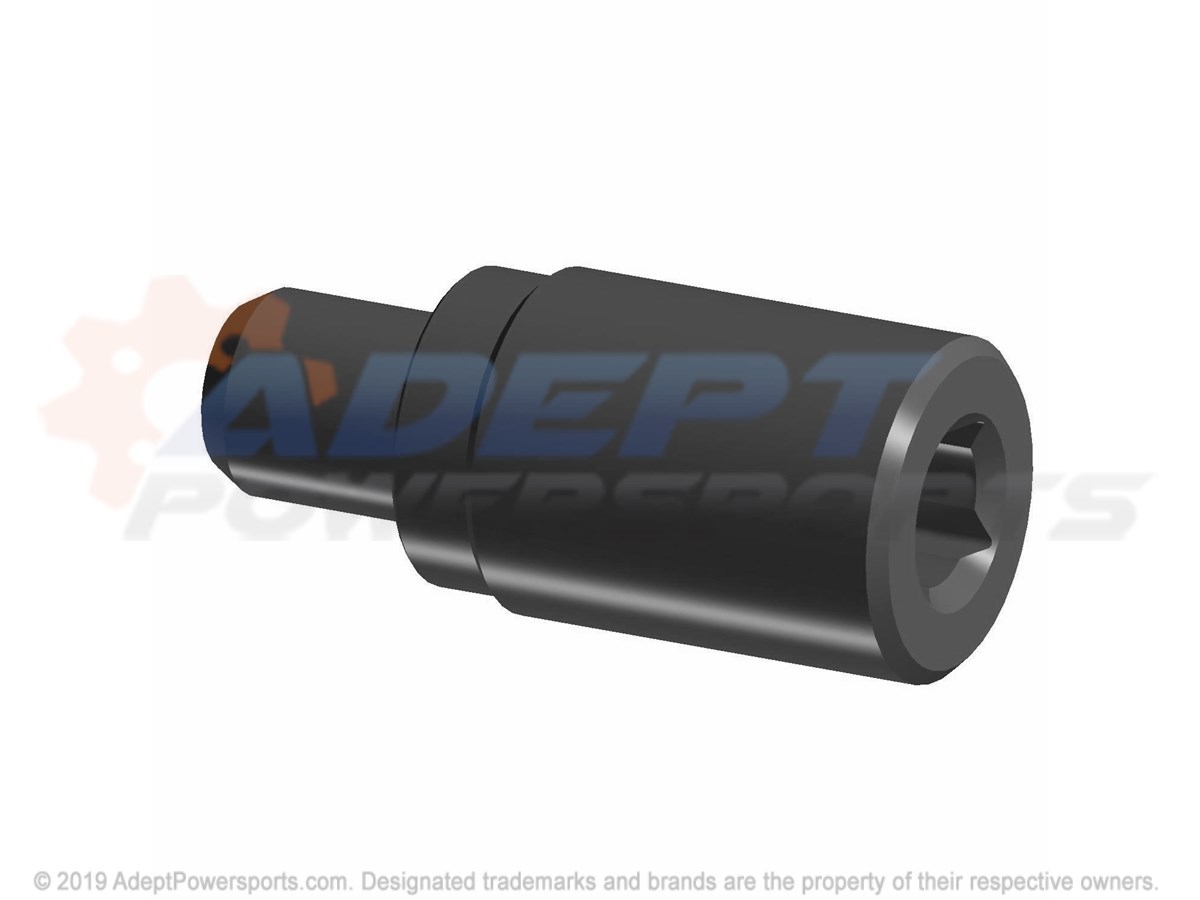

10	PIVOT, THREADED, LH Part #: 5133388 Required per assembly: 1 Currently Not Available

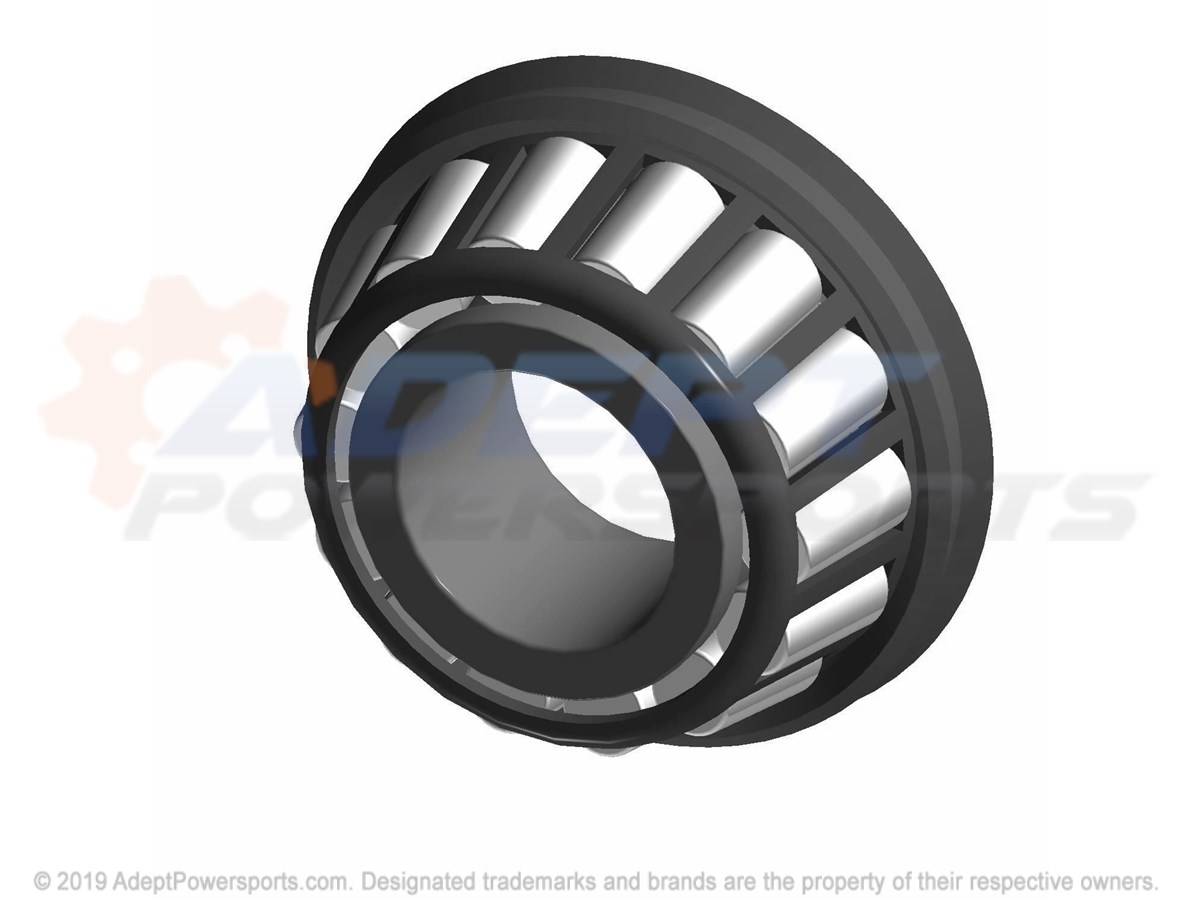

11	BEARING, TAPERED, ROLLER, CONE Part #: 3514399 Required per assembly: 2 Currently Not Available

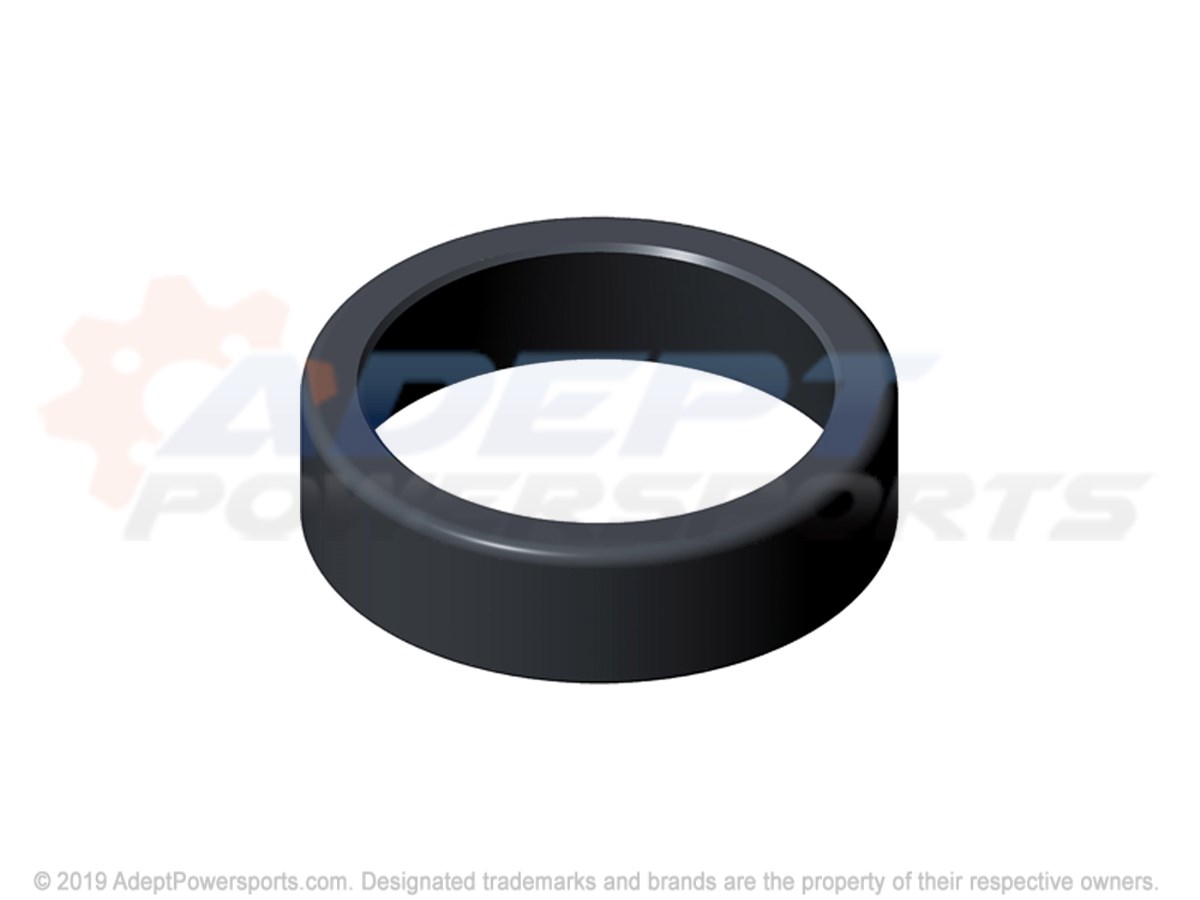

12	BEARING, TAPERED, ROLLER, CUP Part #: 3514398 Required per assembly: 2 Currently Not Available
13	FOAM Part #: 5812447 Required per assembly: 2 Currently Not Available
14	ASSEMBLY, SWING, ARM Part #: 1541820 Required per assembly: 1 Note: Asm., Swing Arm [Incl. 12] Currently Not Available
15	O-RING Part #: 5412202 Required per assembly: 1 Currently Not Available
16	ASSEMBLY, PROP, SHAFT, REAR Part #: 1380202 Required per assembly: 1 Currently Not Available
17	PIN, SPRING Part #: 7661913 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
18	PIVOT, SWING, ARM, RH Part #: 5133389 Required per assembly: 1 Currently Not Available
19	LOCK WASHER Part #: 7553201 Required per assembly: 8 Currently Not Available
20	BOLT-1/2-13X1 1/4 HXHD GR5-Z Part #: 7517585 Required per assembly: 8 Note: Bolt ~~$3.99~~ $2.30 - + Add to cart
21	AXLE, REAR Part #: 5133626 Required per assembly: 1 Currently Not Available
22	SCREW Part #: 7517612 Required per assembly: 3 Currently Not Available
23	O-RING Part #: 5411531 Required per assembly: 1 Currently Not Available
25	PAD-RUBBER Part #: 5811716 Required per assembly: 1 Currently Not Available
25	PLATE-SKID, REAR, HOUSING, BLACK Part #: 5242851-067 Required per assembly: 1 Currently Not Available
25	SKID, PLATE, REAR Part #: 1012881 Required per assembly: 1 Currently Not Available
26	COLLAR-AXLE LOCK Part #: 5132698 Required per assembly: 1 Currently Not Available
27	O-RING Part #: 5411707 Required per assembly: 1 Currently Not Available
28	DECAL, HITCH Part #: 7170910 Required per assembly: 1 Currently Not Available
29	CLAMP-BRAKE, LINE, REAR Part #: 5245050 Required per assembly: 2 Currently Not Available
30	SCREW Part #: 7512017 Required per assembly: 2 Currently Not Available
31	AXLE, TUBE, LH, BLACK Part #: 1013264-067 Required per assembly: 1 Currently Not Available
32	BEARING Part #: 3514634 Required per assembly: 1 Note: Bearing 35X64X37MM [Built 5/02/07 and After] Currently Not Available
33	RING, RET., 2.500, INTERNAL Part #: 7710507 Required per assembly: 1 Note: Ring, Retaining Currently Not Available
34	BOLT Part #: 7512325 Required per assembly: 4 Currently Not Available
