Cooling System - A04rb42aa/A04rd50aa/Ab/Ac/A04rf50aa replacement parts for 2004 Polaris RANGER 2X4,4X4,6X6 (A04RB42AA)

OEM Parts Polaris 2004 Polaris RANGER 2X4,4X4,6X6 (A04RB42AA) Cooling System - A04rb42aa/A04rd50aa/Ab/Ac/A04rf50aa

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CLAMP, HOSE, Part #: 7080614 Required per assembly: 2 Note: Clamp, Hose Currently Not Available
2	ASSEMBLY, HOSE, ENGINE, OUTLET Part #: 1240106 Required per assembly: 1 Note: Hose, Engine Outlet [Incl. 6,9][6x6] Currently Not Available
3	STRAP PANDUIT Part #: 7080138 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
4	MOUNT, CABLE, TIE Part #: 7080965 Required per assembly: 3 Currently Not Available
5	CLIP, SILENCER, Part #: 7670102 Required per assembly: 2 Note: Clip Currently Not Available
6	CLIP, ROSEBUD Part #: 4020149 Required per assembly: 1 Note: Clip, Rosebud Currently Not Available
7	CLIP, PLASTIC Part #: 4020139 Required per assembly: 1 Note: Clip, Rosebud Currently Not Available
8	CLAMP-ROTO CLIP Part #: 7080826 Required per assembly: 6 Currently Not Available
9	TUBING, CONVOLUTED Part #: 5521324 Required per assembly: 1 Currently Not Available
10	HOSE, RADIATOR, INLET Part #: 5411977 Required per assembly: 1 Currently Not Available
11	CONNECTOR, BARBED Part #: 7052092 Required per assembly: 2 Currently Not Available
12	ASSEMBLY, HOSE, ENGINE, INLET Part #: 1240107 Required per assembly: 1 Note: Hose, Engine Inlet [Incl. 6,9][6x6] Currently Not Available
13	CLAMP, DOUBLE, HOSE Part #: 7080898 Required per assembly: 1 ~~$3.99~~ $2.30 - + Add to cart
14	SCREW Part #: 7517386 Required per assembly: 1 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
15	SCREW W/WASHER (QTY. 2 AFTER 10/25/02) Part #: 7547220 Required per assembly: 4 Note: Screw ~~$3.99~~ $2.30 - + Add to cart
16	ASSEMBLY, FAN, RADIATOR Part #: 2410340 Required per assembly: 1 Currently Not Available
17	SHROUD, FAN Part #: 5436852 Required per assembly: 1 Currently Not Available
18	SCREW Part #: 7512163 Required per assembly: 2 Currently Not Available
19	GROMMET Part #: 5411975 Required per assembly: 2 Note: Asm., Grommet and Insert Currently Not Available
20	NUT Part #: 7542153 Required per assembly: 2 Note: Nut, Flanged, Nylok ~~$3.47~~ $2.30 - + Add to cart
21	CAP-PRESSURE, 13, LBS. Part #: 1240093 Required per assembly: 1 Note: Cap, Pressure Currently Not Available

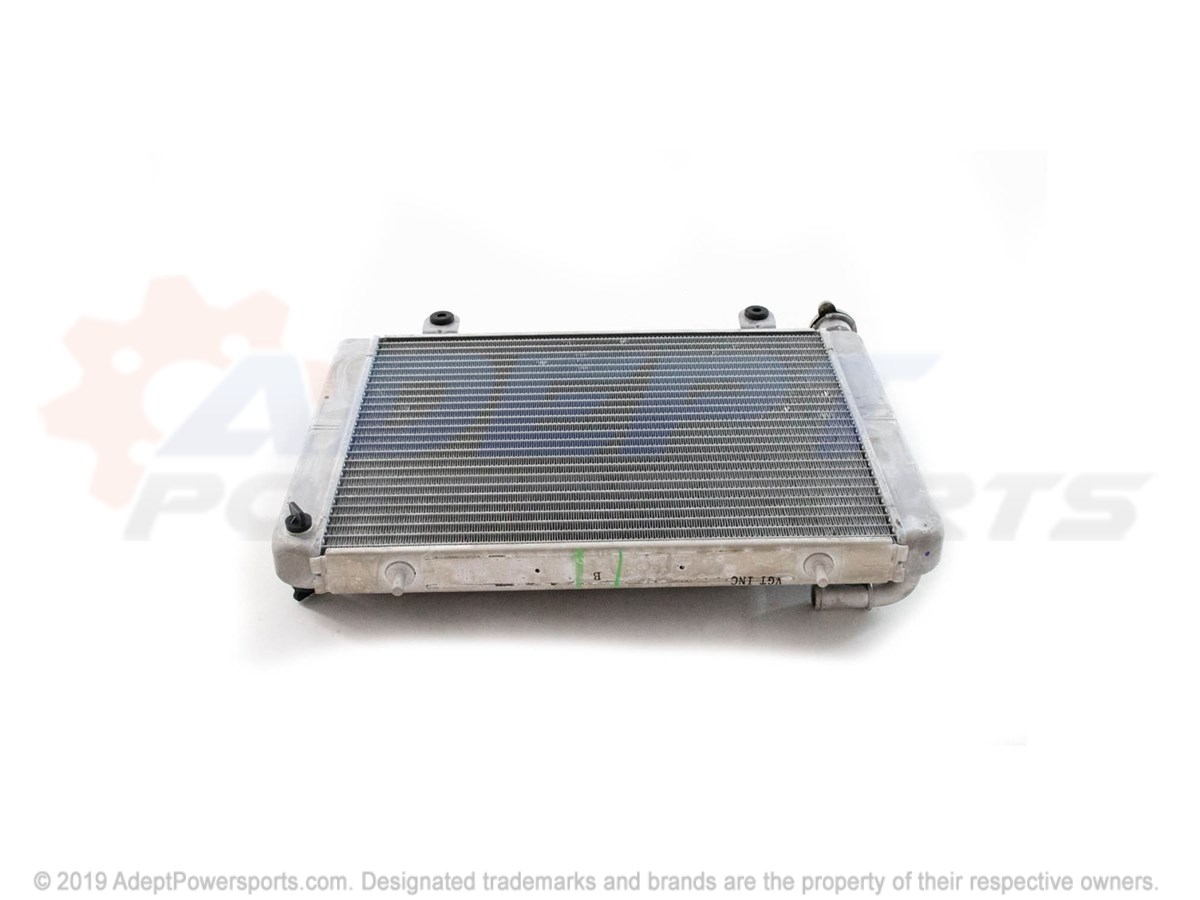

22	RADIATOR, FLAT Part #: 1240459 Required per assembly: 1 Note: Radiator, Flat [If built before 6/23/04] Currently Not Available
23	BUSHING, MT, LOW, RED Part #: 5410584 Required per assembly: 2 Currently Not Available
24	VALVE-PLASTIC RAD/COOLER DRAIN Part #: 7052296 Required per assembly: 1 Currently Not Available
25	SENSOR-THERMAL/HARNESS Part #: 4010161 Required per assembly: 1 Currently Not Available
26	U-CLIP Part #: 7547197 Required per assembly: 4 Note: Clip, U ~~$8.49~~ $4.49 - + Add to cart
27	SCREW Part #: 7517975 Required per assembly: 4 Note: Bolt Currently Not Available
28	HOSE, RADIATOR, OUTLET Part #: 5411979 Required per assembly: 1 Currently Not Available
29	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 7 Note: Cable Tie Currently Not Available
30	FUEL, LINE, 1/4, ID(1525, CM.) Part #: 8450003-1525 Currently Not Available
31	FITTING, 90, DEGREE, ("J", MODEL, ONLY) Part #: 7052065 Required per assembly: 1 Note: FITTING,90 DEGREE ~~$11.99~~ $6.90 - + Add to cart
32	SCREW Part #: 7512084 Required per assembly: 4 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
33	BRACKET, SURGE, TANK Part #: 5246873 Required per assembly: 1 Currently Not Available
34	TANK, SURGE Part #: 5436936 Required per assembly: 1 Currently Not Available
35	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap ~~$4.79~~ $2.92 - + Add to cart
36	GASKET Part #: 5810279 Required per assembly: 1 ~~$4.99~~ $2.92 - + Add to cart
37	CAP, OVERFLOW Part #: 5430743 Required per assembly: 1 Currently Not Available
