Cylinder And Cylinder Head - A04ch59ak/Al/An/Aq/Aw replacement parts for 2004 Polaris Sportsman 600 (A04CH59AK/AL/AN/AQ/AW)

OEM Parts Polaris 2004 Polaris Sportsman 600 (A04CH59AK/AL/AN/AQ/AW) Cylinder And Cylinder Head - A04ch59ak/Al/An/Aq/Aw

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7517277 Required per assembly: 2 Note: M5X0.8X16,HX/FL-Y Currently Not Available
2	COVER-CASE BREATHER DIE CAST Part #: 5438320 Required per assembly: 1 Currently Not Available
3	REED Part #: 3021352 Required per assembly: 1 Note: Asm., Reed w/Gasket Currently Not Available
4	SCREW Part #: 7516822 Required per assembly: 7 Currently Not Available
5	COVER, ROCKER Part #: 2203004 Required per assembly: 1 Currently Not Available
6	SEAL Part #: 5411862 Required per assembly: 1 Currently Not Available
7	BOLT-HEAD M11X1.25 SEMS Part #: 7519219 Required per assembly: 6 Currently Not Available
7	SCREW Part #: 7518240 Required per assembly: 6 Currently Not Available
8	GASKET, EXHAUST Part #: 5811511 Required per assembly: 1 Note: Gasket Currently Not Available
9	MANIFOLD Part #: 1261077-489 Required per assembly: 1 Note: Manifold, Black [If built before 10/17/05] Currently Not Available
10	SCREW Part #: 7516730 Required per assembly: 4 Note: Asm., Screw and Washer Currently Not Available
10	SCREW Part #: 7518234 Required per assembly: 4 Note: Screw Currently Not Available
11	GUIDE, VALVE Part #: 5131429 Required per assembly: 4 Currently Not Available
11	HEAD, CYLINDER Part #: 1202425 Required per assembly: 1 Currently Not Available
11	HEAD-CYLINDER, MACH, CARB Part #: 3021600 Required per assembly: 1 Currently Not Available

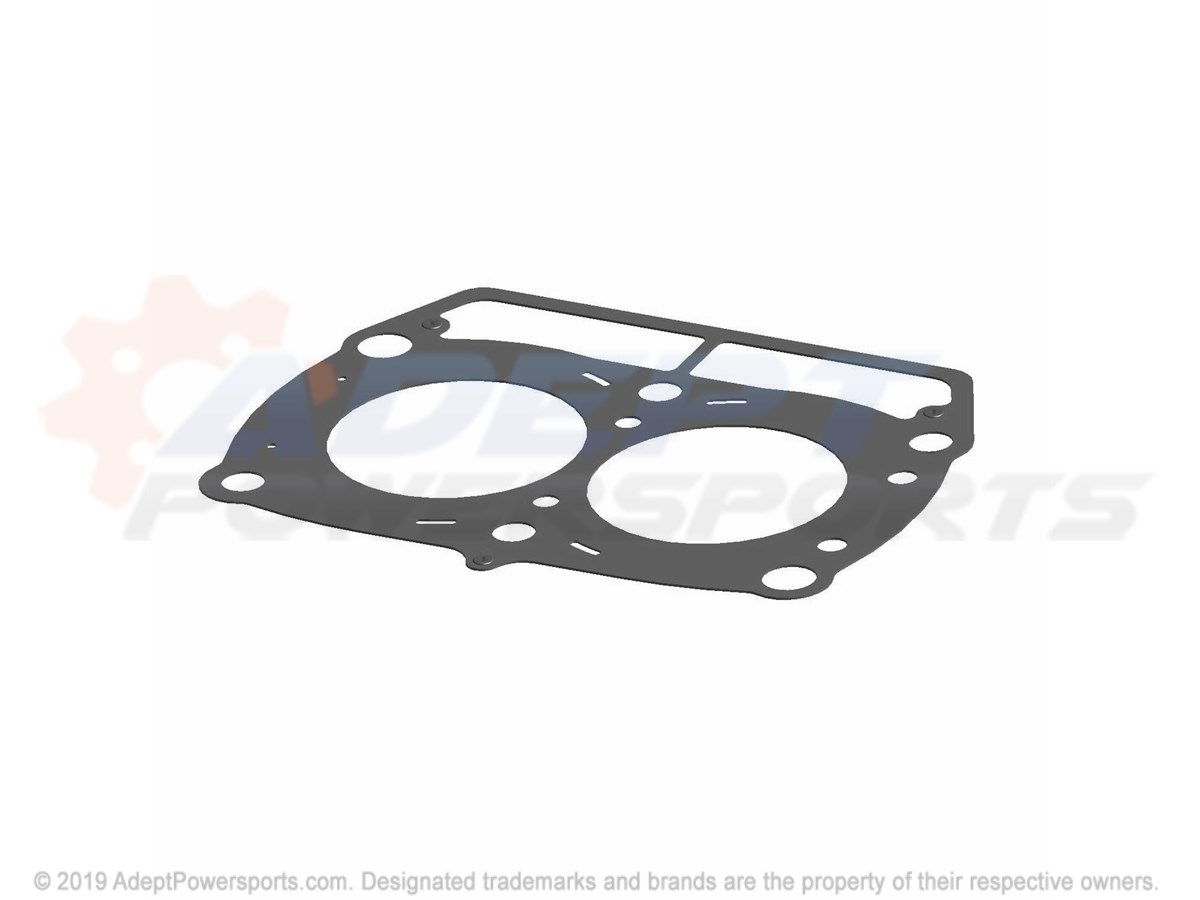

12	GASKET, HEAD Part #: 5812193 Required per assembly: 1 Currently Not Available
12	GASKET, HEAD Part #: 5247358 Required per assembly: 1 Note: Gasket, Head Currently Not Available
13	KIT, CYLINDER Part #: 2202695 Required per assembly: 1 Note: Kit, Cylinder [Incl. 15] Currently Not Available
13	KIT, CYLINDER Part #: 2202368 Required per assembly: 1 Note: Kit, Cylinder [Incl. 15] Currently Not Available
14	GASKET, BASE Part #: 5811455 Required per assembly: 1 Currently Not Available
14	GASKET, BASE Part #: 5247360 Required per assembly: 1 Note: Gasket, Base Currently Not Available
15	PLUG Part #: 7051534 Required per assembly: 1 Currently Not Available
16	DOWEL Part #: 7661175 Required per assembly: 2 Note: Dowel Currently Not Available
18	CLAMP, HOSE Part #: 7080681 Required per assembly: 1 Currently Not Available
19	SCREW Part #: 7516734 Required per assembly: 2 ~~$5.99~~ $3.45 - + Add to cart
20	ADAPTER, CARBURETOR Part #: 1253415 Required per assembly: 1 Currently Not Available
21	SPARK, PLUG, RC7YC3 Part #: 3021671 Required per assembly: 2 Note: Plug, Spark, Champion RC7YC3 ~~$4.89~~ $2.59 - + Add to cart
22	SCREW Part #: 7516822 Required per assembly: 2 Currently Not Available
23	COVER, THERMOSTAT Part #: 2205184 Required per assembly: 1 Currently Not Available
24	THERMOSTAT Part #: 7052308 Required per assembly: 1 ~~$94.99~~ $49.17 - + Add to cart
24	THERMOSTAT Part #: 7052352 Required per assembly: 1 Note: Thermostat w/Bypass Currently Not Available
25	O-RING Part #: 5411521 Required per assembly: 1 Currently Not Available
26	SWITCH, TEMPERATURE Part #: 4010356 Required per assembly: 1 Currently Not Available
27	FITTING Part #: 7052135 Required per assembly: 2 Currently Not Available
27	FITTING Part #: 7052145 Required per assembly: 2 Note: Fitting Currently Not Available
