Electrical/Taillight - A04ch68mb replacement parts for 2004 Polaris Sportsman 700 MILITARY

OEM Parts Polaris 2004 Polaris Sportsman 700 MILITARY A04CH68MB Electrical/Taillight - A04ch68mb

ELECTRICAL/TAILLIGHT - A04CH68MB Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS, MAIN Part #: 2461186 Required per assembly: 1 Currently Not Available
2	KIT, CKT.BRAKER, 20, AMP Part #: 2200593 Required per assembly: 2 Currently Not Available
3	KIT, HARNESS, RESISTOR, MODULE Part #: 2204890 Required per assembly: 1 Currently Not Available
4	ASSEMBLY, TAILLIGHT, 12V Part #: 2410320 Required per assembly: 1 Note: Incl. 7-13 Currently Not Available
5	GASKET, TAILLIGHT Part #: 4032045 Required per assembly: 1 Currently Not Available
6	BULB, TAILLIGHT Part #: 4030043 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
7	LENS, TAILLIGHT Part #: 4032046 Required per assembly: 1 Currently Not Available
8	SCREW, TAILLIGHT Part #: 4032029 Required per assembly: 2 Currently Not Available
9	SCREW Part #: 7517386 Required per assembly: 1 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
10	STRAP, BATTERY, HOLDDOWN Part #: 5247376 Required per assembly: 1 Currently Not Available
11	BATTERY-30AH, 12, VOLT, AGM Part #: 4014609 Required per assembly: 1 Currently Not Available
12	BACKING, TAILLIGHT Part #: 4032064 Required per assembly: 1 Currently Not Available
13	NUT, PUSH-ON Part #: 7670054 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
14	CABLE Part #: 4010470 Required per assembly: 1 Currently Not Available
15	KIT, BATTERY, BOLT Part #: 2202802 Required per assembly: 1 Note: Kit, Battery Bolt Currently Not Available
16	CABLE, BATTERY/SOLENOID Part #: 4010471 Required per assembly: 1 Currently Not Available
17	BOX, BATTERY Part #: 5434037 Required per assembly: 1 Currently Not Available
18	SCREW Part #: 7512024 Required per assembly: 6 Currently Not Available
19	SWITCH-MAGNETIC Part #: 4011335 Required per assembly: 1 Currently Not Available
20	CABLE, SOLENOID/STARTER Part #: 4010376 Required per assembly: 1 ~~$44.99~~ $23.74 - + Add to cart
21	JUMPER, HARNESS Part #: 2410411 Required per assembly: 1 Note: Jumper, Harness [If built before 3/31/03] Currently Not Available

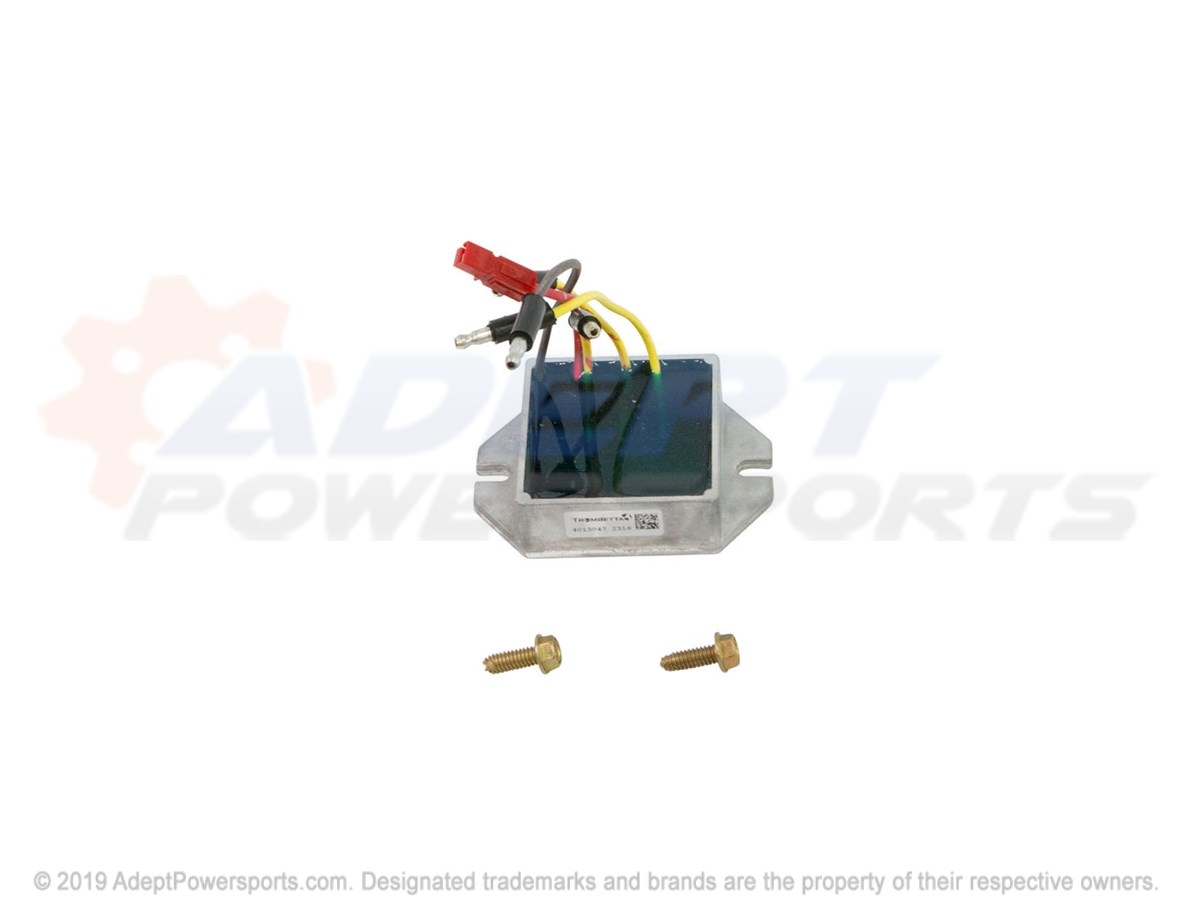

22	RECTIFIER, REGULATOR Part #: 2204317 Required per assembly: 1 Note: Rectifier, Regulator, LR-390 Currently Not Available
23	SINK, HEAT Part #: 5133182 Required per assembly: 1 Currently Not Available
24	CLIP, PLASTIC Part #: 4020139 Required per assembly: 3 Note: Small Currently Not Available
25	STRAP PANDUIT Part #: 7080138 Required per assembly: 7 ~~$1.99~~ $1.15 - + Add to cart
26	SCREW Part #: 7512027 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
