OEM Parts Victory 2004 Victory KINGPIN ALL OPTIONS (V04CB16) Main Frame - V04cb16/All Options

2004 Victory KINGPIN ALL OPTIONS (V04CB16) - Main Frame - V04cb16/All Options

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

FRAME, MAIN, BLK, **

Part #: 1014399-067 Required per assembly: 1
Currently Not Available
2

SCR-SHCS, SHLDR, 12DX25L, M10X1.5

Part #: 7519075 Required per assembly: 1
Currently Not Available
3

NUT

Part #: 7547039 Required per assembly: 1
Currently Not Available
4

SPRING-SIDESTAND

Part #: 7042047 Required per assembly: 1
Currently Not Available
5

KIT-SIDESTAND, ASM, BLK

Part #: 2204489-266 Required per assembly: 1 Note: (Incl. 2,3,6-8)
Currently Not Available
6

PAD-SIDE STAND

Part #: 5412662 Required per assembly: 1
Currently Not Available
7

WASHER-FL, 6.0X0.8

Part #: 7556121 Required per assembly: 2
$1.99
$1.15
-
+
Add to cart
8

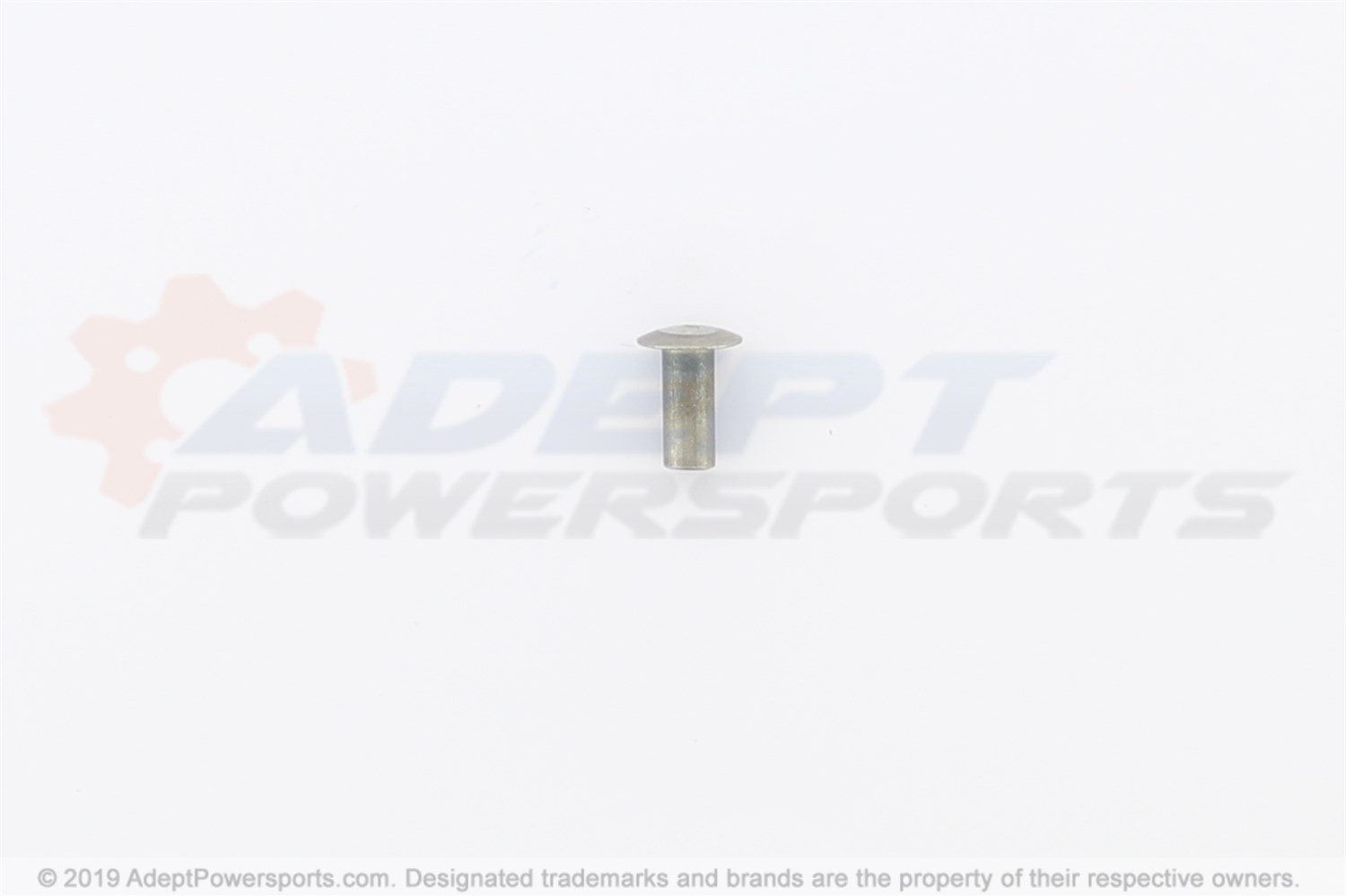

RIVET, TRUSS, HD, SS

Part #: 7661064 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
9

SPRT-CRD, MACH, 22, DEG, BLK

Part #: 5134366-067 Required per assembly: 1
Currently Not Available
9

SPRT-CRD, MACH, 22, DEG, SLV

Part #: 5134366-385 Required per assembly: 1
Currently Not Available
10

CRADLE, RH, BLK

Part #: 1013888-067 Required per assembly: 1
Currently Not Available
10

CRADLE, RH, SLV

Part #: 1013888-385 Required per assembly: 1
Currently Not Available
