Chain Drive replacement parts for 2005-2012 BMW F800R (K73)

OEM Parts Bmw 2005-2012 Bmw F800R (K73) Chain Drive

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	CHAIN - 120 Part #: 27727727468 Required per assembly: 1 Currently Not Available

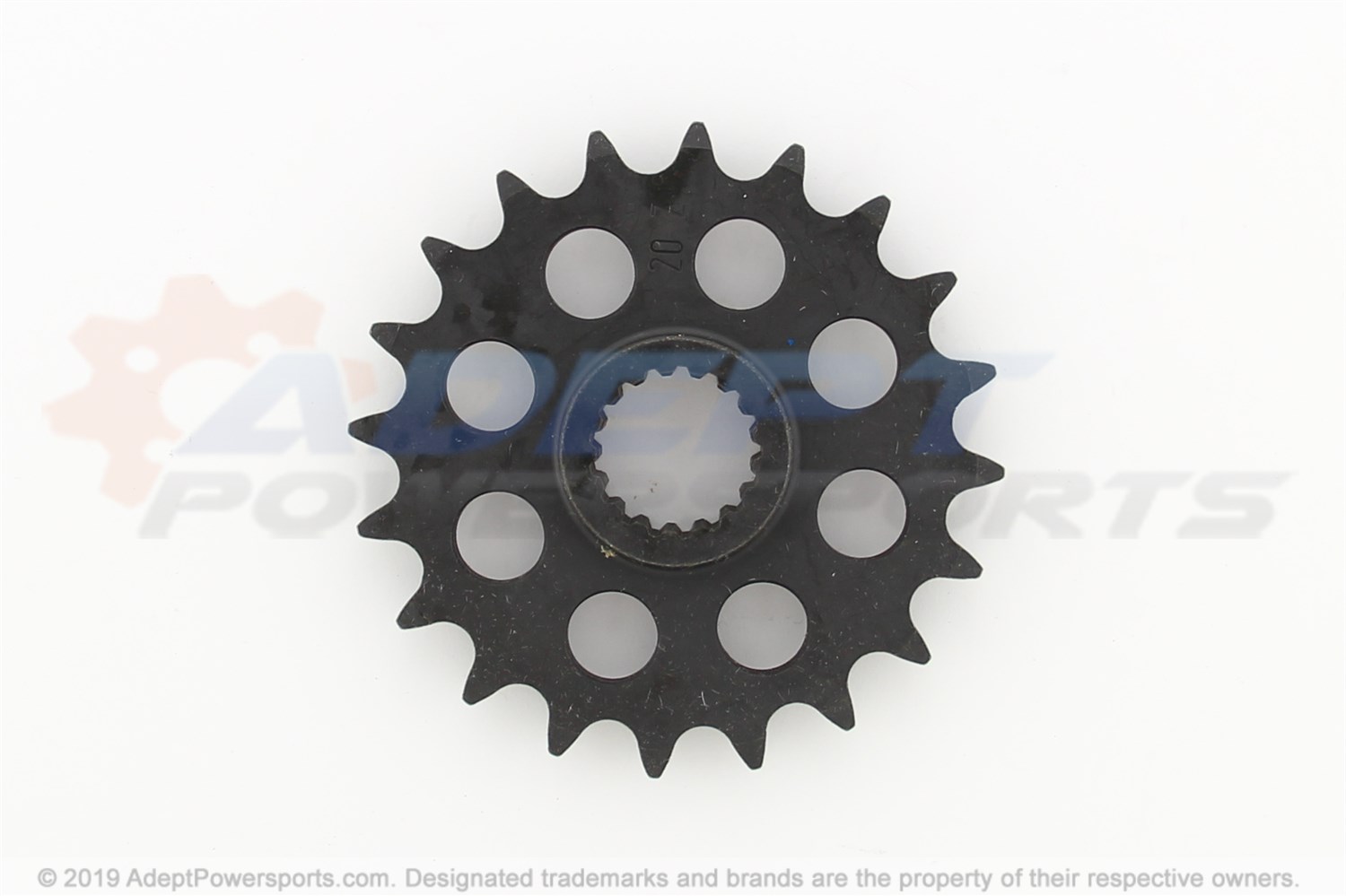

02	SPROCKET - Z=20 Part #: 27727722179 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available

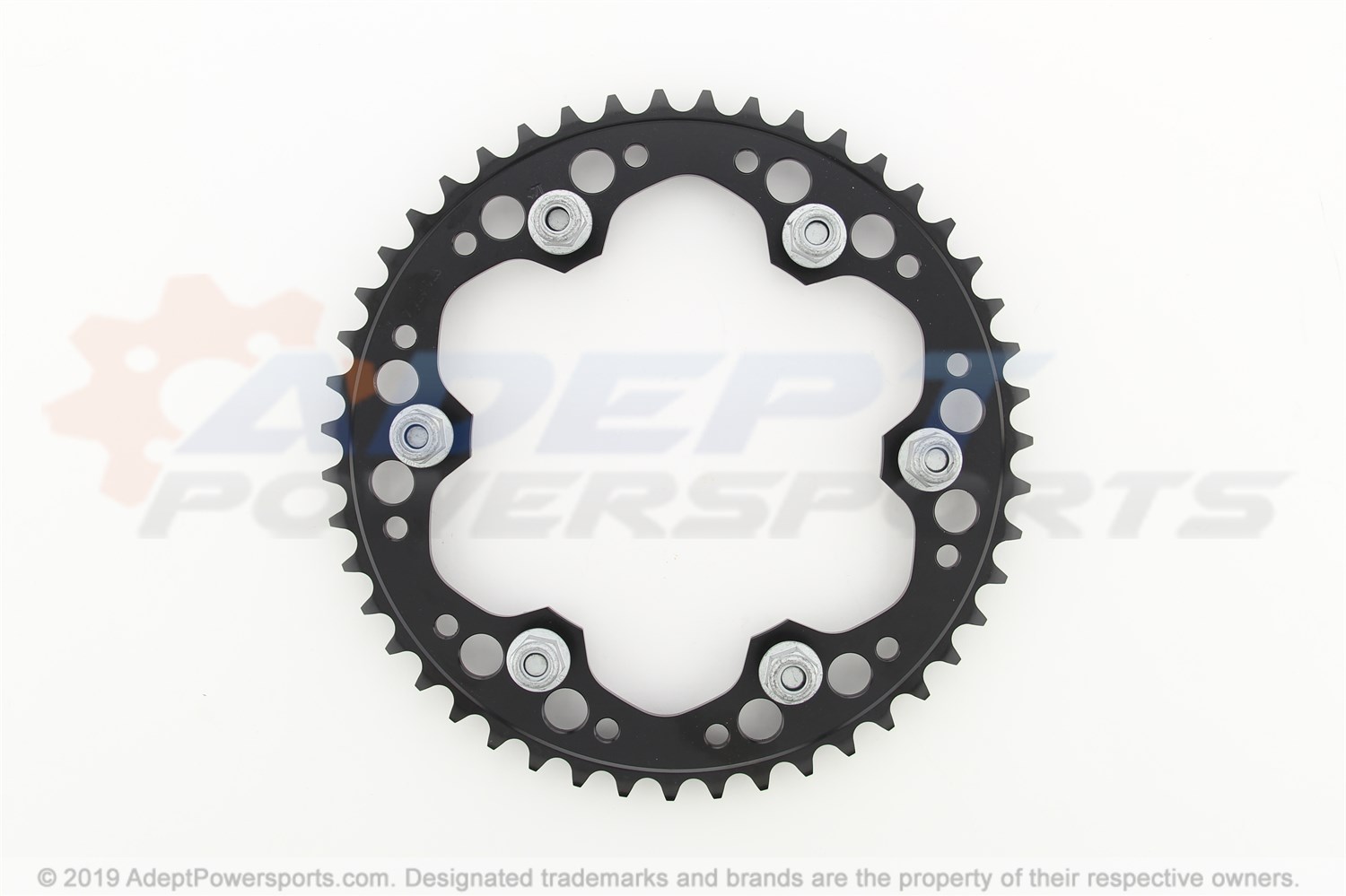

03	SET: SPROCKET WHEEL SET - Z=47; M10 Part #: 27717726486 Required per assembly: 1 Currently Not Available

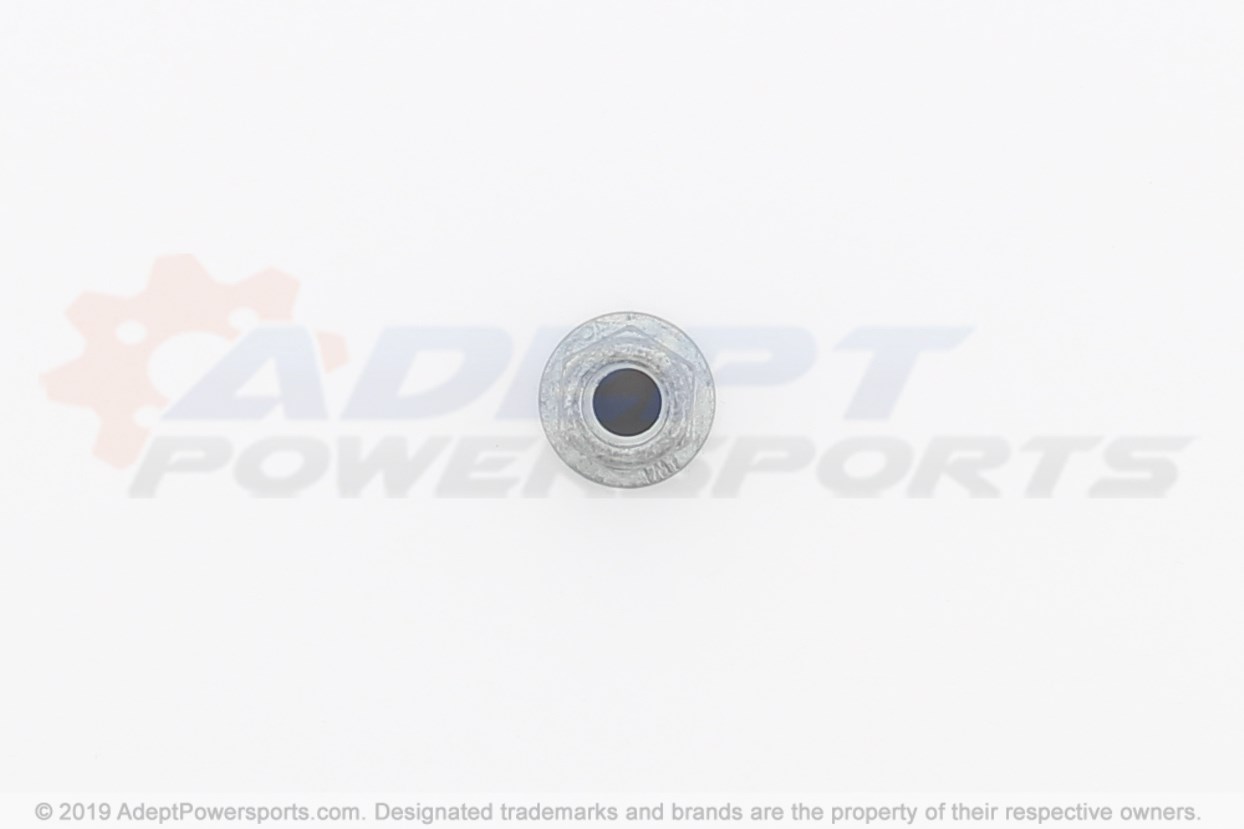

04	FLANGE NUT - M10 Part #: 22116779973 Required per assembly: 6 Currently Not Available
05	WASHER Part #: 07119907114 Required per assembly: 6 Currently Not Available
06	HEX BOLT - M10X30-8.8-ZNS3 Part #: 07119902912 Required per assembly: 6 Currently Not Available
07	CHAIN RAIL, SWING ARM Part #: 27727717869 Required per assembly: 1 Not Available
08	FIXING PIECE, CHAIN GUIDE Part #: 27722345835 Required per assembly: 2 Currently Not Available
09	ISA SCREW - M5X12 Part #: 07129904849 Required per assembly: 2 Note: INCLUDES ADAPTER CABLE FOR HEADLIGHTS Currently Not Available
10	SOUND ABSORBER - 135X15X3 Part #: 27728529962 Required per assembly: 2 Not Available
11	CHAIN GUARD Part #: 27727719609 Required per assembly: 1 Note: RIGHT Not Available
12	DIAPHRAGM SPRING - 34X16,3X1,5 Part #: 27717699376 Required per assembly: 1 Currently Not Available
13	COLLAR BUSH Part #: 23007699377 Required per assembly: 1 Currently Not Available
14	SCREW - M10X35 Part #: 27717699375 Required per assembly: 1 Currently Not Available
15	NOTICE LABEL, CHAIN TENSION - 30-40MM Part #: 71227715482 Required per assembly: 1 Note: NOT FOR VEHICLES WITH LOWERING (CODE: X499A) Currently Not Available
--	SET: SPROCKET WHEEL SET - Z=47; M10 Part #: 27717726486 Required per assembly: 1 Currently Not Available
--	SPROCKET - Z=20 Part #: 27727722179 Required per assembly: 1 Note: ONLY IN CONJUNCTION WITH Currently Not Available
