07 - Drive System, Front replacement parts for 2005 Can Am Outlander 400 STD

OEM Parts Can Am 2005 Can Am Outlander 400 STD 07 - Drive System, Front

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	AXLE-DRIVE (INCLUDES 1 TO 2B) Part #: 705400912 Required per assembly: 1 Note: Includes 1 to 5 Currently Not Available
3	RUBBER BOOT Part #: 715900118 Required per assembly: 2 Note: Clamps 293650138 & 509000529 sold separately Currently Not Available
4	RUBBER BOOT Part #: 715900118 Required per assembly: 2 Note: Clamps 293650138 & 509000529 sold separately Currently Not Available
5	OETIKER GEAR CLAMP Part #: 293650138 Required per assembly: 2 Currently Not Available
6	FRONT BUSHING SHAFT KIT. Part #: 703500678 Required per assembly: 1 Currently Not Available
7	WEAR RING Part #: 705400036 Required per assembly: 1 Currently Not Available
8	FRONT DIFFERENTIAL ASSEMBLY. 4X4 Part #: 705400260 Required per assembly: 1 Note: Includes 8 to 30 Currently Not Available
9	OIL SEAL Part #: 705401481 Required per assembly: 1 Currently Not Available
10	NUT Part #: 705400661 Required per assembly: 1 Currently Not Available
11	BALL BEARING Part #: 705500260 Required per assembly: 1 Currently Not Available
13	NEEDLE BEARING Part #: 705500261 Required per assembly: 1 Currently Not Available
14	BALL BEARING Part #: 705401606 Required per assembly: 2 Currently Not Available
15	BALL BEARING Part #: 293350044 Required per assembly: 2 Currently Not Available
16	DIFFERENTIAL KIT Part #: 703500871 Required per assembly: 1 Currently Not Available
17	GEAR (36 TEETH) Part #: 705400192 Required per assembly: 1 Currently Not Available
18	RING GEAR SCREW Part #: 705400101 Required per assembly: 8 Currently Not Available
19	SCREW Part #: 705500892 Required per assembly: 6 Currently Not Available
20	DIFFERENTIAL CAP Part #: 705400133 Required per assembly: 1 Currently Not Available
21	SEAL Part #: 705500265 Required per assembly: 1 Currently Not Available
22	DIFFERENTIAL CARRIER. STD 4 X 4, XT 4 X 4 Part #: 705400261 Required per assembly: 1 Currently Not Available
23	VENT VALVE Part #: 705500893 Required per assembly: 1 Currently Not Available
24	SHIM Part #: 705401604 Required per assembly: 1 Currently Not Available
25	DRAIN PLUG Part #: 705500894 Required per assembly: 1 Currently Not Available
26	OIL SEAL Part #: 293250137 Required per assembly: 2 Currently Not Available
27	RETAINING RING Part #: 705500269 Required per assembly: 1 Currently Not Available
28	O-RING Part #: 705500267 Required per assembly: 1 Currently Not Available
29	OIL SEAL Part #: 705401618 Required per assembly: 2 Note: Sold in multiples of 2 only Currently Not Available
30	CLAMP Part #: 705600311 Required per assembly: 1 Currently Not Available
31	LOCTITE 243, 10 ML Part #: 293800060 Required per assembly: 1 Currently Not Available
32	FILL LEVEL PLUG. STD 4 X 4, XT 4 X 4 Part #: 705500504 Required per assembly: 1 Currently Not Available
33	COPPER WASHER. STD 4 X 4, XT 4 X 4 Part #: 705500506 Required per assembly: 1 $1.26 $0.79 - + Add to cart
34	RH CV JOINT. 4X4 Part #: 705400349 Required per assembly: 1 Note: Includes 34 to 43 Currently Not Available
35	CV JOINT Part #: 705400154 Required per assembly: 1 Currently Not Available
36	WHEEL BOOT KIT Part #: 705400127 Required per assembly: 1 Note: Includes 48 to 50 Currently Not Available
37	CLAMP-BTB Part #: 705400064 Required per assembly: 1 Currently Not Available
38	CLAMP (BIG) Part #: 705400180 Required per assembly: 1 Currently Not Available
39	KIT-BOOT DIFF. Part #: 705400126 Required per assembly: 1 Note: Includes 51 to 53 Currently Not Available
40	CLAMP-BTB Part #: 705400064 Required per assembly: 2 Currently Not Available
41	CLAMP (BIG) Part #: 705400181 Required per assembly: 2 Currently Not Available
42	PLUNGING JOINT Part #: 705400156 Required per assembly: 1 Currently Not Available
43	CIRCLIP Part #: 705400042 Required per assembly: 1 Currently Not Available
44	SHAFT STUB. 2X4 Part #: 705400361 Required per assembly: 2 Currently Not Available

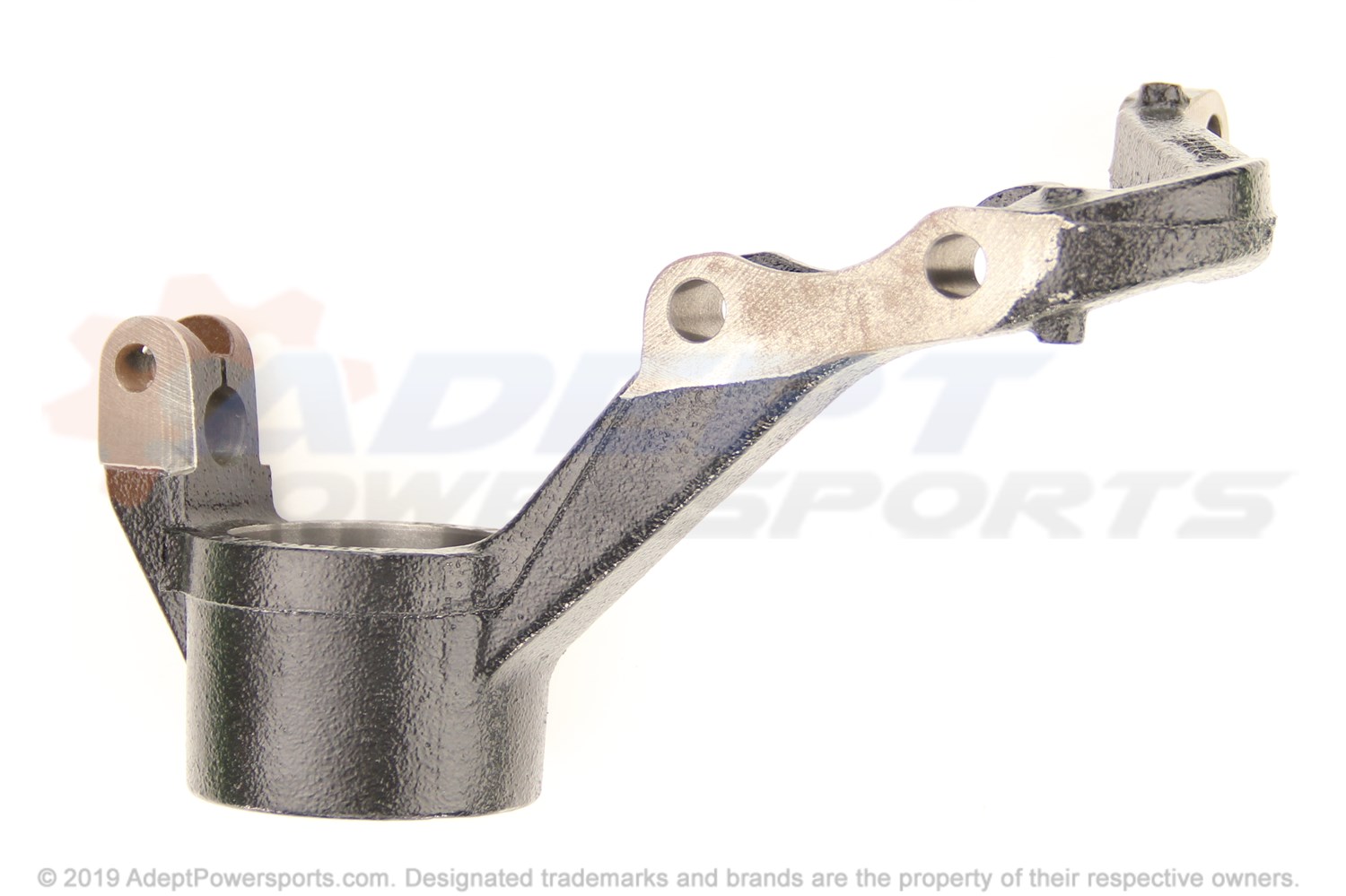

45	R.H. KNUCKLE. STD 2 X 4 Part #: 709400184 Required per assembly: 1 Currently Not Available
45	L.H. KNUCKLE. STD 2 X 4 Part #: 709400182 Required per assembly: 1 Currently Not Available
45	RH KNUCKLE Part #: 709400133 Required per assembly: 1 Currently Not Available
45	LH KNUCKLE Part #: 709400132 Required per assembly: 1 Currently Not Available
46	LH CV JOINT. 4X4 Part #: 705400350 Required per assembly: 1 Note: Includes 46 to 55 Currently Not Available
47	CV JOINT Part #: 705400154 Required per assembly: 1 Currently Not Available
48	WHEEL BOOT KIT Part #: 705400127 Required per assembly: 1 Note: Includes 48 to 50 Currently Not Available
49	CLAMP-BTB Part #: 705400064 Required per assembly: 1 Currently Not Available
50	CLAMP (BIG) Part #: 705400180 Required per assembly: 1 Currently Not Available
51	KIT-BOOT DIFF. Part #: 705400126 Required per assembly: 1 Note: Includes 51 to 53 Currently Not Available
52	CLAMP-BTB Part #: 705400064 Required per assembly: 2 Currently Not Available
53	CLAMP (BIG) Part #: 705400181 Required per assembly: 2 Currently Not Available
54	PLUNGING JOINT Part #: 705400155 Required per assembly: 1 Currently Not Available
55	CIRCLIP Part #: 705400042 Required per assembly: 1 Currently Not Available
56	COVER. STD 2 X 4 Part #: 705400187 Required per assembly: 2 Currently Not Available
57	BALL BEARING Part #: 293350126 Required per assembly: 2 Currently Not Available
58	OETIKER GEAR CLAMP Part #: 293650138 Required per assembly: 2 Currently Not Available
59	CIRCLIP Part #: 293370019 Required per assembly: 2 $4.99 $3.45 - + Add to cart
60	HEX. FLANGED SCREW M10 X 125 Part #: 230602546 Required per assembly: 2 Currently Not Available
61	HEX. FLANGED ELASTIC NUT M10 Part #: 233201436 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
62	EXTERNAL WEAR SLEEVE Part #: 705501122 Required per assembly: 2 Currently Not Available
62	WEAR SLEEVE Part #: 705501121 Required per assembly: 2 Currently Not Available
63	WHEEL HUB ASSEMBLY Part #: 705401040 Required per assembly: 2 Note: Includes 63 to 64 Currently Not Available
64	WHEEL STUD M10 X 1.25 Part #: 250300055 Required per assembly: 4 Currently Not Available
65	WHEEL HUB ASSEMBLY Part #: 705501713 Required per assembly: 2 Note: Includes 65 to 66 Currently Not Available
66	WHEEL STUD M10 X 1.25 Part #: 250300055 Required per assembly: 4 Currently Not Available
67	CONICAL SPRING WASHER M18 Part #: 250200171 Required per assembly: 2 Note: Sold in multiples of 5 only Currently Not Available
68	HEX. CASTELLATED NUT M18 Part #: 232291413 Required per assembly: 2 Currently Not Available
69	COTTER PIN Part #: 250400036 Required per assembly: 2 $1.72 $1.40 - + Add to cart
70	RUBBER BELLOW Part #: 705400352 Required per assembly: 1 Currently Not Available
71	TIE-RAP 94 MM Part #: 293750001 Required per assembly: 1 Note: Sold in multiples of 50 only Currently Not Available
72	WHEEL CAP Part #: 705400012 Required per assembly: 2 Currently Not Available
73	FRONT TIRE Part #: 705400213 Required per assembly: 1 Currently Not Available
74	FRONT RIM. BLACK, STD 4 X 4, XT 4 X 4 Part #: 705400243 Required per assembly: 1 Currently Not Available
74	FRONT RIM. OUTLANDER STD & XT Part #: 705400355 Required per assembly: 1 Currently Not Available
75	RIM VALVE WITH CAP. PACKAGE-XRSDPS WHITE Part #: 705400193 Required per assembly: 1 Currently Not Available
76	STEEL WHEEL NUT Part #: 250100042 Required per assembly: 8 Note: Sold in multiples of 4 only Currently Not Available
77	SEAL Part #: 293250090 Required per assembly: 2 Currently Not Available
78	WEAR SLEEVE Part #: 705400179 Required per assembly: 2 Currently Not Available
79	FLAT WASHER M10 Part #: 250200014 Required per assembly: 1 $1.23 $1.00 - + Add to cart
80	HEX. FLANGED SCREW M10 X 16 (SCOTCH GRIP) Part #: 250000060 Required per assembly: 1 Note: Sold in multiples of 3 only Currently Not Available
81	SYNTHETIC JET PUMP OIL Part #: 293600011 Required per assembly: 1 Note: Sold in multiples of 12 only Currently Not Available
82	SYNTHETIC GREASE, 400 G Part #: 293550010 Required per assembly: 1 Currently Not Available
84	HOUSING Part #: 705400169 Required per assembly: 1 Currently Not Available
85	ACTUATOR KIT Part #: 703500506 Required per assembly: 1 Note: Includes 85 to 88 Currently Not Available
86	FORK. STD 4 X 4, XT 4 X 4 Part #: 705400274 Required per assembly: 1 Currently Not Available
87	CIRCLIP Part #: 293370042 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
88	O-RING. STD 4 X 4, XT 4 X 4 Part #: 293300108 Required per assembly: 1 Currently Not Available
89	HEX FLANGED SCREW M8 X 20 (SCOTCH GRIP) Part #: 250000137 Required per assembly: 3 Currently Not Available
90	UNION SHAFT Part #: 705400917 Required per assembly: 1 Currently Not Available
91	PRESSURE SCREW M8 X 8 Part #: 206580890 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
92	DOWELL-PIN Part #: 250400025 Required per assembly: 1 Note: Sold in multiples of 10 only Currently Not Available
93	BALL BEARING Part #: 705400249 Required per assembly: 1 Currently Not Available
94	SLIDER Part #: 705402139 Required per assembly: 1 Currently Not Available
95	CIRCLIP Part #: 293370029 Required per assembly: 1 Currently Not Available
96	CIRCLIP Part #: 293370030 Required per assembly: 1 Currently Not Available
97	SWITCH Part #: 710000324 Required per assembly: 1 Currently Not Available
98	COUPLING SLEEVE. 4X4 Part #: 705400389 Required per assembly: 1 Currently Not Available
99	OIL SEAL Part #: 293250138 Required per assembly: 1 Currently Not Available
100	SHIFTER LEVER PLATE Part #: 705401553 Required per assembly: 1 Currently Not Available
101	COPPER WASHER Part #: 705601628 Required per assembly: 1 $2.58 $2.09 - + Add to cart
102	COVER. STD 2 X 4, STD 4 X 4 Part #: 705400186 Required per assembly: 1 Currently Not Available
103	SOCKET HEAD SCREW M8 X 20 (SCOTCH GRIP) Part #: 250000136 Required per assembly: 3 Currently Not Available
104	O-RING Part #: 293300091 Required per assembly: 1 Currently Not Available
