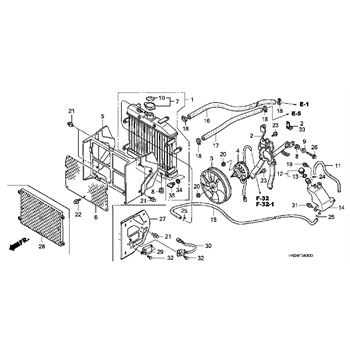

Radiator replacement parts for 2005 Honda FOURTRAX FOREMAN RUBICON (TRX500FA)

OEM Parts Honda 2005 Honda FOURTRAX FOREMAN RUBICON (TRX500FA) Radiator

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	RADIATOR Part #: 19010-HN2-A21 Required per assembly: 1 $253.86 $245.01 - + Add to cart
002	STAY, COOLING, FAN Part #: 19015-HN2-A21 Required per assembly: 1 $32.11 $29.19 - + Add to cart
003	FAN, COOLING Part #: 19020-HN2-003 Required per assembly: 1 $79.78 $66.53 - + Add to cart
004	MOTOR, ASSEMBLY, FAN Part #: 19030-HN2-A21 Required per assembly: 1 $122.60 $115.43 - + Add to cart
007	CAP, RADIATOR Part #: 19037-GEE-710 Required per assembly: 1 $35.08 $29.26 - + Add to cart
008	RUBBER Part #: 19051-KA3-830 Required per assembly: 3 $4.64 $4.22 - + Add to cart
009	COLLAR Part #: 19052-MGH-640 Required per assembly: 3 $3.51 $3.19 - + Add to cart
010	LABEL, RADIATOR, CAP Part #: 19046-PAA-A00 Required per assembly: 1 $4.36 $3.96 - + Add to cart
011	TUBE, BREATHER Part #: 19104-HN2-000 Required per assembly: 1 $5.33 $5.27 - + Add to cart
012	CAP, RESERVE, TANK Part #: 19105-MG8-000 Required per assembly: 1 $13.60 $12.15 - + Add to cart
013	GASKET, RESERVE, TANK Part #: 19107-MG8-000 Required per assembly: 1 $5.49 $5.42 - + Add to cart
014	TK, RADIATOR, RESERVE Part #: 19110-HN2-000 Required per assembly: 1 $26.60 $22.01 - + Add to cart
015	TUBE Part #: 19111-HN2-A20 Required per assembly: 1 $3.99 - + Add to cart
016	HOSE, WATER, (UPPER) Part #: 19501-HN2-A20 Required per assembly: 1 $13.29 $11.41 - + Add to cart
017	HOSE, WATER, (LOWER) Part #: 19502-HN2-000 Required per assembly: 1 $27.11 - + Add to cart
018	CLAMP (22-29MM) Part #: 19517-ML7-691 Required per assembly: 2 $13.47 $11.24 - + Add to cart
019	BOLT, FLANGE, (6MM) Part #: 90111-162-000 Required per assembly: 2 $3.91 $3.55 - + Add to cart
020	NUT, SERRATE, (5MM) Part #: 90315-MK3-003 Required per assembly: 4 $3.29 $3.06 - + Add to cart
021	CLIP Part #: 90684-MBG-003 Required per assembly: 2 $4.10 $3.73 - + Add to cart
023	BOLT-WASHER (6X12) Part #: 93401-06012-08 Required per assembly: 4 $2.63 $2.44 - + Add to cart
024	CLIP, TUBE, (B10) Part #: 95002-02100 Required per assembly: 3 $2.88 $2.68 - + Add to cart
025	CLIP, TUBE, (C9) Part #: 95002-50000 Required per assembly: 1 $2.32 $2.15 - + Add to cart
026	BOLT, FLANGE, (6X22) Part #: 95701-06022-00 Required per assembly: 2 $2.79 $2.54 - + Add to cart
027	COVER, RADIATOR, GRILLE Part #: 19033-HN2-A20 Required per assembly: 2 $10.91 $9.42 - + Add to cart
028	PLATE Part #: 19034-HN2-A20 Required per assembly: 1 $15.64 $13.09 - + Add to cart
029	COVER, THERMO, SWITCH Part #: 19036-HN8-000 Required per assembly: 1 $6.78 $6.05 - + Add to cart
030	SWITCH, THERMOSTAT Part #: 35250-HN4-670 Required per assembly: 1 $55.73 $46.47 - + Add to cart
031	CLIP, SPLASH, GUARD, (EACH) Part #: 90653-HC4-900 Required per assembly: 31 $1.67 $1.52 - + Add to cart
032	CLIP, WASHER, MOUTH Part #: 91504-SD5-901 Required per assembly: 1 $5.26 $5.15 - + Add to cart
033	CLIP, CONNECTOR Part #: 91565-SEL-003 Required per assembly: 1 $5.39 $4.90 - + Add to cart
034	SEAL, GASKET Part #: 19109-HN2-003 Required per assembly: 1 $2.79 $2.60 - + Add to cart
035	PETCOCK, DRAIN Part #: 90103-HN2-003 Required per assembly: 1 $2.81 $2.61 - + Add to cart
