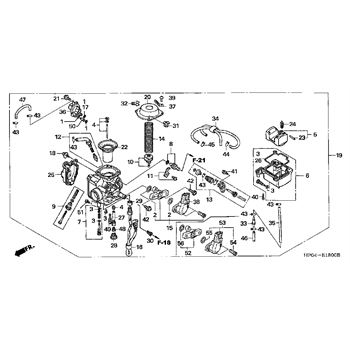

Carburetor replacement parts for 2005 Honda FOURTRAX FOREMAN (TRX500TM)

OEM Parts Honda 2005 Honda FOURTRAX FOREMAN (TRX500TM) Carburetor

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	GASKET SET C Part #: 16041-MZ5-600 Required per assembly: 1 $20.89 $17.41 - + Add to cart
002	GASKET SET Part #: 16010-HN2-003 Required per assembly: 1 $7.44 $6.52 - + Add to cart
003	GASKET SET Part #: 16010-HN7-003 Required per assembly: 1 $20.24 $16.88 - + Add to cart
004	NEEDLE, SET, JET Part #: 16012-HP0-A01 Required per assembly: 1 $23.73 $18.92 - + Add to cart
005	FLOAT SET Part #: 16013-HN8-003 Required per assembly: 1 $45.60 $38.02 - + Add to cart
006	CHAMBER, SET, FLOAT Part #: 16015-HP0-A01 Required per assembly: 1 $44.55 $37.66 - + Add to cart
007	SCREW SET Part #: 16016-HP0-A01 Required per assembly: 1 $24.20 $20.31 - + Add to cart
008	JOINT SET Part #: 16026-MR1-004 Required per assembly: 1 $47.56 $39.66 - + Add to cart
009	SCREW SET Part #: 16028-HP0-A01 Required per assembly: 1 $20.71 $19.50 - + Add to cart
010	PLATE, SET, VALVE Part #: 16037-HN2-003 Required per assembly: 1 $20.96 $17.47 - + Add to cart
011	PLATE, SET, STAY Part #: 16038-HN8-003 Required per assembly: 1 $7.02 $6.38 - + Add to cart
012	VALVE, STARTER Part #: 16046-HN2-003 Required per assembly: 1 $55.29 $53.62 - + Add to cart
013	PUMP SET Part #: 16048-HN7-003 Required per assembly: 1 $101.61 $84.72 - + Add to cart
014	SPRING Part #: 16050-HP0-A01 Required per assembly: 1 $10.73 $9.53 - + Add to cart
015	SPACER SET Part #: 16060-HP0-A02 Required per assembly: 1 $34.78 $29.39 - + Add to cart
016	HEATER ASSEMBLY Part #: 16070-HP0-A01 Required per assembly: 1 $72.07 $58.33 - + Add to cart
017	O-RING (1.3X4.3) Part #: 16075-GHB-640 Required per assembly: 1 $3.94 $3.58 - + Add to cart
018	SCREW-WASHER Part #: 16080-HC0-003 Required per assembly: 1 $5.53 $5.03 - + Add to cart
019	CARBURETOR ASSY Part #: 16100-HP0-A04 Required per assembly: 1 $730.38 $582.48 - + Add to cart
020	TOP Part #: 16107-HN2-003 Required per assembly: 1 $38.99 $31.57 - + Add to cart
021	SCREW Part #: 16108-MW0-750 Required per assembly: 1 $3.22 - + Add to cart
022	PISTON, VACUUM Part #: 16111-HN2-003 Required per assembly: 1 $124.36 $120.61 - + Add to cart
023	PIN, ARM Part #: 16152-HN8-003 Required per assembly: 1 $5.47 $4.97 - + Add to cart
024	VALVE, FLOAT Part #: 16155-HN7-003 Required per assembly: 1 $33.48 $27.91 - + Add to cart
025	COVER, BODY Part #: 16157-HN8-003 Required per assembly: 1 $31.56 $26.58 - + Add to cart
026	GASKET, FLOAT, CHAMBER Part #: 16163-MEA-671 Required per assembly: 1 $26.85 $22.39 - + Add to cart
027	HOLDER, NEEDLE, JET Part #: 16165-HN2-003 Required per assembly: 1 $28.72 $26.90 - + Add to cart
028	HOLDER, JET Part #: 16168-HC4-003 Required per assembly: 1 $14.19 $10.21 - + Add to cart
029	COLLAR, SETTING Part #: 16172-KEB-610 Required per assembly: 1 $4.20 - + Add to cart
030	SCREEN Part #: 16176-MW3-A80 Required per assembly: 1 $8.19 $7.14 - + Add to cart
031	BINDER Part #: 16178-HP0-A01 Required per assembly: 1 $3.21 $2.99 - + Add to cart
032	BINDER Part #: 16179-HP0-A01 Required per assembly: 1 $3.21 $2.99 - + Add to cart
033	VALVE, ONE-WAY Part #: 16180-HC4-003 Required per assembly: 1 $20.89 $17.41 - + Add to cart
034	TUBE, AIR, VENT Part #: 16196-HP0-A01 Required per assembly: 1 $9.76 $8.63 - + Add to cart
035	TUBE Part #: 16198-HP0-A01 Required per assembly: 1 $3.51 - + Add to cart
036	VALVE, ASSEMBLY, AIR, CUT Part #: 16510-MBW-601 Required per assembly: 1 $135.36 $112.85 - + Add to cart
037	CLIP, PLATE Part #: 17191-MT2-740 Required per assembly: 1 $4.28 - + Add to cart
038	SENSOR, ASSY, THROT Part #: 37890-H09-J02 Required per assembly: 1 $180.04 $150.12 - + Add to cart
039	SCREW, PAN, (4X8) Part #: 93500-04008-0H Required per assembly: 4 $1.95 $1.80 - + Add to cart
040	SCREW, PAN, (4X14) Part #: 93500-04014-0H Required per assembly: 4 $1.87 $1.70 - + Add to cart
041	SCREW-WASHER (4X12) Part #: 93892-04012-08 Required per assembly: 2 $1.71 $1.57 - + Add to cart
042	SCREW-WASHER (5X14) Part #: 93892-05014-08 Required per assembly: 2 $2.13 $1.97 - + Add to cart
043	CLIP, TUBE, (B7) Part #: 95002-02079 Required per assembly: 1 $2.22 $2.06 - + Add to cart
044	CLIP, TUBE, (B8) Part #: 95002-02089 Required per assembly: 2 $2.07 $1.91 - + Add to cart
045	CLIP, TUBE, (B6.5) Part #: 95002-02659 Required per assembly: 1 $2.13 $1.97 - + Add to cart
046	BULK HOSE (3.5X1000) Part #: 95005-35001-20M Required per assembly: 1 $14.08 $12.80 - + Add to cart
047	BULK HOSE (3.5X1000) Part #: 95005-35001-20M Required per assembly: 1 $14.08 $12.80 - + Add to cart
048	JET, MAIN, (#162) Part #: 99101-HP0-1620 Required per assembly: 1 $8.84 $8.00 - + Add to cart
048	JET, MAIN, (#158) Part #: 99101-HN2-1580 $12.51 $10.43 - + Add to cart
048	JET, MAIN, (#120) Part #: 99101-MBZ-1200 $10.56 $9.06 - + Add to cart
049	JET, SLOW, #45 Part #: 99104-KPF-0450 Required per assembly: 1 $13.75 $11.46 - + Add to cart
050	JET (#170) Part #: 99108-HP0-1700 Required per assembly: 1 Not Available
051	JET (#60) Part #: 99112-HP0-0600 Required per assembly: 1 $5.18 - + Add to cart
053	SENSOR, SET, THROTTLE Part #: 16061-HP0-A02 Required per assembly: 1 $256.09 $216.96 - + Add to cart
054	BOLT, BREAK, HEAD Part #: 16083-HP0-A01 Required per assembly: 2 $6.25 $5.62 - + Add to cart
055	O-RING Part #: 16075-HN2-A21 Required per assembly: 1 $3.74 - + Add to cart
056	O-RING (14.8X1.9) Part #: 91304-PT0-000 Required per assembly: 1 $5.01 $4.55 - + Add to cart
