Footwells - A05jd50aa/Ab/Ac replacement parts for 2005 Polaris ATP 500 4X4 (A05JD50AA)

OEM Parts Polaris 2005 Polaris ATP 500 4X4 (A05JD50AA) Footwells - A05jd50aa/Ab/Ac

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

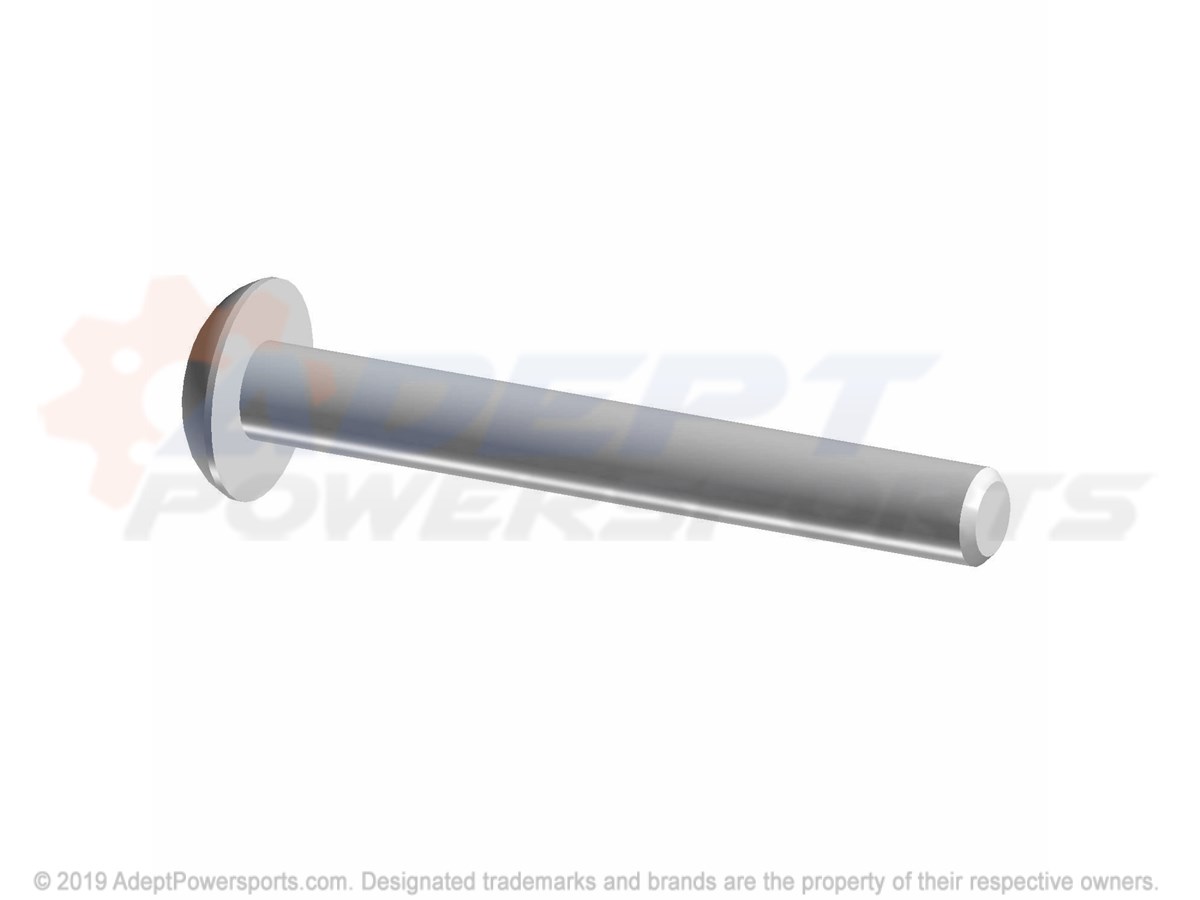

1	SCREW Part #: 7517264 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
2	SCREW Part #: 7511989 Required per assembly: 2 Currently Not Available
3	WASHER Part #: 7555792 Required per assembly: 2 Currently Not Available
4	NUT Part #: 7541925 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart

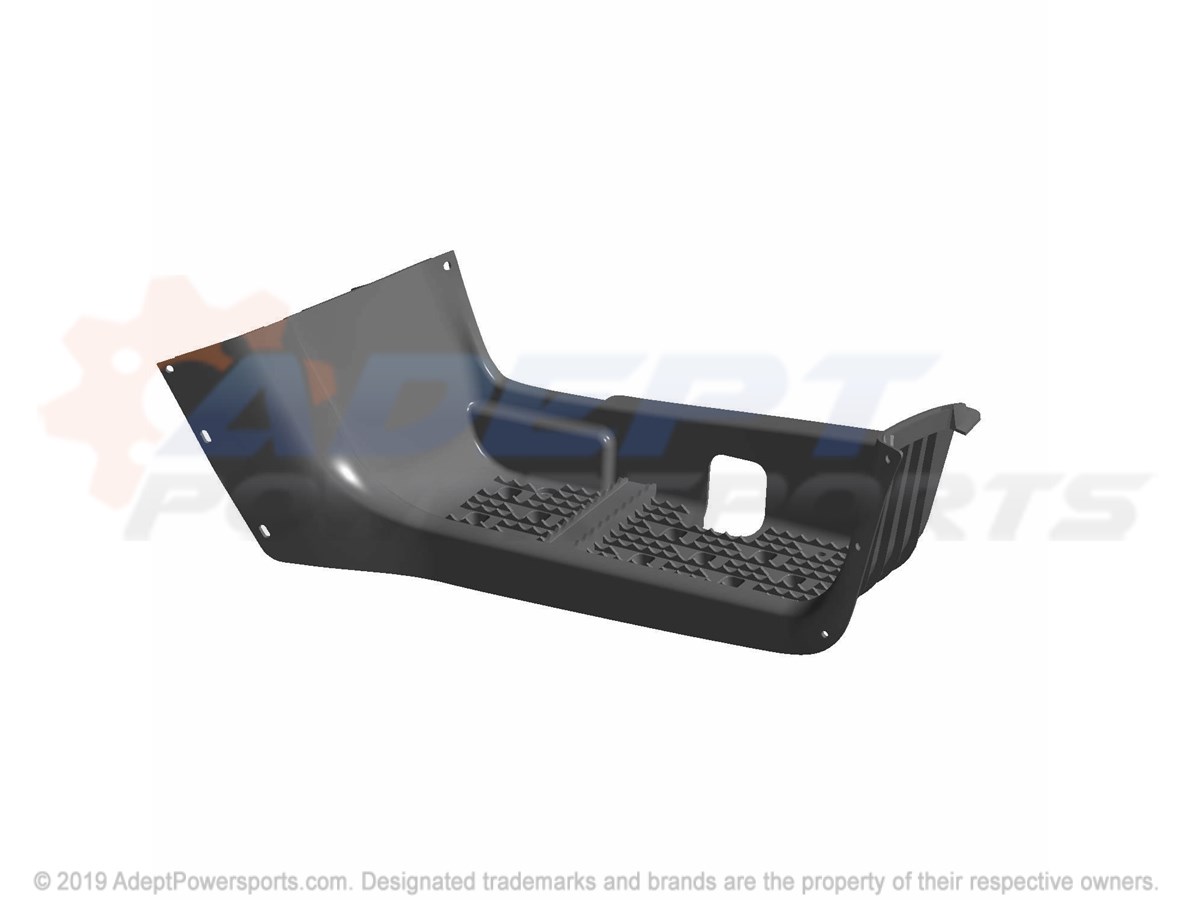

5	FOOTWELL, RH Part #: 5434792-070 Required per assembly: 1 Note: Footwell, Black, RH Currently Not Available

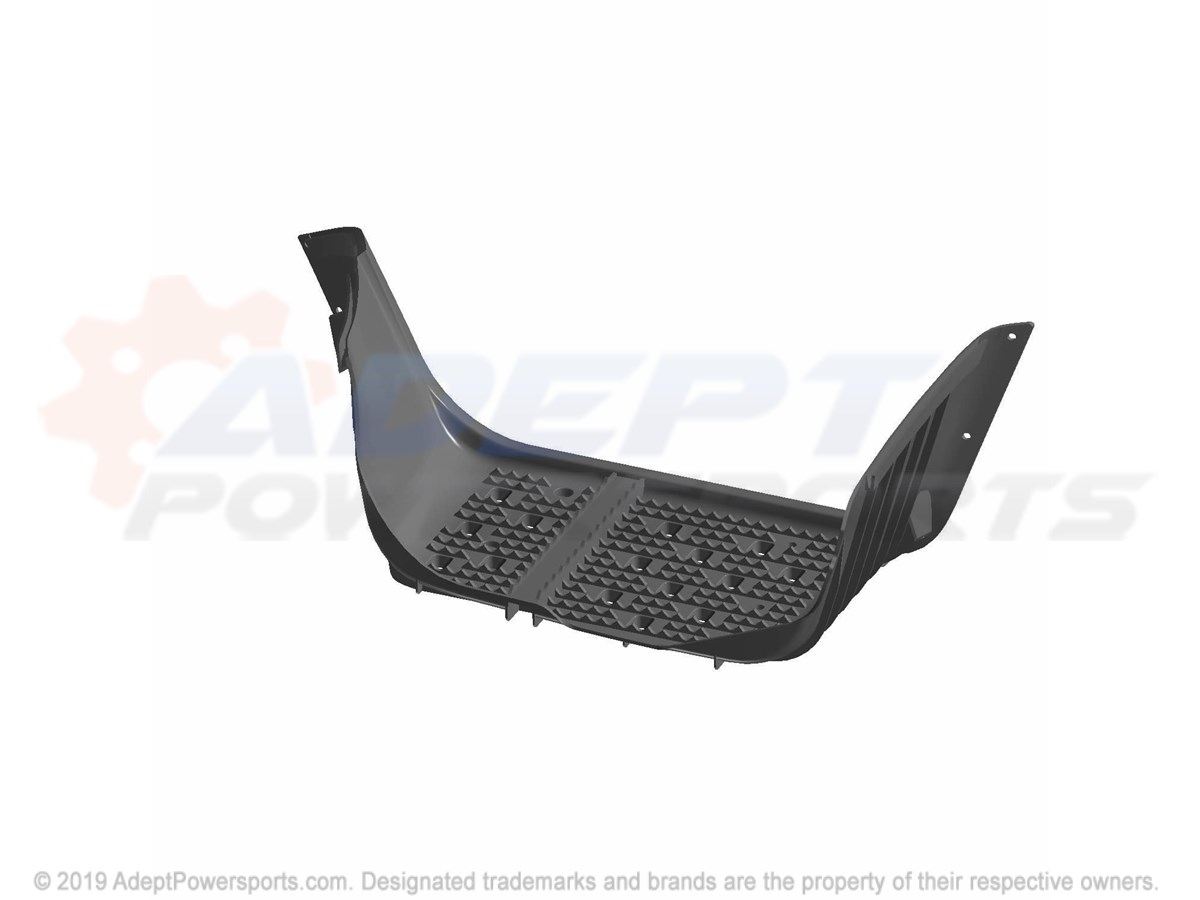

5	FOOTWELL, LH Part #: 5434791-070 Required per assembly: 1 Note: Footwell, Black, LH Currently Not Available
6	NUT-LOCK Part #: 7542122 Required per assembly: 8 Currently Not Available
7	WASHER, FLAT Part #: 7555859 Required per assembly: 8 Note: Washer, Flat ~~$2.99~~ $1.73 - + Add to cart
8	GROMMET FOOTPAD Part #: 5412156 Required per assembly: 8 Note: Grommet Currently Not Available
9	SCREW Part #: 7518245 Required per assembly: 8 Currently Not Available
10	NUT Part #: 7542153 Required per assembly: 2 Note: Nut, Flanged, Nylok ~~$3.47~~ $2.30 - + Add to cart
11	WASHER, FLAT Part #: 7555859 Required per assembly: 2 Note: Washer, Flat ~~$2.99~~ $1.73 - + Add to cart
